Third ruptured fuel line
Registered User
Joined: Jul 2011
Posts: 474
From: Orange County, CA
Rep Power: 49

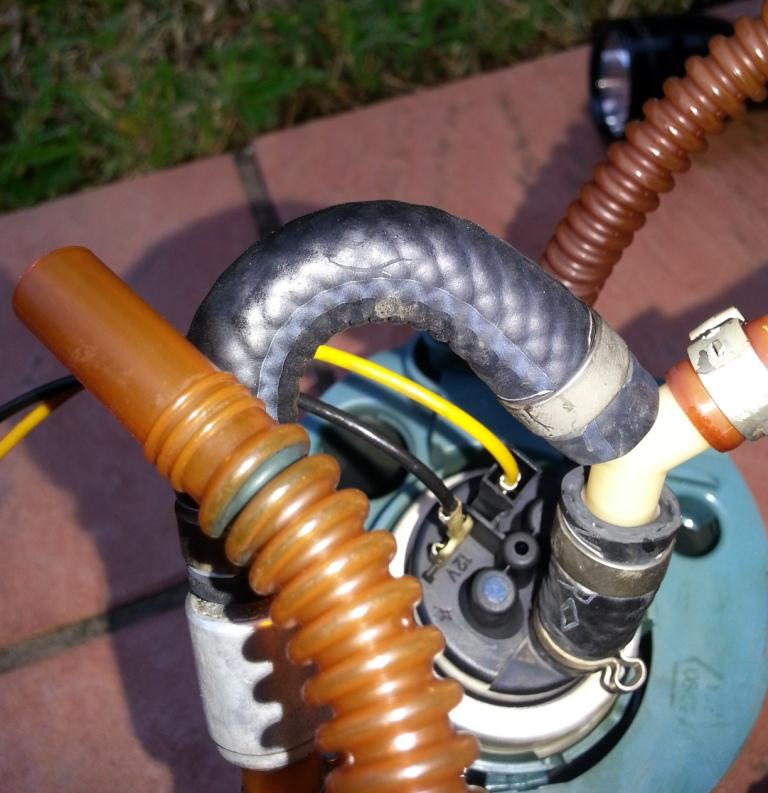

The loop hose was probably recently modified by Porsche with a new pump part number. 99662010700 replaced by 99662010702 which, I guess, replace the rubber loop hose with a plastic one (see pic). But this site http://www.porscheturbokit.com/porsc...l-problems.asp does not mention 2005, but I have doubt that the 2005 were already modified.... I should mention that I purchase a pump assembly in 2009 and the U hose was in rubber.....
Registered User
Joined: Apr 2007
Posts: 3,633
From: Maryland
Rep Power: 277
The loop hose was probably recently modified by Porsche with a new pump part number. 99662010700 replaced by 99662010702 which, I guess, replace the rubber loop hose with a plastic one (see pic). But this site http://www.porscheturbokit.com/porsc...l-problems.asp does not mention 2005, but I have doubt that the 2005 were already modified.... I should mention that I purchase a pump assembly in 2009 and the U hose was in rubber.....
Last edited by landjet; Sep 27, 2012 at 07:28 AM.
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
Larry, I got a lots of spare parts and this one was on my list.... I got it from Ebay for $150.00 + shipping and realized the unit was not modified.( I was the only one who bid on it) It was brand new but probably purchase before they modified the loop hose. After having the part# from Wross for a new loop hose I order one on Ebay yesterday for $19.95 + shipping. So the pump will become a modified one
http://www.ebay.com/itm/GATES-27093-...eb0789&vxp=mtr
Most of the pump failure we saw in the last two years were cause by this U hose rupture. Not really a failure of the pump itself. The hose can be a good part to have in stock!
Last edited by jpflip; Sep 27, 2012 at 08:53 AM.
Registered User
Joined: Jul 2011
Posts: 474
From: Orange County, CA
Rep Power: 49
[QUOTE=jpflip;3650823]After having the part# from Wross for a new loop hose I order one on Ebay yesterday for $19.95 + shipping. So the pump will become a modified one
http://www.ebay.com/itm/GATES-27093-SUBMERSIBLE-FUEL-LINE-HOSE-ESPECIALLY-FOR-INTANK-FUEL-PUMP-UPGRADES-/140843353993?pt=Motors_Car_Truck_Parts_Accessories &hash=item20caeb0789&vxp=mtr
Jpflip - What hose clamps did you go with for the new hose? Thanks.
David
http://www.ebay.com/itm/GATES-27093-SUBMERSIBLE-FUEL-LINE-HOSE-ESPECIALLY-FOR-INTANK-FUEL-PUMP-UPGRADES-/140843353993?pt=Motors_Car_Truck_Parts_Accessories &hash=item20caeb0789&vxp=mtr
Jpflip - What hose clamps did you go with for the new hose? Thanks.
David
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
"Jpflip - What hose clamps did you go with for the new hose? Thanks.
David"
David, I am not there yet because I need the outside diameter of the hose to get the proper clamp. It does not have to be special but stainless steel is a must and not too much torque on the clamp because the attachment is only plastic. I will do my search when the hose is here and will give you the exact size I've used... HS type will be used. May be HS-6 (28/64 to 50/64 diameter and 1/2 width)
Note: Just found the hose cheaper on Amazon but they don't want to ship to Canada....
David"
David, I am not there yet because I need the outside diameter of the hose to get the proper clamp. It does not have to be special but stainless steel is a must and not too much torque on the clamp because the attachment is only plastic. I will do my search when the hose is here and will give you the exact size I've used... HS type will be used. May be HS-6 (28/64 to 50/64 diameter and 1/2 width)
Note: Just found the hose cheaper on Amazon but they don't want to ship to Canada....
Last edited by jpflip; Sep 27, 2012 at 10:14 AM.
