996 TT Water Pump Replacement DIY
#18
I did it quite easily with jack stands. You can see the jack in step #10 and I have a couple of jack stands under the frame on each side for safety (not visible).
#19
Nice job and thanks for the write-up. I am going to need to lower my engine a few inches soon for another job...you don't need to remove any trans mounts or anything? There is enough slack in the system to keep the trans bolted in place while lowering the engine?
Last edited by cburke996; 09-05-2013 at 09:05 AM.
#20
So I am buying the OEM pump/gasket for $400 and DIY. IT looks fairly straight forward but I am concerned about dropping the engine a few inches as described...any tips or other pitfalls to watch out for or torc spec on tightening everything back up?
Last edited by Cowtown10; 09-05-2013 at 02:57 PM.
#21
Step #10 shows exactly where to put the jack. I use a puck to minimize any effect on the finish on the engine casing. It is really not that hard, just be very careful when releasing pressure in the jack not to let the engine free-fall. You can loosen the nuts holding the top of the rear mount and practice moving the engine up and down 1/2 an inch if you want to perfect your technique before removing the nuts completely.
#22
Answered my own questions, lowest price was $1400 and the Pcar Dealership was $1200 just in labour plus the $500 pump.
So I am buying the OEM pump/gasket for $400 and DIY. IT looks fairly straight forward but I am concerned about dropping the engine a few inches as described...any tips or other pitfalls to watch out for or torc spec on tightening everything back up?
So I am buying the OEM pump/gasket for $400 and DIY. IT looks fairly straight forward but I am concerned about dropping the engine a few inches as described...any tips or other pitfalls to watch out for or torc spec on tightening everything back up?
#24
Any other while I'm in there things I should be looking at or thinking about swapping out?? I am going to replace the serp belt as well, the car doesn't run hot at all so not going to touch the thermostat...any thing else to consider?
#25
Got the old pump out. And as I suspected there are pieces of the impeller broken off. Should I flush the entire system? Or just top it off? There is Green coolant in the car now any recommendations on replacement coolant?

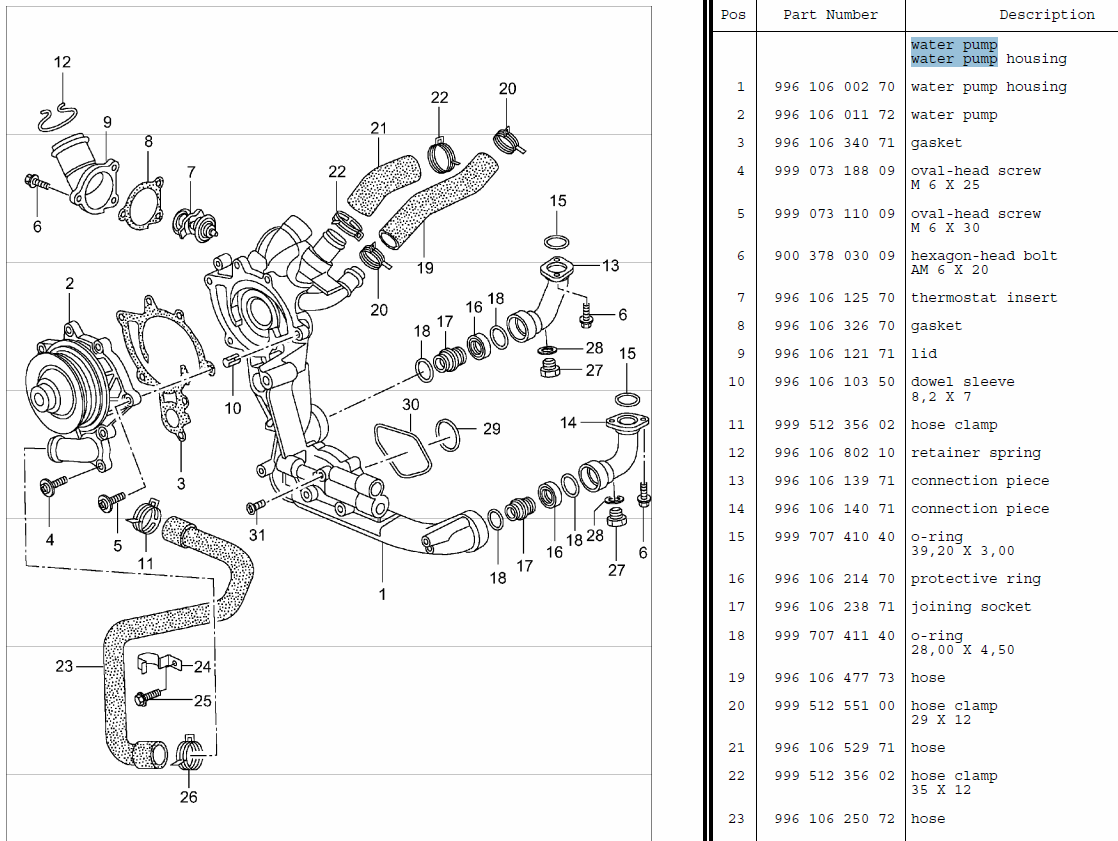

Does anyone have a schematic of the pump assembly? Or have a link to it. Of the 7 bolts securing the water pump to the engine 2 are different and I messed up the order so want to double check where the 2 odd ones go.
So far so good though.
Does anyone have a schematic of the pump assembly? Or have a link to it. Of the 7 bolts securing the water pump to the engine 2 are different and I messed up the order so want to double check where the 2 odd ones go.
So far so good though.
#27
New pump in and the car is back together. Thanks SLIDER great write up, easy DIY...
This should be my last question, there is green coolant in the car and it was just put in there after the coolant hoses were welded a few months ago.
Can I just top up the system with distilled water and get it to a shop to change out the coolant?
Changing it out my self sounds like a huge PITA
Thanks
This should be my last question, there is green coolant in the car and it was just put in there after the coolant hoses were welded a few months ago.
Can I just top up the system with distilled water and get it to a shop to change out the coolant?
Changing it out my self sounds like a huge PITA
Thanks
Last edited by Cowtown10; 09-16-2013 at 08:52 PM.
#28
If you have a specific gravity tester, you could test to see what temperature your coolant is good for and decide if adding water would still allow it to work for the winter you are expecting. If you coolant is green, it's not the stock Pentosin - it should be pink.
#29
The coolant is actually yellow not green, once I put it against a white background it is pale yellow, so I believe the OEM Mercedes coolant. Went to the Indi Porsche shop and he gave me a gallon to top up what I lost from doing the water pump
It'll be back on its feet tomorrow
It'll be back on its feet tomorrow
