So.. braided lines? Teflon inside or anything special? Any pics or parts list for fittings? More details please
OK just ordered the parts to fit turbo feed lines in braided, this is what you need.
4 X AN-4 to M12X1.5 adaptors
1 X 90 degree AN-4 Stainless fitting
3 X Straight AN-4 Stainless fitting
1 X AN-4 Stainless braided teflon hose 680mm
1 X AN-4 Stainless braided teflon hose 465mm
DEI Titanium heat wrap
The only ring I can see is #3 which is part number 99611121570. It says I need 2 but is that two in total or 2 per turbo (as you mentioned). If 2 per turbo do they go on top if each other? Thanks!
One small fire ring on manifold to turbo and one large one from turbo to CAT.
OK just ordered the parts to fit turbo feed lines in braided, this is what you need.
4 X AN-4 to M12X1.5 adaptors
1 X 90 degree AN-4 Stainless fitting
3 X Straight AN-4 Stainless fitting
1 X AN-4 Stainless braided teflon hose 680mm
1 X AN-4 Stainless braided teflon hose 465mm
DEI Titanium heat wrap
Curious - did you check to see if anyone makes a clutch or brake line that might come close to this and have crimped ends? I'm going to look around but it sounds like maybe one could be adapted? Not sure it would be cheaper but worth a shot perhaps! Which one needs the 90 degree fitting?

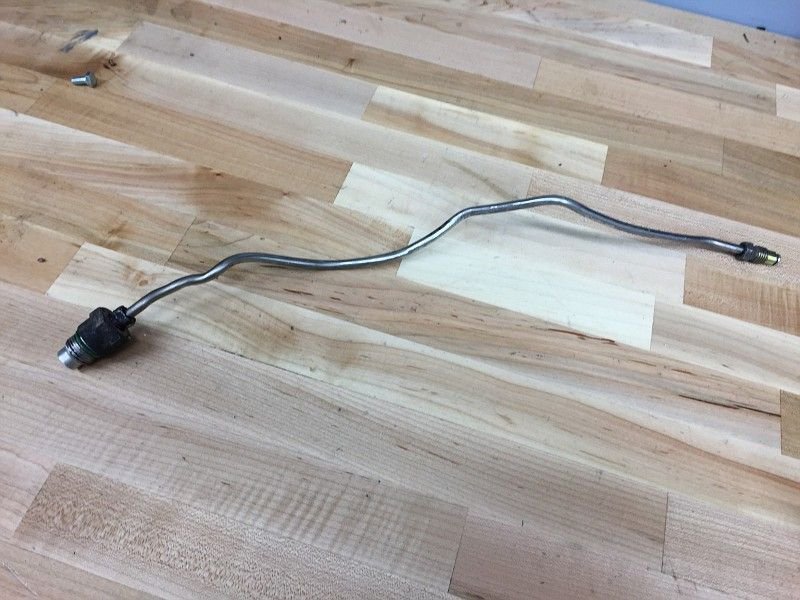

Ooh! Here's a long one and a short one! Short one with a 90 on the end!
The M12X1.5 4an adapters are proving hardest to obtain - these are often used as restrictors apparently. Anyone got a quality source for these?
