I've been trying to reach KO Motorsports to purchase a Flex Disc / driveshaft coupler / Guibo, no response.
http://www.koperformance.com/part-nu...539-005/O-E-M-
Has anybody been able to cross reference this part to another application like BMW, Alfa, VW, Mercedes, Dodge, etc. that could be ordered from a regular auto parts house?
Looks like there might be a fit in here somewhere:
http://www.dormanproducts.com/gsearc...tart=25&num=25
http://www.koperformance.com/part-nu...539-005/O-E-M-
Has anybody been able to cross reference this part to another application like BMW, Alfa, VW, Mercedes, Dodge, etc. that could be ordered from a regular auto parts house?
Looks like there might be a fit in here somewhere:
http://www.dormanproducts.com/gsearc...tart=25&num=25
Last edited by 914rrr; Jun 2, 2015 at 09:11 AM. Reason: added info
It appears to be a Lemforder part judging by the part #'s on the disc. GAP01-002 & x133-0317. Can anybody source these or X -Ref by these part #'s.
Dimensions :
bolt hole 10mm
bolt diameter 78mm
Dimensions :
bolt hole 10mm
bolt diameter 78mm
BINGO!! It's actually a SGF part...
No x ref, at least from SGF, it is literally a Porsche specific application.
No x ref, at least from SGF, it is literally a Porsche specific application.
Just found out that Vertex actually stocks the same 996 flex disc for around $100.
...but they don't advertise it since... "we'd rather sell the complete driveshaft..."
This part may be considered when doing a transmission mount / bushing replacement, as you already have a lot of stuff out of the way and most of them are likely deteriorating due to age and/or use.
...but they don't advertise it since... "we'd rather sell the complete driveshaft..."
This part may be considered when doing a transmission mount / bushing replacement, as you already have a lot of stuff out of the way and most of them are likely deteriorating due to age and/or use.
Last edited by 914rrr; Jun 2, 2015 at 11:26 AM. Reason: add information
Ordered and on it's way. The product photo looks exactly like the one in my hand... and it's OE German.
Trending Topics
bmw part will work. Porsche wants to sell you the whole driveshaft.
__________________
#TeamAIM
997TT SilverSpool - 210.8 mph 1/2 Mile WR Apr 2019, 9.2 @ 168 mph 1/4 Mile Manual World Record , 3.15 60-130 mph , 2.72 100-150 mph , 1400whp E85
996TT SpoolBus - 204.6 mph 1/2 Mile 996TT WR Aug 2018, 9.5 @ 154 mph, 3.23 60-130 mph, 2.5 100-150 mph Manual Porsche World Record, 1400whp E85
997TT SlowBerry - 205.0 mph 1/2 Mile WR Nov 2018, 9.7 @ 170 mph 1/4 Mile , 3.2 60-130 mph , 2.4 100-150 mph , 1420whp E85
ESMOTOR | DO88 | TPC DSC | SYVECS | COBB | IPD | KLINE | XONA | AMS | ID | ERP | SACHS | TURBOSMART | CSF | DODSON |
#TeamAIM
997TT SilverSpool - 210.8 mph 1/2 Mile WR Apr 2019, 9.2 @ 168 mph 1/4 Mile Manual World Record , 3.15 60-130 mph , 2.72 100-150 mph , 1400whp E85
996TT SpoolBus - 204.6 mph 1/2 Mile 996TT WR Aug 2018, 9.5 @ 154 mph, 3.23 60-130 mph, 2.5 100-150 mph Manual Porsche World Record, 1400whp E85
997TT SlowBerry - 205.0 mph 1/2 Mile WR Nov 2018, 9.7 @ 170 mph 1/4 Mile , 3.2 60-130 mph , 2.4 100-150 mph , 1420whp E85
ESMOTOR | DO88 | TPC DSC | SYVECS | COBB | IPD | KLINE | XONA | AMS | ID | ERP | SACHS | TURBOSMART | CSF | DODSON |
2 of the BMW flex discs (GAB01-009 and GAB01-015) are "in the ball park", but they're 5 mm too thick / deep (28mm vs 23mm). Same for the Opel flex disc (GAO-15).
The GAP01-002 flex disc is Porsche 996 dimension specific. See chart below:
https://www.powertrainindustries.com...vpslouljjfd1n0
The correct disc is readily available (at least for now) and cheap ($59). Why mess around with something that is not correct if you don't have to?
The GAP01-002 flex disc is Porsche 996 dimension specific. See chart below:
https://www.powertrainindustries.com...vpslouljjfd1n0
The correct disc is readily available (at least for now) and cheap ($59). Why mess around with something that is not correct if you don't have to?
Last edited by 914rrr; Jun 3, 2015 at 10:44 AM. Reason: added info
Registered User
Joined: Apr 2014
Posts: 24
From: California
Rep Power: 0
Coupler?
[QUOTE=914rrr;4349721]Ordered and on it's way. The product photo looks exactly like the one in my hand... and it's OE German.[/QUOT
Did you install the coupler and did it eliminate any kind of slop in the drive line?
Did you install the coupler and did it eliminate any kind of slop in the drive line?
[QUOTE=rsvmiller;4371094]

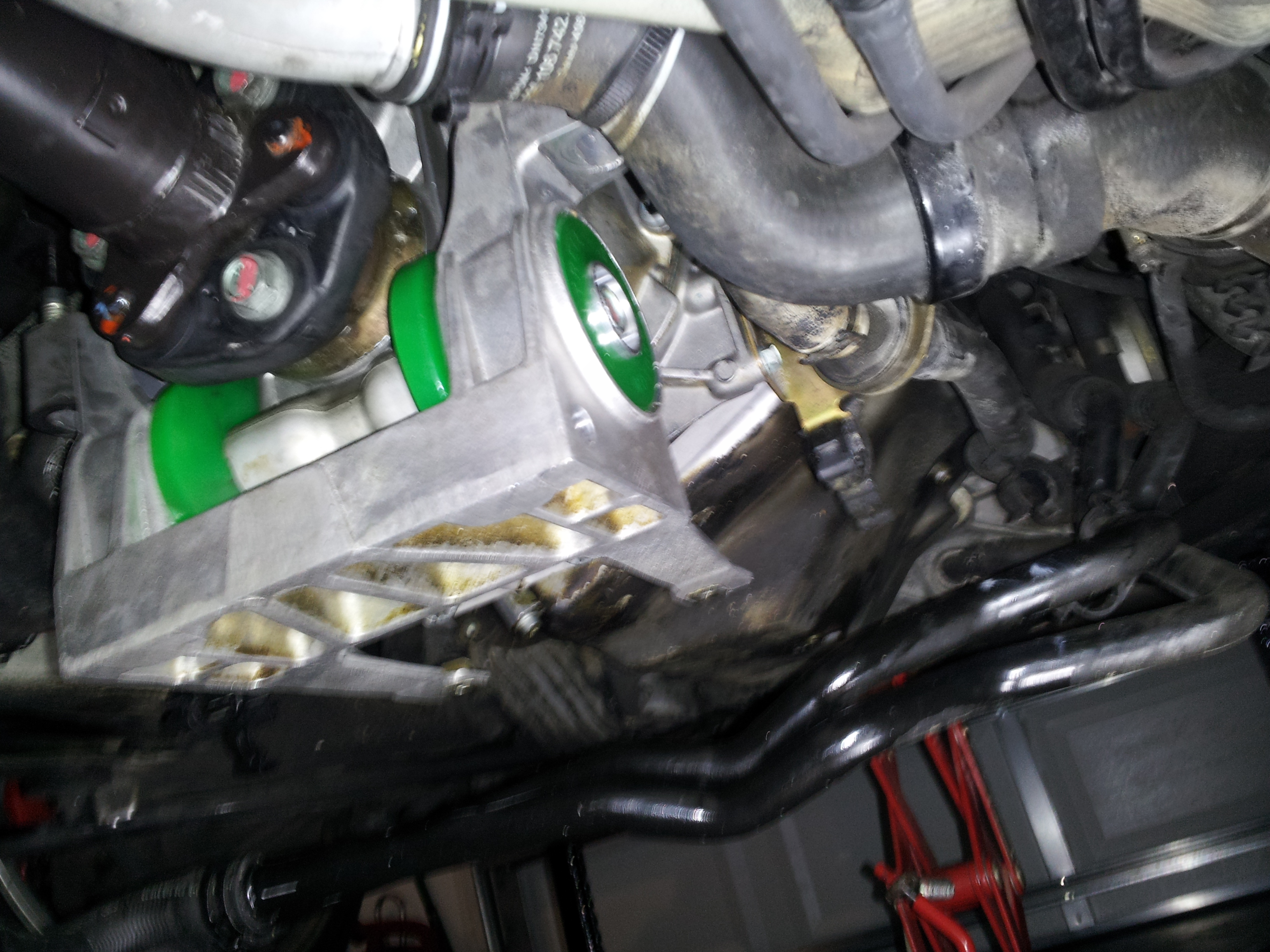

Yes, it's installed. I really didn't notice any drive live slop before installation or any difference after installation. I have the X73 suspension on my Turbo, if that makes any difference. My transmission mount was completely shot and I replaced it with the Cantrell Street Urethane bushings. I have noticed a very slight increase in NVH after everything was installed.
Couple of installation tips:
You need to drop the nose of the transmission down (while supporting the trans housing) and push the drive shaft forward to allow for the trans output flange shaft stub to clear the shaft flange and coupling.

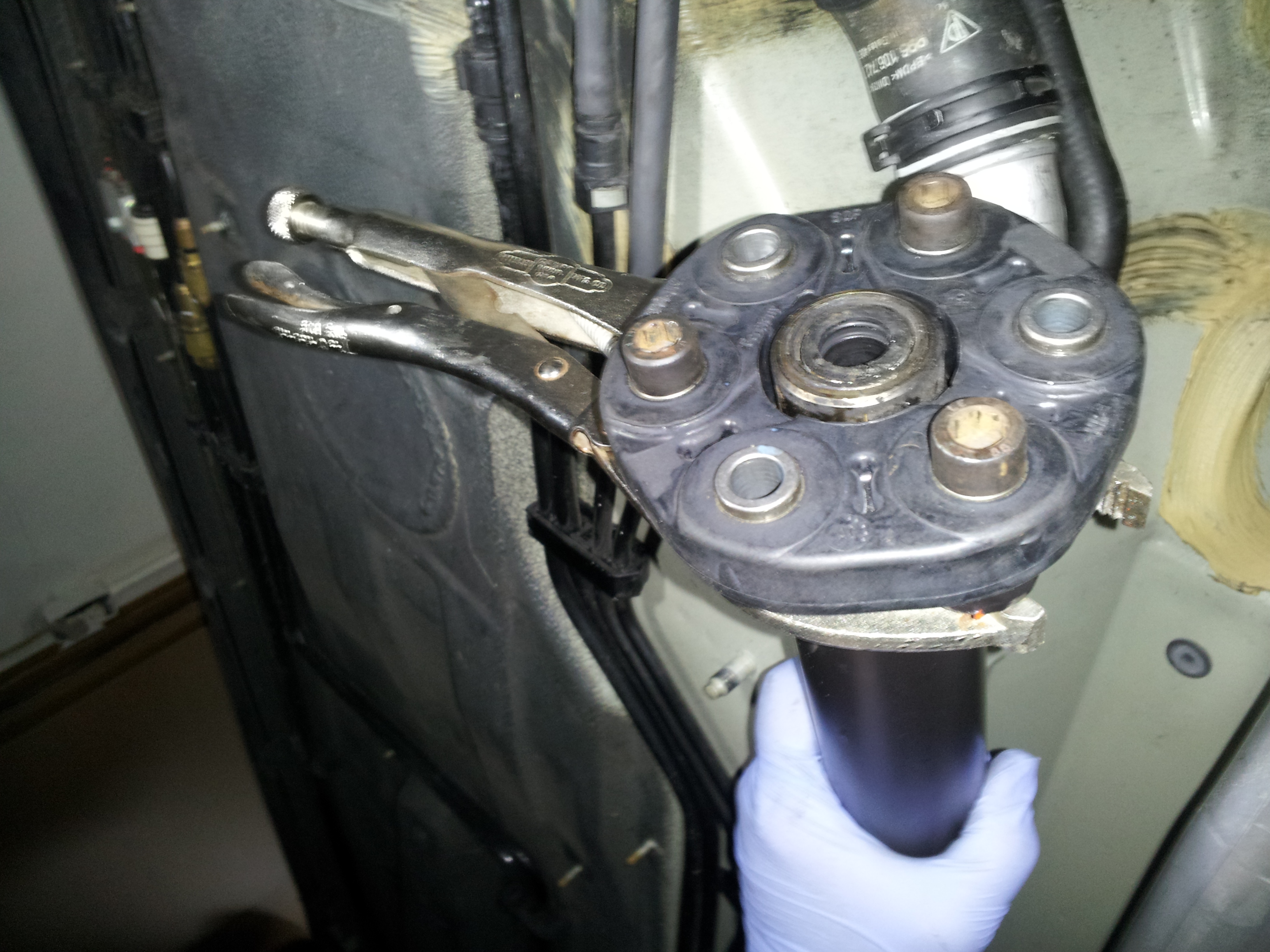

You need to hold the front drive shaft to loosen or tighten the allen bolts on the shaft side of the flange. I used a large round round jawed Vice Grip to hold the shaft. You could also use something like a pipe wrench. See pic below.
When installing the new coupling, you need to install the allen bolts on the front drive shaft flange side first (while holding the shaft as above).
After inserting the output stub back into the shaft flange, the trans then needs to be brought back level and in neutral to allow shaft rotation to initially insert hex bolts on the trans side, then engaging & disengaging the parking brake while rotating the shaft to tighten up the hex bolts.
Couple of installation tips:
You need to drop the nose of the transmission down (while supporting the trans housing) and push the drive shaft forward to allow for the trans output flange shaft stub to clear the shaft flange and coupling.
You need to hold the front drive shaft to loosen or tighten the allen bolts on the shaft side of the flange. I used a large round round jawed Vice Grip to hold the shaft. You could also use something like a pipe wrench. See pic below.
When installing the new coupling, you need to install the allen bolts on the front drive shaft flange side first (while holding the shaft as above).
After inserting the output stub back into the shaft flange, the trans then needs to be brought back level and in neutral to allow shaft rotation to initially insert hex bolts on the trans side, then engaging & disengaging the parking brake while rotating the shaft to tighten up the hex bolts.
Registered User
Joined: Apr 2014
Posts: 24
From: California
Rep Power: 0
[QUOTE=914rrr;4371248]
Yes, it's installed. I really didn't notice any drive live slop before installation or any difference after installation. I have the X73 suspension on my Turbo, if that makes any difference. My transmission mount was completely shot and I replaced it with the Cantrell Street Urethane bushings. I have noticed a very slight increase in NVH after everything was installed.
Couple of installation tips:
You need to drop the nose of the transmission down (while supporting the trans housing) and push the drive shaft forward to allow for the trans output flange shaft stub to clear the shaft flange and coupling.
You need to hold the front drive shaft to loosen or tighten the allen bolts on the shaft side of the flange. I used a large round round jawed Vice Grip to hold the shaft. You could also use something like a pipe wrench. See pic below.
When installing the new coupling, you need to install the allen bolts on the front drive shaft flange side first (while holding the shaft as above).
After inserting the output stub back into the shaft flange, the trans then needs to be brought back level and in neutral to allow shaft rotation to initially insert hex bolts on the trans side, then engaging & disengaging the parking brake while rotating the shaft to tighten up the hex bolts.
Thanks for the quick response and the pictures.
Yes, it's installed. I really didn't notice any drive live slop before installation or any difference after installation. I have the X73 suspension on my Turbo, if that makes any difference. My transmission mount was completely shot and I replaced it with the Cantrell Street Urethane bushings. I have noticed a very slight increase in NVH after everything was installed.
Couple of installation tips:
You need to drop the nose of the transmission down (while supporting the trans housing) and push the drive shaft forward to allow for the trans output flange shaft stub to clear the shaft flange and coupling.
You need to hold the front drive shaft to loosen or tighten the allen bolts on the shaft side of the flange. I used a large round round jawed Vice Grip to hold the shaft. You could also use something like a pipe wrench. See pic below.
When installing the new coupling, you need to install the allen bolts on the front drive shaft flange side first (while holding the shaft as above).
After inserting the output stub back into the shaft flange, the trans then needs to be brought back level and in neutral to allow shaft rotation to initially insert hex bolts on the trans side, then engaging & disengaging the parking brake while rotating the shaft to tighten up the hex bolts.
Registered User
Joined: Mar 2019
Posts: 75
From: Rolling Hills
Rep Power: 0
[QUOTE=rsvmiller;4371567]Bump to this thread guys!
I am putting my 997tt back together after some extensive works, I bought this 997 febi guibo and compared it to the old one, seemed the same, so chucked the old one away...
Now I am actually onto rebuild I find that the fit is not perfect as with the OEM one. It has a gap between the metal sleeve and the locating machined hole in the tranny output. The only way to close it is bolt it up then it slightly distorts the Guibo...
Not good and I am thoroughly p*ssed off with the car at the minute lol
So does anyone know where I can get the GAP01-002 part from? Has anyone else had a fitment issue with the Febi? DO I have the wrong Febi part maybe? Can anyone confirm febi and gap dimensions are the same or slightly different?many thanks
upload
I am putting my 997tt back together after some extensive works, I bought this 997 febi guibo and compared it to the old one, seemed the same, so chucked the old one away...
Now I am actually onto rebuild I find that the fit is not perfect as with the OEM one. It has a gap between the metal sleeve and the locating machined hole in the tranny output. The only way to close it is bolt it up then it slightly distorts the Guibo...
Not good and I am thoroughly p*ssed off with the car at the minute lol
So does anyone know where I can get the GAP01-002 part from? Has anyone else had a fitment issue with the Febi? DO I have the wrong Febi part maybe? Can anyone confirm febi and gap dimensions are the same or slightly different?many thanks
upload
Registered User
Joined: Aug 2016
Posts: 105
From: CA
Rep Power: 27
This is the one I had installed by my local indy, they reported no issues to me.
