Exhaust header gaskets
Hi guys,

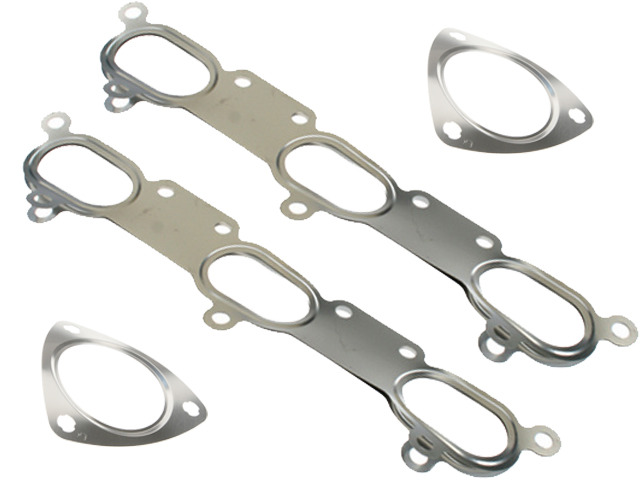

I want to replace my exhaust headers, right now I just have new bolts and 2x 99611110771 sealings. Anyone can tell me where to get the small gasket for the head? See pic
I want to replace my exhaust headers, right now I just have new bolts and 2x 99611110771 sealings. Anyone can tell me where to get the small gasket for the head? See pic
Registered User
Joined: Jun 2015
Posts: 150
From: NC
Rep Power: 54
996.111.215.70 is what you are looking for.
It's a metal o-ring type gasket, not what's pictured above.
It's listed as part of the turbo assembly, not the exhaust.

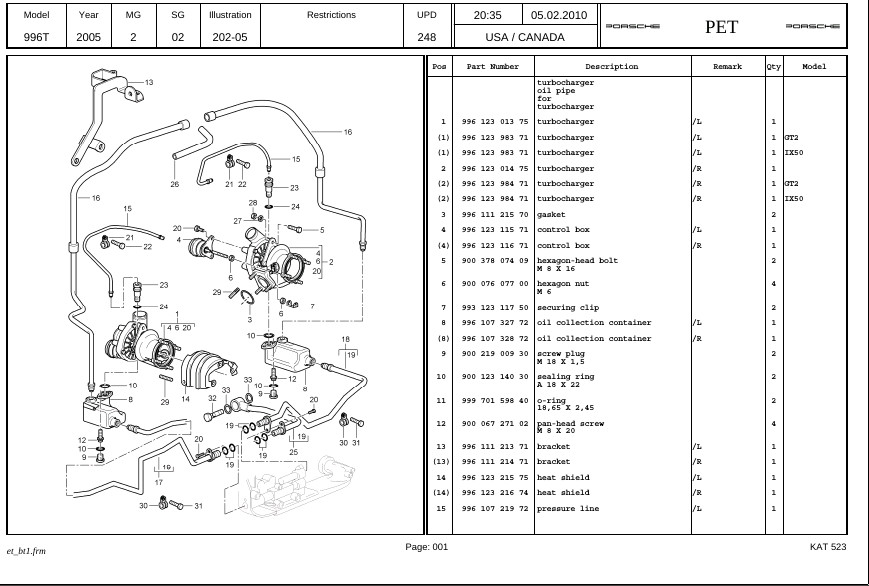

#3 in the diagram below.
Here's an example http://www.ebay.com/itm/Porsche-911-...-/351098613582
Hoffe, das hilft.
It's a metal o-ring type gasket, not what's pictured above.
It's listed as part of the turbo assembly, not the exhaust.
#3 in the diagram below.
Here's an example http://www.ebay.com/itm/Porsche-911-...-/351098613582
Hoffe, das hilft.
Last edited by mxracer; Oct 19, 2015 at 05:58 AM.
Thread Starter
|
Registered User
Joined: Oct 2010
Posts: 204
From: Germany
Rep Power: 25
996.111.215.70 is what you are looking for.
It's a metal o-ring type gasket, not what's pictured above.
It's listed as part of the turbo assembly, not the exhaust.
#3 in the diagram below.
Here's an example http://www.ebay.com/itm/Porsche-911-...-/351098613582
Hoffe, das hilft.
It's a metal o-ring type gasket, not what's pictured above.
It's listed as part of the turbo assembly, not the exhaust.
#3 in the diagram below.
Here's an example http://www.ebay.com/itm/Porsche-911-...-/351098613582
Hoffe, das hilft.
Das hilft, danke
So originally it's not necessary to install the gasket shown in the Picture, everywhere they are selling it with new headers
Regards
Registered User
Joined: Jun 2015
Posts: 150
From: NC
Rep Power: 54
Ja, stimmt....
Those are "replacement" type gaskets. The indented ring in the middle of them is meant to do the same thing as the OEM gaskets.
Either will work but the OEM gaskets are better IMO.
Those are "replacement" type gaskets. The indented ring in the middle of them is meant to do the same thing as the OEM gaskets.
Either will work but the OEM gaskets are better IMO.
Registered User
Joined: Jul 2011
Posts: 474
From: Orange County, CA
Rep Power: 49
I just bought some from Pelican, 996-111-215-70-M17 for $13.75 each.
They also have 996-111-215-70-OEM for $22.25 each.
Both are the rolled crush one-time type that came on the car and seal great.
