996 Turbo / GT2 Turbo discussion on previous model 2000-2005 Porsche 911 Twin Turbo and 911 GT2.

Transmission Leak...

Thread Tools

Search this Thread

Rate Thread

  #16
Old 12-07-2016, 09:28 AM
s65e90's Avatar
Registered User
Join Date: Oct 2013
Posts: 872
Rep Power: 0
s65e90 is infamous around these parts
If you're not going to do it yourself I would budget around 10-15k. It adds up quick especially if you're gonna pull the motor as you might as well do everything at once.

I would do this:

Pull motor/trans.

1. Sachs 2.5 clutch
2. All new rubber vac lines and replace all coolant hoses and flush entire system
3. Torque Solutions Gt1 coolant fittings welded.
4. Seals on trans and RMS
5. Plugs/Coils
6. New fuel filter
7. Check condition of overflow tank as it's easily accessible
8. New oil pressure switch (cheap enough to change it)


Some other stuff I can't remember right now, I will update this if I can think of them.

Good luck!

  #17
Old 12-07-2016, 02:32 PM
911mhawk's Avatar
Registered User
Join Date: Oct 2015
Location: Seattle
Posts: 157
Rep Power: 15
911mhawk is on a distinguished road
Originally Posted by s65e90
If you're not going to do it yourself I would budget around 10-15k. It adds up quick especially if you're gonna pull the motor as you might as well do everything at once.

I would do this:

Pull motor/trans.

1. Sachs 2.5 clutch
2. All new rubber vac lines and replace all coolant hoses and flush entire system
3. Torque Solutions Gt1 coolant fittings welded.
4. Seals on trans and RMS
5. Plugs/Coils
6. New fuel filter
7. Check condition of overflow tank as it's easily accessible
8. New oil pressure switch (cheap enough to change it)


Some other stuff I can't remember right now, I will update this if I can think of them.

Good luck!
+1^
I dropped mine last year and went for it while it was out.
Other maintenance items would vary depending on mileage but the water pump, tensioner, belt, and motor/trans mounts are all much easier while it's out, O2's

  #18
Old 12-07-2016, 03:47 PM
'02996ttx50's Avatar
Registered User
Join Date: May 2009
Location: la
Posts: 7,971
Rep Power: 601
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
Originally Posted by TrailRider
Doesn't look like I can pm yet unless I'm completely computer illiterate and can see the option.

Definitely interested in cost effective!
I'm having a similar degree of difficulty! its easier apparently to reply to pm's than it is figuring out how to initiate a PM ( duh )

you'll appreciate this option. just sent another member here that was in a similar bind to these guys and they hooked him up.

if you go this route? lemme know how it turns out. email sent and GL!

  #19
Old 12-07-2016, 04:07 PM
TrailRider's Avatar
Registered User
Thread Starter
Join Date: Dec 2016
Location: Orange County
Age: 46
Posts: 27
Rep Power: 0
TrailRider is an unknown quantity at this point
Just had an engine out in January of this year - new alternator, coils, plugs, intake manifold, belts and other miscellaneous bits. Clutch had good life at that time. This was 6000 miles ago.

The coolant lines were all previously welded (about 5 years / 50k ago).

So, my feeling would be to just do the tranny stuff this go around and only fix what's broke to keep costs down. Perhaps the clutch is low enough now to justify the replacement.

Really appreciate everyones comments.

  #20
Old 12-08-2016, 09:00 AM
Macster's Avatar
Registered User
Join Date: Jun 2009
Location: Livermore, CA
Posts: 2,190
Rep Power: 145
Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !
Originally Posted by TrailRider
Just had an engine out in January of this year - new alternator, coils, plugs, intake manifold, belts and other miscellaneous bits. Clutch had good life at that time. This was 6000 miles ago.

The coolant lines were all previously welded (about 5 years / 50k ago).

So, my feeling would be to just do the tranny stuff this go around and only fix what's broke to keep costs down. Perhaps the clutch is low enough now to justify the replacement.

Really appreciate everyones comments.

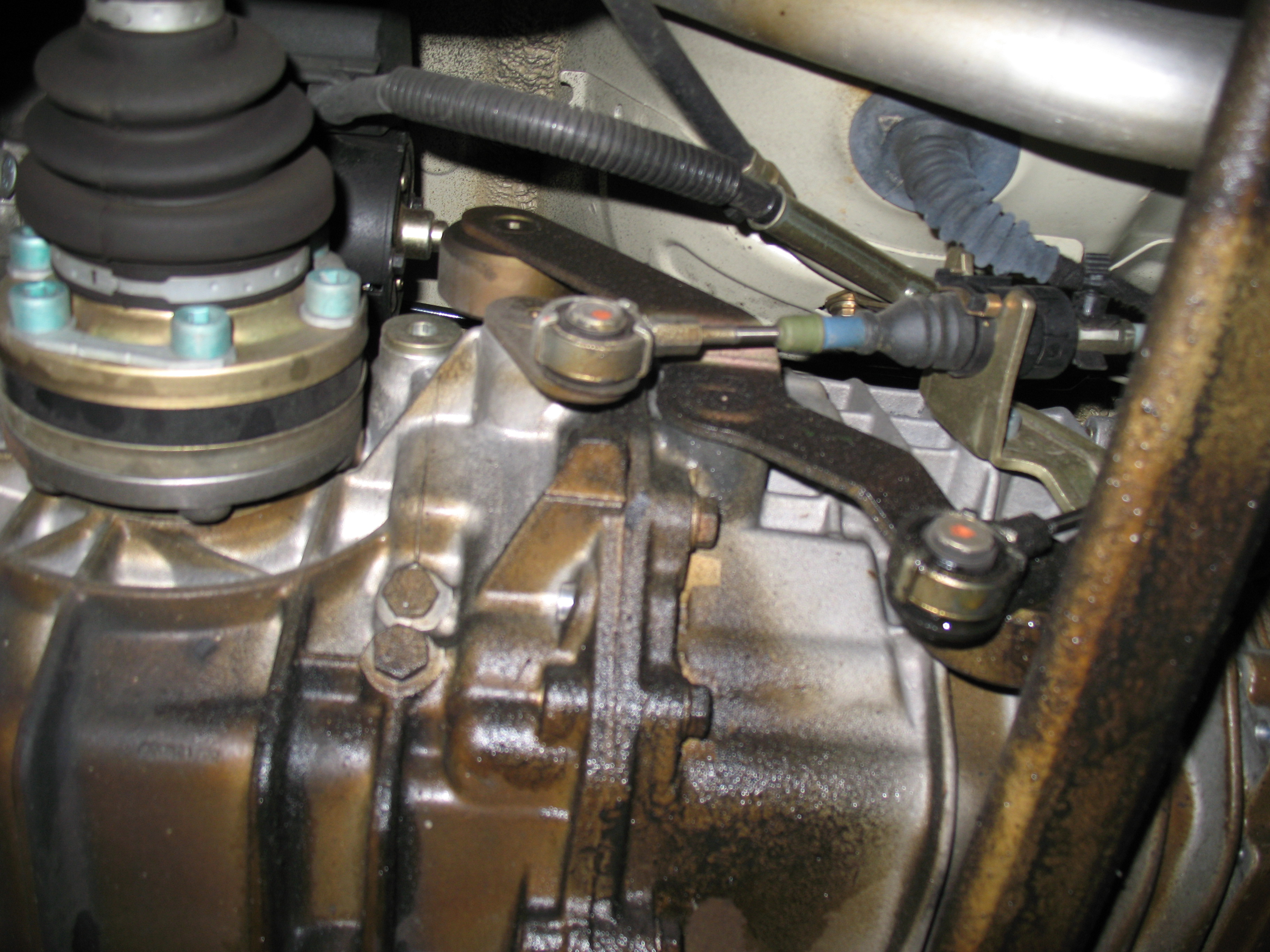

Had a similar selector shaft leak in my 2003 Turbo. Car was under CPO warranty at the time. There was some back and forth between the dealer and the factory about "rebuild" vs. replace. The techs told me to repair the leak would run maybe $6K including R&R the transmission if I had to pay for this out of pocket. While the Turbo 6-speed and the 996 NA 6-speed are different transmissions they share alot of parts and this includes the seals.

But the factory decided to replace the transmission and that was that. I've supplied a pic of the leak.

In case you are not aware, the clutch control shaft needle bearings/dust caps should be replaced whenever the clutch control shaft is disassembled. Also, the tech always replaces the metal o-rings that seal the turbo to the exhaust manifold.

Attached Thumbnails Click image for larger version

Name:	Turbo Tranny Leak 2.jpg.JPG
Views:	62
Size:	2.08 MB
ID:	465371
  #21
Old 12-08-2016, 09:57 AM
'02996ttx50's Avatar
Registered User
Join Date: May 2009
Location: la
Posts: 7,971
Rep Power: 601
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
Originally Posted by Macster
The techs told me to repair the leak would run maybe $6K including R&R the transmission if I had to pay for this out of pocket.
sounds about right. a good ( read: fair ) indie is gonna get that r&r'd for about 3-3.5k. roughly six hours labor to drop and reinstall the g'box and another 1k/1.5k to R&R the seal once the box is opened up. once inside though, one never knows what one will find. best to at the very least, replace bearings and check the synchros for undue wear.

  #22
Old 12-08-2016, 01:25 PM
TrailRider's Avatar
Registered User
Thread Starter
Join Date: Dec 2016
Location: Orange County
Age: 46
Posts: 27
Rep Power: 0
TrailRider is an unknown quantity at this point
Thanks Macster! Yes, that appears to be the same leak as mine. Its wet in all the same spots.

I can stomach $3.5k to get this done... so if an indie can do it for that, they can do the entire thing. If higher, I'll remove the transmission myself to save a few bucks.

  #23
Old 12-08-2016, 04:42 PM
Macster's Avatar
Registered User
Join Date: Jun 2009
Location: Livermore, CA
Posts: 2,190
Rep Power: 145
Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !Macster Is a GOD !
Originally Posted by '02996ttx50
sounds about right. a good ( read: fair ) indie is gonna get that r&r'd for about 3-3.5k. roughly six hours labor to drop and reinstall the g'box and another 1k/1.5k to R&R the seal once the box is opened up. once inside though, one never knows what one will find. best to at the very least, replace bearings and check the synchros for undue wear.
The quote the Porsche techs gave me included going through the transmission and refreshing whatever was found to be in need of refreshing. The quote was I believe based on what they had encountered when going through a NA car 6-speed.

A straight just replace the selector shaft seal quote would have been for less I'm sure, but of course in the case of a transmission out and apart job "while you are there" has to play a role.

  #24
Old 12-08-2016, 05:37 PM
'02996ttx50's Avatar
Registered User
Join Date: May 2009
Location: la
Posts: 7,971
Rep Power: 601
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
i gave you the number in la to call.

3500 tops if you leave it with them for all. you bring the box? I'm gonna venture a guess. 2 grand. now ya know why i wont name names lol

  #25
Old 12-09-2016, 07:44 AM
BMiller33's Avatar
Registered User
Join Date: May 2010
Location: SC
Posts: 440
Rep Power: 55
BMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond repute
Originally Posted by '02996ttx50
i gave you the number in la to call.

3500 tops if you leave it with them for all. you bring the box? I'm gonna venture a guess. 2 grand. now ya know why i wont name names lol
If that's the case and based on removing g'box on jack stands, it would be worth saving the 1.5K. If the dif was ~$500 I'd opt to have them do it all. IMO.

  #26
Old 12-09-2016, 10:01 AM
'02996ttx50's Avatar
Registered User
Join Date: May 2009
Location: la
Posts: 7,971
Rep Power: 601
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
Originally Posted by BMiller33
If that's the case and based on removing g'box on jack stands, it would be worth saving the 1.5K. If the dif was ~$500 I'd opt to have them do it all. IMO.
agree. the difference roughly six ( or so ) hours labor to drop it and re-install it. so btw 600/800? that's what i paid when it was too much hassle to drop it and schlep it over there and worry about my car sitting unattended sans trans somewhere other than my mechanic. besides, the fkn thing's heavy lol

  #27
Old 12-10-2016, 06:35 PM
TrailRider's Avatar
Registered User
Thread Starter
Join Date: Dec 2016
Location: Orange County
Age: 46
Posts: 27
Rep Power: 0
TrailRider is an unknown quantity at this point
So, decided to crazily take it by the dealer for a quote to repair, really just out of curiosity -- Newport Auto Center in Newport Beach which is the nearest Porsche dealer to me.

The quote to repair was $25,000 to remove tranny, send it out for complete rebuild and reinstall. hahaha...

They said Porsche doesn't make the seals any longer. So, I asked what the rebuild will do if they don't make the seals any longer? No answer...

They did give me a free fluid drain / refill service which was a bonus.

  #28
Old 12-10-2016, 07:39 PM
BMiller33's Avatar
Registered User
Join Date: May 2010
Location: SC
Posts: 440
Rep Power: 55
BMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond reputeBMiller33 has a reputation beyond repute
That's just stupid. My buddy owns Pcar and Ferrari, parts are way cheaper on the F and it's easier to work on. Nuts 😞😲

  #29
Old 12-10-2016, 09:14 PM
pwdrhound's Avatar
Registered User
Join Date: Jul 2010
Posts: 4,846
Rep Power: 455
pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !
Originally Posted by TrailRider
So, decided to crazily take it by the dealer for a quote to repair, really just out of curiosity -- Newport Auto Center in Newport Beach which is the nearest Porsche dealer to me.

The quote to repair was $25,000 to remove tranny, send it out for complete rebuild and reinstall. hahaha...

They said Porsche doesn't make the seals any longer. So, I asked what the rebuild will do if they don't make the seals any longer? No answer...

They did give me a free fluid drain / refill service which was a bonus.
I just ordered the seals from the dealer. They are about $3 each.

  #30
Old 12-11-2016, 04:42 AM
'02996ttx50's Avatar
Registered User
Join Date: May 2009
Location: la
Posts: 7,971
Rep Power: 601
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
ha! proving that dealers are ill informed and/or lie. they dont like to open transmissions even when the master tech can, and in rare instances will.

dealers are anything but innovative and do what "the book" suggests ($$$) which in the case of a faulty g50 they unsurprisingly suggest buying one of their rebuilt crated ones for 25k. all for the need of a 3 dollar seal. priceless.
