Porsche 997.2 Turbo LED Tail Light Conversion
Registered User
Joined: Dec 2005
Posts: 566
From: Europe
Rep Power: 50
Registered User
Joined: Oct 2005
Posts: 7,057
From: inside someone warm
Rep Power: 382
Registered User
Joined: Jan 2008
Posts: 86
From: Oakland
Rep Power: 24
Apologies in advance as this question is somewhat off topic but related to this thread. I am getting ready to install an 08 Turbo front bumper onto my 997.1 C2. There has been a lot of talk in this thread about the control units that are needed to get the rear LEDs working. My question is, in order for me to get the LED blinkers from the Turbo bumper working, will I also need to buy one of these control units or is there something else I can do; i.e., use resistors, new blinker relay, etc. Any help would be appreciated. Thanks!
Stan
Stan
Registered User
Joined: Dec 2005
Posts: 566
From: Europe
Rep Power: 50
Do the sum: oem tail lights + control units + piwis coding + wasted time. How much difference will it be in the end to the plug and play trouble free techart tail lights?
Registered User
Joined: Oct 2005
Posts: 7,057
From: inside someone warm
Rep Power: 382
$2600 for the taillights. For a Turbo, it's already ready to go so no control units needed, just move a few wires around plus reprogram things with the PIWIS, so that'd be a $1800 mark-up. If it was $1500 then that'd be much more reasonably priced.
Registered User
Joined: Dec 2005
Posts: 566
From: Europe
Rep Power: 50
Now i got confused. Are you saying that for a 997.1 Turbo there is no need to buy front and rear control units... Are you sure?So i guess that from your post #108 that it only need: "to swap the No 14 to 34 and 6 to 21 in the front control unit(black) connector. But for those who were getting tail light warnings and the instrument cluster was flashing too fast you will need to swap pin No 11 to 36, and pin 42 to 31. You will also need to code the front and rears to accept LED's."
Registered User
Joined: Oct 2005
Posts: 7,057
From: inside someone warm
Rep Power: 382
Now i got confused. Are you saying that for a 997.1 Turbo there is no need to buy front and rear control units... Are you sure?So i guess that from your post #108 that it only need: "to swap the No 14 to 34 and 6 to 21 in the front control unit(black) connector. But for those who were getting tail light warnings and the instrument cluster was flashing too fast you will need to swap pin No 11 to 36, and pin 42 to 31. You will also need to code the front and rears to accept LED's."
I'll be trying it myself soon.
<!-- google_ad_section_start -->How about the front parking lights or turning lights? I noticed that the 997.2 has the Daytime running lights on just like the new Audis and Menz. Can this be done on our 997.1?<!-- google_ad_section_end -->
Registered User
Joined: May 2009
Posts: 35
From: miami
Rep Power: 19
Porsche 997TT with GT Street RS front bumper

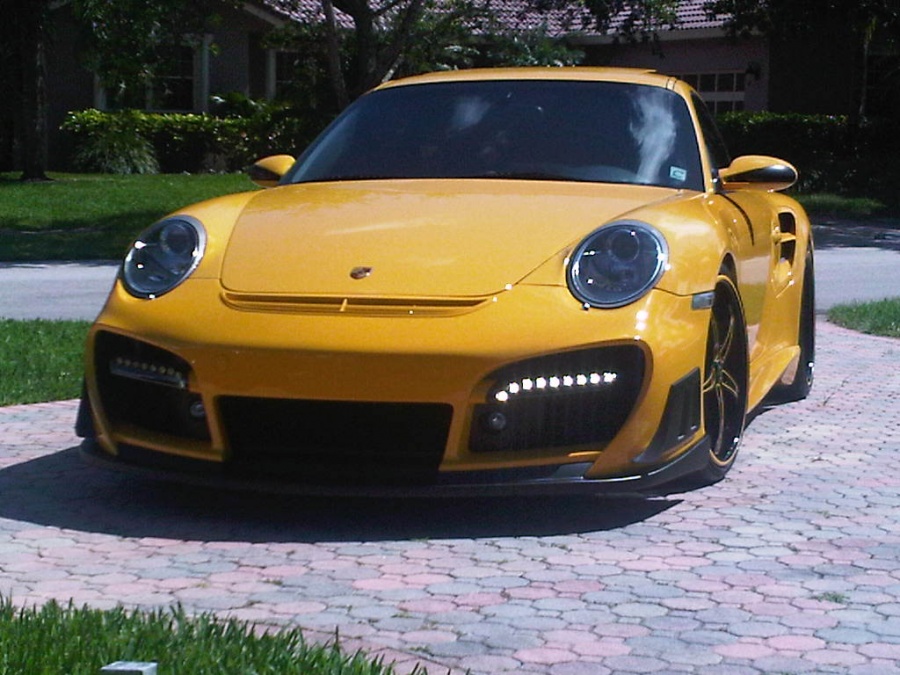

I want to share these pics with you guys..i just installed the Gt Street Rs front bumper on my Turbo..
Last edited by reymusic; Aug 12, 2010 at 12:07 PM.
Registered User
Joined: Nov 2010
Posts: 22
From: Rijeka
Rep Power: 0
Will PIN swaps on front black connector help to stop showing warrning message on dashboard ? Or even after chaning pins in front bug interface, i have to do PIWIS again ?
Thanks in advance.
Registered User
Joined: Apr 2013
Posts: 4
From: California USA
Rep Power: 0
led problem on 997.1
hi every body is there anybody can help i have 997 08 turbo i switched taillight to the led plus i change rear control unite to the newer one ,i got every thing work from out side the car but im keep getting tail light warnings and the instrument cluster was flashing too fast , what should to fix this ?
