Humble greetings to all ,

I keep reading performance claims about our cars.
Many of which are endorsed by Dyno runs and PBOX data, while others are not.

Also, the majority of us add power kits in stages, one shot, without really capturing the incremental benefits of each individual item we install, without the others.

Most people here concur that dyno runs are of limited us.
That the real measure of benefit derived is actual on the road performance.

In an effort to gain better clarity for myself, and hopefully to benefit others in this, my home away from home, I decided to start this thread.

Unless my fellow 6speeders insist on dyno runs, I will only do PBOX captures. If you guys really want the dynos, I'll try to do that as well.

I will post PBOX runs with my car as stock, and then I will post runs with each individual component I add.
When feasible, I will also uninstall previous aftermarket components from the car when adding a new one and post runs with only the new component to try to isolate its benefits or lack thereof.

I also have the Durametric cable and software. If anyone is interested in particular info, I will be happy to log them.

Finally, I will also post some subjective driving impressions after each mod.

My current plans for mods are:
1- BMC Air Filter
2- Softronic Tune

Later, when I know it's PDK safe, I will add the Europipe exhaust.
Europipe are still in R&D (for the last several months!) for the 997.2 TT exhaust. Hopefully they will release it soon.

First runs were made today.
1- Car has now 500+ KMs
2- Car is still stock so these are baselines
3- I set the weight of the car in the PBOX settings as 1690 KG (3,726 lbs) which is the published Kerb weight of the car with all fluids and 90% fuel tank + my own weight.
(Before the wise cracks start, I know, I know, before adding lighter rims to shave weight, maybe I should start by dieting)
4- Ambient temperatures today were 45* Celsius (113* F)
5- PBOX is set to KMPH
6- Runs are in auto mode without using the flappy paddles

First two runs were in Normal Mode, just stomping on the gas pedal, PSM On.

Run 1 Graph:



Run 2 Graph:



Runs 1 & 2 Data, 0-200:



Runs 1 & 2 Data, 100-200:



A very funny thing happens in normal mode:
If you look at the graphs for both runs, between 1.7 sec and 1.9 sec, the wheels spin causing a shift change to second gear, but then the wheels settle back and first gear re-engages again. Happened both runs.


This third runs is in Sport + mode using launch control. PSM remains On.
Simply engage Sport + mode. Left foot brake, right foot to the metal, Launch Control lights up in the steering wheel LCD, side step the brake and hang on for dear life.




Launch Control Run, 0-200:




Launch Control Run, 100-200




The gear changes in this mode are rapid fire. Never felt anything like this in my life. Almost no wheel spin whatsoever, just one huge shove forward.
You feel like you've been flung off the starting line from the grandaddy of all catapults!

No wonder hardly anyone wants to mess with a PDK TT from rest.

In closing, I hope you find the above informative and I apologize for the long post.



Great info. Please send all raw .dbn files to me at divexxtreme@hotmail.co, so I can add them to the official list. Thanks!



Very nice...Good job...its good to have 997,2TT stock PDK times...



Nice post. Would you mind re-plotting your graph showing also the longitudinal g's?



Thanks Scott. DBN files are in your mailbox.

Thanks skandalis. I will do some more stock runs before beginning the mods.



Thanks. First time user of PBOX. I'll try to see if they were captured and how to plot them.
Alternatively, Scott ^^^ now has my dbn files. I'll ask him to help me out if I don't succeed.



Figured it out. This is the third run with LC. Here ya go:



Great post! Rep coming your way....



The PDK is a monster thanks for sharing!



Thanks Tom!

It is a monster! My pleasure mate!

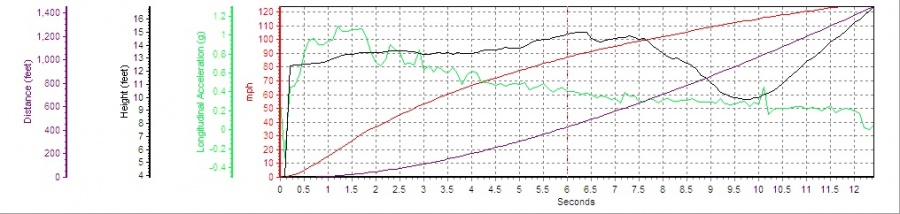

Here are the verified graphs:

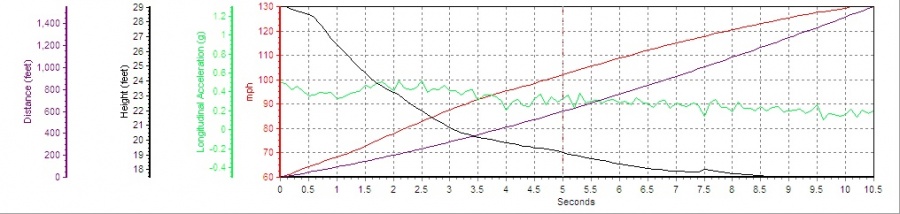

60-130 in 10.11 on a 0.7% decline, and...
1/4 mile in 11.47 @ 123.7

Great job, Karim! Those are outstanding numbers for a bone stock car in 113 degree heat!

I look forward to seeing your modded results.



Thanks Scott.

I just did just the one run with Launch Control.

I plan on doing a couple more while the car is still stock. Perhaps at night with lower ambient temps. See if I can improve on those numbers.

As to the results after the mods, I can't wait to find out myself.
Overwhelming, underwhelming or in line with expectations?



In 113 degree temps, I'd be very happy with those numbers if I were you. Those temps provide a HUGE impact on performance.



Karim, did you datalog IATs or oil/engine temperatures?

Many have speculated that the slow 200-300 km/h times that we are seeing are due to significant pullback of boost and timing as temperatures rise. A few German magazines have shown quick 0-100 and 100-200 km/h times, but sluggish times beyond this.

When EVOMS provided some data on their tuning, their oil and engine temps were fairly high...significantly more so than on the Mezger engine. I'm going to wager that proper ICs are going to make a very big impact on the DFI engine.



Karim, just wait until it's really broken in.
