Exhaust install, any ideas for dealing with the turbo side corroded nuts?

Thread Tools

Rate Thread

Old Mar 16, 2014 | 03:07 PM
  #16
xbox_fan's Avatar
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
xbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond repute
Originally Posted by 93ls1rx7
Did it damage the threads at all?
It has dented some a little, but I will clear the threads up once the stock exhaust is gone.

Old Mar 17, 2014 | 02:27 AM
  #17
93ls1rx7's Avatar
Registered User
Joined: Nov 2011
Posts: 800
From: Sumter, SC
Rep Power: 130
93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !
You will definatley have to update if you were able to clean them up!

Old Mar 17, 2014 | 02:40 AM
  #18
xbox_fan's Avatar
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
xbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond repute
Sure but there is no problem just putting new nuts on there already now.

Old Mar 17, 2014 | 08:40 AM
  #19
xbox_fan's Avatar
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
xbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond repute
Originally Posted by therock88
Thanks! On your plug question...If you want iridium, the factory heat range for Denso would be their IK20. One range cooler (if tuned) is IK22 gapped at .025. The normal OEM plug is Bosch® FR6 DPP332

DC
Thanks, quick question can I remove the o2 sensor without unplugging the harness and just let it hang there until I get the new exhaust on?

Old Mar 17, 2014 | 10:49 AM
  #20
therock88's Avatar
Registered User
Joined: Feb 2010
Posts: 1,330
From: Pleasantville!
Rep Power: 167
therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !
Originally Posted by xbox_fan
Thanks, quick question can I remove the o2 sensor without unplugging the harness and just let it hang there until I get the new exhaust on?
Hi...

Yes you can. Just be careful with the wire so you do not kink/twist it. Or it is easy to unplug the top right by the motor mounts....

Again...Just be careful with the wire. For re-install....twist the wire in reverse...then start threading so it will be normal when completely screwed in.

Good luck!
DC

Old Mar 17, 2014 | 11:29 AM
  #21
xbox_fan's Avatar
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
xbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond repute
Originally Posted by therock88
Hi...

Yes you can. Just be careful with the wire so you do not kink/twist it. Or it is easy to unplug the top right by the motor mounts....

Again...Just be careful with the wire. For re-install....twist the wire in reverse...then start threading so it will be normal when completely screwed in.

Good luck!
DC
Thanks, ok will try to find the connector first.

Old Mar 17, 2014 | 12:17 PM
  #22
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 628
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
if you dont disconnect the harness you will twist the snot out of it. and yo have 4 to remove. unplug them and use a 7/8 crows foot to remove them

Old Mar 17, 2014 | 01:03 PM
  #23
xbox_fan's Avatar
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
xbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond repute

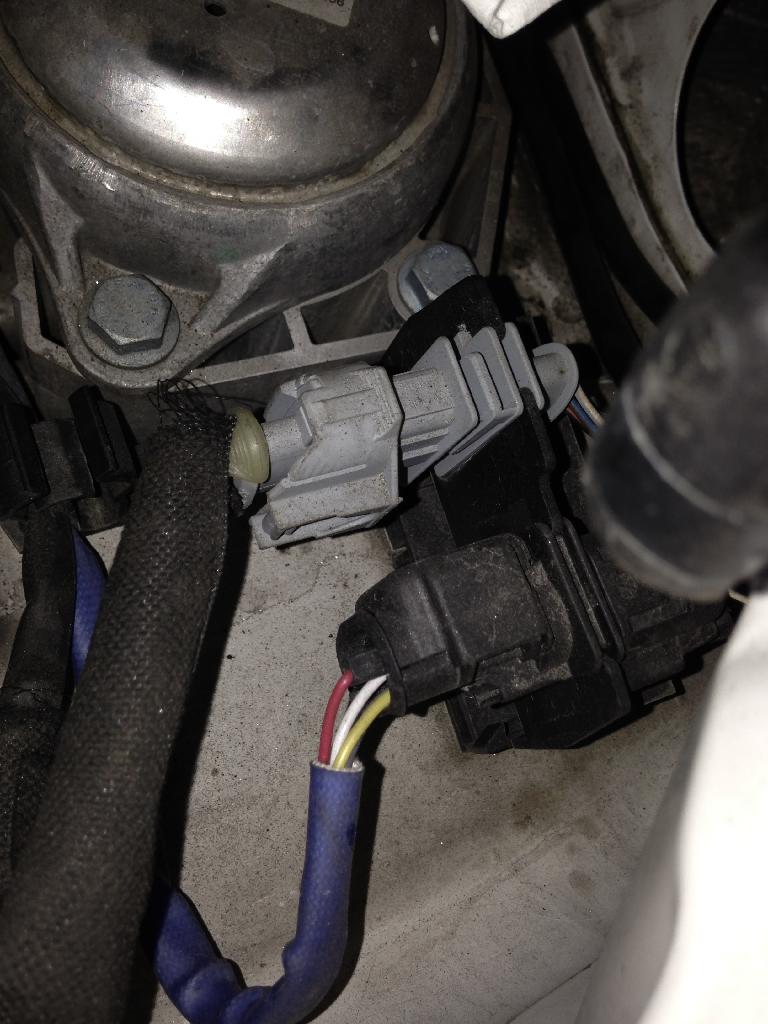

Is it any of those connectors?


The front O2 sensors came of quite easy.

Attached Thumbnails Click image for larger version

Name:	EA4045FB-CB21-41F9-91EA-6C01135F9AD7.jpg
Views:	326
Size:	95.6 KB
ID:	348039
Old Mar 17, 2014 | 01:14 PM
  #24
Johnny DB's Avatar
Registered User
10 Year Member
Joined: Aug 2010
Posts: 2,185
From: Canada
Rep Power: 149
Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !
If the nuts are that tight and doesnt take the stud out when removing, how are you supposed to remove the stud(s)? I will be installing an exhaust in the spring and was planning to replace the studs.


Last edited by Johnny DB; Mar 17, 2014 at 01:22 PM.
Old Mar 17, 2014 | 01:32 PM
  #25
xbox_fan's Avatar
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
xbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond repute
Originally Posted by Johnny DB
If the nuts are that tight and doesnt take the stud out when removing, how are you supposed to remove the stud(s)? I will be installing an exhaust in the spring and was planning to replace the studs.
Not sure I understand, but the studs are reused, as long as you dont snap them

I really liked this approach since the studs are not exposed to any violent forces, the crappy nuts die a well deserved death though...

Old Mar 17, 2014 | 01:48 PM
  #26
Johnny DB's Avatar
Registered User
10 Year Member
Joined: Aug 2010
Posts: 2,185
From: Canada
Rep Power: 149
Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !Johnny DB Is a GOD !
Originally Posted by xbox_fan
Not sure I understand, but the studs are reused, as long as you dont snap them

I really liked this approach since the studs are not exposed to any violent forces, the crappy nuts die a well deserved death though...
Apparently you're supposed to replace them...I bleive Europipe even includes new ones.

Old Mar 17, 2014 | 01:53 PM
  #27
93ls1rx7's Avatar
Registered User
Joined: Nov 2011
Posts: 800
From: Sumter, SC
Rep Power: 130
93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !93ls1rx7 Is a GOD !
Xbox yes those are the connectors you need to disconnect. There are a pair like that on each side.

Old Mar 17, 2014 | 03:46 PM
  #28
xbox_fan's Avatar
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
xbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond repute
Originally Posted by 93ls1rx7
Xbox yes those are the connectors you need to disconnect. There are a pair like that on each side.
Yes, a little tight since I have airbox and y-pipe in the way, but yes those where a no-brainer to loosen.

My driver side front o2 didnt come out nicely so I need to get a replacement asap, any suncoast link for this or part no?

Old Mar 17, 2014 | 04:07 PM
  #29
therock88's Avatar
Registered User
Joined: Feb 2010
Posts: 1,330
From: Pleasantville!
Rep Power: 167
therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !therock88 Is a GOD !
Originally Posted by xbox_fan
Yes, a little tight since I have airbox and y-pipe in the way, but yes those where a no-brainer to loosen.

My driver side front o2 didnt come out nicely so I need to get a replacement asap, any suncoast link for this or part no?
That would be the pre-cat sensor and the part is BOSCH 997 606 128 02



DC

Old Mar 19, 2014 | 02:12 PM
  #30
xbox_fan's Avatar
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
xbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond reputexbox_fan has a reputation beyond repute
New o2's ordered, from the US (stupid prices here 50-100% higher, not even asking the dealer for a quote)

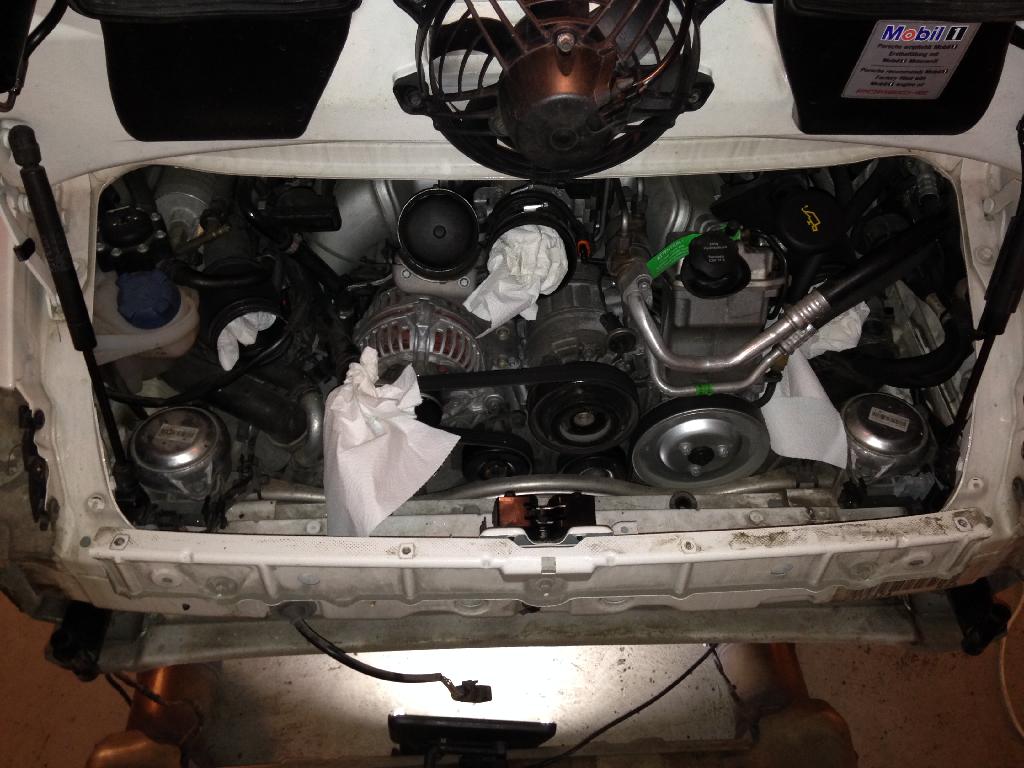

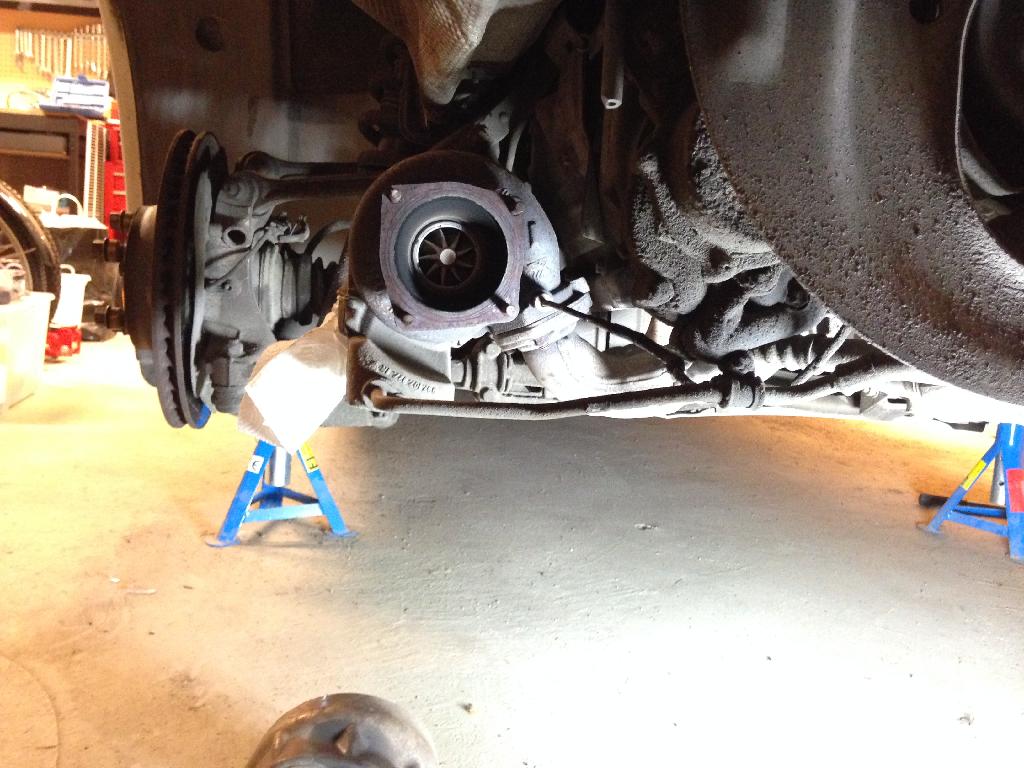

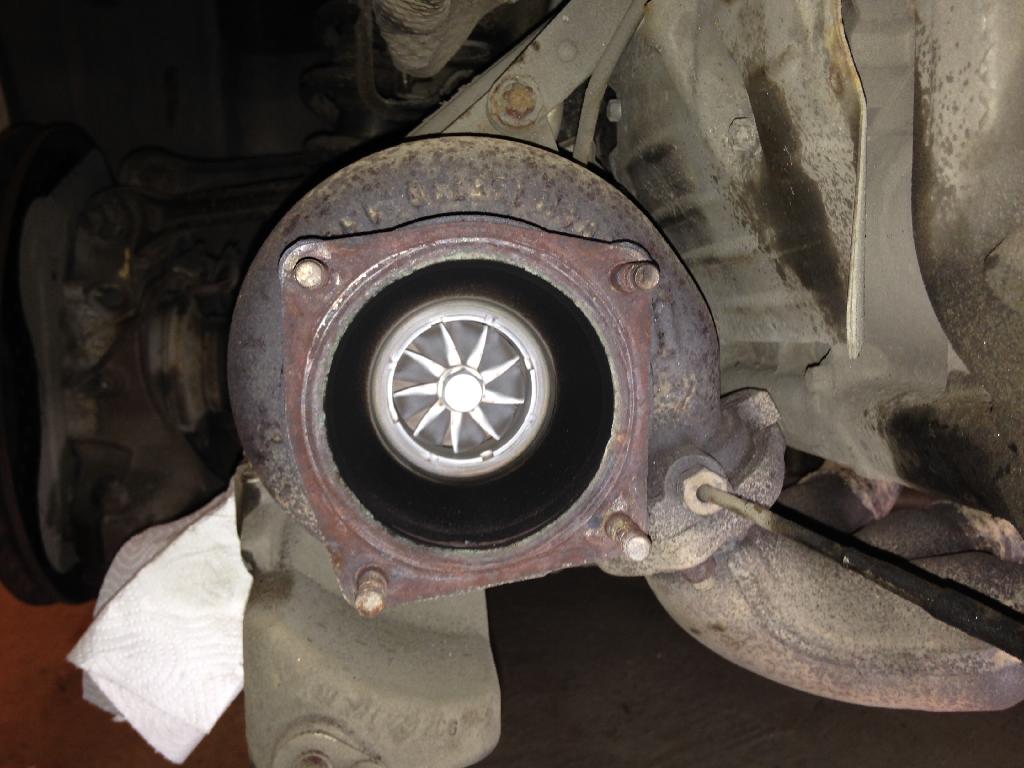

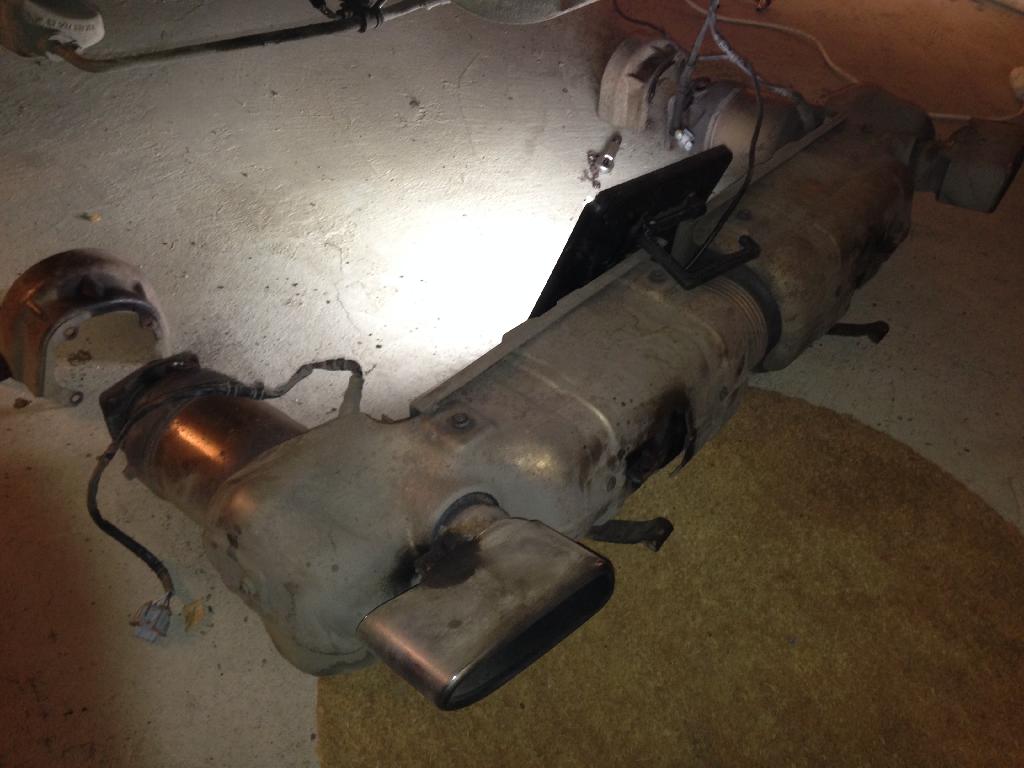

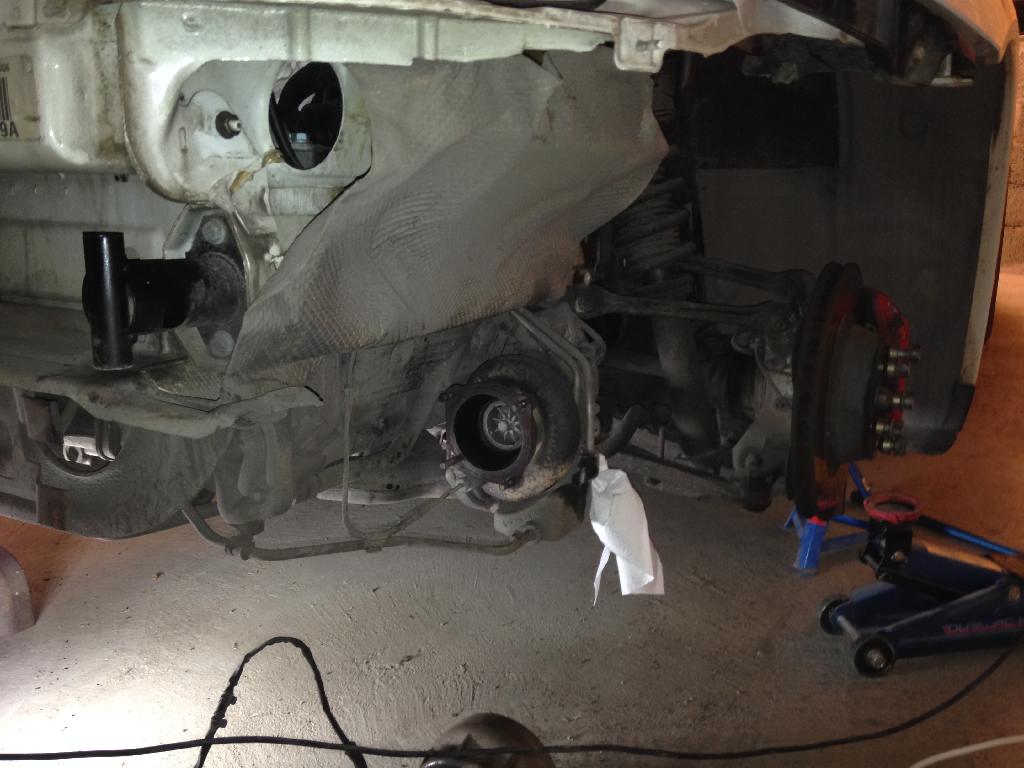

Good 1h session today, exhaust is off including removing y-pipe and airbox to get better access to o2 sensor cabels.










Attached Thumbnails Click image for larger version

Name:	10928877-CD87-4232-B7F2-D0870342E462.jpg
Views:	280
Size:	112.9 KB
ID:	348921   Click image for larger version

Name:	6674CCF3-1518-466D-9D38-5F45D33AF6F2.jpg
Views:	274
Size:	82.0 KB
ID:	348922   Click image for larger version

Name:	83DFA241-FB33-4FE9-BCCB-C8DCD03D1C99.jpg
Views:	268
Size:	104.5 KB
ID:	348923   Click image for larger version

Name:	5B610596-2B5C-4B53-9DEA-4BE5CFAFD2B2.jpg
Views:	276
Size:	88.6 KB
ID:	348924   Click image for larger version

Name:	A282F627-956A-4E72-A094-034C79842F02.jpg
Views:	302
Size:	77.1 KB
ID:	348925
