Exhaust install, any ideas for dealing with the turbo side corroded nuts?
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
During my first installation of a 996TT exhaust, I broke the original studs when I tightened and torqued the nuts to spec. As a result, the stud was broken flush on the turbo side, which made removal very difficult. Since then, I have replaced all the studs on every exhaust swap.
But to each their own.
But to each their own.
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
During my first installation of a 996TT exhaust, I broke the original studs when I tightened and torqued the nuts to spec. As a result, the stud was broken flush on the turbo side, which made removal very difficult. Since then, I have replaced all the studs on every exhaust swap.
But to each their own.
But to each their own.
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
I cracked all 8 nuts so I never put any torque on the studs so they are all intact.
I wasnt aware they should be replaced when I started this but next step is replacement.
I wasnt aware they should be replaced when I started this but next step is replacement.
Registered User
Joined: Feb 2010
Posts: 1,330
From: Pleasantville!
Rep Power: 167

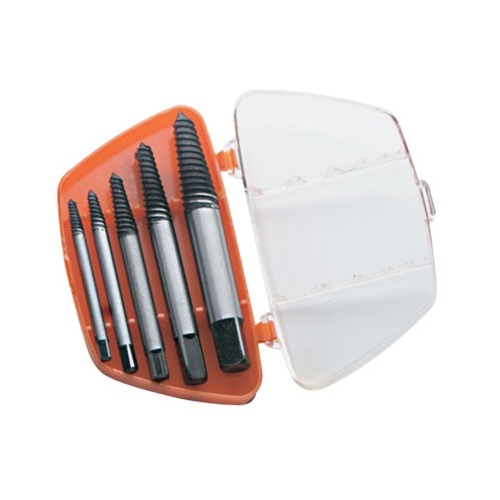

Typical process for this is you drill a slightly smaller hole in the stud remnant, and then use a tool called an easyout, which is reverse threaded...So as you turn it counterclockwise, it tightens and removes the broken bolt/stud. You would want to really soak it first with PB Blaster or similar penetrating oil.
If that fails, or seems ineffective, you may have to weld an extension to the stud and then back it out that way.
DC
If that fails, or seems ineffective, you may have to weld an extension to the stud and then back it out that way.
DC
Last edited by therock88; Mar 20, 2014 at 08:17 AM.
Registered User
Joined: Aug 2010
Posts: 2,185
From: Canada
Rep Power: 149
During my first installation of a 996TT exhaust, I broke the original studs when I tightened and torqued the nuts to spec. As a result, the stud was broken flush on the turbo side, which made removal very difficult. Since then, I have replaced all the studs on every exhaust swap.
But to each their own.
But to each their own.
Can you explain the process you used to remove the nuts and studs?
Thanks
Thread Starter
|
Registered User
Joined: Jul 2012
Posts: 775
From: Stockholm, Sweden
Rep Power: 72
I ended up reusing the old studs, after cleaned up they looked just fine and install was very simple.

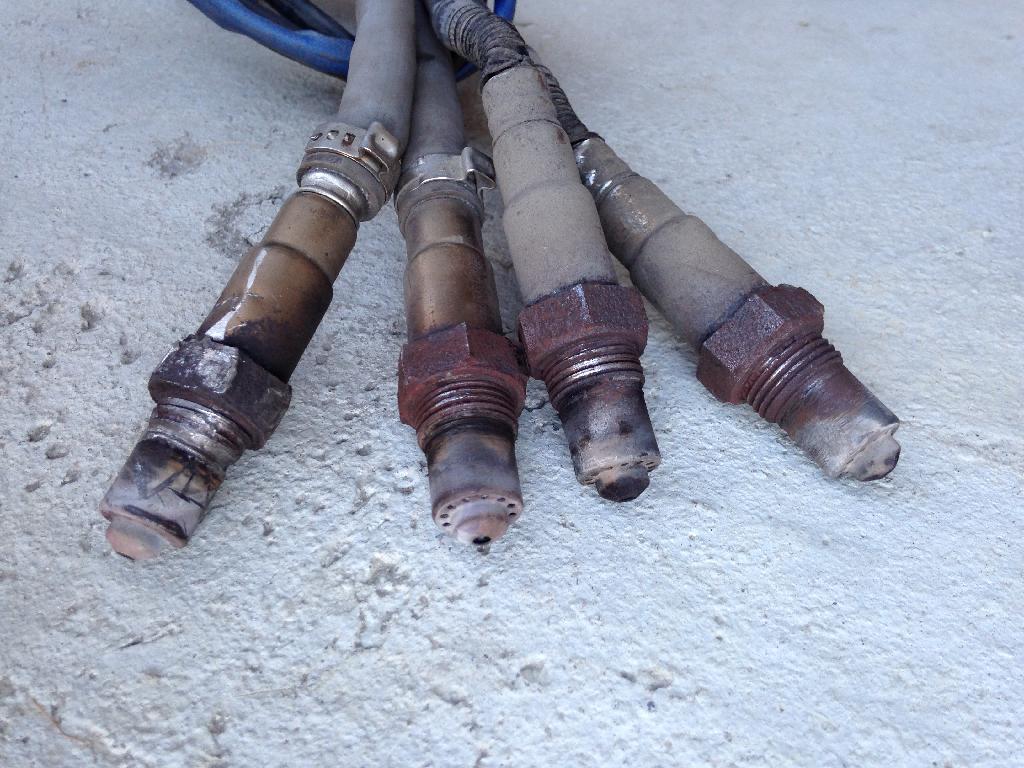

I am going to order new rear o2 sensors as well, the threads on them looks quite bad as well.

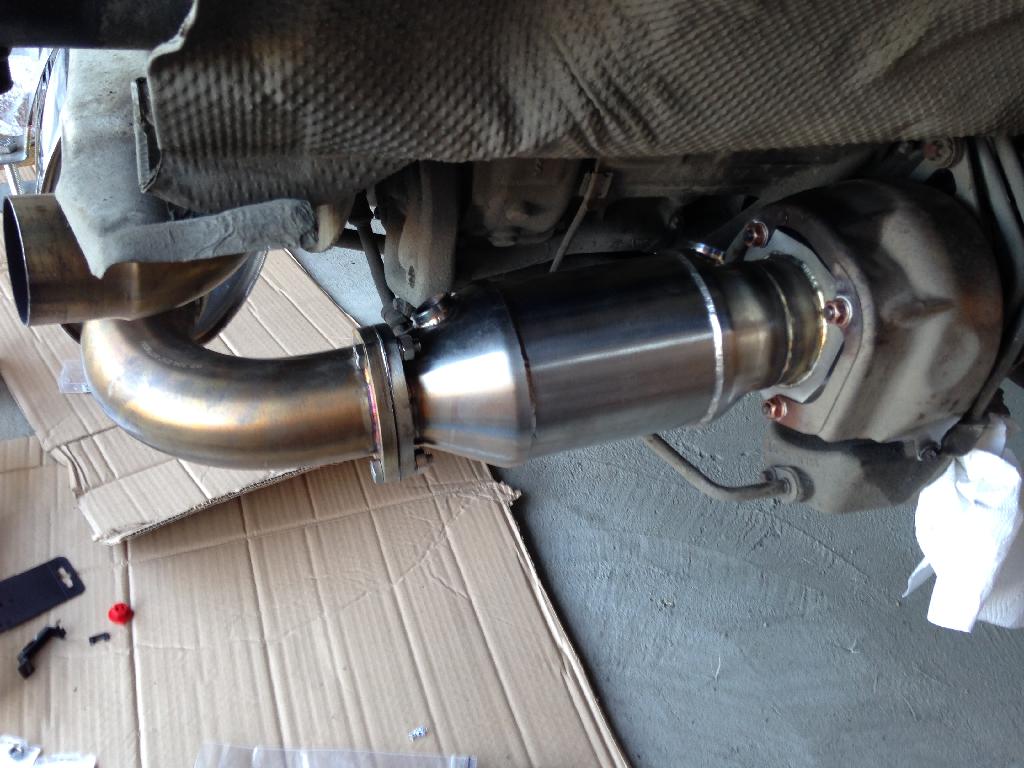

The Kline looks like this at moment, with bmw nuts
I am going to order new rear o2 sensors as well, the threads on them looks quite bad as well.
The Kline looks like this at moment, with bmw nuts
Registered User
Joined: Jun 2013
Posts: 115
From: USA
Rep Power: 21
Silly question but what size are the nuts? I went through a similar problem when I removed my stock exhaust, ended up paying $800+ for a shop to finally get it off. I have new porsche studs and nuts on the car but I would like to switch to nuts that aren't going to weld themselves to the car. Getting a different exhaust pretty soon. Those copper nuts look like a good idea.
