Hello guys
I need measurements for the location of the "Carrera 4S" badge.

Does anybody happen to have them or diagram or if any C4S owners could post pictures of the rear deck

thanks a lot



http://cgi.ebay.com/ebaymotors/Carre...item3f17663523



thanks I'll look for the diagram too



I just did mine this week ('09 4S). I recommend buying a grease marker, so you can mark up your decklid as you take measurements. End to end, the emblem measures about 15" and there should be about 10.3" on each side once it is on the decklid. Also, pay close attention to the placement of the "S." As you can see in the picture (from the ad the other member posted), the left of the "S" sits lower than the "a" in Carrera.

Good luck.



thanks for the link I think the carrera S emblem measurement is different, the carrera 4s is bit larger..

911cv so you installed the carrera 4s logo would you do me the big favor and measure it for me??

thanks

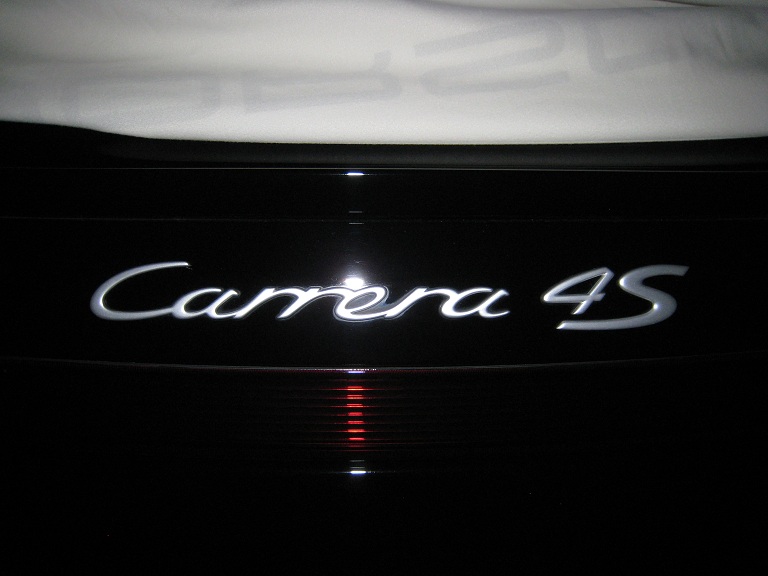

does a pic really help?

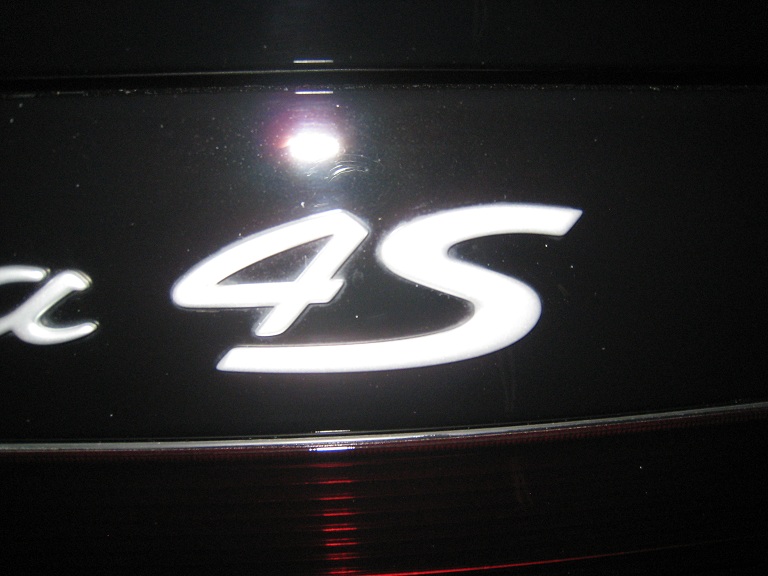

it does Domer thanks, I think the S I got from sun coast its to big, let me get a picture, do you think you can get a close up on the 4S badge for me?

thanks for the pic



or maybe its the way I'm placing it lol, if someone can post a pic of the 4s logo would be great.. thanks



good luck, now you've given me something else to clean



lol, thank you sir
