Alarm immobilizer - Lockout Question?

Just wondering has this ever happened to anyone? I was driving the car home, hour drive. Had to stop at a corner store, left the lights on, turn the car off ran in and out (2 minutes). Didn't arm the alarm or anything. Hopped back in, turned the key and nothing. No crank. OK. I thought maybe I drained the battery?? but in 2 minutes, couldn't have. Cycle the key again, this time it says "Depress Clutch" not the usual engage clutch if you forget. Never seen this before. I depress the clutch, remove the key, try again and it fired right back up.

Wondering if anyone had anything similar happen. Then the rest of the ride (2 miles) I kept thinking I was down on power, also felt like I was idling weird, but I think the non-start might have gotten into my head.

Old Jul 14, 2012 | 08:27 PM
  #2
PSPorsche's Avatar
Registered User
Joined: Oct 2011
Posts: 433
Rep Power: 59
PSPorsche has a reputation beyond reputePSPorsche has a reputation beyond reputePSPorsche has a reputation beyond reputePSPorsche has a reputation beyond reputePSPorsche has a reputation beyond reputePSPorsche has a reputation beyond reputePSPorsche has a reputation beyond reputePSPorsche has a reputation beyond reputePSPorsche has a reputation beyond reputePSPorsche has a reputation beyond reputePSPorsche has a reputation beyond repute
Is it possible your immobilizer kicked in? (However, it's supposed to kick in if you leave your key in the ignition for two minutes without starting the engine).

Old Jul 14, 2012 | 08:53 PM
  #3
MBENZF1's Avatar
Thread Starter
|
Registered User
Joined: Jan 2012
Posts: 485
From: Birmingham, MI
Rep Power: 46
MBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud of
I didn't leave the key in the ignition, I took the key with me, I didn't arm the car. Which is why I find this odd??

Although I'm not sure if there is a timing sequence between leaving the vehicle (with lights on, unarmed, to having the car kick into immobilizer mode)


Last edited by MBENZF1; Jul 14, 2012 at 08:56 PM.
Old Jul 15, 2012 | 12:21 PM
  #4
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !
I just had this happen to my GT2 - one of the two keys stopped functioning. And it never recovered. Thankfully, I was at home. An attempt at reprogramming the key's transponder to the PAS/KESSY control module failed, and required a complete control module swap.

Old Jul 15, 2012 | 12:21 PM
  #5
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !
Originally Posted by MBENZF1
I didn't leave the key in the ignition, I took the key with me, I didn't arm the car. Which is why I find this odd??

Although I'm not sure if there is a timing sequence between leaving the vehicle (with lights on, unarmed, to having the car kick into immobilizer mode)
Does your other key work?

Old Jul 15, 2012 | 12:24 PM
  #6
MBENZF1's Avatar
Thread Starter
|
Registered User
Joined: Jan 2012
Posts: 485
From: Birmingham, MI
Rep Power: 46
MBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud of
I didn't try the other key. I mainly use the one. Weird part was that it started right up after I removed the key and put it back in. As when I had try to cycle it a few times nothing happened. I haven't driven the car today yet, so we'll see what happens.

I really hope it isn't require a control module swap.

Old Jul 15, 2012 | 12:26 PM
  #7
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !
If you put the key in, turned to ignition 1, and no electronics showed up the first time, then my guess is something happened to PAS/KESSY.

If you put the key in, turned to ignition 1, and everything electronic lights up but the car doesn't turn over, something else is happening.

As far as depress clutch, this is what I usually see in my GT2.

Old Jul 15, 2012 | 12:29 PM
  #8
MBENZF1's Avatar
Thread Starter
|
Registered User
Joined: Jan 2012
Posts: 485
From: Birmingham, MI
Rep Power: 46
MBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud of
Scenario 2, put the key in, turned to ignition 1, everything lit up. Clutch in, Nothing.

Cycle key, holding clutch, nothing.

Still holding clutch, cycle again, nothing. Got "Depress Clutch"

Released clutch, removed key.

Inserted Key, pressed clutch, started right up. I want to go for a ride but waiting for the weather to dry up.

Old Jul 15, 2012 | 12:30 PM
  #9
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !

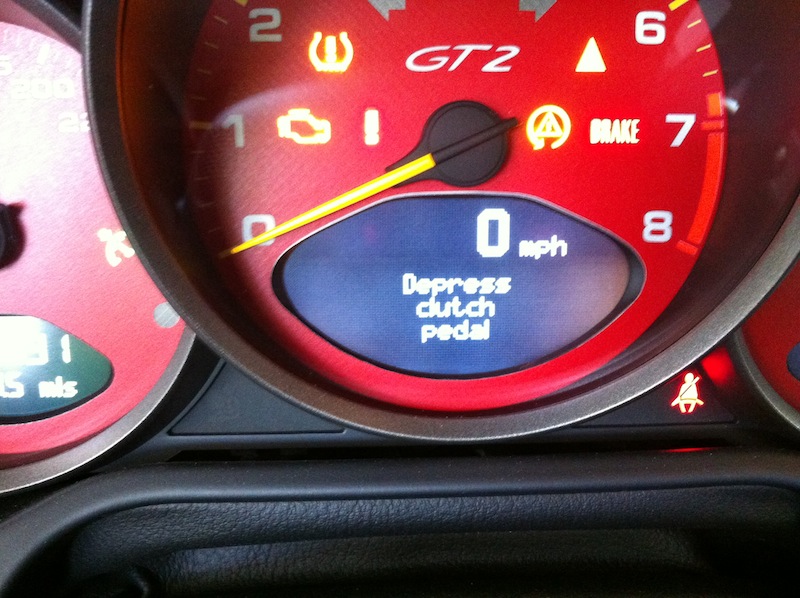

Just tried it.


Attached Images
Old Jul 15, 2012 | 12:32 PM
  #10
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !
Your car may not have sensed the clutch depression - I have had a situation where the sensor for the clutch depress did not allow the engine to turn over. My guess is your KESSY/PAS unit is fine.

This may help:

http://forums.rennlist.com/rennforums/997-forum/532170-starting-after-depress-clutch-pedal.html

and

https://www.6speedonline.com/forums/997/230793-depress-clutch-message-car-wont-start.html

It's a pretty easy DIY.


Last edited by bbywu; Jul 15, 2012 at 12:35 PM.
Old Jul 15, 2012 | 12:39 PM
  #11
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !

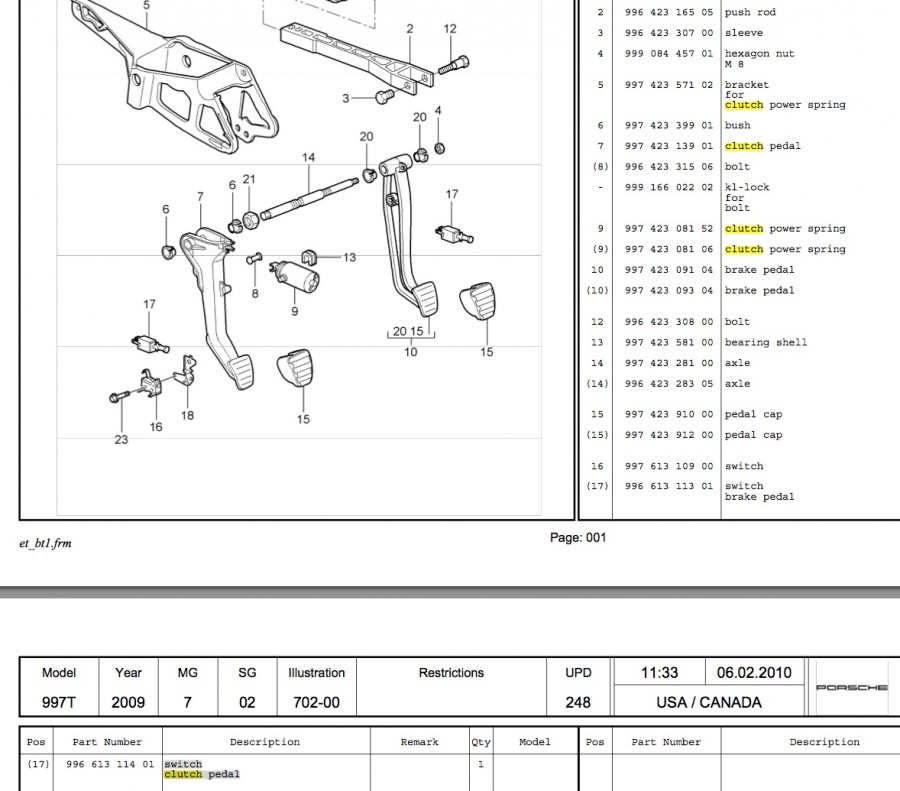

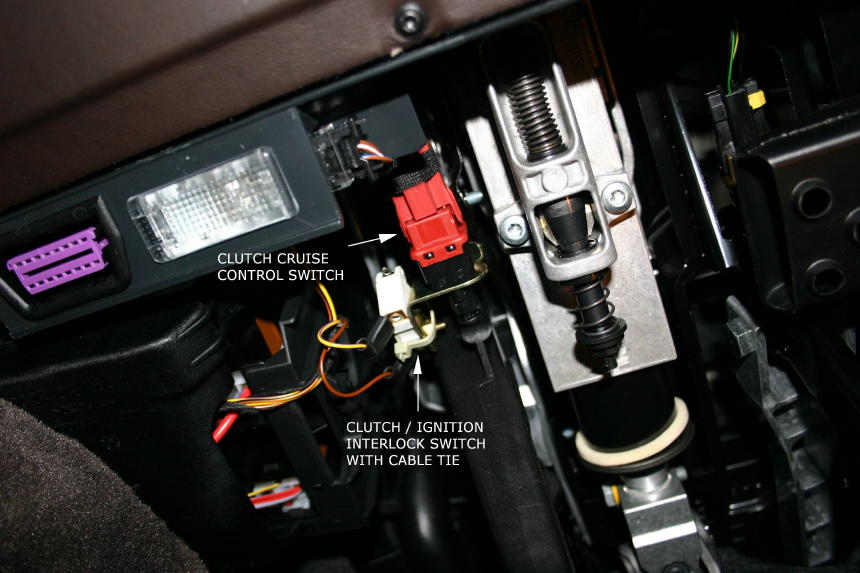

It's either the clutch/cruise switch, or the clutch/ignition switch.




Attached Images

Last edited by bbywu; Jul 15, 2012 at 12:58 PM.
Old Jul 15, 2012 | 05:25 PM
  #12
MBENZF1's Avatar
Thread Starter
|
Registered User
Joined: Jan 2012
Posts: 485
From: Birmingham, MI
Rep Power: 46
MBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud of
bbywu.

Thanks for that, I haven't been able to replicate the issue. It must have trigger while I ran out without unarming the car while leaving the lights on/door unlocked. I ran around all day today, with frequent stops, must have been a fluke. If it does it again, I have your post as reference. Thanks so much for your help +REP!!!

Also, extremely jealous as that little graph in the center of your tach!!

Old Aug 7, 2012 | 07:20 AM
  #13
MBENZF1's Avatar
Thread Starter
|
Registered User
Joined: Jan 2012
Posts: 485
From: Birmingham, MI
Rep Power: 46
MBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud ofMBENZF1 has much to be proud of
And it happened again, will order the switch online and will replace it this weekend. I noticed it only happened when I put the key in and turn it very rapidly to start. Normally I turn the key, let the lights light up, the K40 mobilize then turn the car on, no problems then. If I rifle the start, get "Depress" message.

Thanks again bbywu for making it easy.
