How do you take this panel out?

Reply



Thread Tools Search this Thread Rate Thread
  #1
Old 11-20-2011, 05:40 PM
Registered User
Thread Starter

Join Date: Oct 2006
Location: NJ
Posts: 290
Rep Power: 25
chirag is a jewel in the roughchirag is a jewel in the roughchirag is a jewel in the rough
How do you take this panel out?

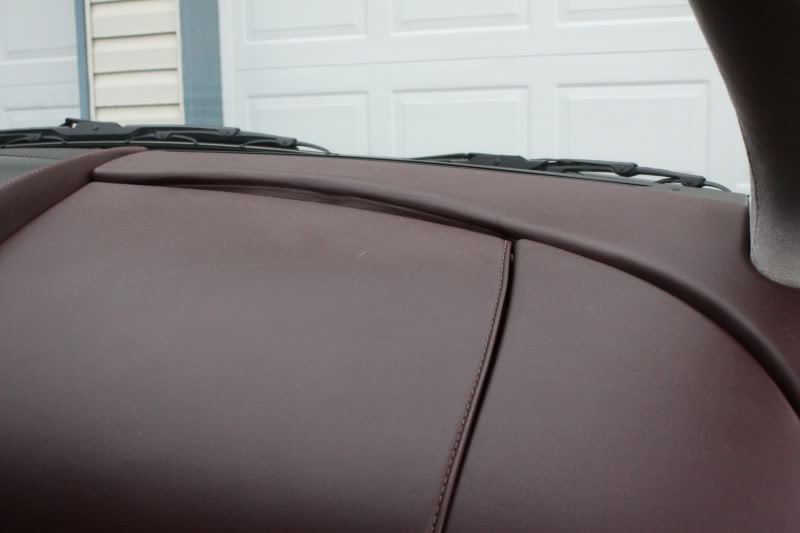

Seems like the leather has come unattached from this panel...I want to pull it out and have an upholstery shop re-glue it....does anyone know where the attachment points are, and the easiest way to pull it off?

TIA...

Name:  1120123.jpg
Views: 406
Size:  27.6 KB

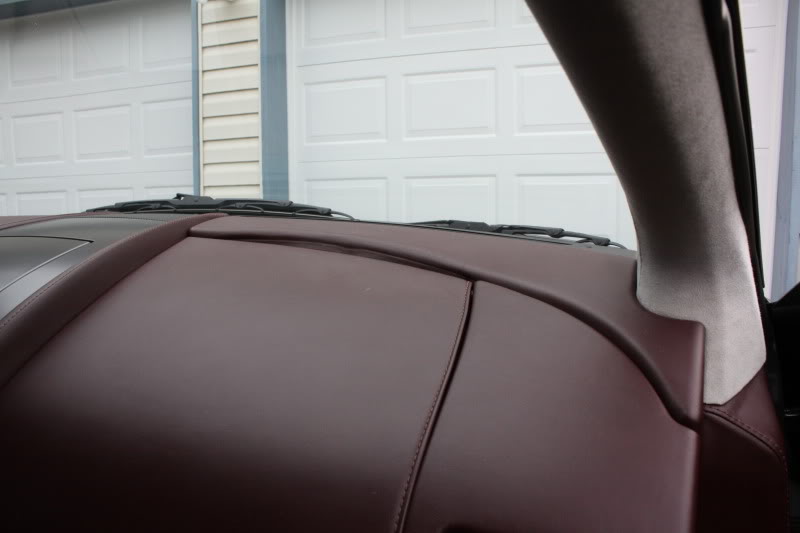

Name:  1120122.jpg
Views: 399
Size:  34.3 KB
Reply With Quote
  #2
Old 11-20-2011, 06:03 PM
Registered User

Join Date: Aug 2011
Location: Melbourne, FL
Posts: 94
Rep Power: 10
boosting1bar is on a distinguished road
That's come loose on my car as well.
Reply With Quote
  #3
Old 11-20-2011, 10:17 PM
RPVantage's Avatar
Registered User

Join Date: Jun 2009
Location: Texas
Posts: 396
Rep Power: 32
RPVantage is a splendid one to beholdRPVantage is a splendid one to beholdRPVantage is a splendid one to beholdRPVantage is a splendid one to beholdRPVantage is a splendid one to beholdRPVantage is a splendid one to beholdRPVantage is a splendid one to behold
My car had the same issue two years ago.
Reply With Quote
  #4
Old 11-21-2011, 01:23 AM
mfrankel's Avatar
Registered User

Join Date: Apr 2011
Location: Southern California
Posts: 161
Rep Power: 13
mfrankel is on a distinguished road
+3. I swear that's a picture of my car.
Reply With Quote
  #5
Old 11-21-2011, 03:41 AM
djantlive's Avatar
Registered User

Join Date: Oct 2004
Location: SFBA
Posts: 6,802
Rep Power: 337
djantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond repute
can't help to answer the dissassembly question. a good interior shop should be able to handle that i would think. a parts diagram may help to figure it out.

do you guys use a heatshield for your car when it's parked in the sun? that would prevent it.
Reply With Quote
  #6
Old 11-21-2011, 06:45 AM
Jarod's Avatar
Registered User

Join Date: Jul 2011
Posts: 70
Rep Power: 10
Jarod has a spectacular aura aboutJarod has a spectacular aura about
Sorry, no idea on this one. I donít want to steal your thread, but the panel from the passenger airbag (below the panel you are talking about) is kind of loose. It chatters and rattles while driving. I can also move it up and down bit wit my fingers. Does someone know how to tighten it?

Cheers, J
Reply With Quote
  #7
Old 11-21-2011, 10:09 AM
Racer_X's Avatar
Registered User

Join Date: Jun 2010
Location: whereabouts unknown
Posts: 2,292
Rep Power: 113
Racer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud of
This is a common problem, I'm told, and usually results from direct sun exposure. Unfortunately, the leather tends to shrink in this situation and typically must be replaced.
Reply With Quote
  #8
Old 11-21-2011, 10:26 AM
AMFixer's Avatar
Registered User

Join Date: Oct 2011
Location: Somewhere, USA
Posts: 361
Rep Power: 27
AMFixer is a name known to allAMFixer is a name known to allAMFixer is a name known to allAMFixer is a name known to allAMFixer is a name known to allAMFixer is a name known to all
This panel requires you to remove the airbag cover. Which does not require you to remove the airbag or even touch it. So if you want to know I can make a step by step process and post it here. Should only take bout 30 mins to remove. I only ask, because I said that scary car repair word "airbag".

Last edited by AMFixer; 11-21-2011 at 10:55 AM.
Reply With Quote
  #9
Old 11-21-2011, 12:53 PM
Registered User
Thread Starter

Join Date: Oct 2006
Location: NJ
Posts: 290
Rep Power: 25
chirag is a jewel in the roughchirag is a jewel in the roughchirag is a jewel in the rough
Sure, please do. I am happy to tackle this at home. Car was from FL so seems like it may have seen high temps that allowed some of the glue to give way. Pretty sure my interior shop should be able to make it look pretty close to perfect...

And man, AMfixer, I wish you or irish07 lived in the Tri-State area haha..
Reply With Quote
  #10
Old 11-21-2011, 01:35 PM
macksamus's Avatar
Registered User

Join Date: Jul 2010
Location: Los Altos, CA
Posts: 274
Rep Power: 18
macksamus will become famous soon enough
Mine had the exact same issue....luckily, panel was replaced under warranty (although it took about 5 weeks for the part to arrive from the UK)

After you get it fixed, I strongly recomend use of a leather conditioner about once a month to keep it from happening again. I know Leatherique is a favorite among many folks here.
Reply With Quote
  #11
Old 11-21-2011, 01:48 PM
AMFixer's Avatar
Registered User

Join Date: Oct 2011
Location: Somewhere, USA
Posts: 361
Rep Power: 27
AMFixer is a name known to allAMFixer is a name known to allAMFixer is a name known to allAMFixer is a name known to allAMFixer is a name known to allAMFixer is a name known to all
Panel Removal:

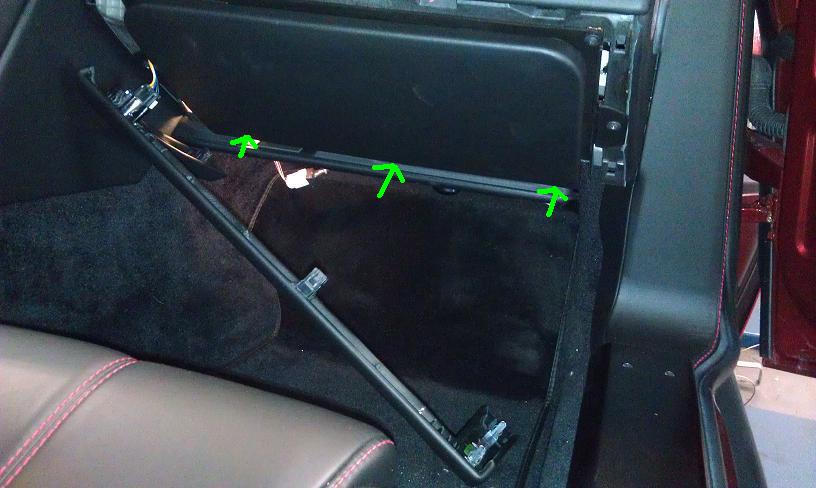

1: Remove glove box surround, glove box open switch is in this panel. It just pops out, no screws attach this. Start from the bottom pulling out from dash. Being careful of the switch once its out, the wires are short. (Glove Box Image)

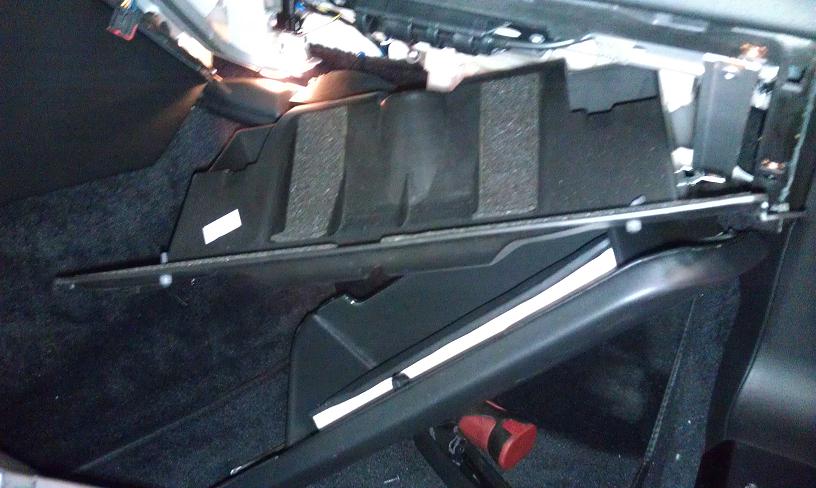

2:Remove Glove box. There are screws at the bottom (3 or 2), either a torx or phillips screw head (Glove Box Image). They go into a metal bracket. Then then are 3 or 4 screws that hold in the plastic piece at the dash, phillips screws. Be very careful here, once the glove box is out there is a cable that attaches on the side. Do not disconnect this, as its a pain to get back on or you can break the clip realy easy. Just let the glove box hang, it wont hurt it. (Glove Box 2 Image)

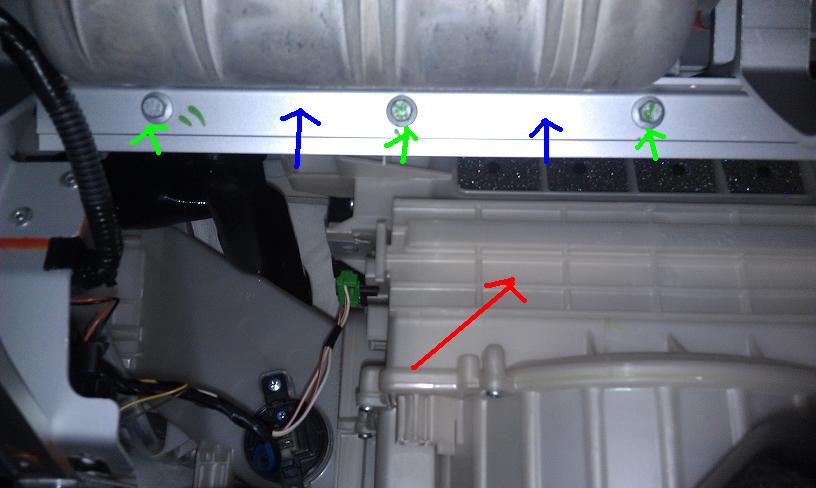

4. Airbag cover: Once the glove box is out. Look up under the dash there is a metal bracket with 3 8mm head bolts(Green Arrow). Remove these watch which way the metal braket comes out (Blue Arrow). When going back together make these tight. Then the airbag cover has clips that pop out. Be careful here and not break the clips. (Airbag 2 Image)
Also here is where the cabin filters are. There is a white panel that pops off, then the two filters are in there (Red Arrow). (Glove Box 2 Image)

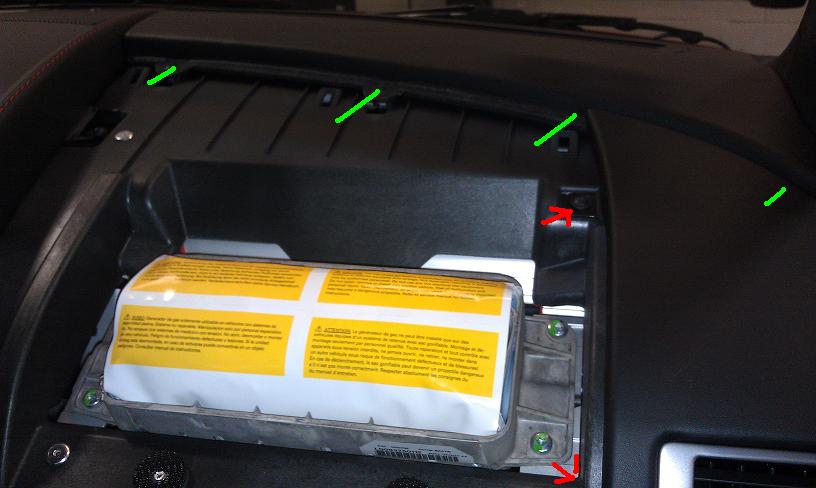

5. Once the airbag cover is out you can remove the 2 screws for thr side air vent. It pops out. (Trim Image red Arrows)

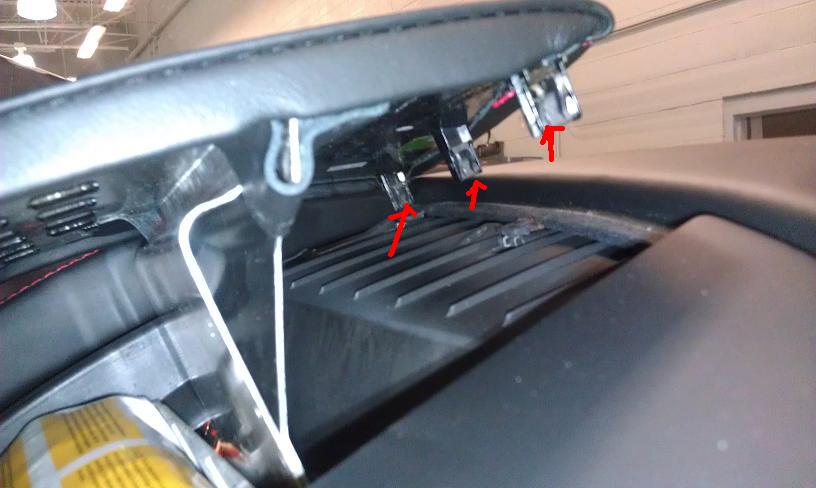

6. Then the four screw that hold the upper panel in. It also has some clips like the airbag cover, so be carful when removing it. (Trim Image Green Lines)
If anyone has questions let me know.
Same process for DB9, DBS too.
Attached Images


Last edited by AMFixer; 11-21-2011 at 01:52 PM.
Reply With Quote
  #12
Old 11-21-2011, 03:46 PM
Registered User
Thread Starter

Join Date: Oct 2006
Location: NJ
Posts: 290
Rep Power: 25
chirag is a jewel in the roughchirag is a jewel in the roughchirag is a jewel in the rough
Thanks, took about 25 minutes to get out. Heading to the upholsterer now...will report the results!
Reply With Quote
  #13
Old 11-21-2011, 08:52 PM
Registered User
Thread Starter

Join Date: Oct 2006
Location: NJ
Posts: 290
Rep Power: 25
chirag is a jewel in the roughchirag is a jewel in the roughchirag is a jewel in the rough
Just got back, took him about 20 minutes to glue both the fabric and the leather together. Seems like its back together pretty well. Reassembled almost all of the dash back with the exception of the glove (too dark in the garage). Will post some pics tomorrow, but looks great!
Reply With Quote
  #14
Old 11-21-2011, 09:56 PM
Aston.Ca's Avatar
Registered User

Join Date: Oct 2011
Location: Toronto
Posts: 702
Rep Power: 39
Aston.Ca is just really niceAston.Ca is just really niceAston.Ca is just really niceAston.Ca is just really niceAston.Ca is just really nice
Quote:
Originally Posted by AMFixer View Post
Panel Removal:
1: Remove glove box surround, glove box open switch is in this panel. It just pops out, no screws attach this. Start from the bottom pulling out from dash. Being careful of the switch once its out, the wires are short. (Glove Box Image)
2:Remove Glove box. There are screws at the bottom (3 or 2), either a torx or phillips screw head (Glove Box Image). They go into a metal bracket. Then then are 3 or 4 screws that hold in the plastic piece at the dash, phillips screws. Be very careful here, once the glove box is out there is a cable that attaches on the side. Do not disconnect this, as its a pain to get back on or you can break the clip realy easy. Just let the glove box hang, it wont hurt it. (Glove Box 2 Image)
4. Airbag cover: Once the glove box is out. Look up under the dash there is a metal bracket with 3 8mm head bolts(Green Arrow). Remove these watch which way the metal braket comes out (Blue Arrow). When going back together make these tight. Then the airbag cover has clips that pop out. Be careful here and not break the clips. (Airbag 2 Image)
Also here is where the cabin filters are. There is a white panel that pops off, then the two filters are in there (Red Arrow). (Glove Box 2 Image)
5. Once the airbag cover is out you can remove the 2 screws for thr side air vent. It pops out. (Trim Image red Arrows)
6. Then the four screw that hold the upper panel in. It also has some clips like the airbag cover, so be carful when removing it. (Trim Image Green Lines)
If anyone has questions let me know.
Same process for DB9, DBS too.
Awesome (and fast) work! Thanks for posting this.
Reply With Quote
  #15
Old 11-23-2011, 02:51 PM
Registered User
Thread Starter

Join Date: Oct 2006
Location: NJ
Posts: 290
Rep Power: 25
chirag is a jewel in the roughchirag is a jewel in the roughchirag is a jewel in the rough

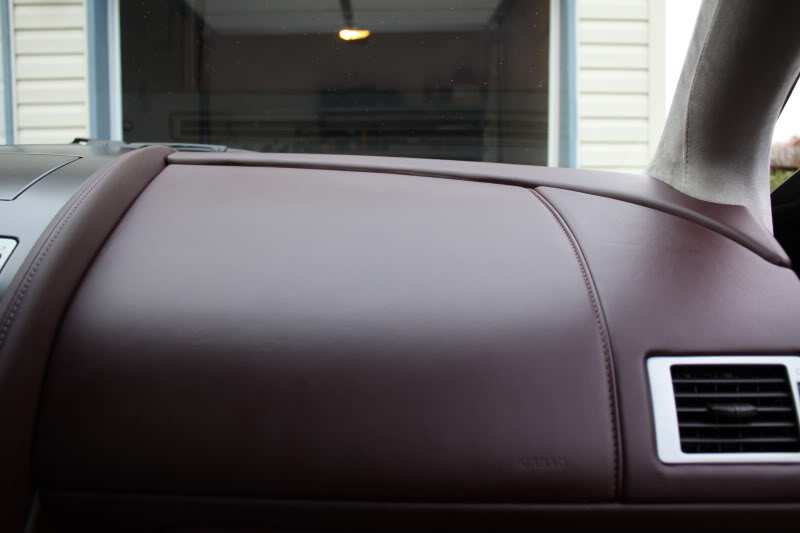

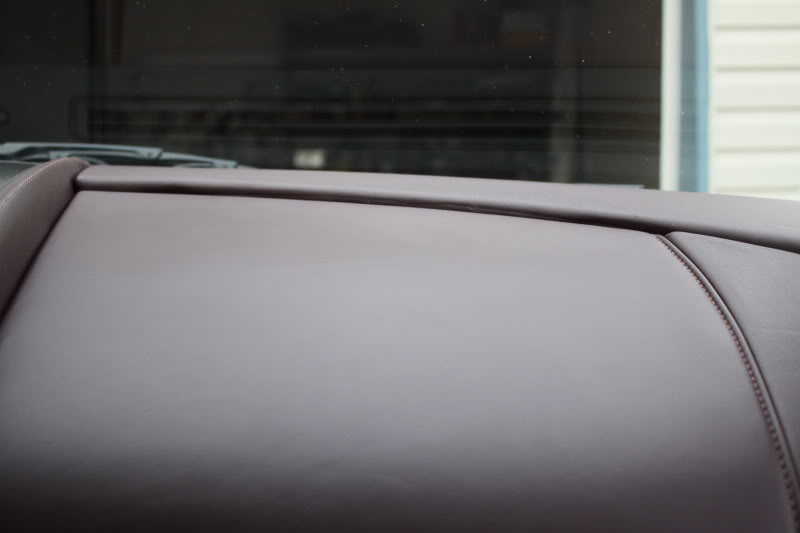

Here are the after pics..

Name:  1120115.jpg
Views: 396
Size:  23.1 KB
Name:  1120114.jpg
Views: 393
Size:  32.7 KB

AMfixer, thanks again, this was bothering me since I picked the car up
