Replacing Alarm module Battery

Hi All


I decided to change battery on sounder module, which failed after I had disconnected my main battery for a long period of time while car was being wrapped in color change vinyl.


Car will lock and unlock with remote but alarm will not go off even if car is locked and I open the door. there is also alarm service required message in instrument cluster. Part from AM is about $ 200-300. If I am successful at replacing battery and it fixes the problem it will be about $ 25 but its not only $$, able to fix problems myself gives me satisfaction and sense of high.


If I fail at least it will help others either to avoid the project all together or avoid my mistakes.


I used only a thin flat head phillips screw driver, hammer, metal grinder, soldering gun , hack saw and volt meter.


please see pictures below.

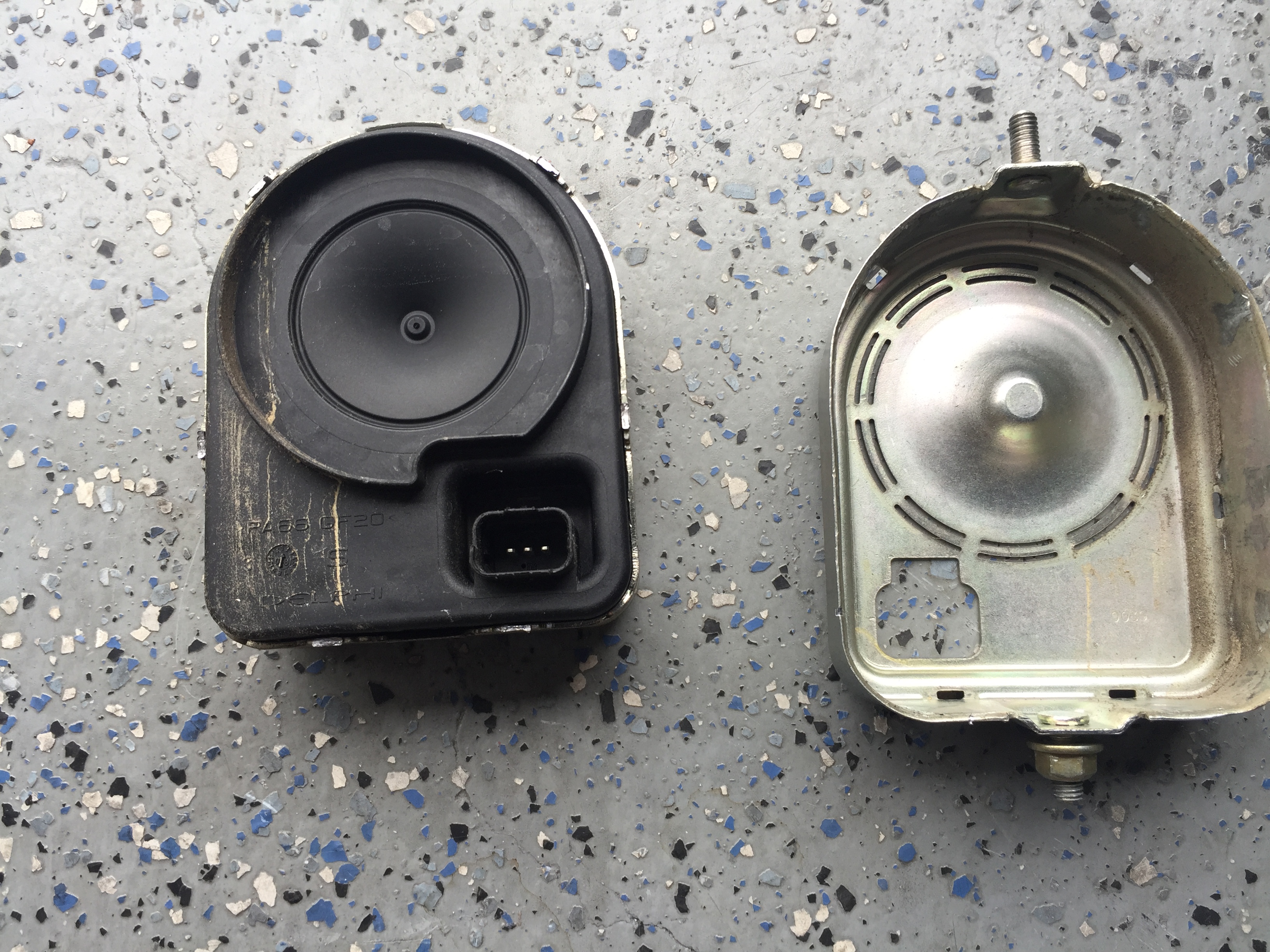

So far I have been able to open up the inside plastic unit.
Battery is a Varta 6 V 140 mAh rechargeable Ni-MH battery. I think model Number is 5/V150HT


I am not able to find this particular battery online so far.
I did find on ebay similar specifics but no connecting pins, original battery had 5 pins which goes in to circuit board and its soldered to Circuit board

Attached Thumbnails Click image for larger version

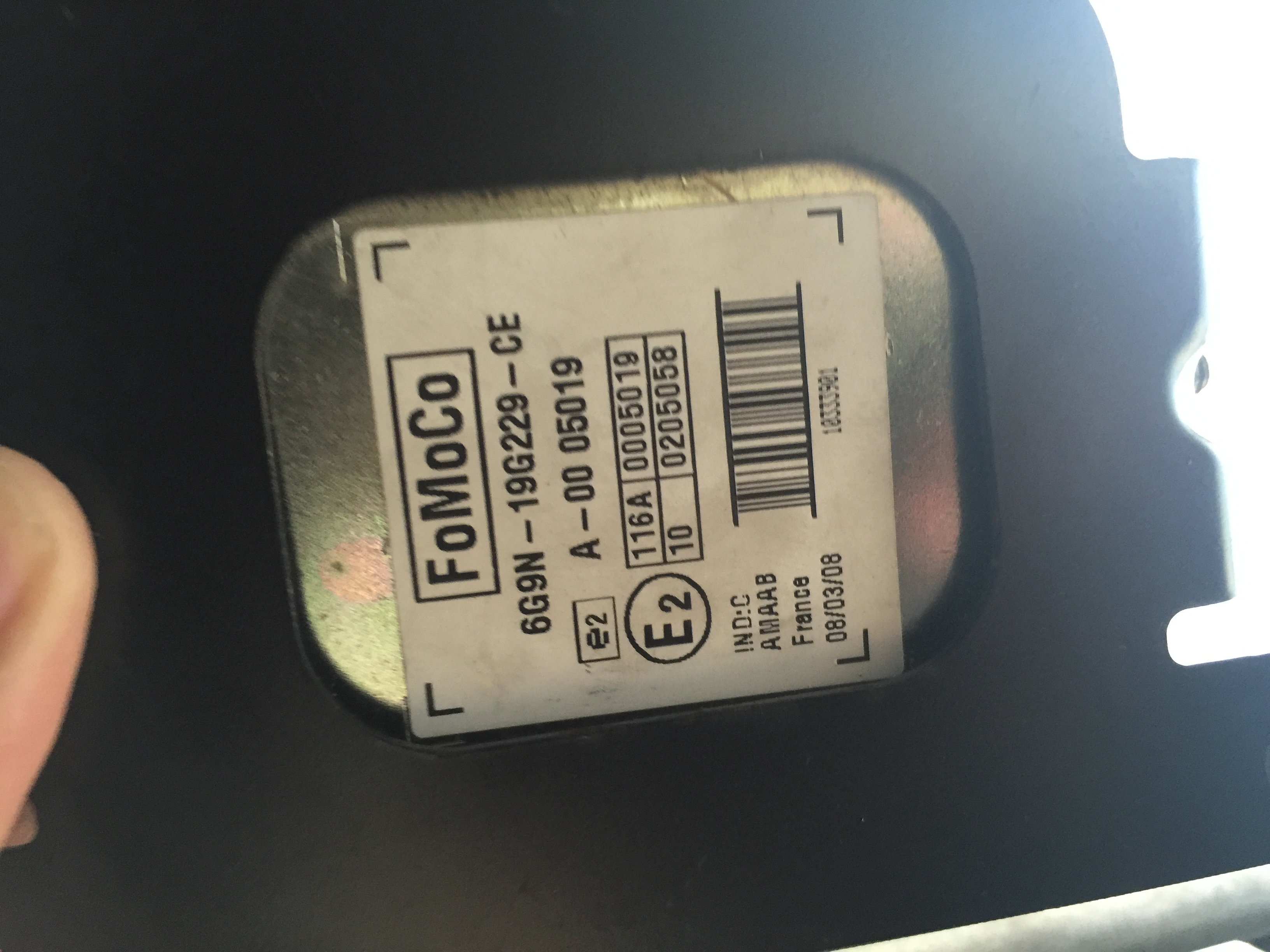

Name:	Location.JPG
Views:	163
Size:	1.96 MB
ID:	444598   Click image for larger version

Name:	Front.JPG
Views:	172
Size:	2.48 MB
ID:	444599   Click image for larger version

Name:	grinding points.JPG
Views:	70
Size:	2.73 MB
ID:	444600   Click image for larger version

Name:	back.JPG
Views:	97
Size:	1.64 MB
ID:	444602   Click image for larger version

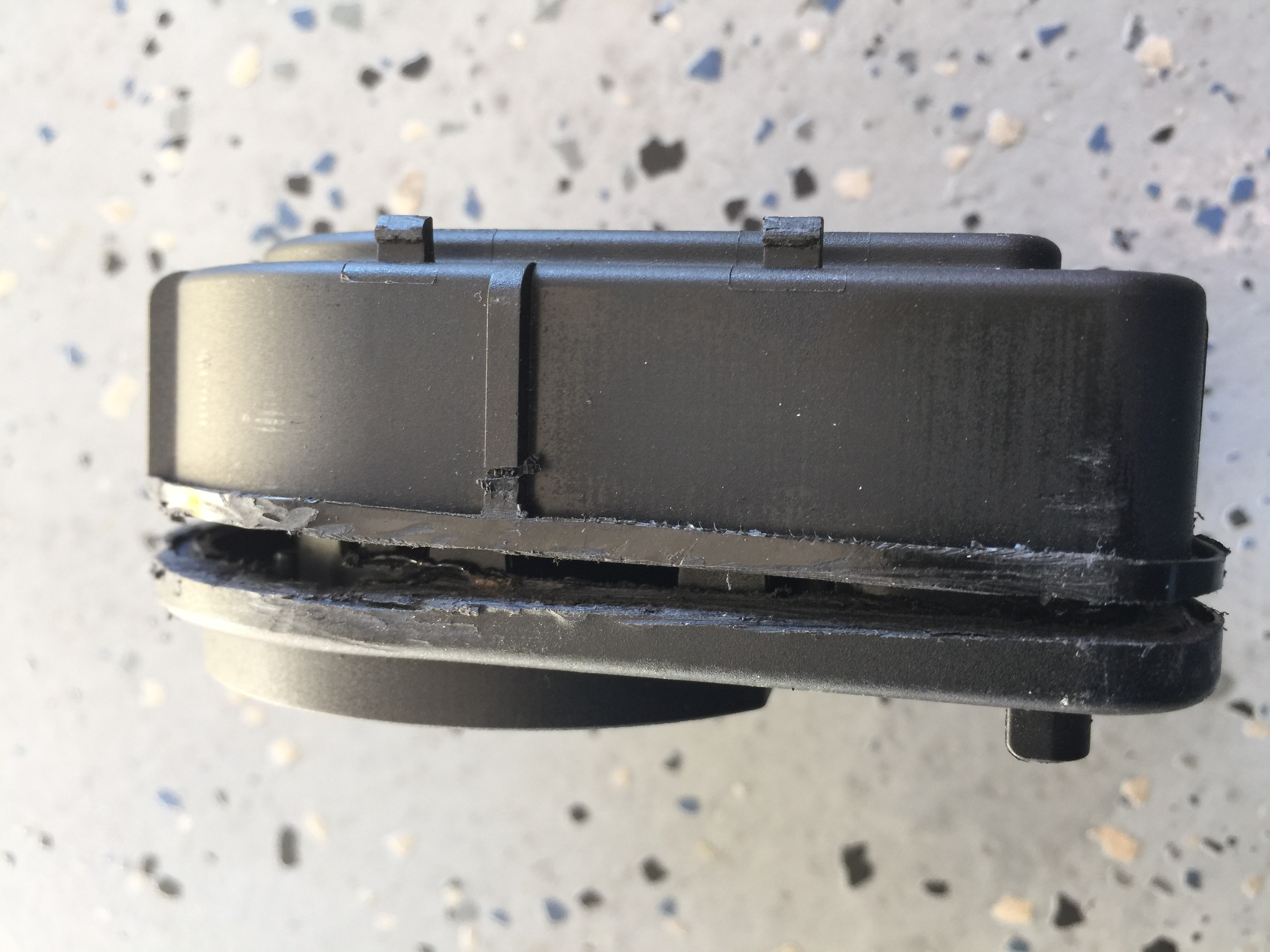

Name:	Split Metal body.JPG
Views:	64
Size:	2.53 MB
ID:	444603

Click image for larger version

Name:	tool used.JPG
Views:	45
Size:	1.85 MB
ID:	444604   Click image for larger version

Name:	split in process.JPG
Views:	64
Size:	1.59 MB
ID:	444605   Click image for larger version

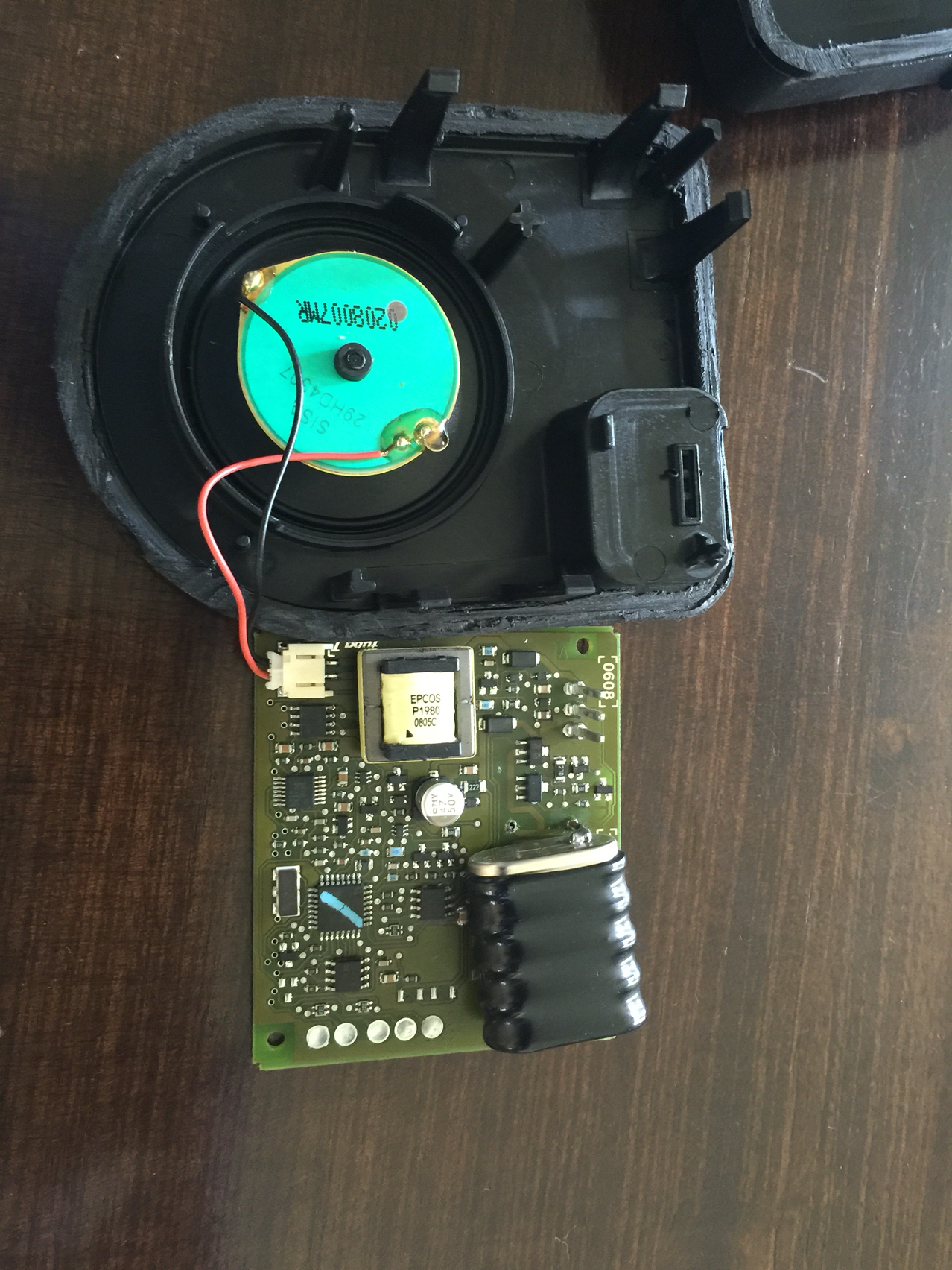

Name:	internal component.JPG
Views:	124
Size:	2.07 MB
ID:	444606   Click image for larger version

Name:	Splt plastic body.JPG
Views:	45
Size:	1.85 MB
ID:	444607   Click image for larger version

Name:	poor voltage.JPG
Views:	47
Size:	1.95 MB
ID:	444608

  #2
Old 04-03-2016, 07:41 PM
Registered User
Thread Starter
Join Date: Aug 2013
Location: Ocala, fl
Posts: 391
Rep Power: 25
Wildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of light
Ok
So I was able to remove the soldered battery
Now biggest problem is finding the exact same battery
Original battery is VARTA 5/V150HT WITH 5 pins (2 on positive side and 3 on negative side)
Not sure why need so many pins to go in circuit board.
Looks like 2 polices are feeding the same circuit drawing on circuit board.

I was able to find Varta V150 but it does not have 5 pins needed to solder it to circuit board.

Any ideas?

  #3
Old 04-04-2016, 04:24 PM
DonL's Avatar
Registered User
Join Date: May 2010
Location: SF East Bay
Posts: 715
Rep Power: 57
DonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant future
Originally Posted by Wildcat1212 View Post
Ok
So I was able to remove the soldered battery
Now biggest problem is finding the exact same battery
Original battery is VARTA 5/V150HT WITH 5 pins (2 on positive side and 3 on negative side)
Not sure why need so many pins to go in circuit board.
Looks like 2 polices are feeding the same circuit drawing on circuit board.

I was able to find Varta V150 but it does not have 5 pins needed to solder it to circuit board.

Any ideas?
Well, the battery may be a heavier component on the Printed Circuit Board (PCB) than most other components, and someone decided that 5 connections to the PCB would be enough to hold it in place in an automotive application...unless there are multiple points that need the voltage applied?

Is it possible to remove the "stabs" from the old battery and solder them onto the new one? Just a thought...

  #4
Old 04-04-2016, 04:38 PM
Registered User
Thread Starter
Join Date: Aug 2013
Location: Ocala, fl
Posts: 391
Rep Power: 25
Wildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of light
Yup that's the last resort idea in my mind.
You might be right about heavy battery and 5 pins

  #5
Old 04-05-2016, 06:36 PM
ncamv8's Avatar
Registered User
Join Date: Dec 2014
Location: NC
Posts: 205
Rep Power: 18
ncamv8 is a name known to allncamv8 is a name known to allncamv8 is a name known to allncamv8 is a name known to allncamv8 is a name known to allncamv8 is a name known to all
The extra terminals could also be for battery temp, as that will help the charge circuit know how much current to run when recharging the battery

  #6
Old 05-05-2016, 07:53 PM
Registered User
Thread Starter
Join Date: Aug 2013
Location: Ocala, fl
Posts: 391
Rep Power: 25
Wildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of light
ok I was able to get the battery off the ebay
it came without any terminals, original has 5 termianls.
I took 2 copper wires and soldered it (my friend keith did it)
we only used 2 point, one for positive and one for negative.
I put every thing back together
used epoxy based clear 2 part epoxy to glue back 2 black plastic halves and it did glue back together as I had cut them evenly (if you cut in smooth straight line, its easier to glue it back together)
put the part back in metal housing and put back in the car today.
Just now tested alarm system and siren did go off. so success, total cost about 20-25 bucks and sense of achievement PRICELESS.
I will post remaining pictures later on. Don't have it with me at the moment.

  #7
Old 05-06-2016, 07:05 PM
Registered User
Thread Starter
Join Date: Aug 2013
Location: Ocala, fl
Posts: 391
Rep Power: 25
Wildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of light

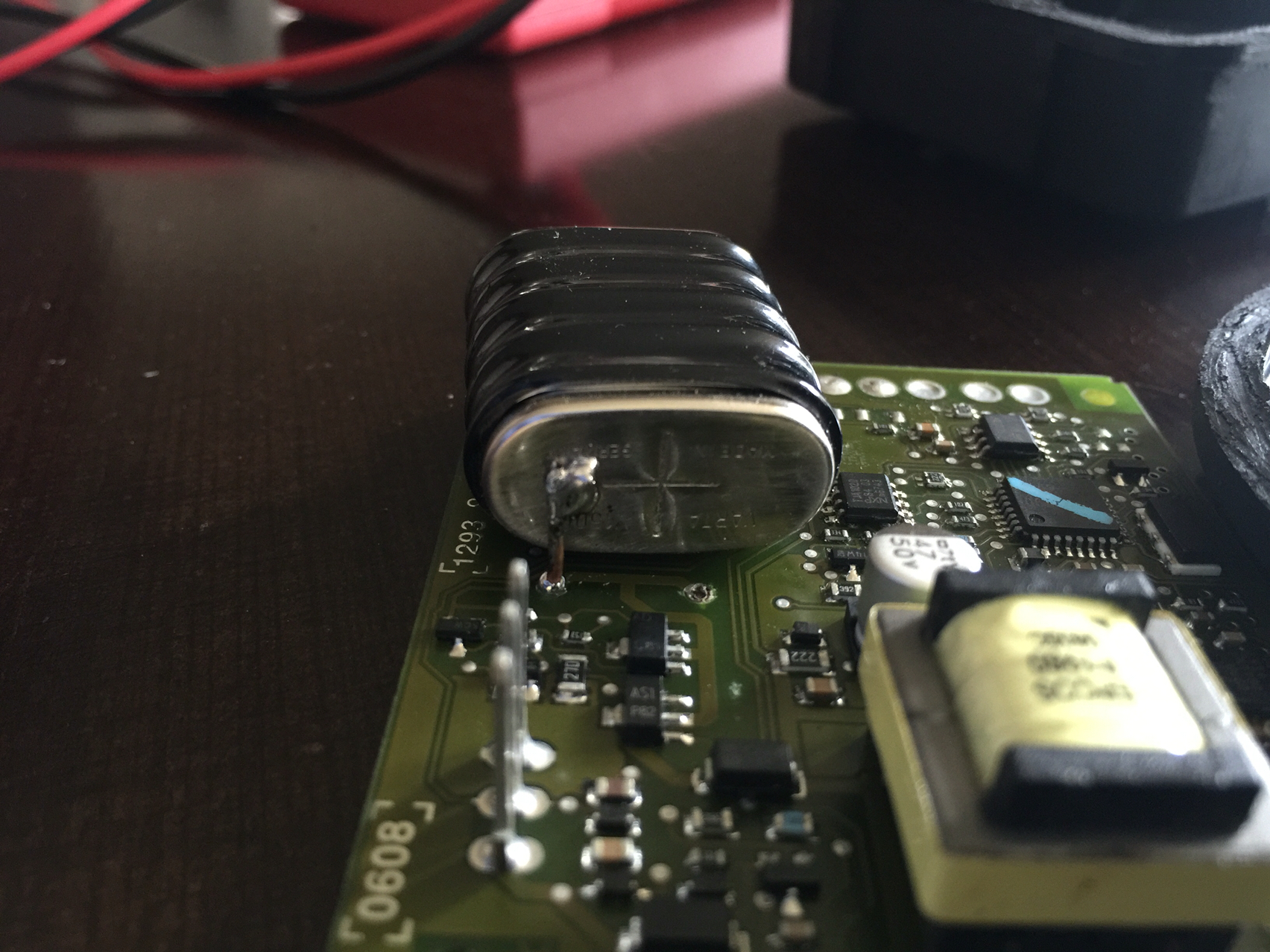

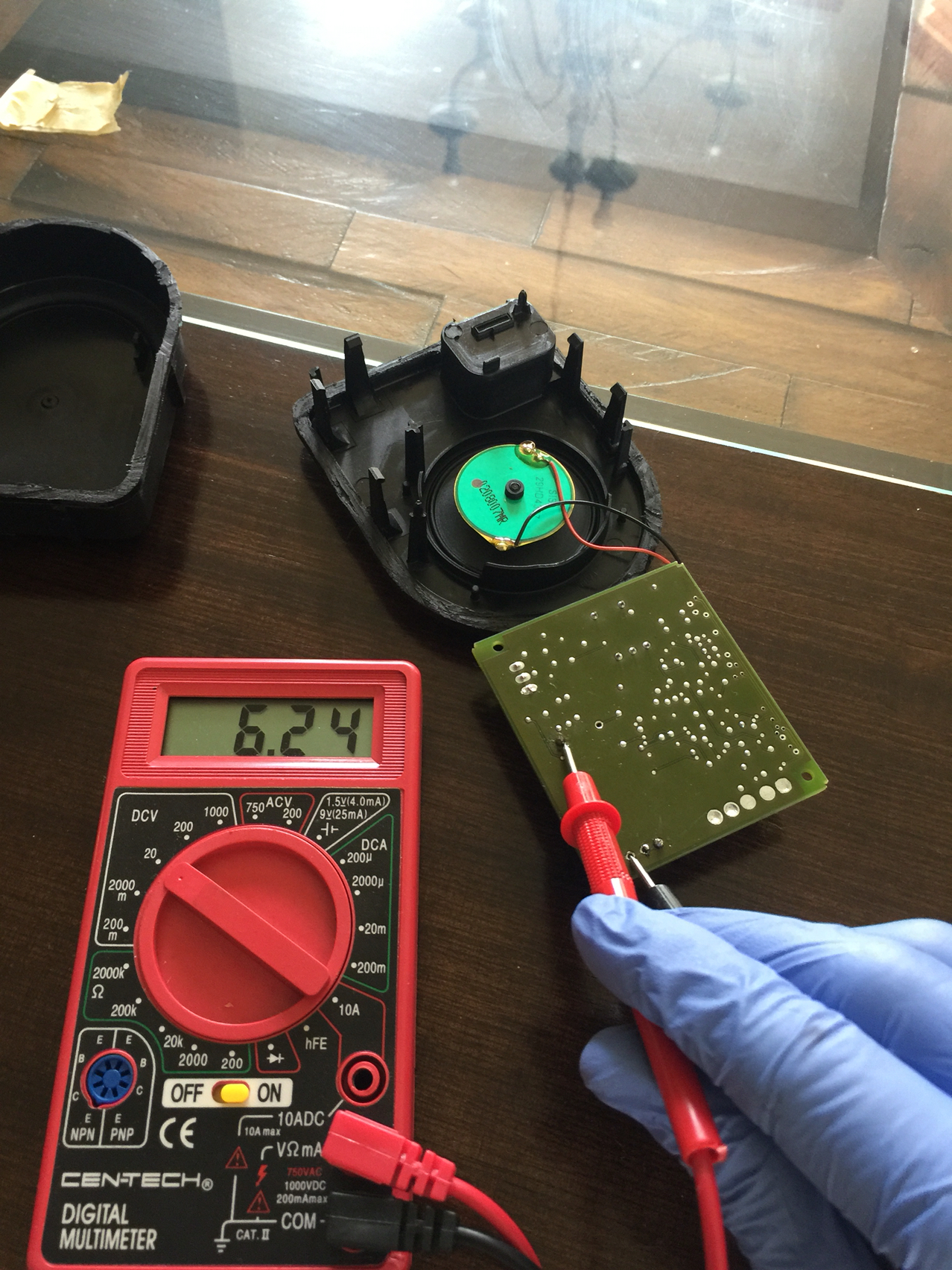

Here are the pictures of new battery installed and tested at each contact showing 6.2 volts even if I used only 1 positive and one negative pin

Attached Thumbnails Click image for larger version

Name:	photo781.jpg
Views:	32
Size:	2.06 MB
ID:	447888   Click image for larger version

Name:	photo86.jpg
Views:	33
Size:	2.08 MB
ID:	447889   Click image for larger version

Name:	photo100.jpg
Views:	23
Size:	2.23 MB
ID:	447890   Click image for larger version

Name:	photo197.jpg
Views:	27
Size:	2.20 MB
ID:	447891
  #8
Old 05-06-2016, 07:07 PM
Registered User
Thread Starter
Join Date: Aug 2013
Location: Ocala, fl
Posts: 391
Rep Power: 25
Wildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of light
Some more pics

Attached Thumbnails Click image for larger version

Name:	photo648.jpg
Views:	31
Size:	2.25 MB
ID:	447892   Click image for larger version

Name:	photo944.jpg
Views:	22
Size:	2.12 MB
ID:	447893   Click image for larger version

Name:	photo64.jpg
Views:	46
Size:	1.84 MB
ID:	447894
  #9
Old 05-06-2016, 08:04 PM
ncamv8's Avatar
Registered User
Join Date: Dec 2014
Location: NC
Posts: 205
Rep Power: 18
ncamv8 is a name known to allncamv8 is a name known to allncamv8 is a name known to allncamv8 is a name known to allncamv8 is a name known to allncamv8 is a name known to all
Nice write up, this will help others.

  #10
Old 05-07-2016, 02:16 AM
sdekoning's Avatar
Registered User
Join Date: Jun 2014
Location: The Netherlands
Posts: 351
Rep Power: 27
sdekoning is a splendid one to beholdsdekoning is a splendid one to beholdsdekoning is a splendid one to beholdsdekoning is a splendid one to beholdsdekoning is a splendid one to beholdsdekoning is a splendid one to beholdsdekoning is a splendid one to behold
awesome writie up indeed!

  #11
Old 05-07-2016, 04:25 AM
Adrian928's Avatar
Registered User
Join Date: May 2016
Location: Vermont
Posts: 27
Rep Power: 5
Adrian928 is on a distinguished road
Originally Posted by Wildcat1212 View Post
Hi All


I decided to change battery on sounder module, which failed after I had disconnected my main battery for a long period of time while car was being wrapped in color change vinyl.


Car will lock and unlock with remote but alarm will not go off even if car is locked and I open the door. there is also alarm service required message in instrument cluster. Part from AM is about $ 200-300. If I am successful at replacing battery and it fixes the problem it will be about $ 25 but its not only $$, able to fix problems myself gives me satisfaction and sense of high.


If I fail at least it will help others either to avoid the project all together or avoid my mistakes.


I used only a thin flat head phillips screw driver, hammer, metal grinder, soldering gun , hack saw and volt meter.


please see pictures below.


So far I have been able to open up the inside plastic unit.
Battery is a Varta 6 V 140 mAh rechargeable Ni-MH battery. I think model Number is 5/V150HT


I am not able to find this particular battery online so far.
I did find on ebay similar specifics but no connecting pins, original battery had 5 pins which goes in to circuit board and its soldered to Circuit board
This may be an overly simplistic approach, but can't this module be found at one of the AM wrecker parts yards?

  #12
Old 05-07-2016, 05:44 AM
Registered User
Thread Starter
Join Date: Aug 2013
Location: Ocala, fl
Posts: 391
Rep Power: 25
Wildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of light
If module is not being in car or if battery is not being charged or if it's old you may end up facing same problem of dead battery.

Module is not that expensive o think 200/300$ range but it's the excitement and sense of accomplishment that's what makes it fun

  #13
Old 05-07-2016, 10:55 AM
Adrian928's Avatar
Registered User
Join Date: May 2016
Location: Vermont
Posts: 27
Rep Power: 5
Adrian928 is on a distinguished road
Perhaps this can help. A rather in-depth substitution chart including specialized batteries:
http://dantona.com

  #14
Old 05-07-2016, 01:34 PM
Registered User
Join Date: Aug 2015
Location: ontario canada
Age: 61
Posts: 171
Rep Power: 12
cadman is a jewel in the roughcadman is a jewel in the roughcadman is a jewel in the rough
did this fix clear the alarm service message also ?
great job, always happy to see write ups on how to's

  #15
Old 05-07-2016, 02:21 PM
Registered User
Thread Starter
Join Date: Aug 2013
Location: Ocala, fl
Posts: 391
Rep Power: 25
Wildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of lightWildcat1212 is a glorious beacon of light
Originally Posted by cadman View Post
did this fix clear the alarm service message also ?
great job, always happy to see write ups on how to's
Thank you and yes it did fix, both error messages went away but note that I had loose connection on passenger side wheel well harness plug so that was the reason for error message but battery was drained too, it showed only 3 volts. Now it's possible if I kept on driving the car it would have recharged by itself ? May be , but will never know
