Factory clear bra/rock guard?

Long story short, I peeled off the 9 yr old clear bra along the entire side skirt/rocker panel/lower rear fender area.

I now am looking for the a replacement for just the small triangular piece that was on that lower rear fender area just above the one piece side skirt.

Does anyone know if there's a factory part # replacement that's readily available? or will I have to seek out aftermarket options?

Old Jun 18, 2016 | 07:46 AM
  #2
alexhuth's Avatar
Registered User
Joined: Oct 2015
Posts: 170
From: Austin Tx
Rep Power: 17
alexhuth is infamous around these parts
Did taking it off hurt the paint at all?

Old Jun 18, 2016 | 11:27 AM
  #3
shootermcgav1n's Avatar
Thread Starter
|
Registered User
Joined: Aug 2013
Posts: 678
From: Atl, GA
Rep Power: 41
shootermcgav1n has a spectacular aura aboutshootermcgav1n has a spectacular aura about
No sure didn't, tried to take my time with it though, wasn't easy. Wish I actually had a steamer it would've made it much easier and quicker.

Old Jun 18, 2016 | 08:51 PM
  #4
drivergmx's Avatar
Registered User
Joined: Oct 2014
Posts: 137
From: Northeastern Pennsylvania, USA
Rep Power: 19
drivergmx is a jewel in the roughdrivergmx is a jewel in the roughdrivergmx is a jewel in the rough

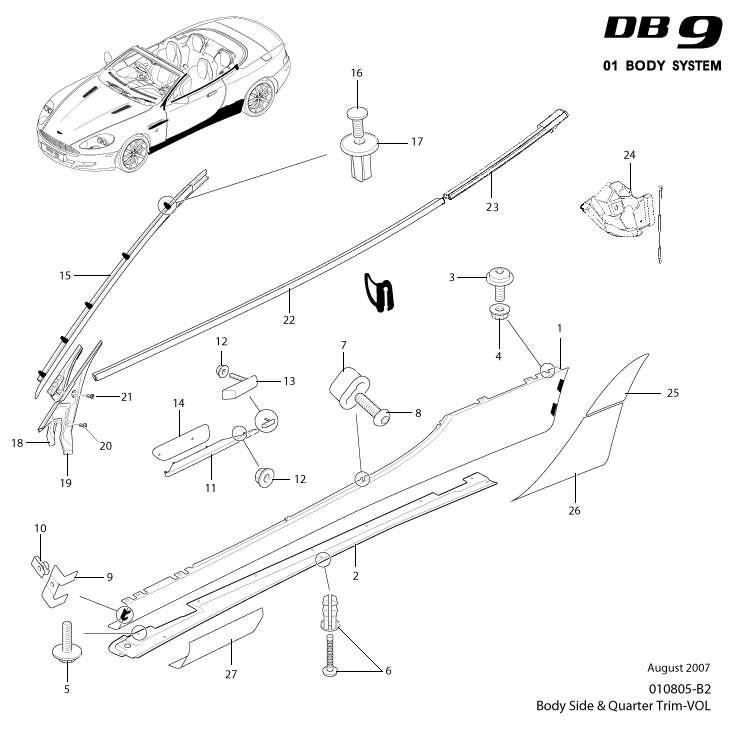

Item 25:

4G43-10631-AA Tape, rear quarter, LH

4G43-10630-AA
Tape, rear quarter, RH

Item 26:

4G43-10625-AA Tape, rear sill, LH

4G43-10624-AA Tape, rear sill, RH

Note: For reference only. Please verify part number effectivity with you supplier based on year make and model




Attached Images

Last edited by drivergmx; Jun 18, 2016 at 09:11 PM.
Old Jun 19, 2016 | 11:33 AM
  #5
shootermcgav1n's Avatar
Thread Starter
|
Registered User
Joined: Aug 2013
Posts: 678
From: Atl, GA
Rep Power: 41
shootermcgav1n has a spectacular aura aboutshootermcgav1n has a spectacular aura about
This is for a DBS and I should've been more clear as I'm looking for the replacement for a V8 Vantage, unless this will fit interchangeably?

Originally Posted by drivergmx
Item 25:

4G43-10631-AA Tape, rear quarter, LH

4G43-10630-AA
Tape, rear quarter, RH

Item 26:

4G43-10625-AA Tape, rear sill, LH

4G43-10624-AA Tape, rear sill, RH

Note: For reference only. Please verify part number effectivity with you supplier based on year make and model




Old Jun 20, 2016 | 11:45 AM
  #6
Cattman's Avatar
Registered User
Joined: Jan 2007
Posts: 1,953
From: ATL
Rep Power: 201
Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !
Go to Aston Martin Bits .com, select V8 Vantage, enter "tape" in search box. All those 3M clear stone guards are there. I'd provide a link but I think that's a no-no unless the site is a sponsor.
CATTMAN

Old Jun 20, 2016 | 03:06 PM
  #7
shootermcgav1n's Avatar
Thread Starter
|
Registered User
Joined: Aug 2013
Posts: 678
From: Atl, GA
Rep Power: 41
shootermcgav1n has a spectacular aura aboutshootermcgav1n has a spectacular aura about
Awesome thanks! I tried several key words looking for it but tape certainly wasn't one of them haha.

Old Jun 20, 2016 | 05:12 PM
  #8
Cattman's Avatar
Registered User
Joined: Jan 2007
Posts: 1,953
From: ATL
Rep Power: 201
Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !Cattman Is a GOD !
FWIW, a good clear bra/ wrap installer can do this with Expel for a lot less than these AM parts. Since you are in ATL, I send you a PM- a buddy of mine is the best installer in the SE.
CATTMAN

Old Jun 23, 2016 | 09:42 PM
  #9
timwhayden's Avatar
Registered User
Joined: Sep 2012
Posts: 181
From: jackson,TN
Rep Power: 21
timwhayden is infamous around these parts
I agree with Cattman. The helicopter tape used by AM tends to yellow with time. I had a local installer replace mine and he made it a little larger for better coverage and has a more graceful curve to it and looks better. Had him do the entire rocker panel at the same time. This was over a year ago and no rock chips anywhere.
