I lost power to the front and thinking it may be a fuse. Where would that fuse be? What else beyond the fuse that would prevent the seat functions from working?

I'd rather not drive it to the dealer just for this.



According to my documentation, for the Rapide (up to MY14.5) it is Fuse GF84 (RH seat) and 85 (LH Seat) for power to the Seat ECU.

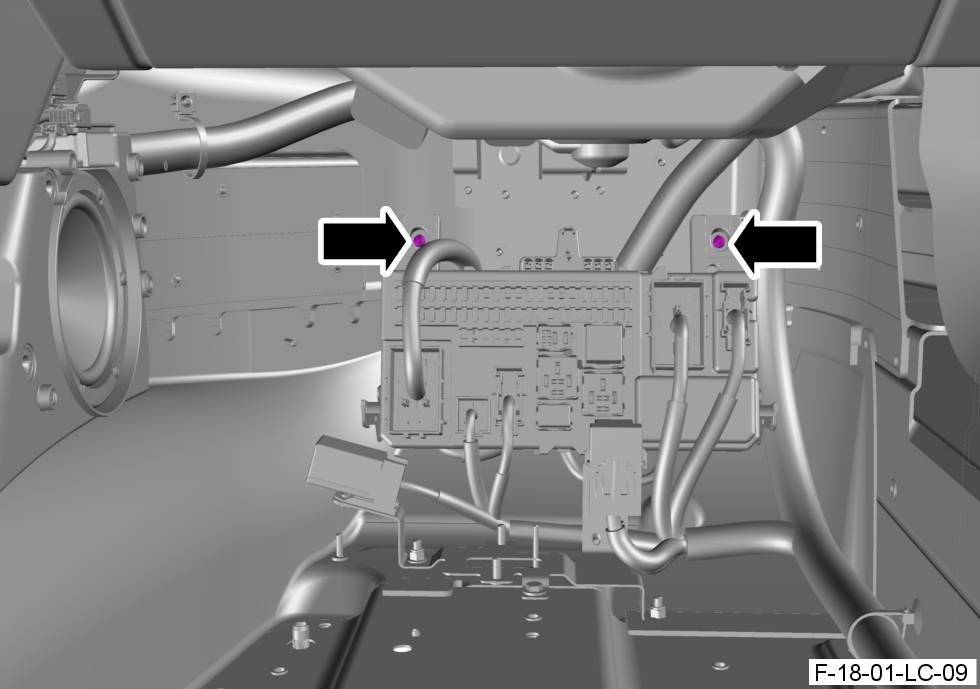

The fuses are in the Battery Feed CEM (Central Electronic Module) power distribution block located in the front passenger footwell.



This is the 25A fuse locations: (it's upside down from the picture above)



Send me a message if you need more information.



@UltraMarine Thanks! I'm going to give this a go today hopefully. Once it's shown to be a fuse, I need to go by an auto parts store to get some fuses!

Does anyone else feel like when something breaks or needs service, it's always more than just one item? This is going to be an expensive service year for me, but it what it is...
