Removing strut brace on DB9.2

I have a 2015 DB9 and I'm going to replace the springs with H&R springs. Unbolting the bottom of the strut appears easy enough, but it appears that I need to remove the strut brace to unbolt the top of the strut. Any tips on how to unbolt the portion of the strut brace that connects to the rear bulkhead? I don't see any obvious bolts, but I haven't dissembled anything yet (figured I'd ask first). I'm guessing I need to remove the header trim panel around the windshield wipers (and also remove the wiper arms)?

Thanks!

Old Apr 3, 2025 | 11:06 PM
  #2
ram_g's Avatar
Registered User
Joined: Jan 2021
Posts: 86
From: MISSOURI CITY
Rep Power: 9
ram_g

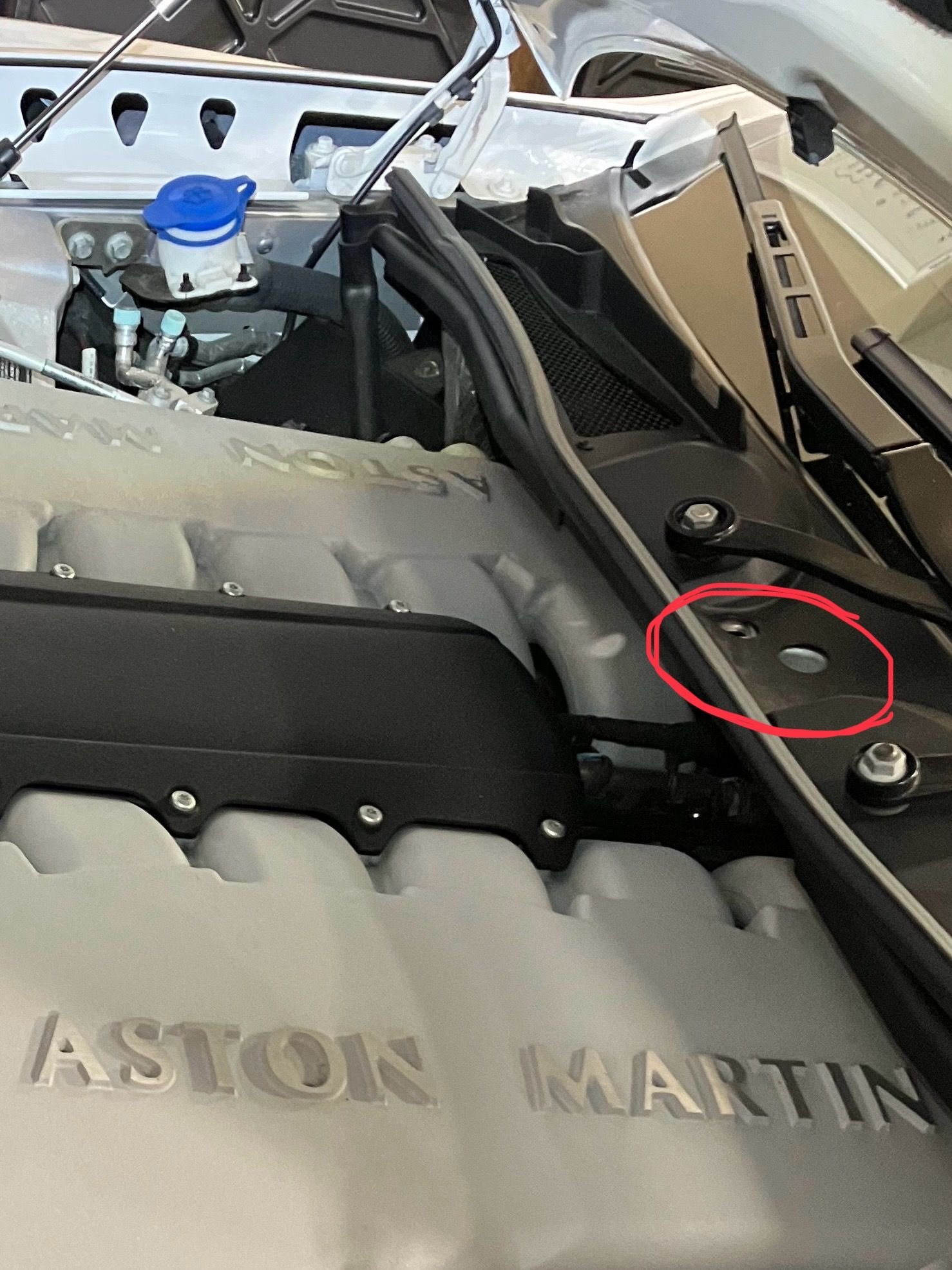

No need to remove much of anything. There are a couple of rubber/plastic plugs that you have to prise off and the bolts connecting the brace to the rear are lurking underneath those plugs - accessible and unscrewed from the top. The strut comes off on one piece. See pics.

Let us know how the springs feel!




Old Apr 7, 2025 | 11:29 AM
  #3
PJK's Avatar
PJK
Thread Starter
|
Registered User
15 Year Member
Joined: Jan 2010
Posts: 59
From: MA
Rep Power: 19
PJK is infamous around these parts
Thanks for the heads up! By the way, my DB9 is white as well!
