Anybody replaced the connector on the throttle body wiring harness? Source for new pigtail? Kindly advise. The outer casing with mine on the passenger side cracked and needs replacing. Thanks so much in advance for any guidance.



As far as I recall, the throttle body is a standard 68mm Bosch unit... at least on the DB9. Not sure if the DBS uses a different one on its V12.

If it's the same it should be something like this, but disconnect and verify yours. I can't get at mine right now.

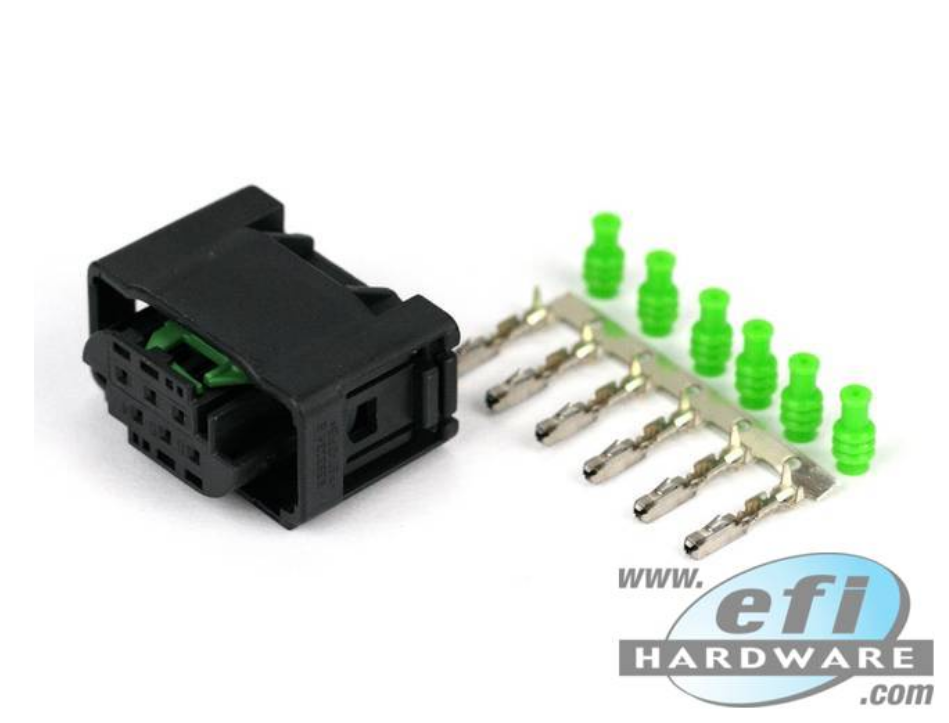

www . efihardware . com/products/3026/bosch-dbw-throttle-body-6-pin-connector



You are correct, Sir - thank you! Here it is at Summit and appears same part, though not a Bosch manufactured part:

https://www.summitracing.com/parts/hth-ht-030432
