LS3 Habu Miata by Flying Miata
#1
LS3 Habu Miata by Flying Miata
Year: 2004
Make: Mazda
Model: MX-5 Miata
Price: $45000
Mileage: 17000
Color: Mica Red
Private or Dealer Listing: Private Listing
Location (State): MO
Transmission: Manual
Drivetrain: Rear Wheel Drive
I drive it every weekend when the weather is nice but cycling between 4 cars means mileage stay low
Car was sent to Flying Miata by original owner for a complete go through before it was listed FS on their website. I bought it sight unseen and had it hauled by intercity Line.
Car basically has all the options including the tubular A arms F&R which was added later on and is not on the original 13 pages build sheet. Cost $3000ish.

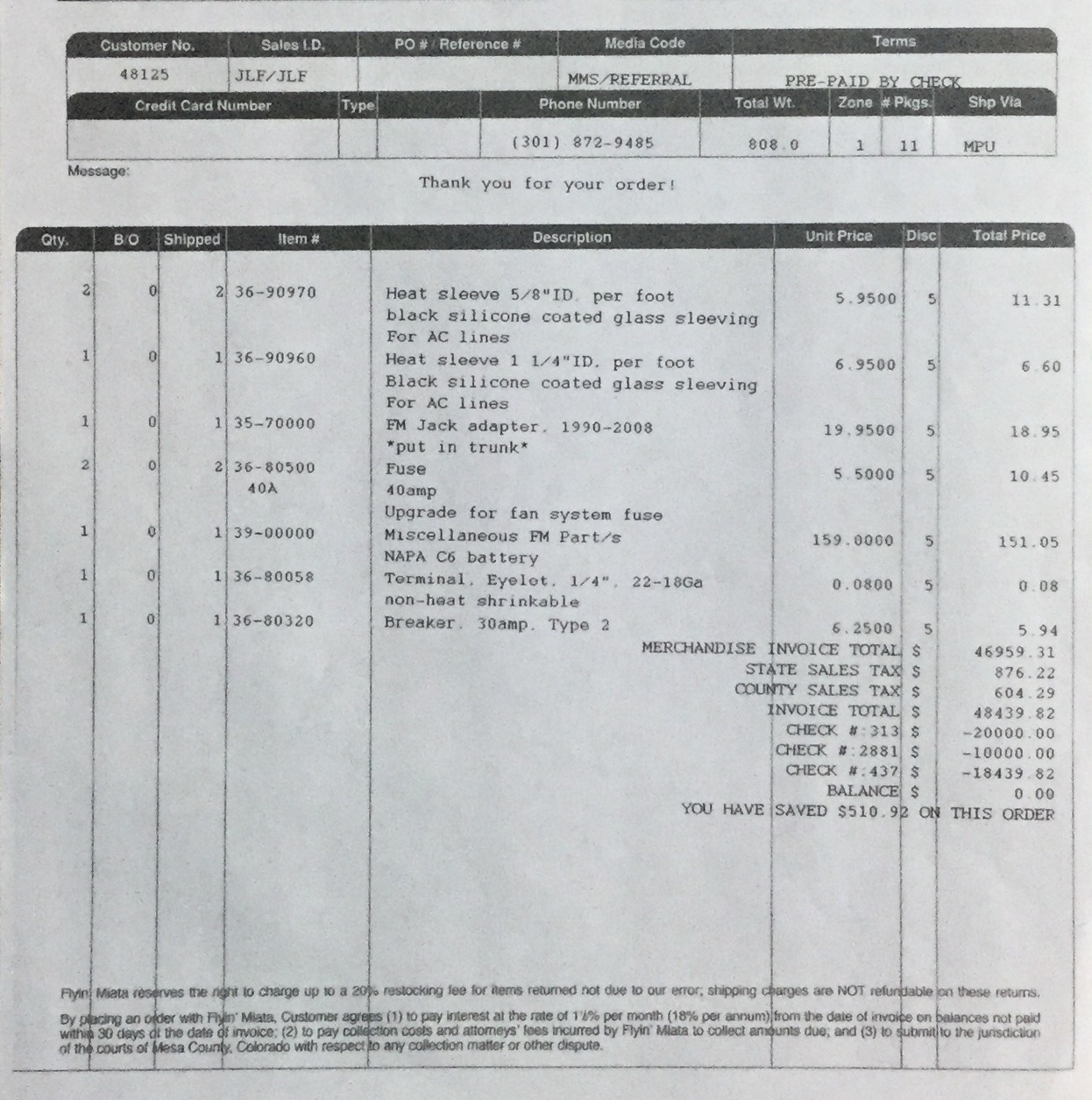

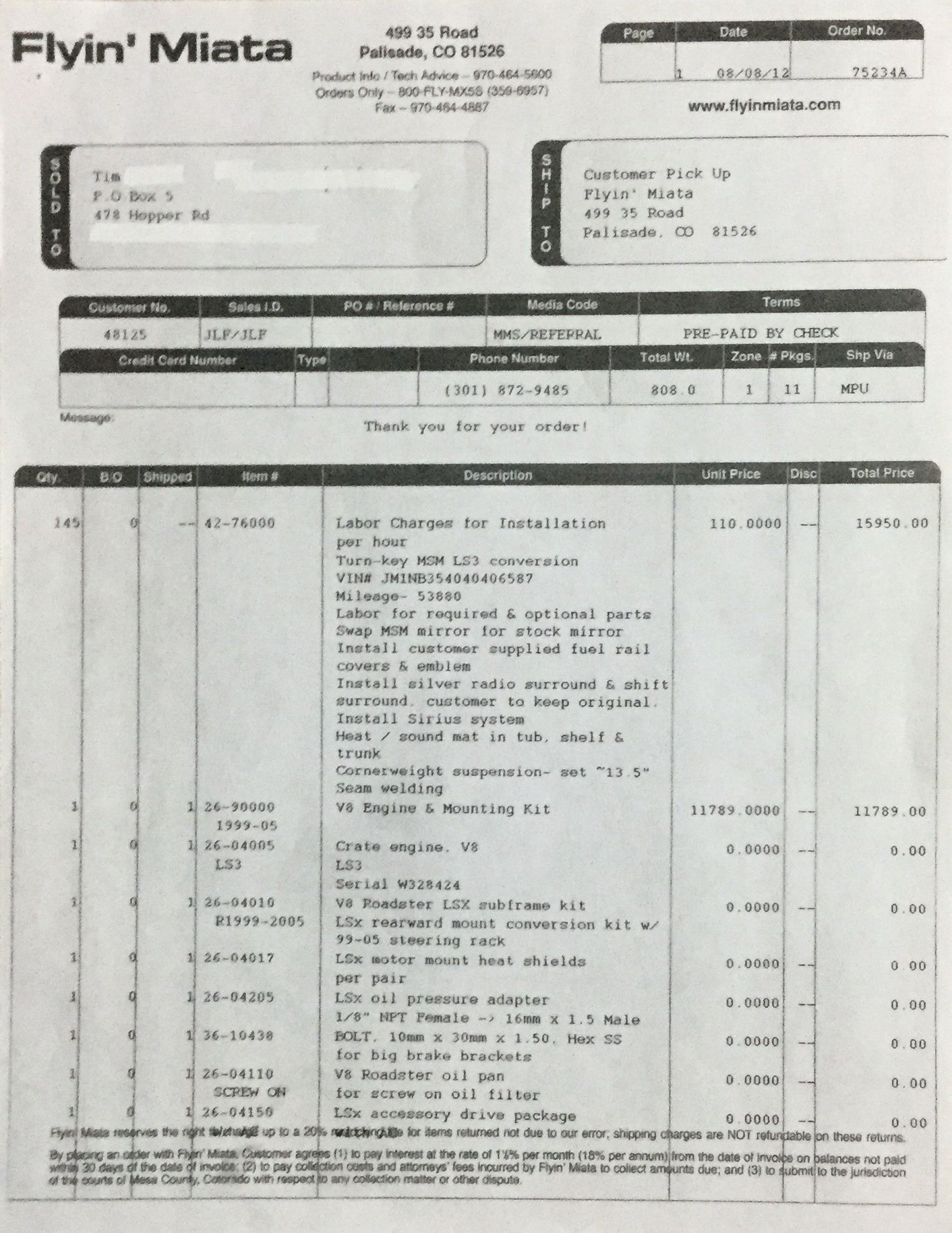

I've included page 1 and 13 in Picts the 2-12 can be faxed to all interested parties.
Car was originally from TX with NOT a spec of rust on it, chassis had about 53K miles on it.
Original paint in very good shape except for the usual pitting on front end from hwy driving, car doesn't have clear bra. original soft top with no tear in good shape. Car was and is always garaged after the built.
Car will come with 2 set of coilovers, currently it sports a Fatcat GT setup with
Ripple valve option, cost $2850 + install/alignment. 375lbs F / 325lbs R about 2000 miles on it and the original AFCO double adjustable coilovers from flying Miata spring rate about 500-550ish lbs (yellow spring, blue shocks body in Picts)
The quick rundown

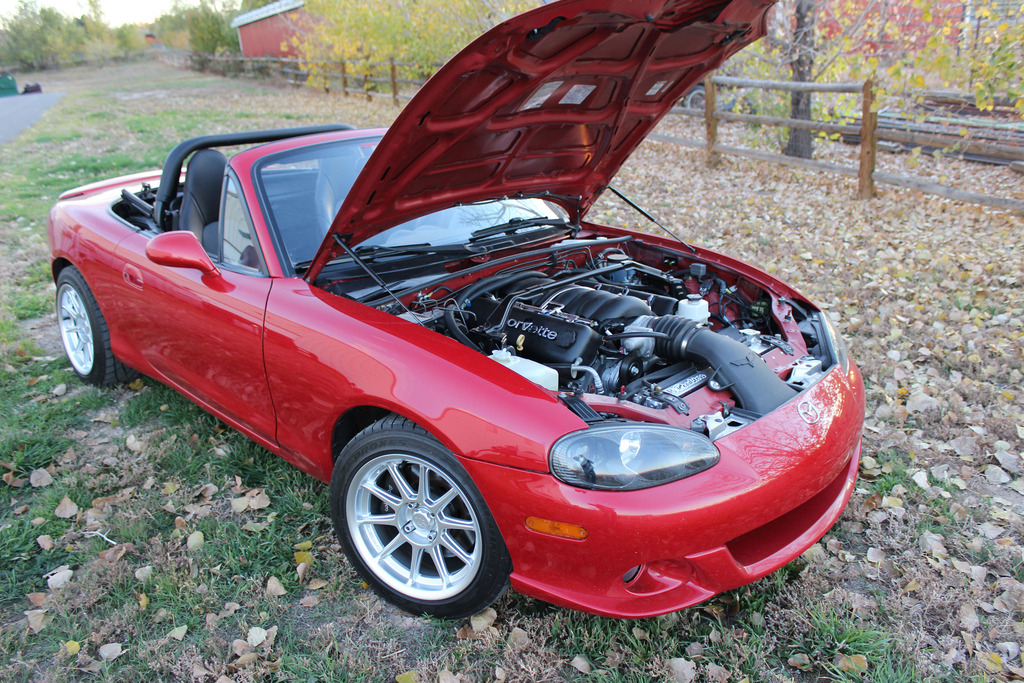

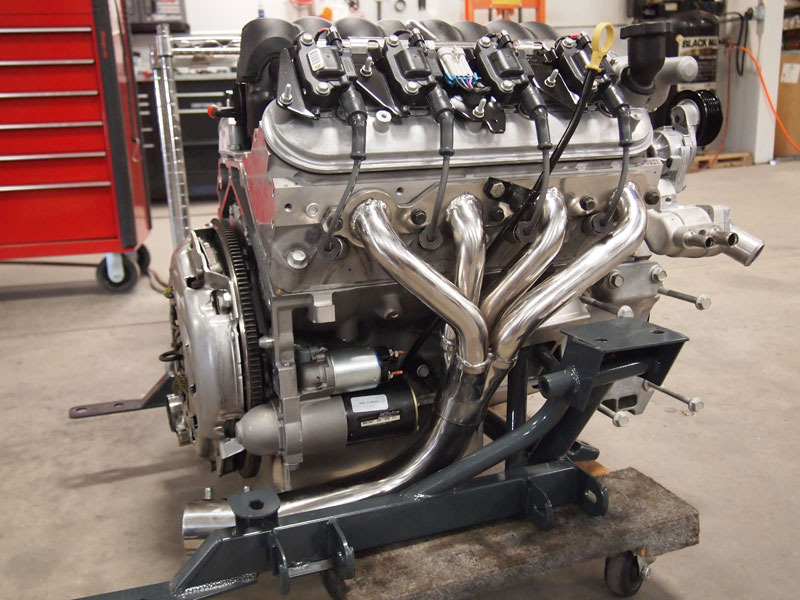

Crate 430 LS3, with Flying Miata shorties and dyno tunning its now at 400whp and about that much wtq.
Stainless Dual exhaust with Cats. The same setup with newly built Habu does have CA. CARB certification, this one does not. Don't know if it can be grandfathered in ? You'll have to do your own research
Rockland Standard Tranzilla TR56
Front and back Wilwood brake 4 pistons all around, rear was added later by Flying Miata at my request and is not on the build sheet
225-45-16 Dunlop Star spec 2 on 16X8" Rpf1 widest setup you can fit without doing work on fenders. 2000 miles on setup, $1600 from tire rack
All components in the built are new, chassis was seam welded, any and all bracing available were added.
Has AC, power steering, antilock brake. All functions in original car are retained
Weight distribution stock car about 51/49, NOW it's 51.6/48.4 a 1.2% shift
Total weight increase is 165 lbs, car now weight in at 2667 lbs
The reason for the sale is that I'm at a point if I were to keep the car I'd like to do a H&C, bigger exhaust, etc... That means at least another $12K into it and ruining the fact that it is an original Flying Miata car.
$45,000 OBO
[url="http://[URL=http://s498.photobucket.com/user/lyboremy/media/fm7.jpg.html][/url]"]http://BO
Last edited by HTA_EVO8; 11-02-2021 at 06:55 AM. Reason: Adding info
#4
Docwyte
Yes they do. Practice make perfect, to date they've built close to 50 (Keith said high forties)
NA/NB.
Arjay33
No track time though similar car run high 11 in quarter mile
I might do autoX if I end up keeping it, closer to home
Very chuckable, this is the first car I dare throttle steer in traffic with cars less than a couple of feet on either side of me
Yes they do. Practice make perfect, to date they've built close to 50 (Keith said high forties)
NA/NB.
Arjay33
No track time though similar car run high 11 in quarter mile
I might do autoX if I end up keeping it, closer to home
Very chuckable, this is the first car I dare throttle steer in traffic with cars less than a couple of feet on either side of me
#5
#6
"]http://
[url="http://[URL=http://s498.photobucket.com/user/lyboremy/media/002.jpg.html][/url]"]http://
[url="http://[URL=http://s498.photobucket.com/user/lyboremy/media/fm22.jpg.html][/url]"]http://
[url="http://[URL=http://s498.photobucket.com/user/lyboremy/media/fm16.jpg.html][/url]"]http://
Well I added top Pict from my IPhone and somehow the other 3 picts got double
Last edited by HTA_EVO8; 01-10-2017 at 09:17 PM.
#7
Trending Topics
#10
More Picts
Car is lowered and the FM exhaust hang a bit low too so on tall speed bump it rub<br/>I had stainless plate welded to the lowest spots to protect from the occasional scrape.
Car is lowered and the FM exhaust hang a bit low too so on tall speed bump it rub<br/>I had stainless plate welded to the lowest spots to protect from the occasional scrape.
#12
Pair of Corbeau A4 added, let the "upgrade" continue
Pretty soon it's gonna be a $100K NB miata
I don't check this thread often enough so text me if interested
8165004491
Pretty soon it's gonna be a $100K NB miata
I don't check this thread often enough so text me if interested
8165004491
Last edited by HTA_EVO8; 05-10-2017 at 08:20 PM.
