D.I.Y. Spark Plugs on 09 Flying Spur Speed with pics


  #31
Old 08-07-2016, 06:33 PM
Registered User
Join Date: Jul 2016
Location: Saint George, UT
Age: 60
Posts: 132
Rep Power: 8
MrVette is on a distinguished road
Originally Posted by MrVette View Post
Working on the plugs now on my car. Unfortunately in step 7 the tiny plastic tube on the bottom of the sensor broke off. Off to VW on Monday to see about getting a new part.
So far the most difficult part of the operation has been step 7 and removing the electrical connectors to the various sensors. Still not sure what the trick is. Presumably one inserts a very small screw driver somewhere and that releases the lock which then allows the electrical plug to pull out. Or maybe there is a special tool for this?

Well I may replace that sensor or maybe not.


The small plastic tube which comes out of the side and fits into a rubber hose broke off in the hose. So I bought some small brass tubing of similar inside diameter, enlarged the hole in the sensor where the plastic tube broke off and using JB weld I replaced the plastic tube with a small section of brass tubing. Now I need to get the clamp off of the rubber hose (cut it with a Dremel tool?) and get the broken plastic tube out. Then after I finish changing the spark plugs I'll try to install the repaired sensor. If it doesn't work I'll buy a new one.

  #32
Old 08-08-2016, 07:10 AM
Registered User
Join Date: Apr 2013
Location: Southeast
Posts: 16
Rep Power: 0
illusionist810 is on a distinguished road
The wiring harnesses just need patience. Some of them have clips that need to be pushed in / pushed back. You have to figure your way around them. Just be careful and don't try to yank them too hard. A heat gun with lower power could help for stubborn harnesses.

The sensor up front was a little tricky to get off. I used a panel popper and fiddled around with it until it popped out. I don't remember removing the hose attached to the sensor.

  #33
Old 08-08-2016, 03:21 PM
Registered User
Join Date: Jul 2016
Location: Saint George, UT
Age: 60
Posts: 132
Rep Power: 8
MrVette is on a distinguished road
Originally Posted by illusionist810 View Post
The wiring harnesses just need patience. Some of them have clips that need to be pushed in / pushed back. You have to figure your way around them. Just be careful and don't try to yank them too hard. A heat gun with lower power could help for stubborn harnesses.

The sensor up front was a little tricky to get off. I used a panel popper and fiddled around with it until it popped out. I don't remember removing the hose attached to the sensor.

I didn't want to remove the hose either. When the sensor finally popped off, which took a lot of force, it broke the little plastic tube on the bottom that went into the hose. I've repaired the sensor and hope it still works. But to reinstall it I have to get the clamp off the hose and then remove the little piece of broken off plastic tube stuck in it. Then re-clamp the sensor tube into the hose.


If I had to do it again I would first grind down the little **** on the metal bracket that were preventing the sensor from sliding off. Then little force would be needed to remove it.

  #34
Old 01-22-2017, 12:02 PM
Registered User
Join Date: Jan 2017
Location: san francisco
Age: 74
Posts: 433
Rep Power: 0
jim2331 can only hope to improve
...thank you for excellent plug write up...will be doing mine in year or so...I'm probably going to use the new set I have that a Bentley dealer took out without my ok at 18,000 miles...JimB

  #35
Old 01-27-2017, 04:40 PM
CarshowRell's Avatar
Registered User
Join Date: Jan 2017
Location: Maryland
Age: 35
Posts: 38
Rep Power: 0
CarshowRell is an unknown quantity at this point
Amazing job amigo. My mechanic quoted me at $700 to change my spark plugs which I consider pretty reasonable.

  #36
Old 07-05-2017, 09:46 PM
Registered User
Join Date: Jan 2011
Posts: 30
Rep Power: 11
jc333 will become famous soon enoughjc333 will become famous soon enough

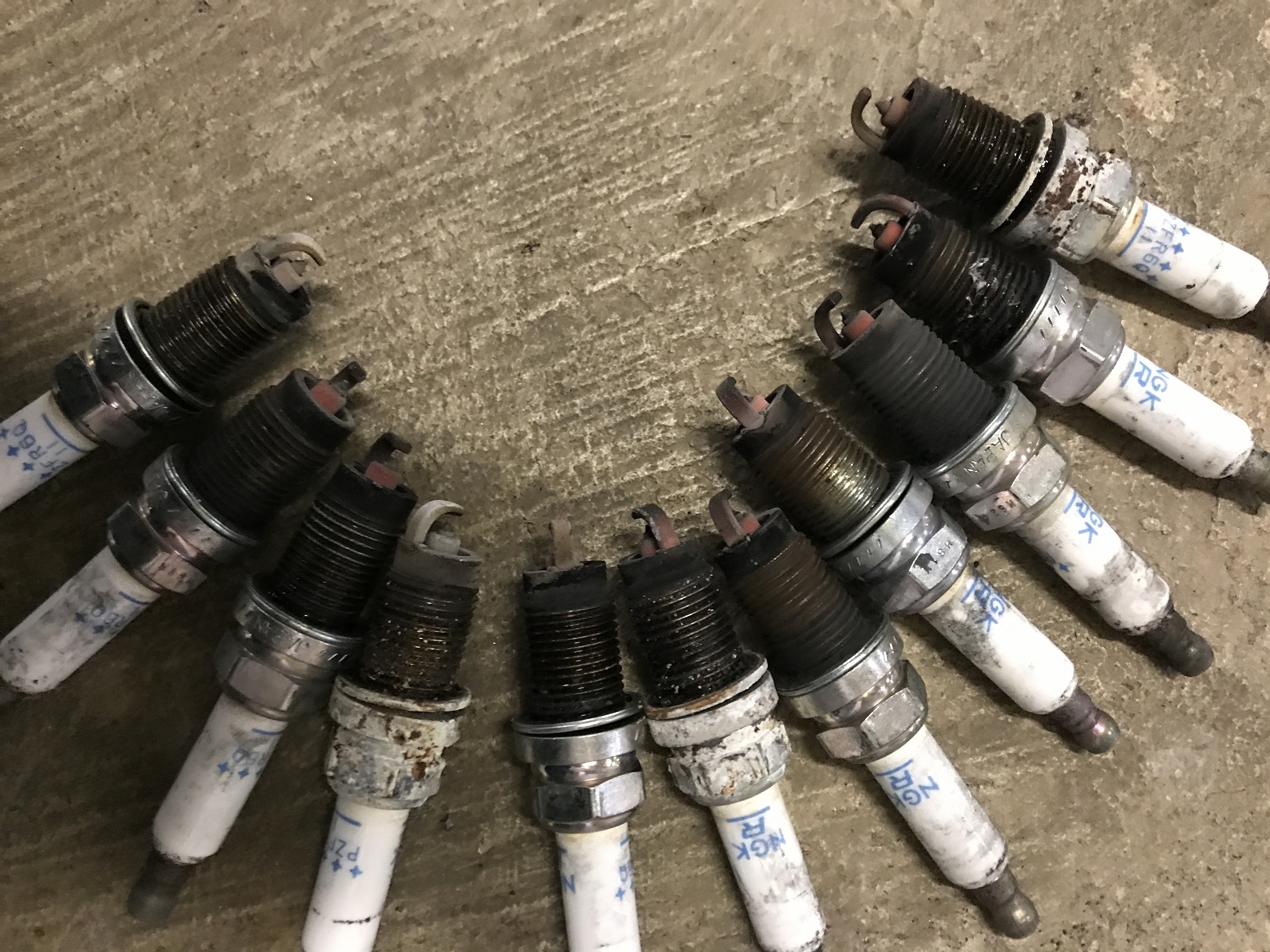

Finally did mine with new coils too. Some of my cable conduct was cracking so had to patch up with insulating tape.

Took me 5hrs but I was going real slow and that included a run to the shop for more supplies.

I used Bremi #20112 coils and OEM NGK R PZFR6Q-11 spark plugs.

Thanks to John V for the DIY.

J

Attached Thumbnails Click image for larger version

Name:	IMG_8511.JPG
Views:	30
Size:	897.3 KB
ID:	479565   Click image for larger version

Name:	IMG_8507.JPG
Views:	34
Size:	876.6 KB
ID:	479566   Click image for larger version

Name:	IMG_8512.JPG
Views:	32
Size:	1,008.0 KB
ID:	479567
  #37
Old 10-18-2018, 06:33 AM
Registered User
Join Date: Oct 2018
Location: Aurora, IL
Age: 62
Posts: 1
Rep Power: 0
dlstipp is an unknown quantity at this point
Why only 11 of 12 spark plugs on a W12?

Originally Posted by jc333 View Post
Finally did mine with new coils too. Some of my cable conduct was cracking so had to patch up with insulating tape.

Took me 5hrs but I was going real slow and that included a run to the shop for more supplies.

I used Bremi #20112 coils and OEM NGK R PZFR6Q-11 spark plugs.

Thanks to John V for the DIY.

J
Was there a reason that you only replaced 11 of the 12 spark plugs on your W12?
