D.I.Y. Spark Plugs on 09 Flying Spur Speed with pics

Well it was time to do the plugs on my 09 Flying Spur Speed and I just couldnít bring myself to let the dealer do it. Always enjoy working on my own cars doesnít matter what it is. Sure glad I did cause it was really simple and fun to do.

The parts you need from the dealer are:
1. Upper plenum gasket. P/N 07C133238F
2. 2 Oetiker clamps P/N N10201801

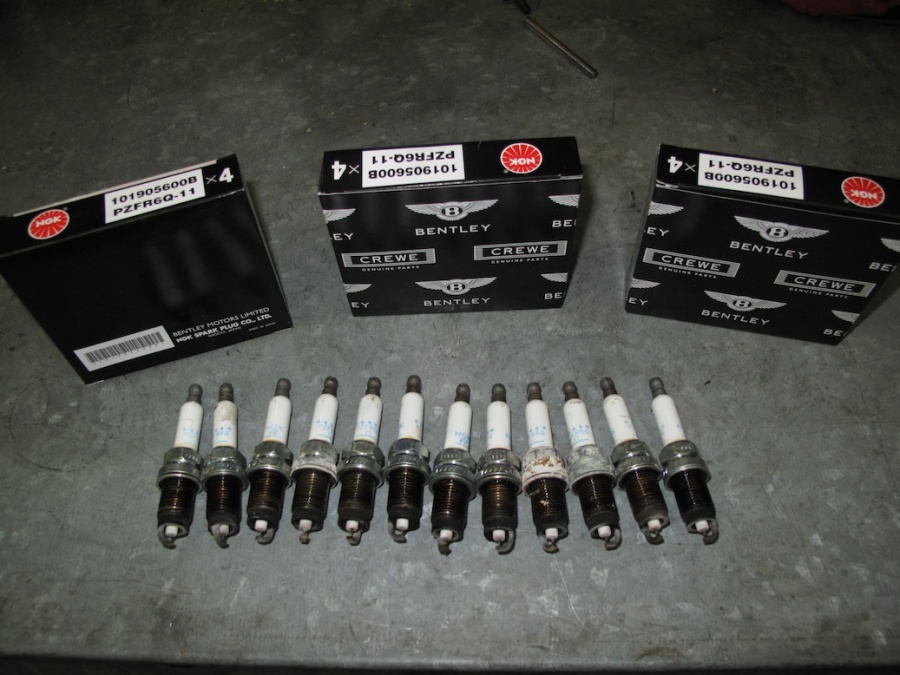

3. 12 Sparks Plugs P/N 101905600B (Thought I could get them from an auto supplier but they are dealer only)

Here is how to if anyone else wants to try:

1. Remove the 3 plastic clip on engine covers. Front, center & rear.
2. Unscrew the 6 torx screws holding down each air box cover.
3. Remove them with filters.
4. Unbolt the 10mm bolt holding each air box in place.
5. Lift the box out a little then unplug the mass air flow sensor before removing.
6. Be sure to cover up the turbo intakes. Really donít want anything to fall in there.
7. There is a little sensor upfront connected to a vacuum line. Be careful with this. Just pop it off the bracket. I used a panel popper.
8. Unbolt the 2 torx screws holding the fuel rail on to the manifold.
9. Unplug the sensors at the front of the intake manifold, then throttle body sensors, then breather lines to the sides of the manifold.
10. Disconnect the intake hoses to throttle bodies.
11. Now to the rear, remove the Oetiker clamps & pull the hoses off as well the little vacuum lines beside them.
12. Disconnect the vent line on the passenger side by throttle body.
13. Unbolt the 8 torx screws holding the manifold in place and lift it off.
14. The coils come out rather easily. Once again used the panel popper to get out.

After pulling the coils and before removing the spark plugs I vacuumed the area. Could see small pieces of sand and debris around the valve cover. Donít want that falling into the engine. Because it was my 1st time doing this I did 1 plug at a time on the drivers side. For the passenger side I pulled out all the coils and did all the plugs at once. Put the coils back in the same spot they came out and add a little Vaseline around the boot so they slip into place easier. Dealer said not to gap the plugs just put them in as is. Once done reverse the steps to put back together using the new gasket and clamps.

Little tips:
1. Clean the intake manifold and upper plenum with some Acetone or Brake Cleaner to take off the oil. Gives the gasket a good seal.
2. Tighten up the all the bolts for each side of the upper manifold before install since you got access to the bottom bolts.
3. When reinstalling & before you bolt down the manifold plug the throttle body & front sensors back in.
4. The Sensor plugs are a little tight. Used a flat head screwdriver to push the end out so they open up & come off.

Hope this helps anyone thatís into doing there own maintenance!!!

Attached Images
  #2
Old 10-20-2012, 09:23 PM
John V.'s Avatar
Registered User
Thread Starter
Join Date: Jan 2007
Location: Vancouver B.C.
Posts: 37
Rep Power: 15
John V. will become famous soon enoughJohn V. will become famous soon enough

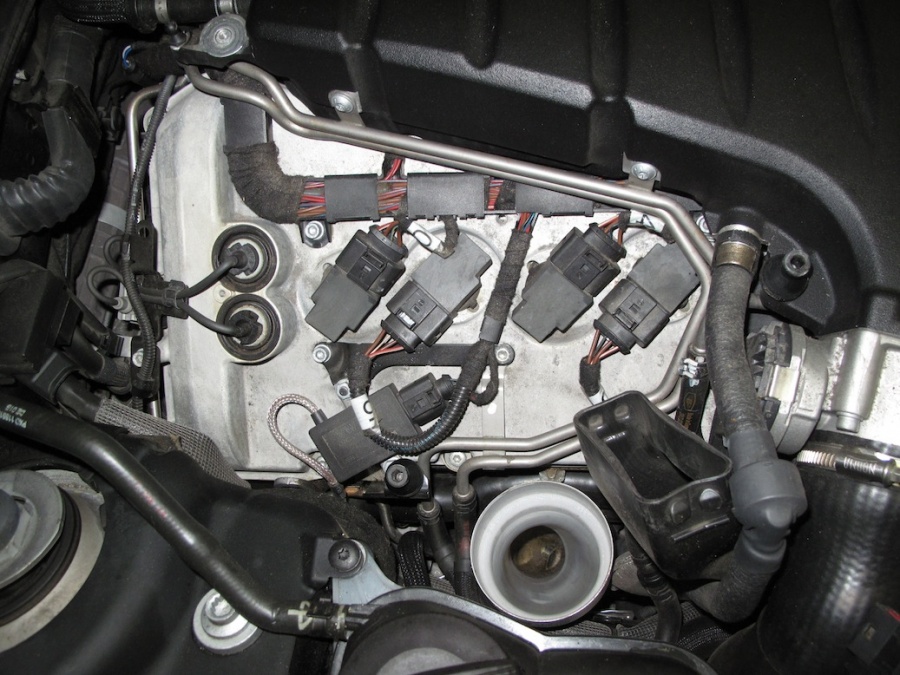

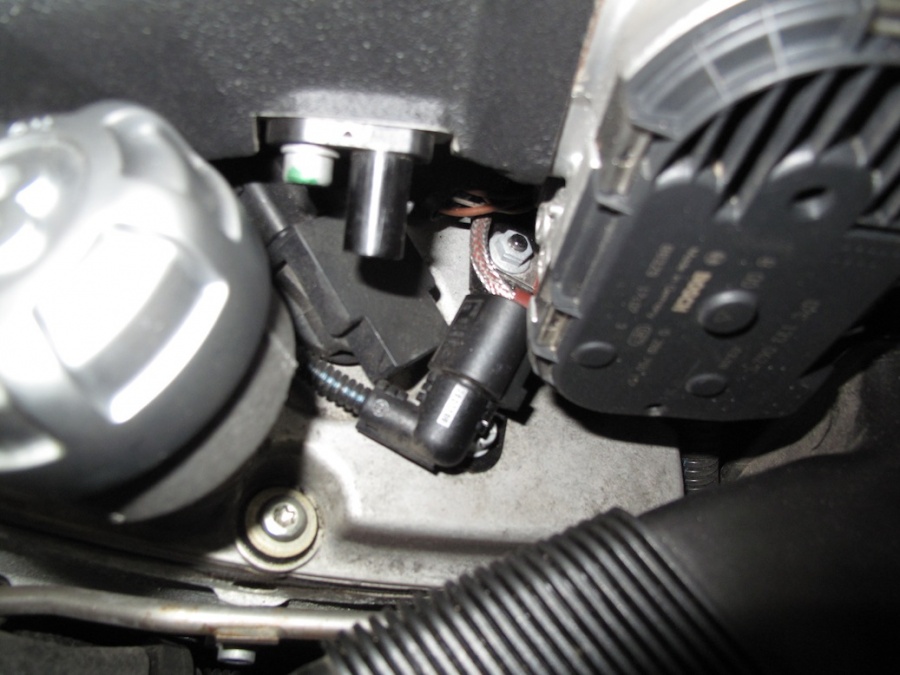

More pics.

Attached Images
  #3
Old 10-20-2012, 09:32 PM
John V.'s Avatar
Registered User
Thread Starter
Join Date: Jan 2007
Location: Vancouver B.C.
Posts: 37
Rep Power: 15
John V. will become famous soon enoughJohn V. will become famous soon enough

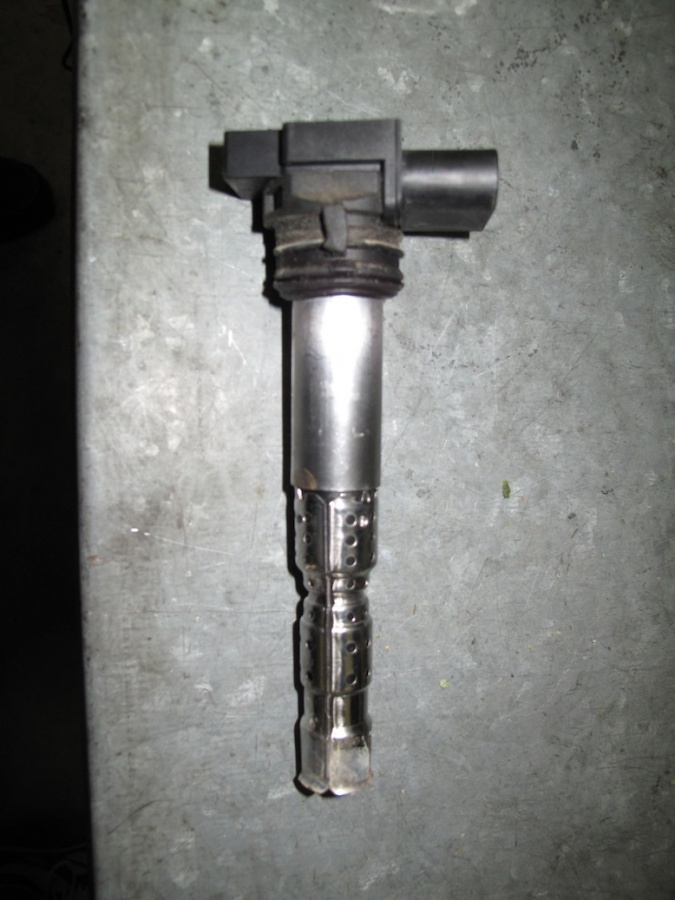

Coil removal.

Attached Images
  #4
Old 10-21-2012, 03:29 AM
stevenrmusic's Avatar
Registered User
Join Date: Apr 2010
Location: Worldwide
Posts: 2,733
Rep Power: 140
stevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond repute
Wow! Thanks for posting!

  #5
Old 10-21-2012, 12:00 PM
Wedgeduck's Avatar
Registered User
Join Date: May 2012
Location: Long Beach, CA
Posts: 862
Rep Power: 42
Wedgeduck will become famous soon enough
Great post John. Very informative.

  #6
Old 10-22-2012, 02:02 AM
White991TT's Avatar
Registered User
Join Date: Aug 2012
Location: CA
Posts: 706
Rep Power: 167
White991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond repute
Thanks!! Gotta do this soon...

  #7
Old 10-22-2012, 02:20 AM
kensilver's Avatar
Registered User
Join Date: Jan 2011
Location: On a hill
Posts: 761
Rep Power: 53
kensilver has much to be proud ofkensilver has much to be proud ofkensilver has much to be proud ofkensilver has much to be proud ofkensilver has much to be proud ofkensilver has much to be proud ofkensilver has much to be proud ofkensilver has much to be proud ofkensilver has much to be proud ofkensilver has much to be proud of
That seems amazingly simple to do - though I would never attempt it. You seem to have a lot of experience with engines, and that would be important to note with these expensive machines.

Since this is the same engine as the GT, I was told that spark plug changes for us were hideously complex and expensive. So I'm very surprised, and maybe relieved.

How long did it take you all up?

  #8
Old 10-22-2012, 07:52 AM
Dr.Disaster's Avatar
Registered User
Join Date: Nov 2011
Location: East TN
Posts: 1,930
Rep Power: 91
Dr.Disaster is a name known to allDr.Disaster is a name known to allDr.Disaster is a name known to allDr.Disaster is a name known to allDr.Disaster is a name known to allDr.Disaster is a name known to all
I don't even change the plugs on my Harley. There are only two of them and they are in plain sight.

I know I could but just don't want to. Lazy to the max.

  #9
Old 10-22-2012, 05:30 PM
John V.'s Avatar
Registered User
Thread Starter
Join Date: Jan 2007
Location: Vancouver B.C.
Posts: 37
Rep Power: 15
John V. will become famous soon enoughJohn V. will become famous soon enough
Originally Posted by kensilver View Post
That seems amazingly simple to do - though I would never attempt it. You seem to have a lot of experience with engines, and that would be important to note with these expensive machines.

Since this is the same engine as the GT, I was told that spark plug changes for us were hideously complex and expensive. So I'm very surprised, and maybe relieved.

How long did it take you all up?
I do have quite a bit of experience working on engines & really enjoy doing it. Never worked at a shop or ever took any schooling for it, just learned as I went along. A lot of knowledge came from working on my Grand National years ago. Had that motor out a few times.

Took me just over 2 hours to do. Wasn't rushing, few pics, few beers....... I bet I could do in 45min now. That's how fast the Bentley tech said it takes him. Hahahaha.

  #10
Old 10-22-2012, 09:13 PM
Wedgeduck's Avatar
Registered User
Join Date: May 2012
Location: Long Beach, CA
Posts: 862
Rep Power: 42
Wedgeduck will become famous soon enough
What year was your grand national? 87? Love those things. Seen a restored one the other day.

  #11
Old 10-23-2012, 10:19 PM
White991TT's Avatar
Registered User
Join Date: Aug 2012
Location: CA
Posts: 706
Rep Power: 167
White991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond reputeWhite991TT has a reputation beyond repute
Thx John V for taking the time to inform.


PZFR6Q11 is a direct cross reference per NGK for the Bentley 101905600B plug
http://www.sparkplugcrossreference.c...01905600b.html

Also for those going a step further with a service the following information is provided per my local Bentley dealer:

07C115562E GT Series Oil Filter
N90813202 Oil Drain Plug
3W1955425B Wiper Blades (2)
3D1819620B Pollen Filter
3D1819619A Pollen Filter
A,CR2032 Remote Battery
101905600B Spark Plug (12)
3W0129620B Air Cleaner Right
3W0129620C Air Cleaner Left
07C133238F Intake Gasket
To complete the necessary list of items for the service of your Bentley, you will need 14 quarts of 0W40 MOBIL 1 oil, 1 pint DOT4 Brake Fluid and Windscreen washer fluid.


Last edited by White991TT; 10-23-2012 at 10:22 PM.
  #12
Old 10-24-2012, 02:53 PM
John V.'s Avatar
Registered User
Thread Starter
Join Date: Jan 2007
Location: Vancouver B.C.
Posts: 37
Rep Power: 15
John V. will become famous soon enoughJohn V. will become famous soon enough

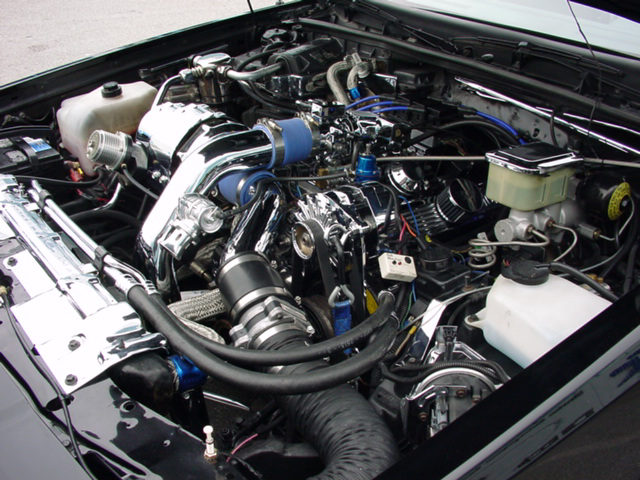

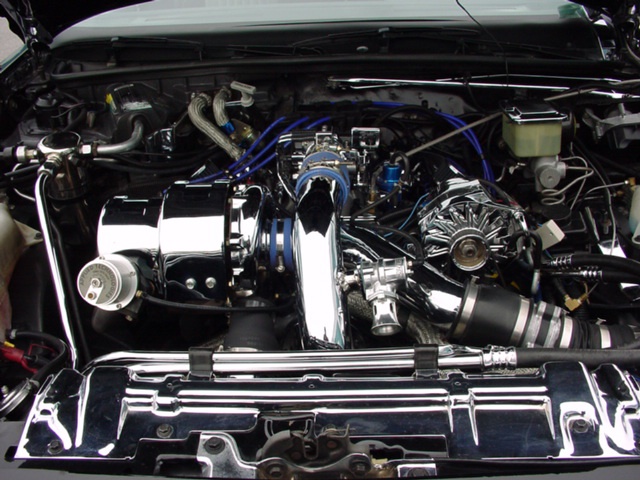

Here's a few pics of my old Grand National & yes it was an 87.

Spent countless hours on it!!!

Attached Images
Attached Images
File Type: bmp
  #13
Old 10-24-2012, 04:37 PM
djantlive's Avatar
Registered User
Join Date: Oct 2004
Location: SFBA
Posts: 6,804
Rep Power: 338
djantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond reputedjantlive has a reputation beyond repute
Nice write up. How many miles are on those plugs?

  #14
Old 10-26-2012, 10:06 AM
John V.'s Avatar
Registered User
Thread Starter
Join Date: Jan 2007
Location: Vancouver B.C.
Posts: 37
Rep Power: 15
John V. will become famous soon enoughJohn V. will become famous soon enough
Originally Posted by djantlive View Post
Nice write up. How many miles are on those plugs?
It just hit 66,000 kms. Pretty sure they are the original plugs.

  #15
Old 10-26-2012, 10:15 AM
Wedgeduck's Avatar
Registered User
Join Date: May 2012
Location: Long Beach, CA
Posts: 862
Rep Power: 42
Wedgeduck will become famous soon enough
Originally Posted by John V. View Post
Here's a few pics of my old Grand National & yes it was an 87.

Spent countless hours on it!!!
Simply amazing!! Do you still have her in your stable?


Last edited by Wedgeduck; 10-26-2012 at 10:17 AM.
