Please help: 04 continental gt code p0230, wont stay running
Thread Starter
|
Registered User
Joined: Apr 2009
Posts: 22
From: MICHIGAN
Rep Power: 0
in the engine compartment where the Ebox is,can you put your hand down by the heater box and feel for moisture,we have had occurrences where the drains don't work and water stays in that well and corrodes the soldered joints. also you may want to try an overlay from the fuse in wiring diagram to the relay (fuse in ebox that is),if it runs fine with the overlay then you probably have moisture in the wiring.
Thank You for all the help & quick response, Im on the road for the next couple of weeks & will check it out once Im back & reply back. Do you see a problem with me just rewiring the pumps to come with ignition? Thanks again for all your help.
Registered User
Joined: Apr 2013
Posts: 336
From: east sussex,UK
Rep Power: 31
yeah you can't do that,pump 1 comes on for 20 seconds and then pump 2 comes in which is controlled by ecm,you may well have fuel pressure issues with them both running constantly. i am pretty sure the overlay will fix it either from the fuse or ecm wire to relay is faulty, lets see if this fixes it and then we can go from there as to the repair.
Thread Starter
|
Registered User
Joined: Apr 2009
Posts: 22
From: MICHIGAN
Rep Power: 0
yeah you can't do that,pump 1 comes on for 20 seconds and then pump 2 comes in which is controlled by ecm,you may well have fuel pressure issues with them both running constantly. i am pretty sure the overlay will fix it either from the fuse or ecm wire to relay is faulty, lets see if this fixes it and then we can go from there as to the repair.
Last edited by VIPERRACING; May 22, 2013 at 02:08 PM.
Registered User
Joined: Sep 2008
Posts: 267
From: ny
Rep Power: 28
Hi peter long time no chat.
Does anybody have a clear version of this diagram , I seem to have the same issue as listed here. I may try an overlay.
Registered User
Joined: Oct 2011
Posts: 543
From: Thornhill, Ontario CANADA
Rep Power: 49

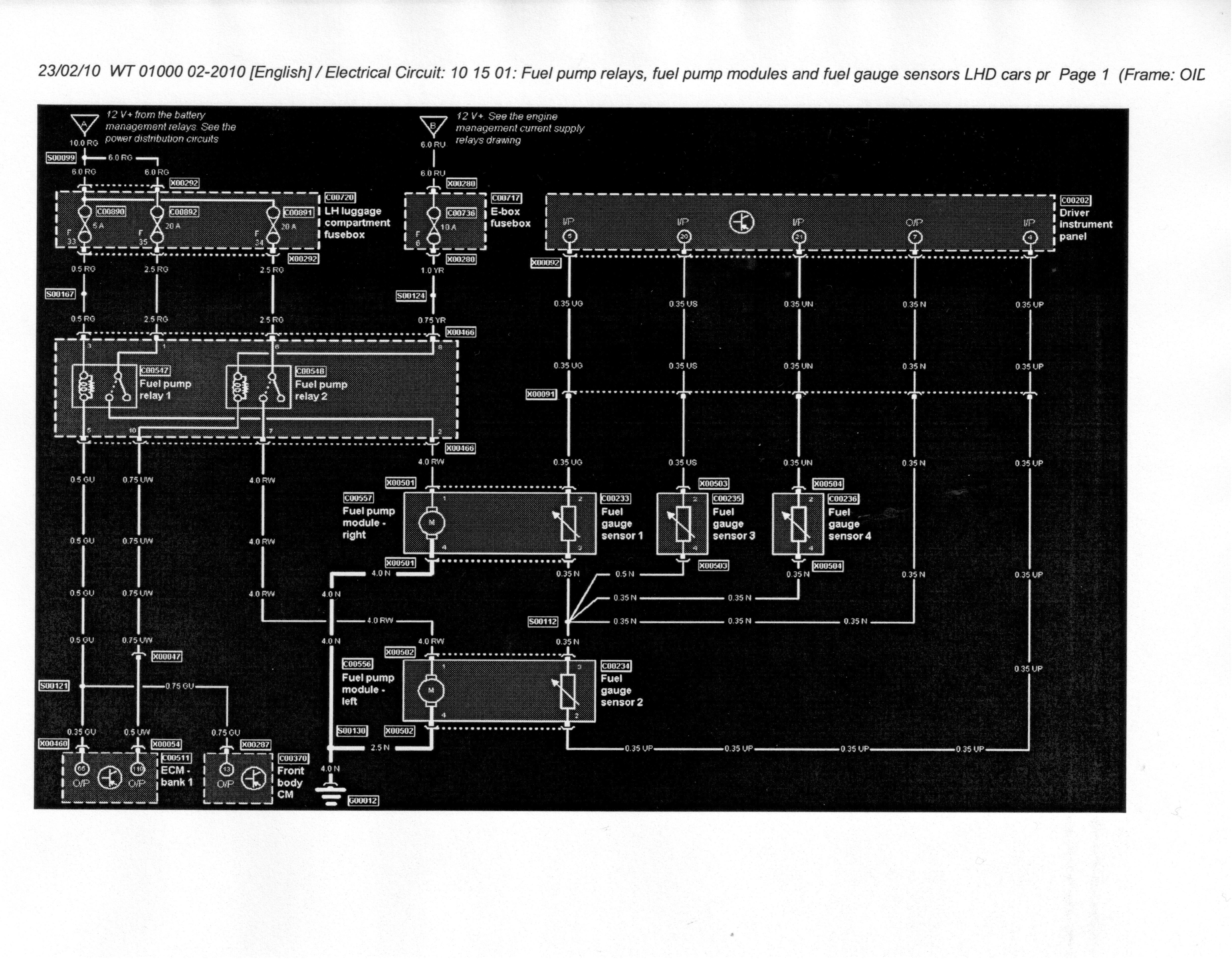

Hi Rob: Hopefully this hi-res pic is easier to read. double click on the pic to enlarge it. Let me know if you need anything else. Are you back in the GTA?
Last edited by PMS; Mar 24, 2016 at 09:52 AM. Reason: instructions
Registered User
Joined: Sep 2008
Posts: 267
From: ny
Rep Power: 28
Thanks peter, I just fired up my old workshop manual found the cd, not back in gta yet, hopefully soon!
Not sure why this code popped up all of a sudden, seems like I always have the worst ones pop up!
Not sure why this code popped up all of a sudden, seems like I always have the worst ones pop up!
Registered User
Joined: Sep 2008
Posts: 267
From: ny
Rep Power: 28
yeah you can't do that,pump 1 comes on for 20 seconds and then pump 2 comes in which is controlled by ecm,you may well have fuel pressure issues with them both running constantly. i am pretty sure the overlay will fix it either from the fuse or ecm wire to relay is faulty, lets see if this fixes it and then we can go from there as to the repair.
Hi mate! Could you let me know where I should do the overlay, I am going to attempt to do it, I have this diagram scanned it, just not sure where to jump for the over lay
Registered User
Joined: Sep 2008
Posts: 267
From: ny
Rep Power: 28
my car threw the p0203 malfunction in relay, but it ran did not stall out.
I ended up doing an overlaywire from the ecm to the relay,
pin number 65 X00460 on ecm-bank 1 .035 GU [green with blue strip] was bad, ran the new wire to the back of the relay, ran it thru the interior.
This is the 2nd time I had to do an over lay first time for the o2 sensor on the same ECM bank 1.
This over lay stuff is a pain in the ***.
I ended up doing an overlaywire from the ecm to the relay,
pin number 65 X00460 on ecm-bank 1 .035 GU [green with blue strip] was bad, ran the new wire to the back of the relay, ran it thru the interior.
This is the 2nd time I had to do an over lay first time for the o2 sensor on the same ECM bank 1.
This over lay stuff is a pain in the ***.
Last edited by REDNOSEGT; Apr 23, 2016 at 01:57 PM.
Registered User
Joined: Oct 2019
Posts: 22
Rep Power: 0
I have a problem with 2010 flying spur speed. It stalls after 20seconds. I pulled relay for pump a and car runs fine but I get fuel pump shop message on dash. No fuel related codes before I removed relay?
