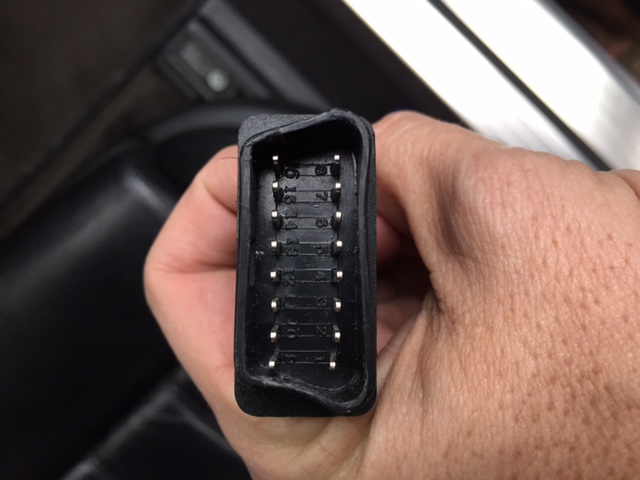

I am having the same issue… I purchased the V checker 202 and found that it does not fit my Data link connector port either. Any suggestions anyone? Mine is a UK supplied GT. I attach images of the Car and V Checker connections.. Help please!

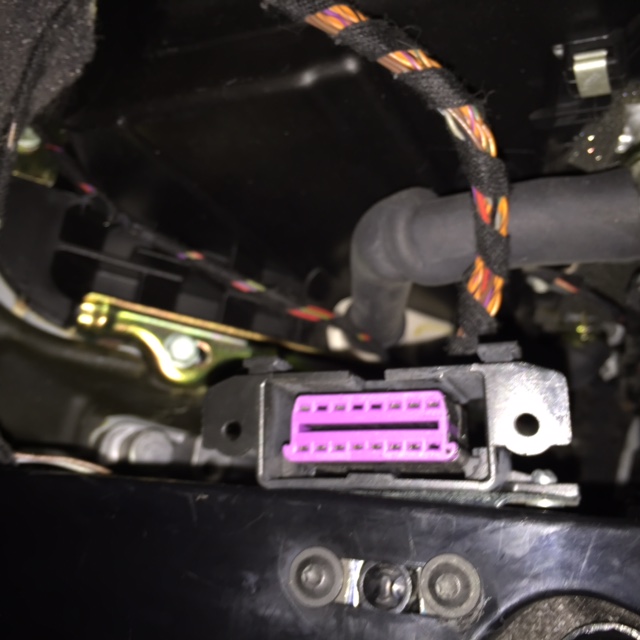

Looks like the right number of pins and the right number of holes for the pins, it should fit. Mine doesn't fit well, I really have to press it on there. It usually takes me a minute or two to fit correctly and get it to light up the vchecker. This is not a stick your hand under the dash and it slips on easily connection, this is a getting on the ground, head under the dash with a light kind of bad connection. My guess is the plastic surround on your v202 isn't exactly the right shape, perhaps some careful trimming of the plastic will help it fit on. Also make sure your pins are straight and not at an angle (which can happen since it doesn't fit well and you press on them).
Don't give up.
Paul



Agreed, the port can be VERY tight. Please let us know how it goes.



Yeah, I am had the same issue using My equipment. I got it to work my managing to wedge a finger from behind the purple port pushing it securely on the connector to the scanner. The way it is mounted is very flimsy and difficult to connect to.



For those who cares how this happens:

1. First you remove fuse #11. Which will disable the TPMS module (VAG Channel 65).

2. VAG Channel 19 is the CAN Gateway itself . The code 0000006 tells the gateway to discover what modules are available and because you pulled out the TPMS fuse, it will not see this module and think it is not installed.

If you read the value on channel 19, you may find the 0000006 value is already there, just re-apply it.

Cheers,

~ZaOs~



Mine is a UK car too.how it going now?



anyone know about this?
http://wiki.ross-tech.com/wiki/index...ure_Monitoring



Thx ccwboy, great link!


When we changed sensors we just cloned the old ones. New TPS units can be programmed to clone the old ones so saved a boatload of $$$ by not needing to take it to the dealer



Below is the VAG-CAN channel 65 TPMS Module label file for programming reference:








;

; VAG-COM label file 3D0-907-273.lbl
;
; VW Phaeton (3D) - up to and including model year 2005 (fully tested with 2004 W12 Phaeton)
; VW Bentley Continental GT - up to and including model year 2005 (not tested with this vehicle)
;
; Component: Tire Pressure Monitoring -J502- (address #65)
;
; p/n: 3D0 907 273 A
; 3D0 907 273 B
; 3D0 907 273 C Component: Reifendruckueberw. 0021 (Phaeton) - fully tested on this vehicle.
; 3D0 907 273 D
; 3D0 907 273 E
; 3W0 907 273 Component: Reifendruckueberw. 0022 (Bentley Continental GT) - not tested on this vehicle
;
; includes measured value blocks, coding, and adaptation. Also user guidance (remarks) embedded in the file.
;
; by Sebastian Stange (Sebastian@ross-tech.com)
; modified by Michael Moore (Moore@ross-tech.com)
;
; last modified: 11/05/2004 (Sebastian)
; last modified: 27/March/2005 (Michael) 'PanEuropean' on the VW Vortex forum.
; tested on a 2004 W12 Phaeton - not all blocks may show on other vehicles.
;
; ready for VAG-COM 402.3 and above
;
;
;---------------------------------------------------
;
; measured value block information
;
;---------------------------------------------------
;
;NOTES CONCERNING TPMS ADAPTATION:
;Measured Value , 6, 9, 12 and 15 are stored only when the system is relearned.
;Therefore this information is not always an accurate representation of current wheel location and status.
;In addition, one faulty wheel sensor has the potential to create faults at multiple wheel locations.
;
;How to identify current tire pressure monitoring sensor locations:
; – Vehicle must be parked 4 meters (12 feet) AWAY from other vehicles with same or similar tire pressure monitoring system.
;If vehicles with same or similar systems (e.g. other Phaetons or Touaregs) are parked too close to one another there is a
;high probability of the systems interfering with each other.
;
;Battery life shown in MVB 2,5,8 and 11 is only usable if the system has learned all wheel
;locations. If this is the case it can be determined in MVB 19, where 00025 is the standard value for
;a system that is active and set. If the system is not active (showing any other number in MVB 19), it
;will still show the last values that were stored the last time it was operating correctly. During the
;learning drive MVB 19 will start with 00265 and will add numbers to this field, until it reaches a
;maximum of 63545. This can be observed during the learning drive with the VAG-COM. If the setting
;value not reached within 30 minutes, an error message is generated. The duration of the test or
;learn drive depends on how fast the tires warm up. Highway will be faster than within the city, stop
;and go traffic might not set at all.
;
001,0,Front Left Wheel
001,1,Front Left,wheel position
001,2,Temperature,of wheel,Specified value: -40...120 °C/not recognized
001,3,Current pressure,corrected to 20°C,Specified value: 0...5.37 bar
001,4,Specified pressure,corrected to 20°C,Specified value: 0...5.37 bar
;
002,0,Front Left Wheel Transmitter Battery Status
002,1,Position
002,2,Remaining months,of battery life,Specified value: 0...99 months
;
003,0,Transmitter Status - 'Ub. i.O' means 'Monitoring OK' - 'Ub. n.i.O.' means 'Monitoring not OK'
003,1,Position,,'Rad' means wheel in German. vl (vor links) means front left in German.
003,2,Transmitter ID,,A unique ID number - sort of like a computer MAC address - assigned to that specific transmitter
003,3,Transmitter,Status
003,4,Last known status,of sensor,Specified value: 00h (defective) 01h (normal sending speed) 02h (rapid sending speed) Ub. i.O./Ub. n.i.O./no Signal
;
004,0,Front Right Wheel
004,1,Front Right,wheel position
004,2,Temperature,of wheel,Specified value: -40...120 °C/not recognized
004,3,Current pressure,corrected to 20°C,Specified value: 0...5.37 bar
004,4,Specified pressure,corrected to 20°C,Specified value: 0...5.37 bar
;
005,0,Transmitter Battery Status
005,1,Position
005,2,Remaining months,of battery life,Specified value: 0...99 month
;
006,0,Transmitter Status - 'Ub. i.O' means 'Monitoring OK' - 'Ub. n.i.O.' means 'Monitoring not OK'
006,1,Position,,'Rad' means wheel in German. vr (vor rechts) means front right in German
006,2,Transmitter ID,,A unique ID number - sort of like a computer MAC address - assigned to that specific transmitter
006,3,Transmitter,Status
006,4,Last known status,of sensor,Specified value: 00h (defective) 01h (normal sending speed) 02h (rapid sending speed) Ub. i.O./Ub. n.i.O./no Signal
;
007,0,Rear Left Wheel
007,1,Wheel position
007,2,Temperature,of wheel,Specified value: -40...120 °C/not recognized
007,3,Current pressure,corrected to 20°C,Specified value: 0...5.37 bar
007,4,Specified pressure,corrected to 20°C,Specified value: 0...5.37 bar
;
008,0,Transmitter Battery Status
008,1,Position
008,2,Remaining months,of battery life,Specified value: 0...99 month
;
009,0,Transmitter Status - 'Ub. i.O' means 'Monitoring OK' - 'Ub. n.i.O.' means 'Monitoring not OK'
009,1,Position,,:'Rad' means wheel in German. hl (hinten links) means rear left in German
009,2,Transmitter ID,,A unique ID number - sort of like a computer MAC address - assigned to that specific transmitter
009,3,Transmitter,Status
009,4,Last known status,of sensor,Specified value: 00h (defective) 01h (normal sending speed) 02h (rapid sending speed) Ub. i.O./Ub. n.i.O./no Signal
;
010,0,Rear Right Wheel
010,1,Wheel position
010,2,Temperature,of wheel,Specified value: -40...120 °C/not recognized
010,3,Current pressure,corrected to 20°C,Specified value: 0...5.37 bar
010,4,Specified pressure,corrected to 20°C,Specified value: 0...5.37 bar
;
011,0,Transmitter Battery Status
011,1,Position
011,2,Remaining months,of battery life,Specified value: 0...99 month
;
012,0,Transmitter Status - 'Ub. i.O' means 'Monitoring OK' - 'Ub. n.i.O.' means 'Monitoring not OK'
012,1,Position,,'Rad' means wheel in German. hr (hinten rechts) means rear right in German
012,2,Transmitter ID,,A unique ID number - sort of like a computer MAC address - assigned to that specific transmitter
012,3,Transmitter,Status
012,4,Last known status,of sensor,Specified value: 00h (defective) 01h (normal sending speed) 02h (rapid sending speed) Ub. i.O./Ub. n.i.O./no Signal
;
013,0,Spare Wheel
013,1,Wheel position
013,2,Temperature,of wheel,Specified value: -40...120 °C/not recognized
013,3,Current pressure,corrected to 20°C,Specified value: 0...5.37 bar
013,4,Specified pressure,corrected to 20°C,Specified value: 0...5.37 bar
;
014,0,Transmitter Battery Status
014,1,Position
014,2,Remaining months,of battery life,Specified value: 0...99 month
;
015,0,Transmitter Status - 'Ub. i.O' means 'Monitoring OK' - 'Ub. n.i.O.' means 'Monitoring not OK'
015,1,Position,,'Rad' means wheel in German. rr (reserve rad) means spare tire in German
015,2,Transmitter ID,,A unique ID number - sort of like a computer MAC address - assigned to that specific transmitter
015,3,Transmitter,Status
015,4,Last known status,of sensor,Specified value: 00h (defective) 01h (normal sending speed) 02h (rapid sending speed) Ub. i.O./Ub. n.i.O./no Signal
;
016,0,Current / real time scrolling status of all transmitter ID’s and sending speeds.
016,1,,,Note that '01h' is normal sending speed and '02h' is rapid sending speed (2h = leak detected). 00h = defective sensor.
;
;NOTE: A pressure release of more than . (0.2 bar) will change the sensor in wheel from 01h to 02h (normal sending speed to rapid sending speed).
;It will remain in rapid sending speed for 3 minutes following the loss of pressure.
;'Ub. i.O' means 'Monitoring OK' - 'Ub. n.i.O.' means 'Monitoring not OK' (Translated from German)
;
017,1,,,ID number of the dealership who last adapted this controller
017,2,Controller,Voltage supply,Specified value: 0...25.5 V
017,3,Vehicle status,,Specified value: 1 = stopped/0 = driving
017,4,Vehicle speed,,Specified value: 0...255 km/h
;
018,0,Atmospheric Conditions
018,1,Outside air,temperature,Specified value: -40...120 °C
;
019,0,Operational status of the control module (see label file for details)
;Examples:
;25 -> after 15 Power cycles -> Ideal
;265 -> System has wheel reception and is learning
;63545 -> Final value of the learned confirmation drive
;
20,0,Convenience (CAN) Bus Status
20,1,CAN Bus,Mode
;
021,1,Antenna,diagnosis,inactive/wait/Message End (see label file for details)
;Antenna diagnosis runs -> wait
;Antenna diagnosis finished -> MESS end
;Read fault error. After that there will be a fault entry for every antenna that is not OK
;
022,0,*Next measuring block used is 26
;
026,0,Front left wheel - Condition memory of the last 32 ignition cycles
;Examples:
;6 -> soft warning
;7 -> rejected calibration
;8 -> hard warning
;If two different conditions in the same 15 power cycle arise, the highest is registered
;
027,0,Front right wheel - Condition memory of the last 32 ignition cycles
;
028,0,Rear left wheel - Condition memory of the last 32 ignition cycles
;
029,0,Rear right wheel - Condition memory of the last 32 ignition cycles
;
030,0,Spare wheel - Condition memory of the last 32 ignition cycles
;
031,0,*Next known measuring block is 80
;
080,0,Manufacturer work number and identification
; Date of manufacture
; Manufacturer changing status
; Manufacturer test stand no.
; Running manufacturer no.
; e.g. BPA = Bosch factory Ansbach
;
;
;---------------------------------------------------
;
; Phaeton coding information
;
;---------------------------------------------------
;
;
C00,Tire Pressure Monitoring System (J502) Coding
C01,
C02,?xxxx - Identification of manufacturer of the TPMS.
C03,1 - Volkswagen
C04,
C05,x?xxx - Time interval for system operation.
C06,0 - Standard
C07,
C08,xx?xx - Total number of tires to be monitored
C09,2 - 5 tires (vehicle has a full size spare)
C10,3 - 4 tires (vehicle has no spare tire)
C11,
C12,xxx?x - Type of engine installed (believed to refer to type of disc & caliper installed)
C13,0 - V6 Europe OR V8 North America
C14,2 - V8 Europe OR W12 North America
C15,4 - V10 Europe
C16,8 - W12 Europe
C17,
C18,xxxx? -Full load specified pressures
C19,4 - Standard
;
;
;---------------------------------------------------
;
; adaptation information
;
;---------------------------------------------------
;
;
;Remark: Security code is required for adaptation functions.
;
;
A017,0,Antenna Diagnosis Mode Enable
A017,5,Antenna Diagnosis
A017,6,Here you can enable the Antenna Diagnosis mode.
A017,7
A017,8,
A017,9,Choices: 1 = Enables antenna diagnosis mode.
A017,10,
A017,11,View status of test in measuring block 21
A017,12,Test takes about 1 minute to complete.
A017,13,'Check END' will be displayed in block 21-01 when test is finished.
A017,14,
A017,15,WARNING - be sure vehicle is at least 4 meters (12 feet) away from any other
A017,16,vehicle or loose wheels equipped with TPMS sensors when performing this test!
;



I have a 2005 Bentley GT and I had some new wheels placed on them with new sensors. The sensors are good. The Bentley Dealership states that I have to get the computer module that controls the TPMS updated so that they can install the latest calibration which is expensive. Can anyone help with any alternatives or a less expensive route or any information?



Not sure if it is mandatory updating the software to calibrate TPMS, unless the new sensors are different in some way than the older ones. If you are looking for a less expensive option, you could invest in Ross-Tech VAG-CAN and try yourself using the info above.




Channel 65 will tell your sensors are registering properly or not. More advanced calibration/adaption parameters should be accessible using code: 10896


(I have not verified the code since I simply turned off my TPMS disabling the module)


Cheers,



rjosiah, if you still have the old TPMS for the old rims just clone them. Even the 'lowly' Tire Warehouse can do this... and this is what we did when I replaced the Pirelli P Zero with Mich PSS as the old TMPS sensors were getting on in the years and needed replacing.


By cloning them the car's computer 'sees' the exact some sensors and thus no reprogramming of the car is needed.



''The Bentley Dealership states that I have to get the computer module that controls the TPMS updated so that they can install the latest calibration''.

rjosiah,
I have had my sensors replaced last week and after following the standard recognition procedure( I had to drive for about 40' before the sensors where ''seen'') my module ''found'' them and everything is working fine.
no need to do any expensive ''updating''....

so either you have to replace your computer module (800€ in France !) because it's ''dead'', either your Bentley dealer just want to make some easy money on your account.



Hi, i installed new sensors due to missing them in wheels at all. I think previous owner just removed them. They picked up just fine and showing pressures correctly, but sometimes when i do high speed driving for a while let's say about 100mph i get error that there is fault in tpms.
Anyone else has or has this issue?

Cheers



The TPMS is useless and unnecessary complication. Checking tire pressure visually and using a gauge is very easy/
