Found this excellent video of the GT clearing showing the hissing from a smoke test and after video with replacement metal vac lines.

Indy in this video commented vac lines are a common problem from 2004 to early 2006 but some of our 2007 members also have this problem. Did Bentley ever resolve this problem before the new model came out?

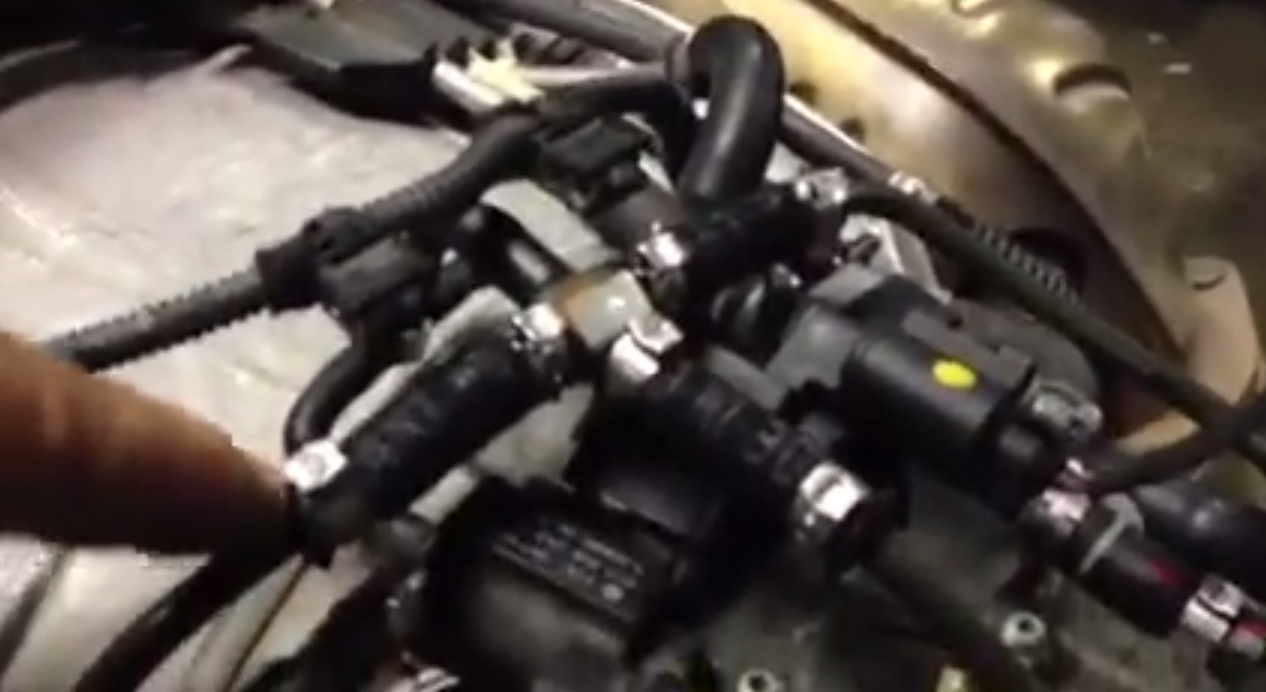

Attached Thumbnails Click image for larger version

Name:	Screen Shot 2014-09-18 at 8.57.55 pm.png
Views:	508
Size:	841.6 KB
ID:	402146

Last edited by jc_333; 09-18-2014 at 07:16 AM.
  #17
Old 09-18-2014, 09:09 AM
DonL's Avatar
Registered User
Join Date: May 2010
Location: SF East Bay
Posts: 709
Rep Power: 57
DonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant futureDonL has a brilliant future
Interesting videos...

After viewing both, I found the Part 1 video segment, which shows the vacuum pump location.


  #18
Old 09-18-2014, 03:32 PM
stevenrmusic's Avatar
Registered User
Join Date: Apr 2010
Location: Worldwide
Posts: 2,733
Rep Power: 140
stevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond repute
Have not heard of an 08 or newer having the problem.... yet time will tell.

  #19
Old 09-21-2014, 10:16 AM
ExSF's Avatar
Registered User
Thread Starter
Join Date: Sep 2013
Location: Europe
Posts: 638
Rep Power: 35
ExSF is a glorious beacon of lightExSF is a glorious beacon of lightExSF is a glorious beacon of lightExSF is a glorious beacon of lightExSF is a glorious beacon of light
Well, I hope that none of you have this problem.
The price at the main dealer to fix it was 3,554. Although that did include a new exhaust gas sensor, new auxiliary pulley belt and a new paddle shift control unit.
That was on top of the 1,895 I paid the week previously for an 8 year service which included two new cam sensors, a new door mirror and a new boot release button plus MOT test.

All in all, a costly few days. Unfortunately, the paddle shift still has the same fault, so I guess I didn't need a new 354 control unit. The main dealer now reckons it may be a wiring problem. I had already told them that it was intermittent so am surprised they didn't check the wiring first. He said the original control unit was faulty anyway so I have no comeback. As I needed the car for a trip away I had to take it as it is.

It's a pity that the Indy was too busy to repair my car at the time, it would have saved me a lot of cash. I think he will get my full patronage from now on though.

Les.

  #20
Old 09-22-2014, 11:57 PM
jc_333's Avatar
Registered User
Join Date: Jun 2011
Posts: 463
Rep Power: 26
jc_333 will become famous soon enough
Tbh the charge for dealer repair isn't too bad! Considering how many parts have to be removed they could charge you 5G easily.

  #21
Old 09-23-2014, 08:07 AM
arbuckle44's Avatar
Registered User
Join Date: Dec 2013
Location: Spring, TX
Age: 72
Posts: 3
Rep Power: 0
arbuckle44 is on a distinguished road
Indication(s) of problem

As I own an '07 GTC - this plastic vac line issue concerns me. Would you please state your initial observation(s) that a problem existed which would
require a repair. Thank you.

  #22
Old 09-23-2014, 08:53 AM
stevenrmusic's Avatar
Registered User
Join Date: Apr 2010
Location: Worldwide
Posts: 2,733
Rep Power: 140
stevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond repute
Loss of power... Engine stumbles... engine light turns on. I noticed a loss in power when first getting the GTC and seems it took a bit longer for the light/problem to truly rear their ugly head. If I had not had a previous GT, one would probably not notice the loss of power before things get too bad and thus stumble/engine light.


Have a smoke test done on the car.

  #23
Old 09-24-2014, 04:42 AM
ExSF's Avatar
Registered User
Thread Starter
Join Date: Sep 2013
Location: Europe
Posts: 638
Rep Power: 35
ExSF is a glorious beacon of lightExSF is a glorious beacon of lightExSF is a glorious beacon of lightExSF is a glorious beacon of lightExSF is a glorious beacon of light
And for us Brits, it's the passenger door. The pump is behind the left front wing/fender.

I only became aware of the problem when the Indy doing the service found it.
I'm glad Bentley seem to have addressed the problem on later cars.

  #24
Old 10-20-2015, 09:03 AM
Registered User
Join Date: Mar 2013
Location: new york
Posts: 34
Rep Power: 8
syavik is on a distinguished road
Parts to be replaced?

Does anyone have part numbers that needs to be replaced?

  #25
Old 10-20-2015, 09:13 AM
stevenrmusic's Avatar
Registered User
Join Date: Apr 2010
Location: Worldwide
Posts: 2,733
Rep Power: 140
stevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond repute
3W1612041S Vacuum Pipe $355.55

  #26
Old 10-20-2015, 09:51 AM
Registered User
Join Date: Mar 2013
Location: new york
Posts: 34
Rep Power: 8
syavik is on a distinguished road
So only 1 line not 2 or 3? I have 06 GT. Just spoke to dealer in the area, he said that 3W1612041S fits 08+ GT's and he hasn't sold any this year, however the one that fits my car is 3W1612041M and list is $505.33 and he has sold 3 this year. Any idea if there is any aftermarket hoses?


Last edited by syavik; 10-20-2015 at 11:16 AM.
  #27
Old 10-20-2015, 11:12 AM
stevenrmusic's Avatar
Registered User
Join Date: Apr 2010
Location: Worldwide
Posts: 2,733
Rep Power: 140
stevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond reputestevenrmusic has a reputation beyond repute
No idea, yet what I posted is the hose they changed on my receipt for an 07 GTC.

  #28
Old 10-20-2015, 04:49 PM
Registered User
Join Date: Oct 2012
Location: miami, fl
Posts: 141
Rep Power: 13
larryr has a spectacular aura aboutlarryr has a spectacular aura about
i think it is recommended to change the starter while the engine is out

  #29
Old 10-21-2015, 11:22 AM
Registered User
Join Date: Mar 2013
Location: new york
Posts: 34
Rep Power: 8
syavik is on a distinguished road
Thank you

  #30
Old 10-22-2015, 12:15 AM
turbo_secret's Avatar
Registered User
Join Date: Aug 2010
Location: Portland
Posts: 225
Rep Power: 19
turbo_secret will become famous soon enoughturbo_secret will become famous soon enough
Wish i knew about this common leak problem before we put the engine back in the car a month ago
