Subwoofer question

Reply



Thread Tools Search this Thread Rate Thread
  #1
Old 04-14-2018, 01:14 PM
Registered User
Thread Starter

Join Date: May 2017
Age: 25
Posts: 47
Rep Power: 0
Forster1993 is an unknown quantity at this point
Subwoofer question

So I'm planning to do a basic subwoofer install. My question is has anyone done this I don't know where to take the audio signal feed. I'm guessing I'll have to use a Hi-Lo converter but does anyone have a wiring diagram for the amp?

Thanks in advance
Reply With Quote
  #2
Old 04-15-2018, 08:04 AM
Registered User

Join Date: Apr 2018
Location: Grand Island, NY
Age: 50
Posts: 10
Rep Power: 0
zissis is an unknown quantity at this point
I just bought my 2010 continental GT ... took it to a speed shop here that is top notch, they even won first place at SEMA a few times. I asked the same question. Apparently our sound systems don't use regular wires. They use fiber optic lines. So it's not as simple as one might think.
Reply With Quote
  #3
Old 04-15-2018, 08:55 AM
Registered User
Thread Starter

Join Date: May 2017
Age: 25
Posts: 47
Rep Power: 0
Forster1993 is an unknown quantity at this point
Mine definitely uses copper wires it's old tech and I don't have the upgraded sound system
Reply With Quote
  #4
Old 04-15-2018, 10:46 AM
Registered User

Join Date: Oct 2015
Age: 44
Posts: 56
Rep Power: 5
TeamJones1962 is on a distinguished road
Quote:
Originally Posted by Forster1993 View Post
So I'm planning to do a basic subwoofer install. My question is has anyone done this I don't know where to take the audio signal feed. I'm guessing I'll have to use a Hi-Lo converter but does anyone have a wiring diagram for the amp?

Thanks in advance
Let me try to help you out before you get flamed for not using the search function
http://www.6speedonline.com/forums/b...io-wiring.html

I just gutted my headunit. I couldn't go without my bluetooth or Sirius radio. No sub but now I have a clean option to add one just for a little more bottom end. Changing the head unit made me realize I HAVE TO upgrade my speakers.
Reply With Quote
  #5
Old 04-15-2018, 11:07 AM
Registered User

Join Date: Oct 2015
Age: 44
Posts: 56
Rep Power: 5
TeamJones1962 is on a distinguished road
Also, if you can't get the diagrams you need, most speaker wires at the amp are twisted together. Get yourself a 9v battery, solder wires to each post (I would make them kind of long) strip the other end down to maybe 1/4 inches. Make sure the wires can reach and make contact with the terminals and test for speakers. You should a "POP" when making contact with a speaker. Write down which pair of wires corresponds with what speaker. That's what I had to use back when I was installing and Tech-Soft didn't have the car in its data base yet. Other may chime in with a better way but that's off the top of my head.
Reply With Quote
  #6
Old 04-15-2018, 12:37 PM
Johnny Hotspur GT's Avatar
Registered User

Join Date: Jul 2014
Location: Montgomery NJ
Posts: 472
Rep Power: 35
Johnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud of
I am sorry to say, but whom ever told you that has no clue what they were talking about, the only fiber optic to do with the Infotainment sound system along with the NAV, is the fiber optic cable between the infotainment head and the NAV disc drive, all other wiring from the CD player, NAV drive, to amp and from amp to speaker is copper wiring, not fiber optics, I just installed a 2010 Naim infotainment head unit in my 2005 GT which is part 2005, 2006, 2007, 2010, 2014, (See my rebuild thread) and it is as I have stated above, I will dig out the wiring diagram for the sound system in a few. ALSO as TeamJones pointed out with the battery trick, I will only add that I use a "AA" 1.5 volt just to be safe.


Quote:
Originally Posted by zissis View Post
I just bought my 2010 continental GT ... took it to a speed shop here that is top notch, they even won first place at SEMA a few times. I asked the same question. Apparently our sound systems don't use regular wires. They use fiber optic lines. So it's not as simple as one might think.
Reply With Quote
  #7
Old 04-15-2018, 01:15 PM
Registered User
Thread Starter

Join Date: May 2017
Age: 25
Posts: 47
Rep Power: 0
Forster1993 is an unknown quantity at this point
Those drawings look like what I need so thanks for the link, they won't load on my phone but I'll log on later and check them out.

I won't be using that aftermarket head unit adapter because IMO it looks cheap and nasty.

Thanks for the advice I'll try that if the diagrams won't load
Reply With Quote
  #8
Old 04-15-2018, 02:23 PM
Registered User

Join Date: Apr 2018
Location: Grand Island, NY
Age: 50
Posts: 10
Rep Power: 0
zissis is an unknown quantity at this point
Quote:
Originally Posted by Johnny Hotspur GT View Post
I am sorry to say, but whom ever told you that has no clue what they were talking about, the only fiber optic to do with the Infotainment sound system along with the NAV, is the fiber optic cable between the infotainment head and the NAV disc drive, all other wiring from the CD player, NAV drive, to amp and from amp to speaker is copper wiring, not fiber optics, I just installed a 2010 Naim infotainment head unit in my 2005 GT which is part 2005, 2006, 2007, 2010, 2014, (See my rebuild thread) and it is as I have stated above, I will dig out the wiring diagram for the sound system in a few. ALSO as TeamJones pointed out with the battery trick, I will only add that I use a "AA" 1.5 volt just to be safe.
See? This is why I joined this forum. Even high end speed shops sometimes don't know what they are talking about lol.
Reply With Quote
  #9
Old 04-15-2018, 03:55 PM
Johnny Hotspur GT's Avatar
Registered User

Join Date: Jul 2014
Location: Montgomery NJ
Posts: 472
Rep Power: 35
Johnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud of
Hello Forster,

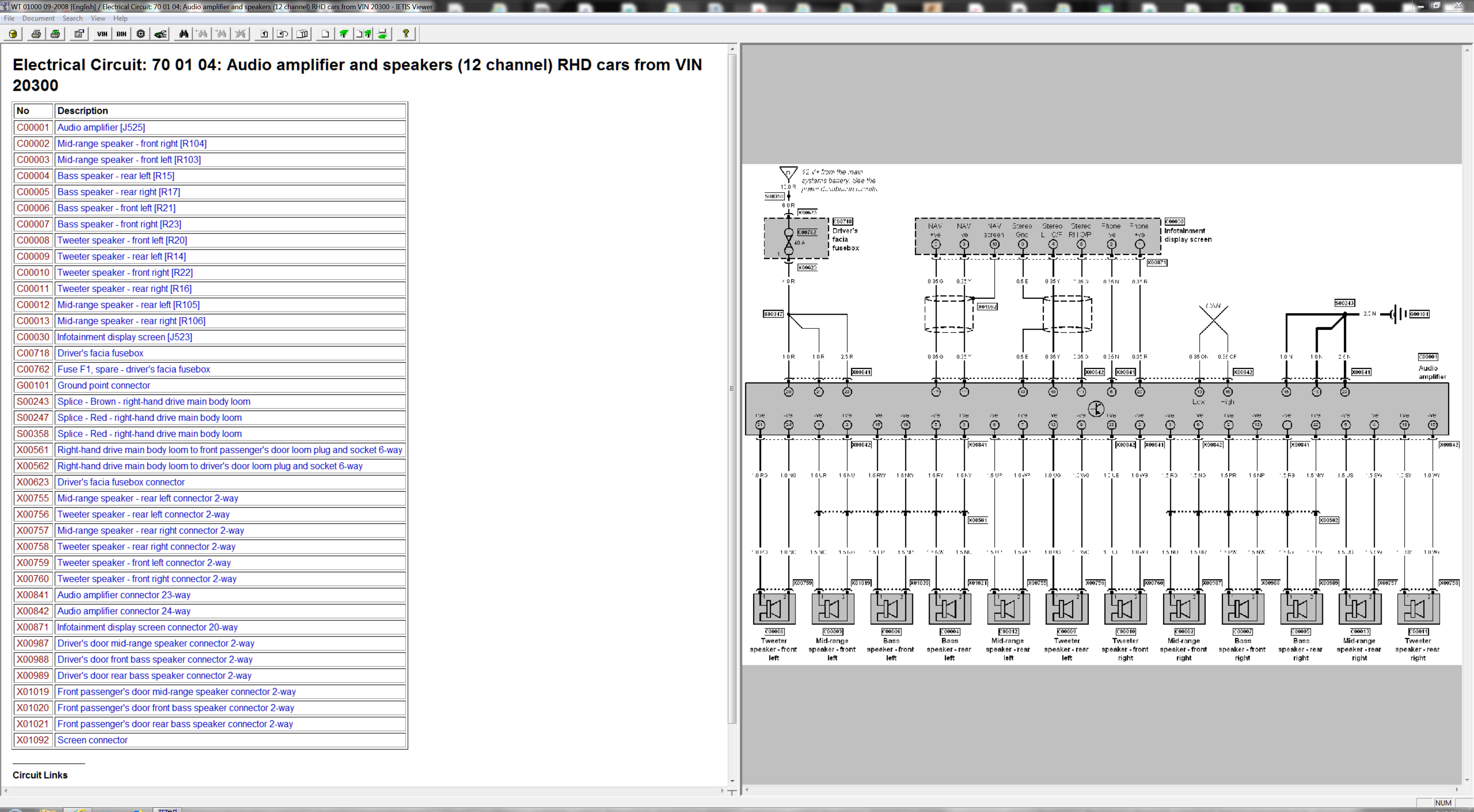

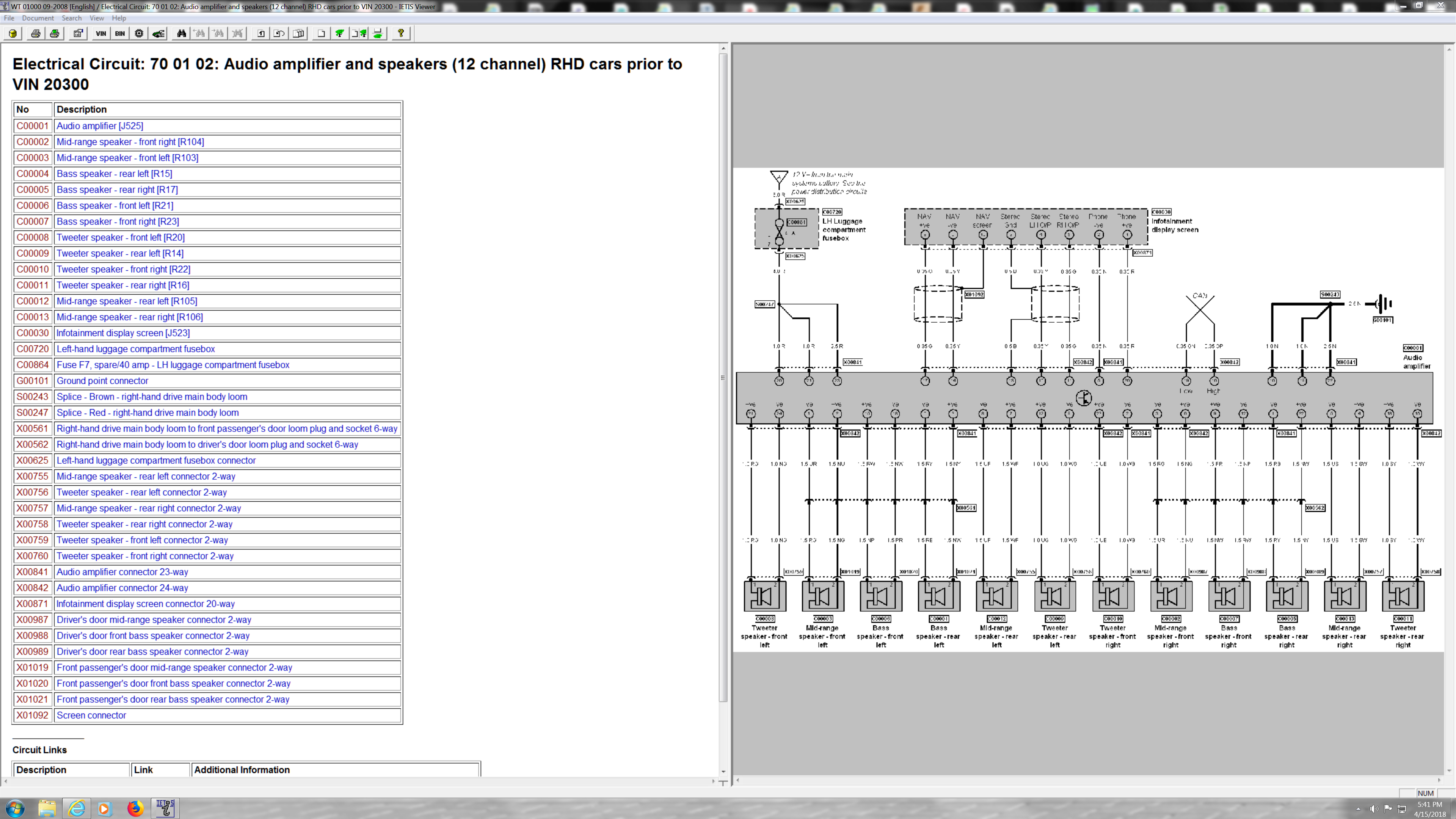

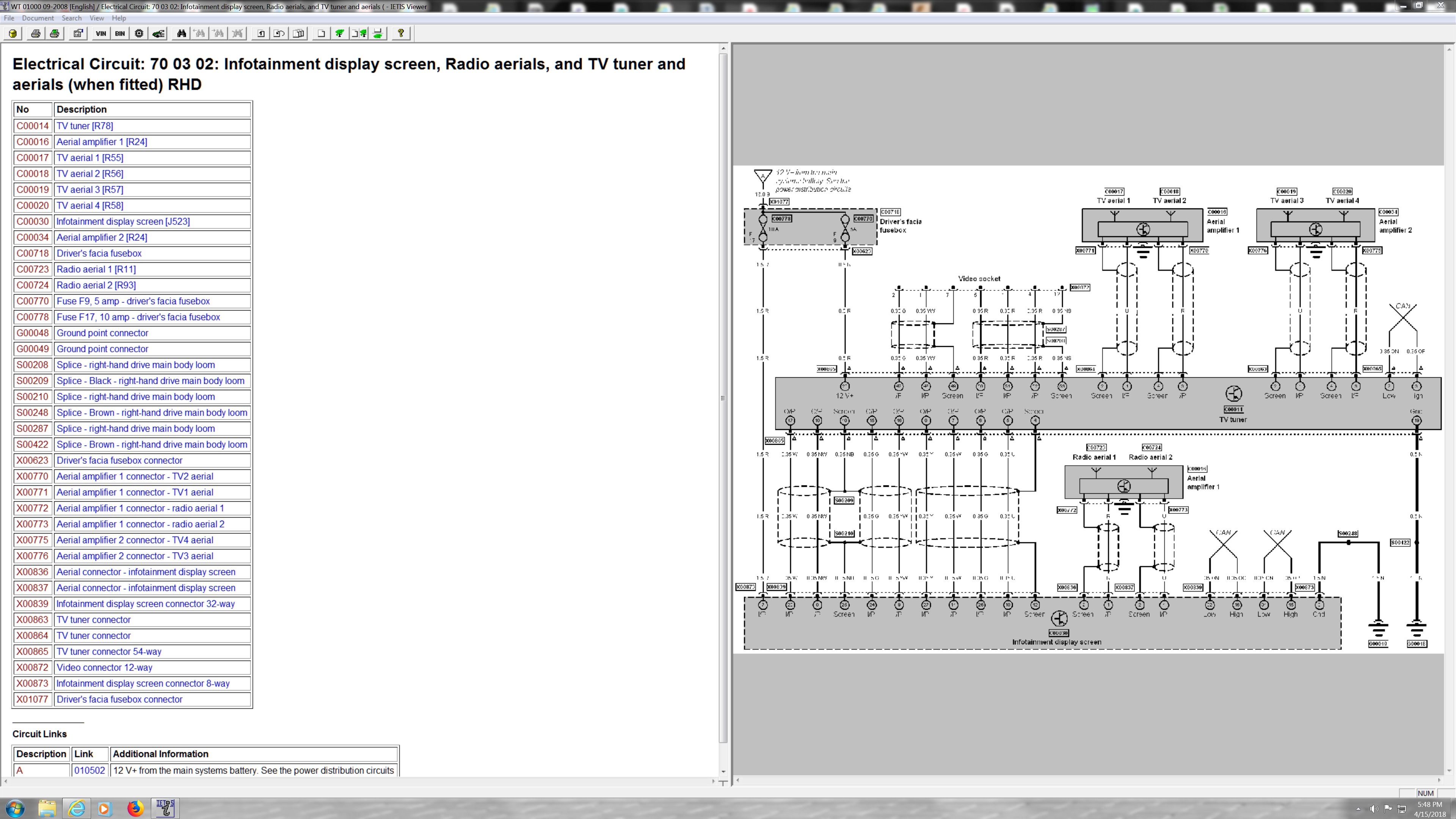

Click on screen shots to enlarge, these are for 2004 GT RHD, one diagram is for vehicle VIN # prior to 20300, the other is from VIN # 20300, the third is the infotainment wiring diagram.


Johnny


Quote:
Originally Posted by Forster1993 View Post
So I'm planning to do a basic subwoofer install. My question is has anyone done this I don't know where to take the audio signal feed. I'm guessing I'll have to use a Hi-Lo converter but does anyone have a wiring diagram for the amp?

Thanks in advance
Attached Thumbnails
Click image for larger version

Name:	2004 GT RHD AMP PRIOR VIN # 20300.PNG
Views:	16
Size:	1.12 MB
ID:	524099   Click image for larger version

Name:	2004 GT RHD AMP FROM VIN # 20300.PNG
Views:	17
Size:	1.04 MB
ID:	524100   Click image for larger version

Name:	2004 GT INFOTAINMENT WIRING DIAGRAM.PNG
Views:	17
Size:	1.11 MB
ID:	524101
Reply With Quote
  #10
Old 04-15-2018, 09:56 PM
Registered User
Thread Starter

Join Date: May 2017
Age: 25
Posts: 47
Rep Power: 0
Forster1993 is an unknown quantity at this point
Quote:
Originally Posted by Johnny Hotspur GT View Post
Hello Forster,


Click on screen shots to enlarge, these are for 2004 GT RHD, one diagram is for vehicle VIN # prior to 20300, the other is from VIN # 20300, the third is the infotainment wiring diagram.


Johnny

Johnny thanks a bunch! That's exactly what I need ! Sorry to be a pain though when I zoom into the screenshots the pin number are illegible.

Can you please just note down what the pin numbers are for bass speaker - rear left? Should both be on X0841 by the look of it

Thanks!!!
Reply With Quote
  #11
Old 04-16-2018, 09:01 AM
Johnny Hotspur GT's Avatar
Registered User

Join Date: Jul 2014
Location: Montgomery NJ
Posts: 472
Rep Power: 35
Johnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud of
Quote:
Originally Posted by Forster1993 View Post
Johnny thanks a bunch! That's exactly what I need ! Sorry to be a pain though when I zoom into the screenshots the pin number are illegible.

Can you please just note down what the pin numbers are for bass speaker - rear left? Should both be on X0841 by the look of it

Thanks!!!

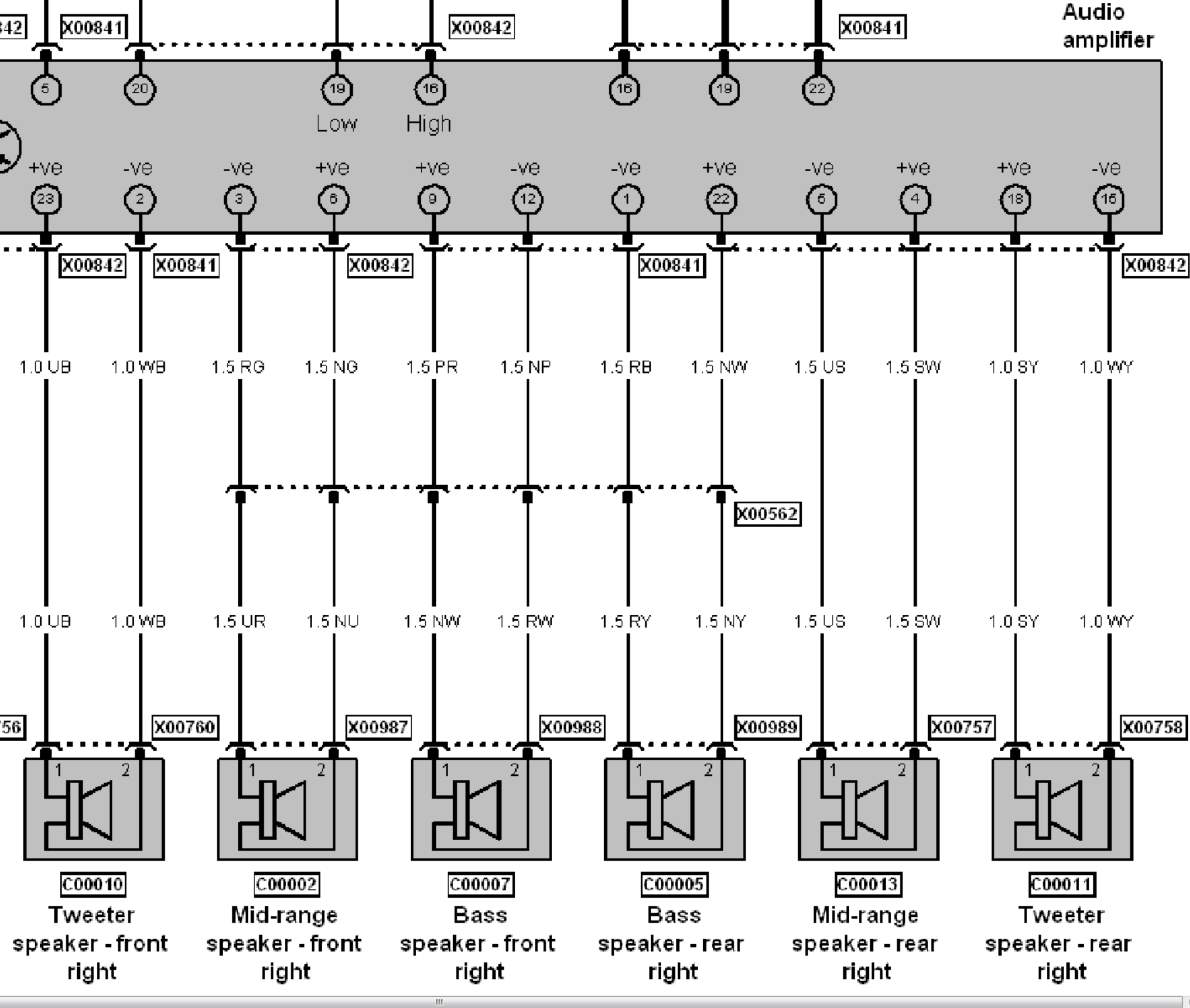

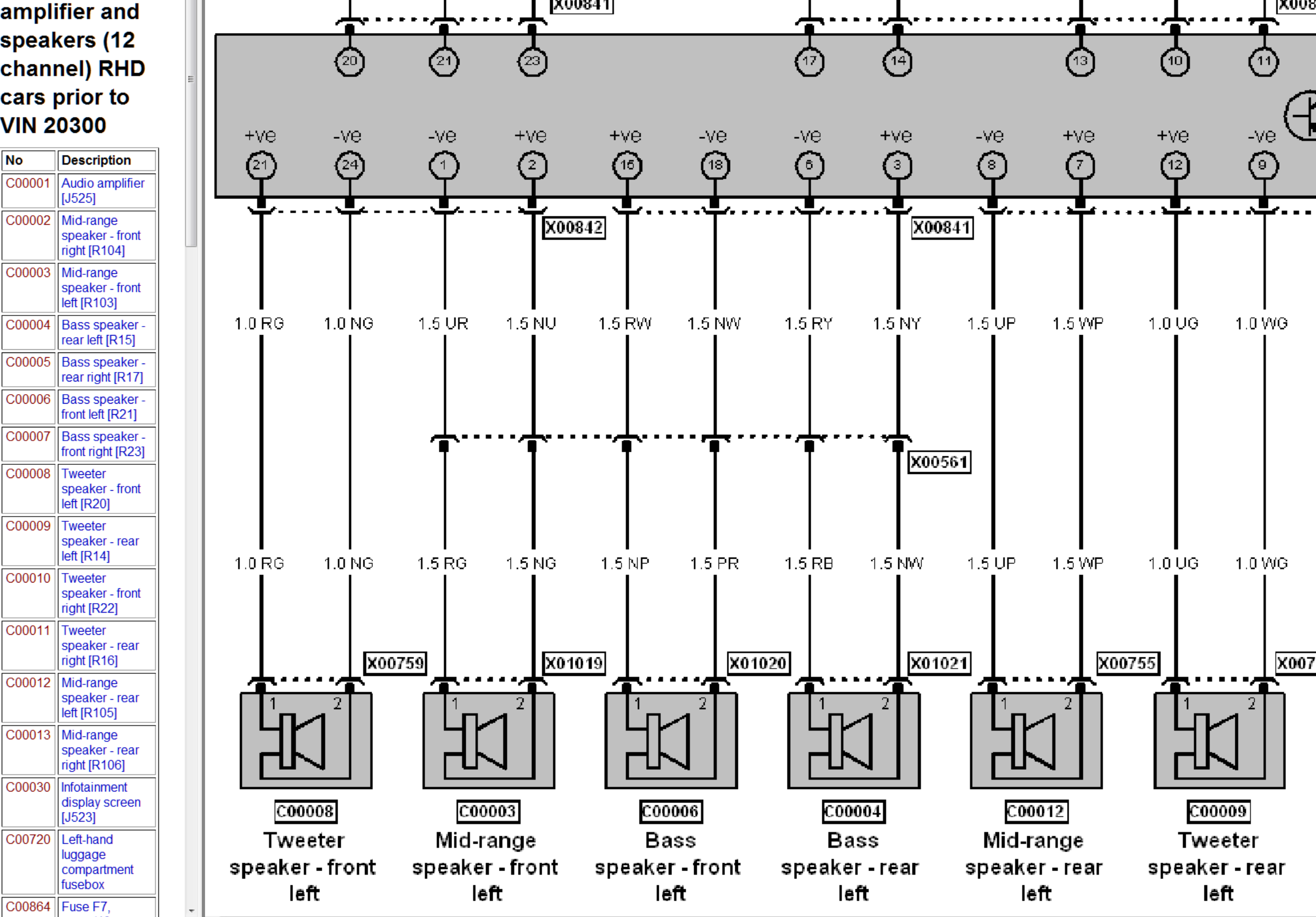

Looks like 6 & 3 for the rear left bass, and 1 & 22 for the rear right bass.
Attached Thumbnails
Click image for larger version

Name:	2004 GT INFOTAINMENT WIRING PRIOR VIN 20300 LEFT SIDE.PNG
Views:	13
Size:	493.5 KB
ID:	524147   Click image for larger version

Name:	2004 GT INFOTAINMENT WIRING PRIOR VIN 20300 RIGHT SIDE.PNG
Views:	12
Size:	238.2 KB
ID:	524148
Reply With Quote
  #12
Old 04-17-2018, 04:10 AM
Registered User
Thread Starter

Join Date: May 2017
Age: 25
Posts: 47
Rep Power: 0
Forster1993 is an unknown quantity at this point
Thanks for that I'm going to go with rear left so I can stick to one plug, rear right spans both connectors. I'm just hoping it doesn't make the amp sense an error with a speaker, as I know it can send error reports to Vag com.
Reply With Quote
  #13
Old 04-17-2018, 11:39 AM
Registered User
Thread Starter

Join Date: May 2017
Age: 25
Posts: 47
Rep Power: 0
Forster1993 is an unknown quantity at this point
So as part of the audio upgrade I want the sound to be crisp currently I have some distortion I've isolated this to the a pillar tweeters anyone changed these? With them being airbag A pillars I'm cautious
Reply With Quote
  #14
Old 04-17-2018, 12:12 PM
Johnny Hotspur GT's Avatar
Registered User

Join Date: Jul 2014
Location: Montgomery NJ
Posts: 472
Rep Power: 35
Johnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud of
Hello Forster,

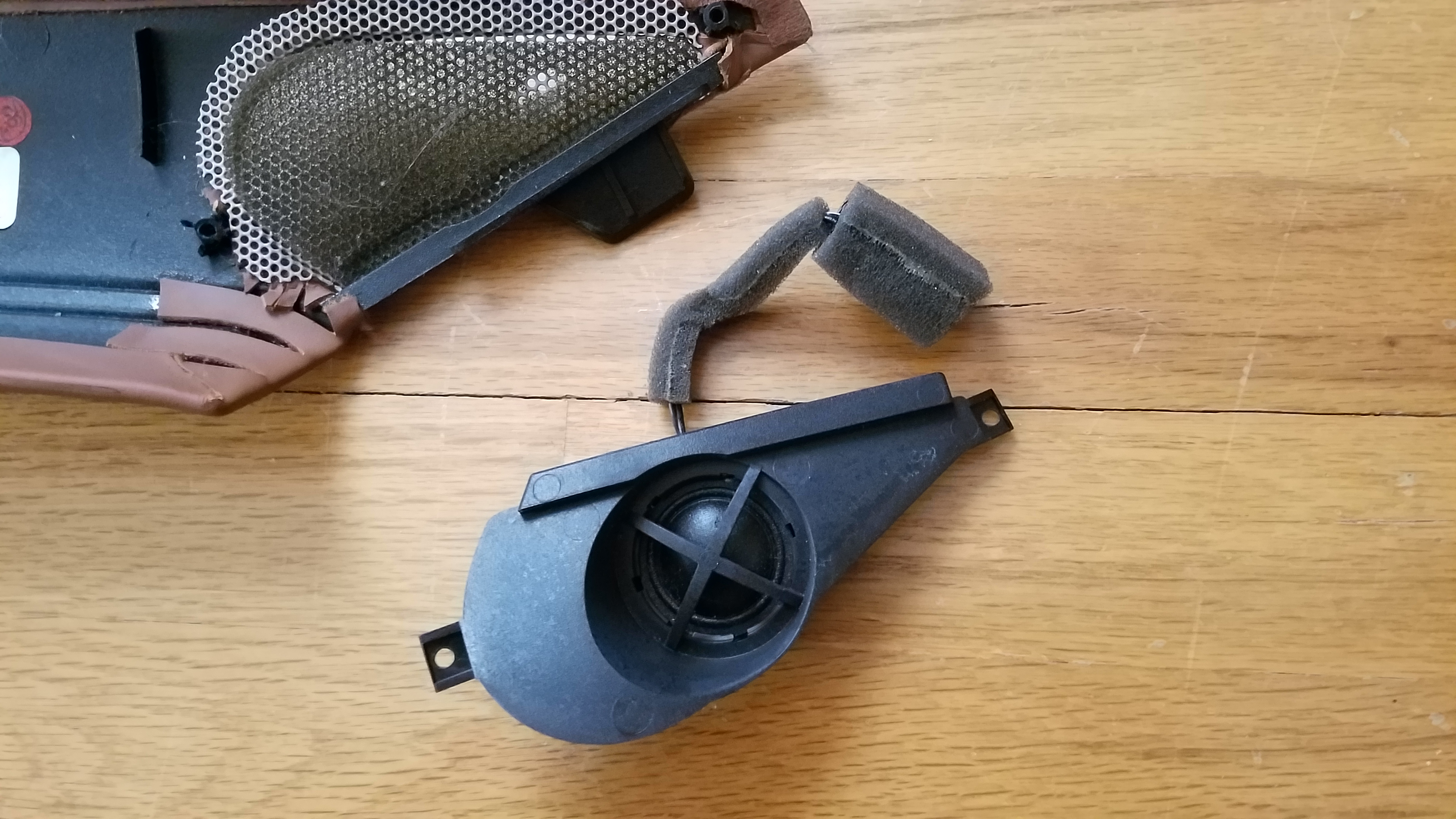

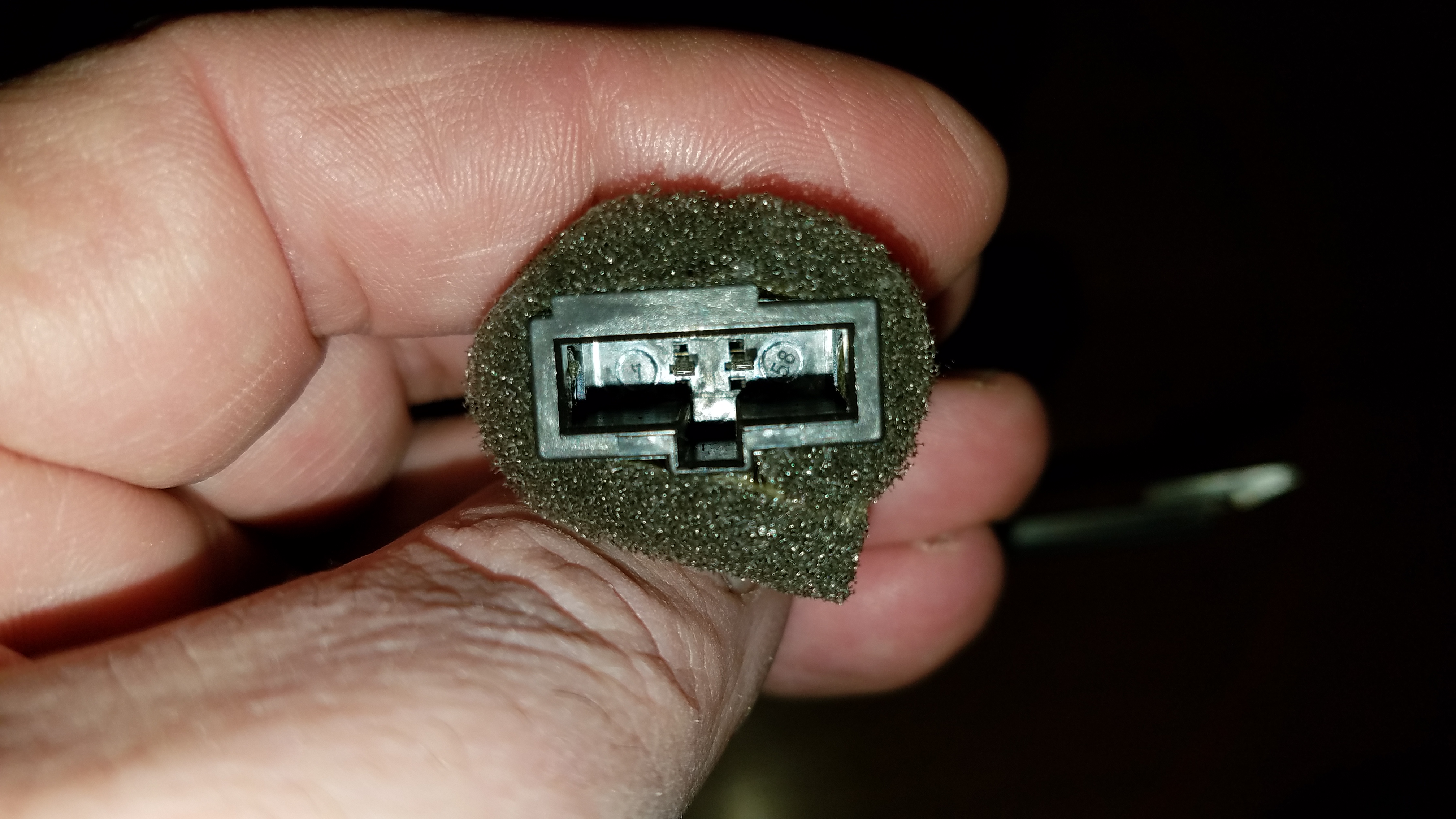

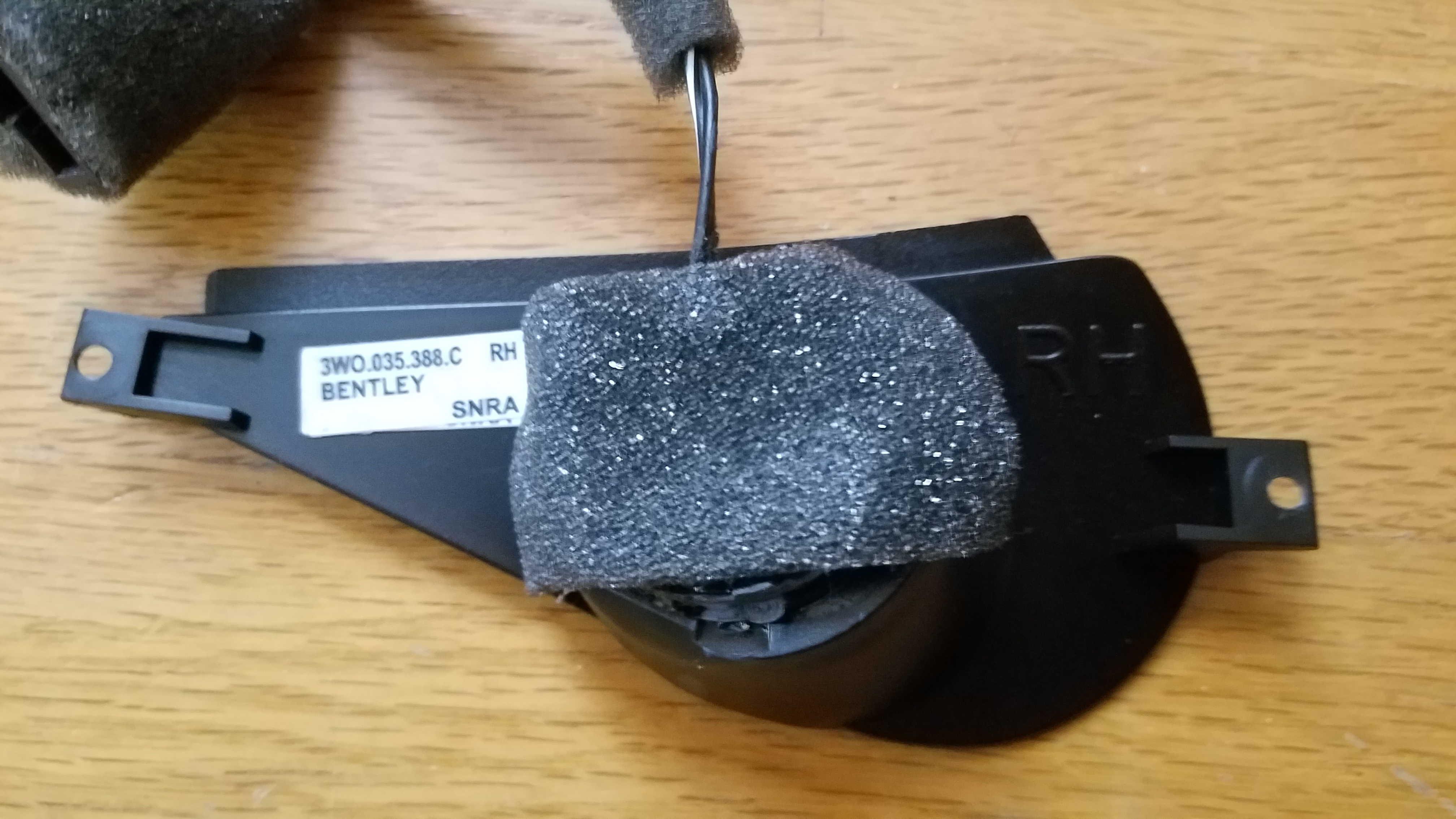

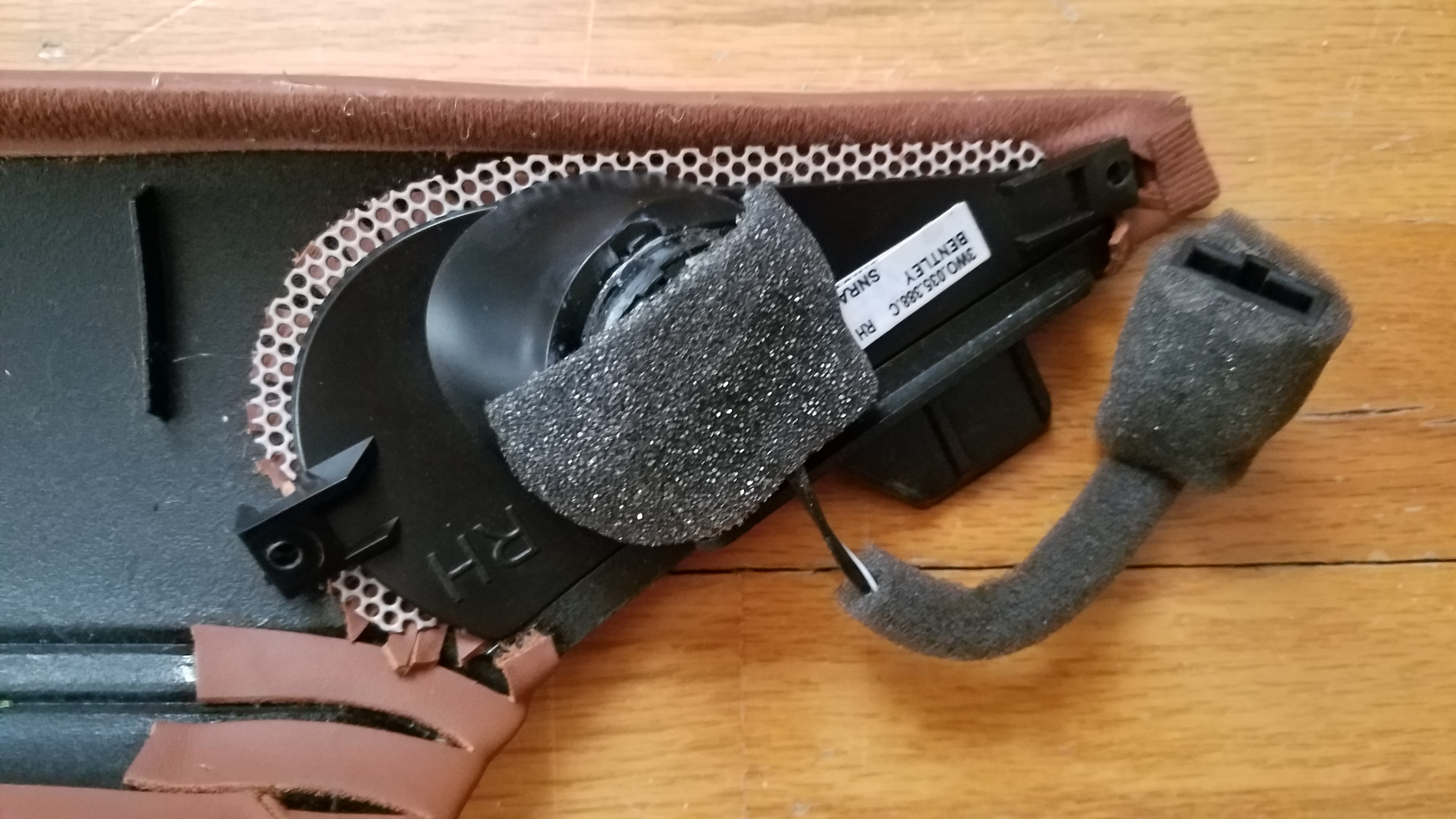

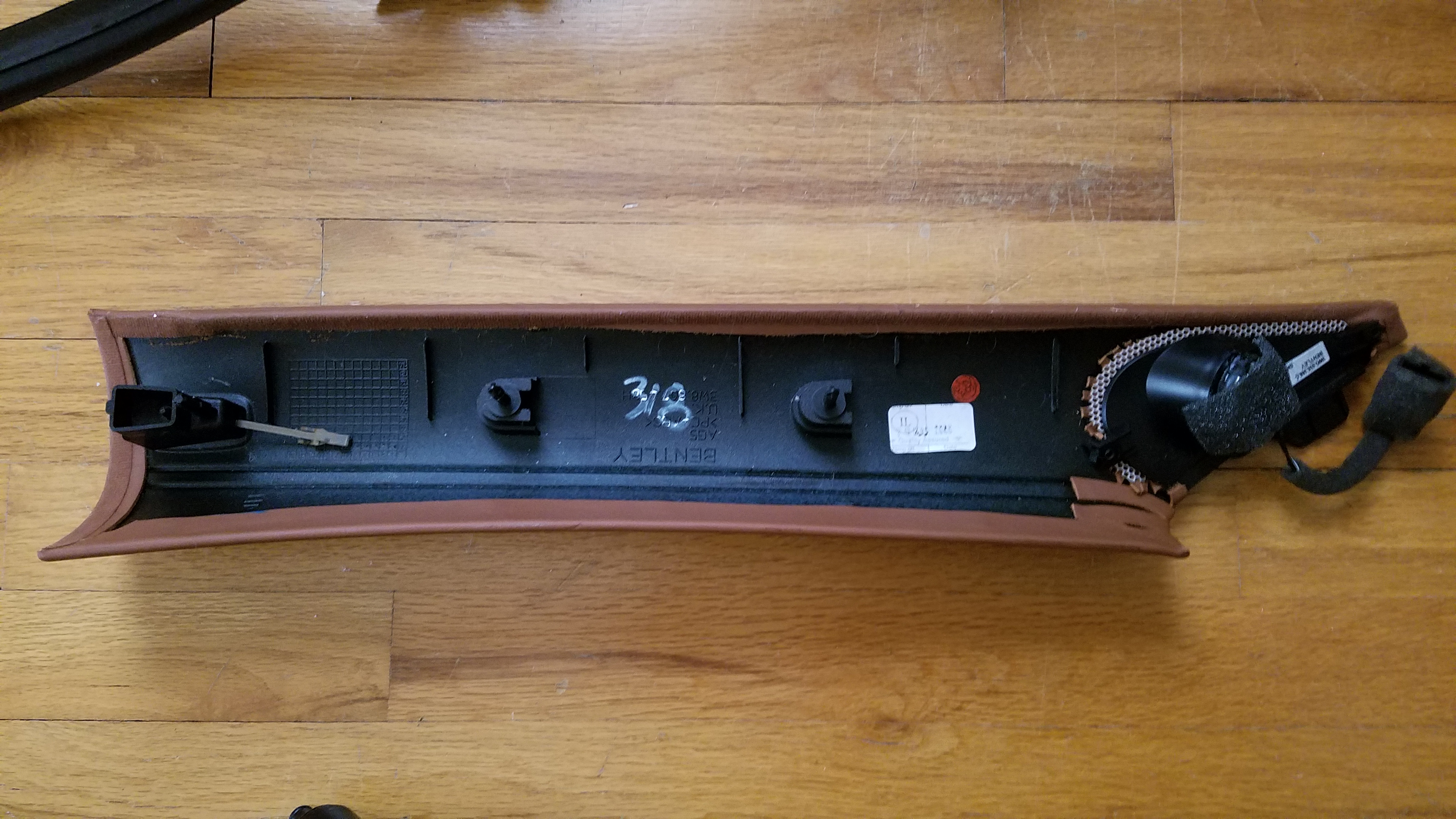

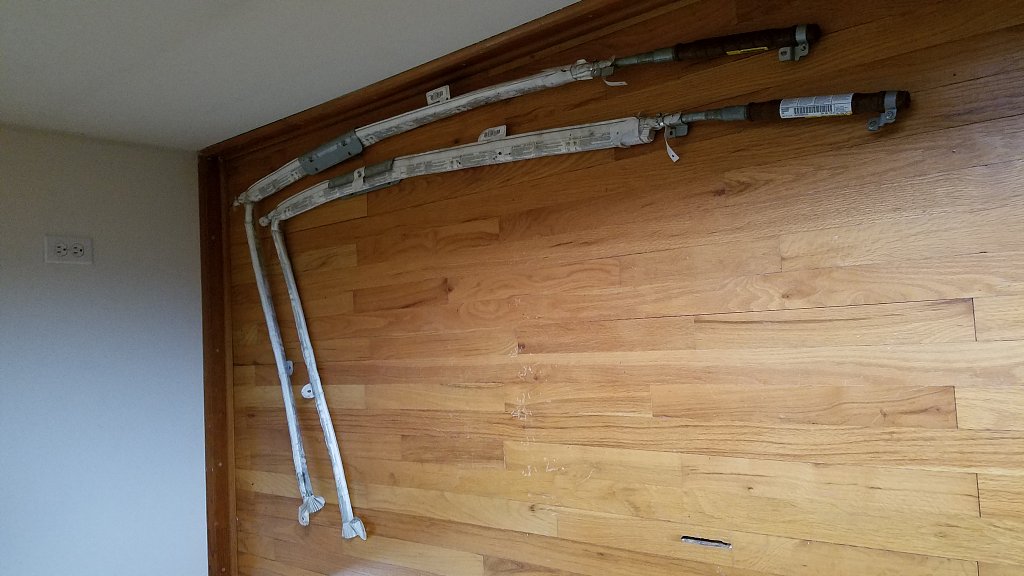

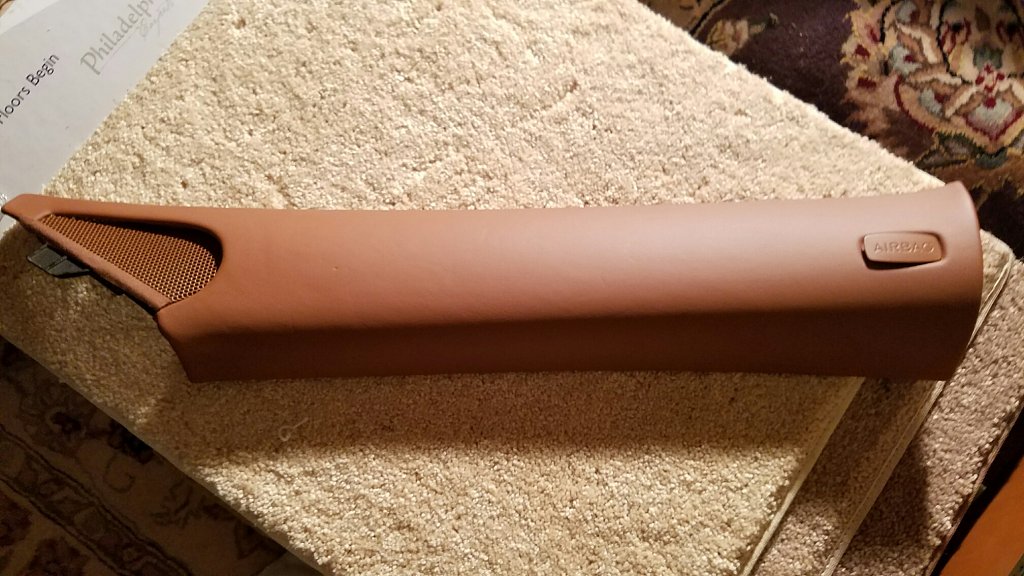

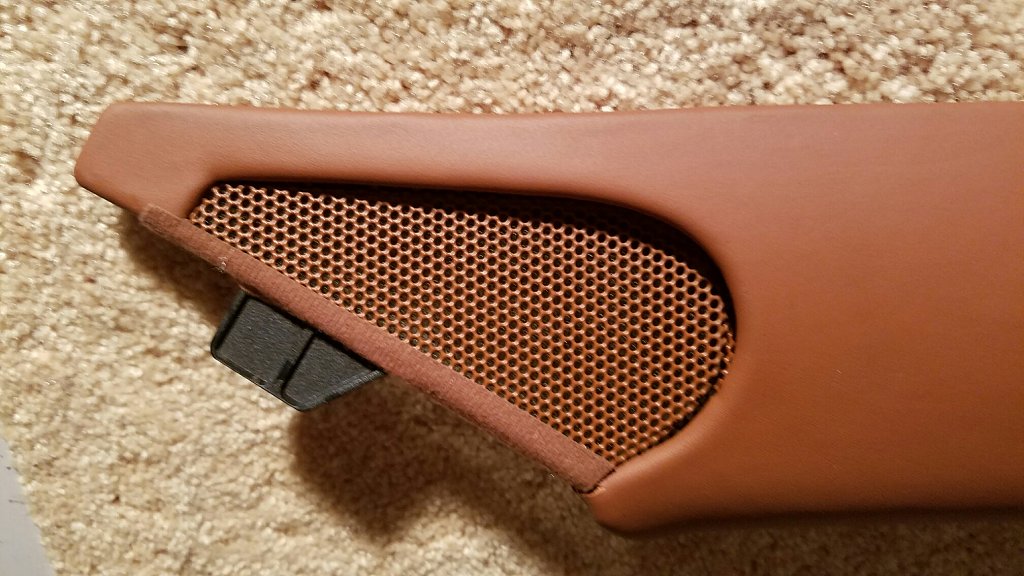

Yes I have had them out on both vehicles (see my rebuild thread), just gently pry out the "AIRBAG" cover to expose the 1 screw securing the A-Pillar trim, the tweeter is attached to said trim piece, there is also a push in retainer stud that will require a little pulling out force as can be seen in the pictures, the retainer tab at the bottom holds the bottom in place, the AIRBAG does run all the way down the A-Pillar, but dose not interfere with the removing of the trim/tweeter.
.


Quote:
Originally Posted by Forster1993 View Post
So as part of the audio upgrade I want the sound to be crisp currently I have some distortion I've isolated this to the a pillar tweeters anyone changed these? With them being airbag A pillars I'm cautious

.
Attached Images

Reply With Quote
  #15
Old 04-18-2018, 12:56 PM
Johnny Hotspur GT's Avatar
Registered User

Join Date: Jul 2014
Location: Montgomery NJ
Posts: 472
Rep Power: 35
Johnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud ofJohnny Hotspur GT has much to be proud of

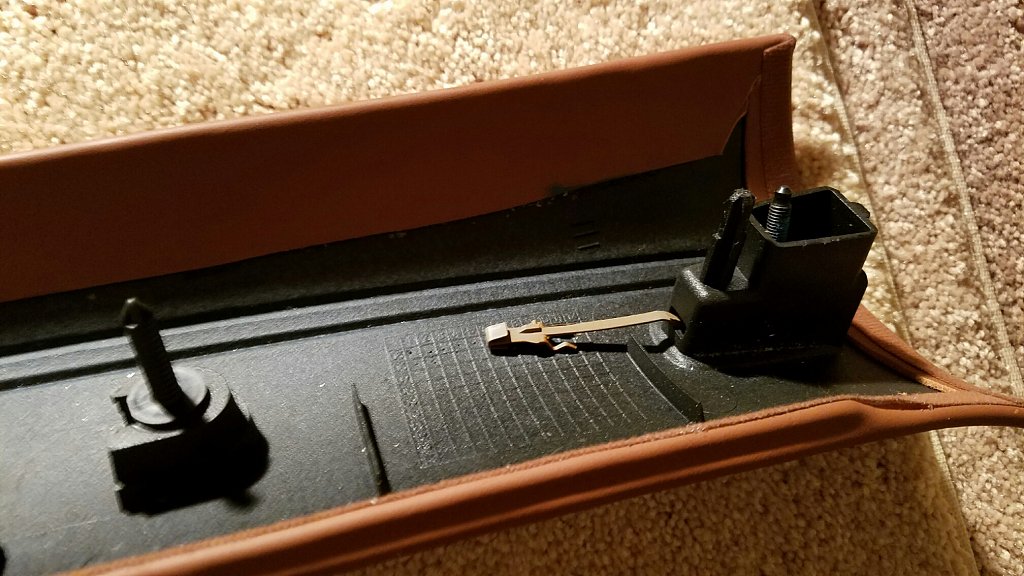

There are actually 2 push in retainers as seen in pictures.

.
Attached Thumbnails
Click image for larger version

Name:	20180418_122053.jpg
Views:	10
Size:	2.72 MB
ID:	524375   Click image for larger version

Name:	20180418_122105.jpg
Views:	10
Size:	2.48 MB
ID:	524376   Click image for larger version

Name:	20180418_122134.jpg
Views:	9
Size:	2.13 MB
ID:	524377   Click image for larger version

Name:	20180418_122125.jpg
Views:	7
Size:	2.33 MB
ID:	524378   Click image for larger version

Name:	20180418_122154.jpg
Views:	1
Size:	2.02 MB
ID:	524379

Reply With Quote
