Knocking sound over the Bump

Hello anyone...
I have a problem why my car.. if I'm going over the speed bump at 50km.h or less than that.. I have a knocking sound seem like in the steering wheel on the way to the rack and pinion..
I did replace all of my control arm, Lower, upper, with the OEM TRW one and the problem still the same..
Both left and right side.. the right side heard like Thump Thump..
is that rack and pinion is the common problem making weirg sound in this car...
Knock knock sound...
Thank you alot

Old Oct 24, 2019 | 12:00 PM
  #2
Johnny Hotspur GT's Avatar
Administrator
10 Year Member
Joined: Jul 2014
Posts: 3,946
From: Montgomery NJ
Rep Power: 1002
Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !
Hello NGUY,
Did you replace the sway bar links, also note that the sway bar mounts have a bushing also, although those are not replaceable, I believe, although others have cut the old one off and used a replaceable piece.





Originally Posted by nguyennhatquang
Hello anyone...
I have a problem why my car.. if I'm going over the speed bump at 50km.h or less than that.. I have a knocking sound seem like in the steering wheel on the way to the rack and pinion..
I did replace all of my control arm, Lower, upper, with the OEM TRW one and the problem still the same..
Both left and right side.. the right side heard like Thump Thump..
is that rack and pinion is the common problem making weirg sound in this car...
Knock knock sound...
Thank you alot

Old Oct 24, 2019 | 12:05 PM
  #3
nguyennhatquang's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2014
Posts: 255
From: Vietnam
Rep Power: 23
nguyennhatquang has a spectacular aura aboutnguyennhatquang has a spectacular aura about
@johny..
I din't replace it yet because mine is looking fine....

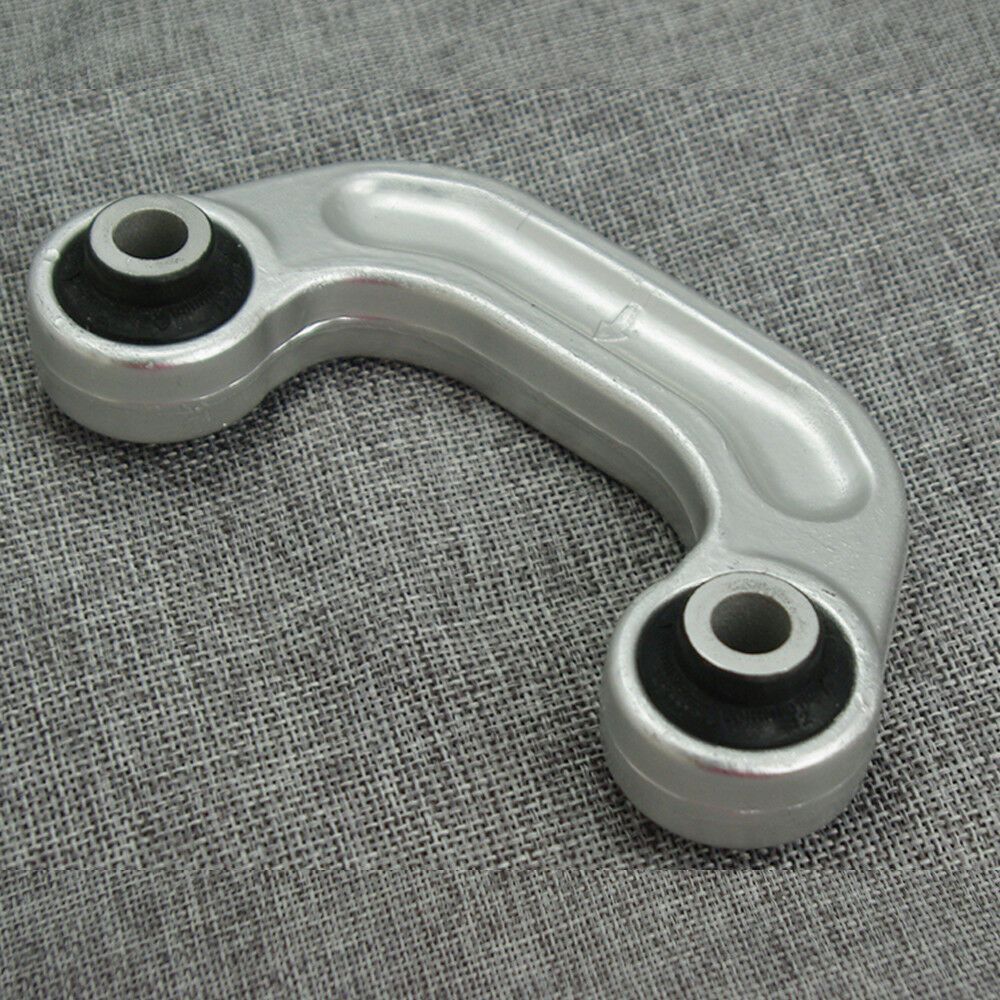

here is the picture of mine

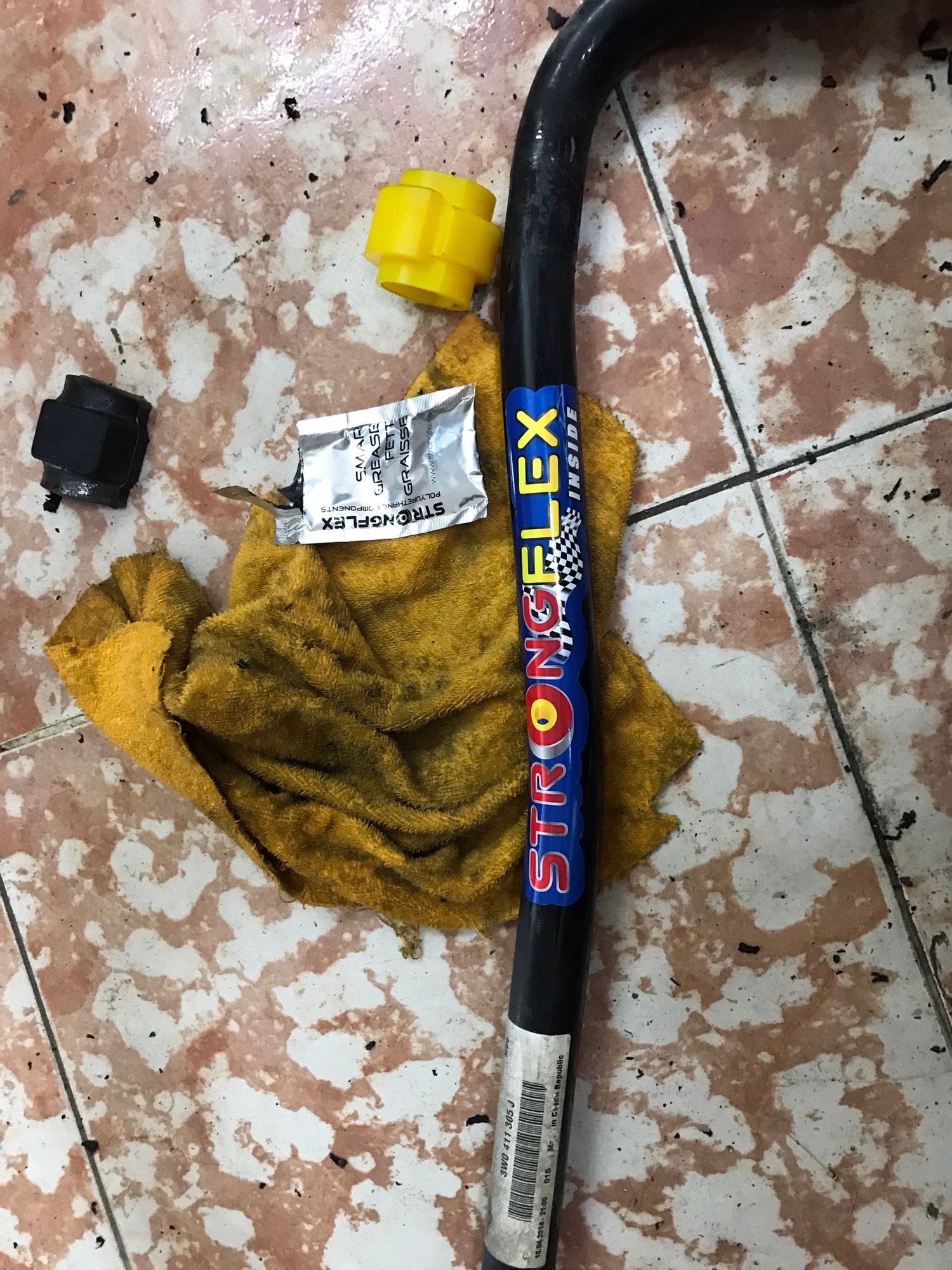

and for my swaybar bushing I did replace it with the the one made by polyurethane from Strong flex...

or are there anyway I can check sway bar link? other than looking at it?

Old Oct 24, 2019 | 12:21 PM
  #4
Johnny Hotspur GT's Avatar
Administrator
10 Year Member
Joined: Jul 2014
Posts: 3,946
From: Montgomery NJ
Rep Power: 1002
Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !
Well, my links looked just like yours on my A8L W12, yet they were the cause of my clunking, now some 30K miles later the clunk is back, so I will be checking the links and the SB bushings this time.
Did those hard bushings fit snuggly onto the sway bar without any play ?

Old Oct 24, 2019 | 12:26 PM
  #5
nguyennhatquang's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2014
Posts: 255
From: Vietnam
Rep Power: 23
nguyennhatquang has a spectacular aura aboutnguyennhatquang has a spectacular aura about
@johnny : ok then tomorrow I will remove my sway bar then test drive it short...if the clunking from there then I will let you know..

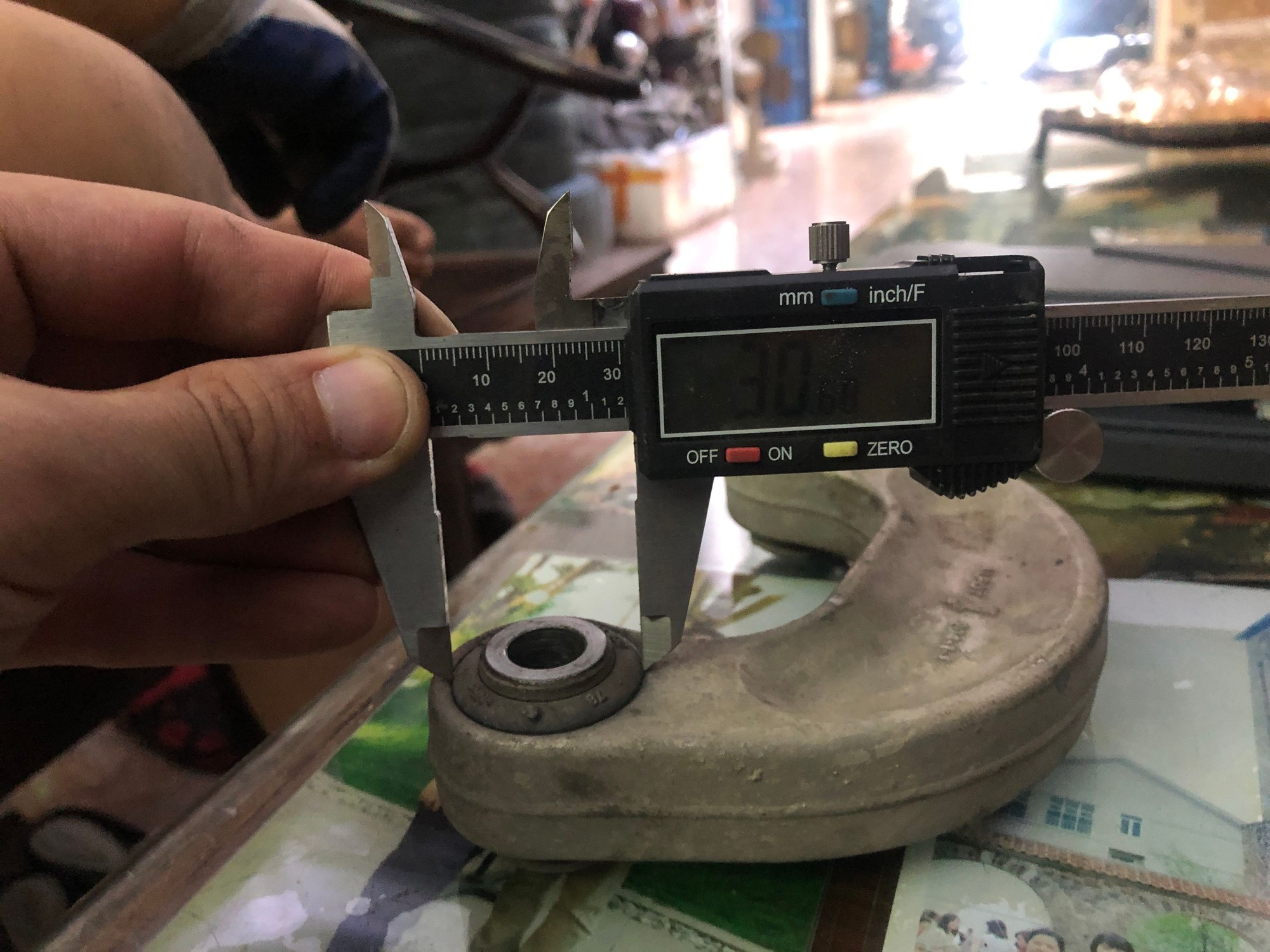

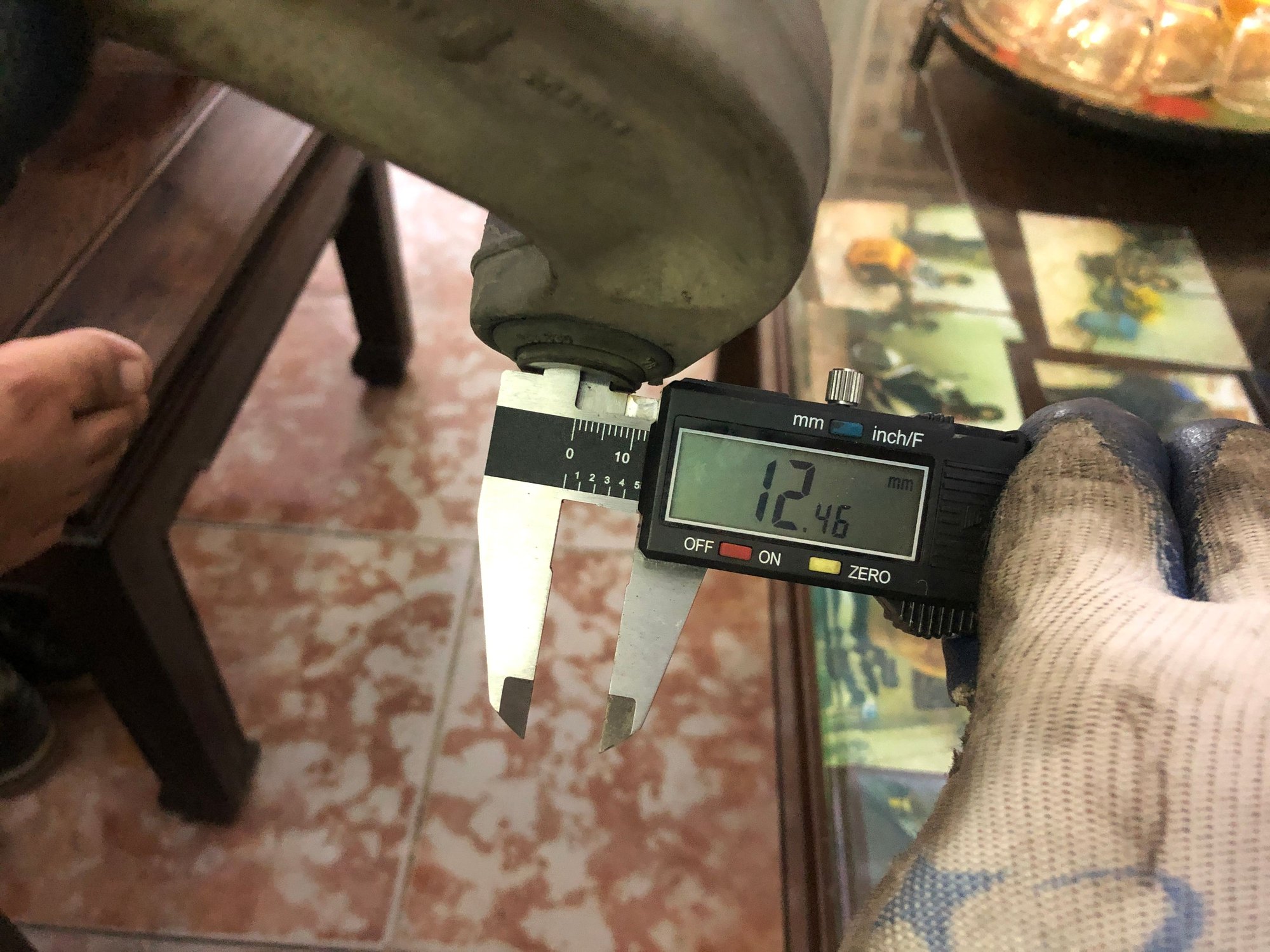

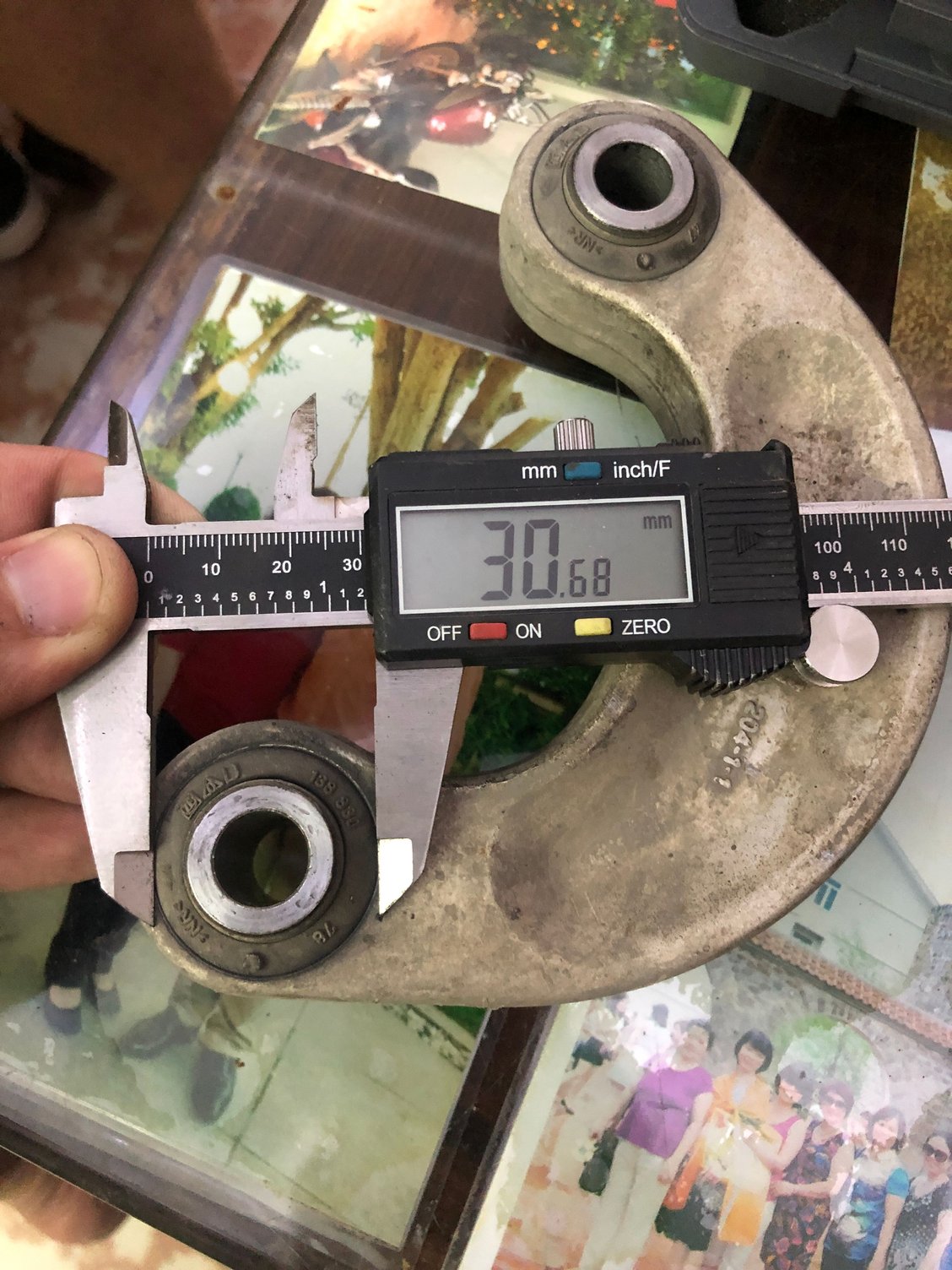

The bushing fit perfectly and the inside diameter is 31mm.. here is the link
www.strongflexuk.co.uk/front-anti-roll-bar-bush-sport-2233.html#.XbHspi8xWfA

Old Oct 24, 2019 | 12:26 PM
  #6
Johnny Hotspur GT's Avatar
Administrator
10 Year Member
Joined: Jul 2014
Posts: 3,946
From: Montgomery NJ
Rep Power: 1002
Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !

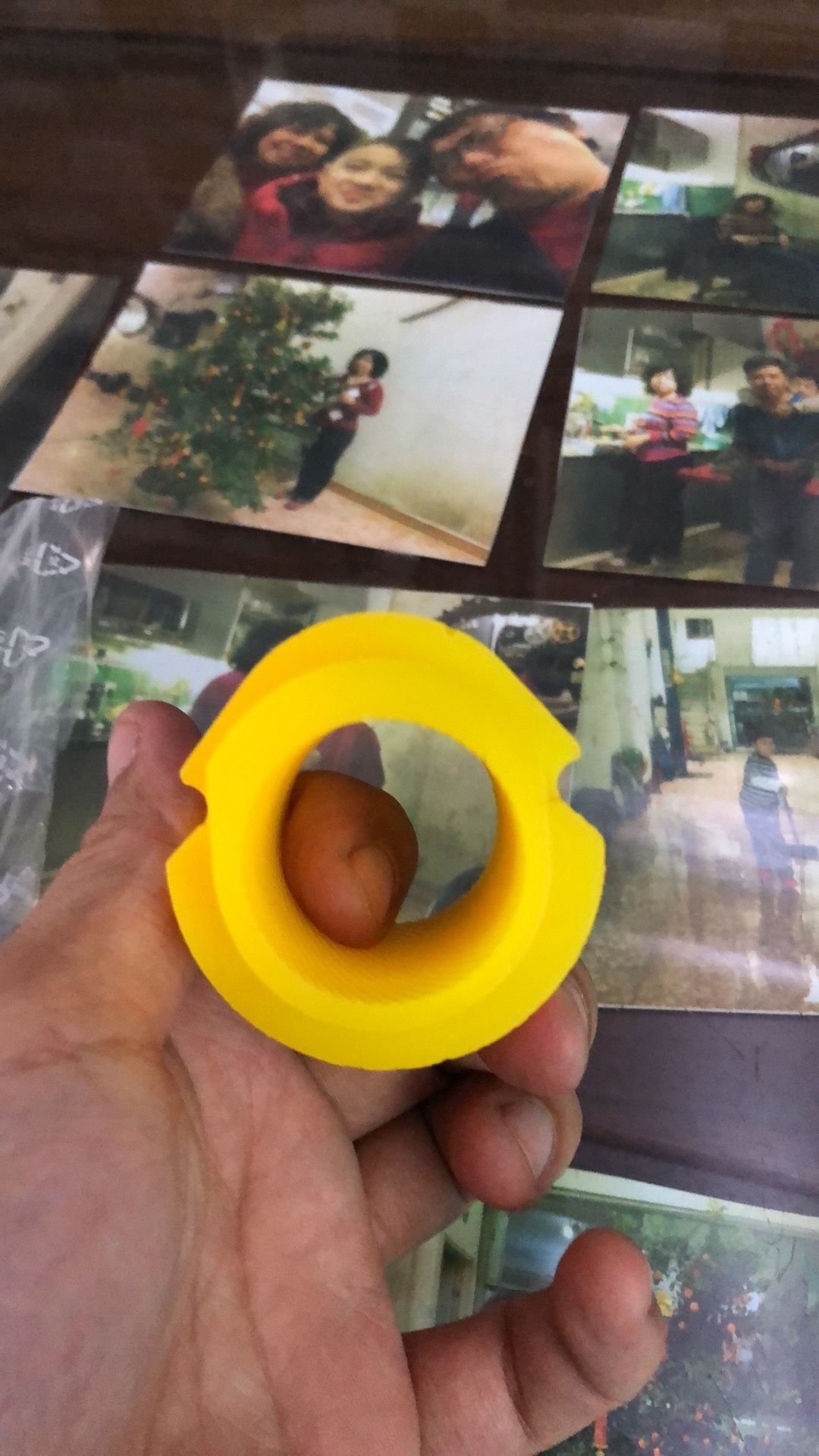

When they are new, this split is not there.

..


Old Oct 25, 2019 | 10:41 AM
  #7
nguyennhatquang's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2014
Posts: 255
From: Vietnam
Rep Power: 23
nguyennhatquang has a spectacular aura aboutnguyennhatquang has a spectacular aura about
Today I remove the sway bar then run it.. the problem still the same...
So I dont think it sway bar link
here is the video thank you



Old Oct 25, 2019 | 11:21 AM
  #8
John Fiammetta's Avatar
Registered User
Joined: Dec 2017
Posts: 414
From: switzerland
Rep Power: 55
John Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond reputeJohn Fiammetta has a reputation beyond repute
Something loose to a foreign body in the HVAC system ......fan knocking or flap twitching.
A bump just sets it off .

Old Oct 25, 2019 | 01:42 PM
  #9
Johnny Hotspur GT's Avatar
Administrator
10 Year Member
Joined: Jul 2014
Posts: 3,946
From: Montgomery NJ
Rep Power: 1002
Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !
Do you have someone locked in the trunk....
I am with others here, that does not sound like any suspension noise, do like Rico stated and check the front and rear belly pans, also check if wheel liners are loose, that is awfully loud, are your windows up in the video ?

Old Oct 25, 2019 | 07:00 PM
  #10
nguyennhatquang's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2014
Posts: 255
From: Vietnam
Rep Power: 23
nguyennhatquang has a spectacular aura aboutnguyennhatquang has a spectacular aura about
@Rico.Adams and Johny
THe sound only come from the front left actually.. I will check the HVAC line and see what happen...
I drive in Reverse over speed bump no noise.. thank you
all the wheel liner is tight
thank you

Old Oct 30, 2019 | 10:42 AM
  #11
nguyennhatquang's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2014
Posts: 255
From: Vietnam
Rep Power: 23
nguyennhatquang has a spectacular aura aboutnguyennhatquang has a spectacular aura about
@John My windows all the way up..
I did put someone in the back no noise at all..
only from Front Left drive size.. I will check the belly but I don't think anything in there...
did u ever meet the problem with steering rack ?
