Hello guys,

I bought some time ago a Bentley that was quite a mess and I fixed it quite interely but I have an issue with the fuel gauge, it just don't work. Vdcs says gauge g169 and g393 are on short or disconnected and I saw that I have only one fuel delivery unit (I think it's a relay) instead of two. And it is missing the connection cable too but I can't find it online

May you guys help me if you have manual to understand how things should be? And wiring schematic?

It's a Bentley W12 2014 continental GT

Thank you very much



Hello,
thank you, I will try to see if it can be useful for me. The main issue is that a cable and the left delivery unit is really missing and I don't know how things should be. I don't know if it's been cut for some reason from the main central harness or if it's a standalone cable. It's really a mess there
All I phisicaly see is a connector male on the left cover over the pump with 4 pins attached to nothing

Forgot to mention, it's a LHD car

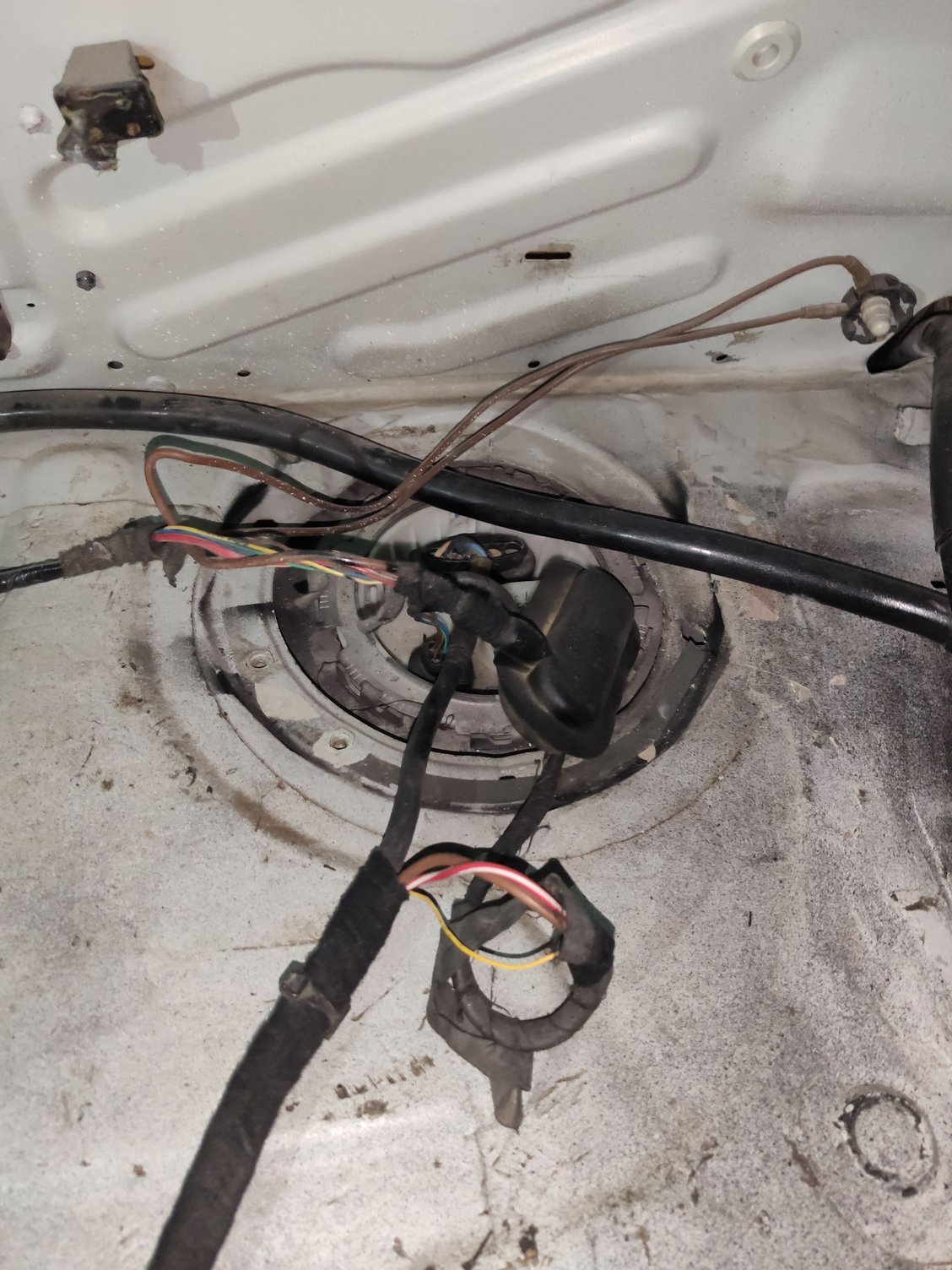

Left one

Right one (ending to a delivery unit)



Thank you very much Dark Green
Yes I'm saying that wiring to the LH level sender is missing, sorry to sound confusing (maybe not so good english too)
The connector missing look like the one you posted, that's good

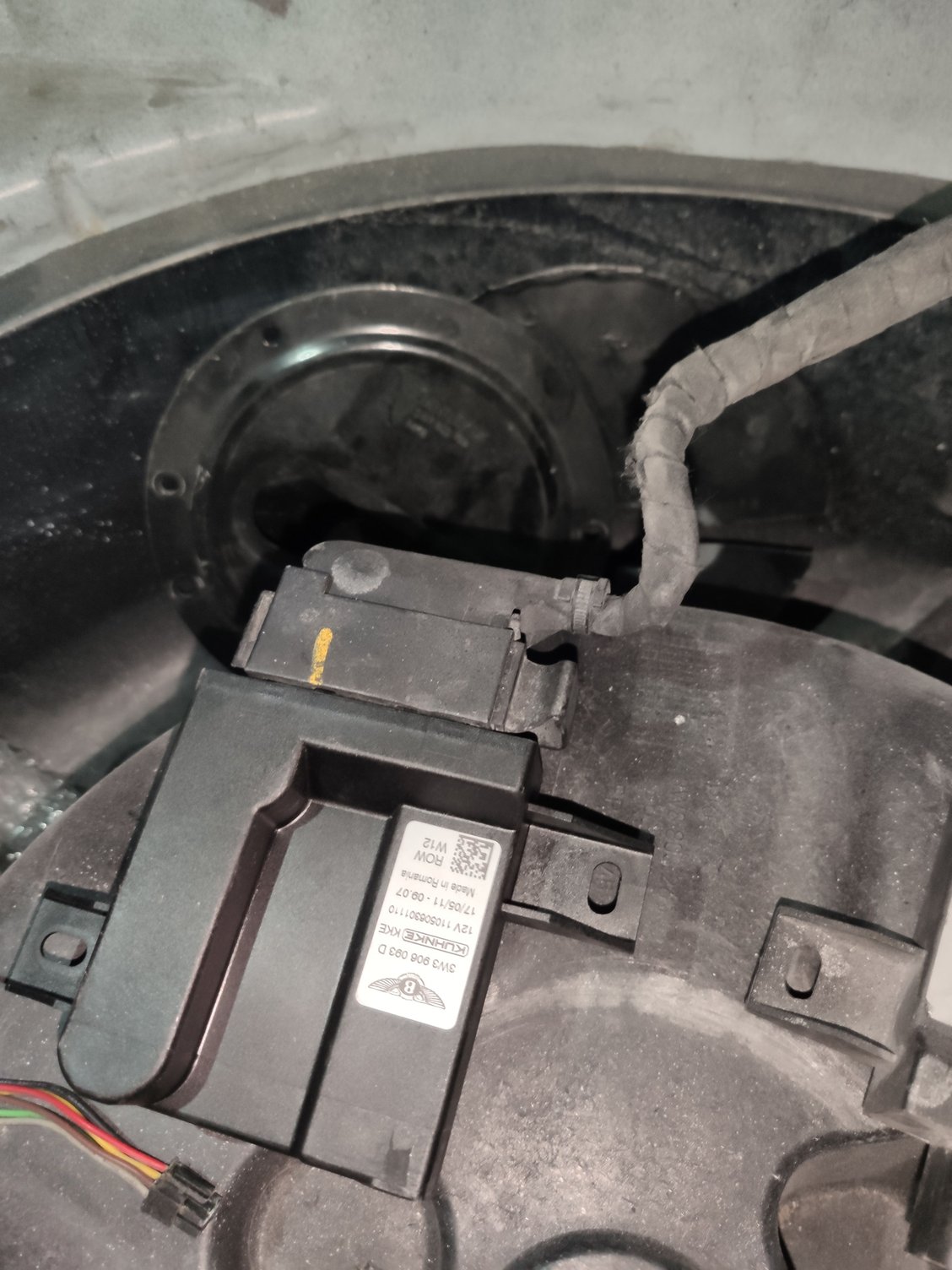

By fuel delivery unit I mean this piece



I saw on websites that sell parts that those have to be two total, but one is missing for sureStill cannot find the correct cable /loom
Wiring loom as been fked up for good, as I don't think the insulation tape is OEM, I will try to unwrap all of it

I can't find the connector to this second "fuel delivery unit" too, for sure it's missing and not sending signal to instrument



Dark Green,
Do you have a copy of IETIS you can share or a good link where I could purchase my own copy? Not had much luck searching on my own.
Thanks
