@Shaqovic ,
I am not sure why sazam was saying to short the compressor to run, if just to test the compressor, then yes, you can add power to the compressor to test it itself, BUT, you should remove the black air supply line from the valve block, as putting power to the compressor doesn't operate the valve block, therefore, the vehicle will never lift by shorting power to the compressor.

Here is a video of the compressor I have available.


You can buy a authentic Ross-Tech VCDS starting at $199 USD, no need to go to the indy a
every time.

https://store.ross-tech.com/shop/cat/VCDS/

I will watch you videos and comment back.

EDIT:
I just watched your videos, the compressor video I can not really here anything, was the engine running when you made that video ?

The white smoke video, question, can you tell if it is steamy / wet when you place the palm of your hand in the flow, does it smell sweet, OR, is it dry and smells oily ?

How are both the oil level and coolant level doing, did anything happen to the vehicle prior to this that you have not told us, what is some history of work on the engine, or issues that had happened ?

Johnny



hey @Johnny Hotspur GT - i suggested to short (power directly) the compressor just to confirm it is not deffective. Unfortunatelly there are no vcds scans so can only suggest direct electric checks like fuse relay or direct powering.

You are absolutely right the powering will not pump the airsuspension because of valveblock not open. My intention was only to get answer if the compressor really works - as @Shaqovic is saying it does not run - and looks like we still do not have firm answer yet.

I am again 95% sure there are faults in the module and until he will not clear them - system wont run.



It was a really interesting topic scratching different surfaces but looks like @Shaqovic dissapeared. If you solved issue pls report how fixed and actually what was the problem.



Sorry for the disappearance all this time, I was away and now got my hands on vcds 😎😎
I haven’t worked on the car since installation of the shock absorber mentioned above, here is the scan result of the vcds

@Johnny Hotspur GT @sazam
-------------------------------------------------------------------------------
Address 01: Engine Labels: 07C-906-018-BEB1.clb
Part No: 07C 906 018 AE
Component: BY-6.0L-TT G ª6485
Revision: 63ÿTT Serial number: 000-00010.09.
Coding: 0000173
Shop #: WSC 00000 000 00000
VCID: 6889B8BD3E60259AA73-5160
VINID: 8D34935460E70454C008600424D5A7B019

1 Fault Found
16929 - Sensor 1 for Exhaust Temp Bank 1 (G235)
P0545 - 002 - Short to Ground
Readiness: 0110 1001

-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: None
Part No SW: 09E 927 760 C HW: GS1 904 1
Component: AG6 09E 6.0L W12TT 1903
Coding: 0000101
Shop #: WSC 00083 000 00000
VCID: 303910DDC630AD5ABF3-5160

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes Labels: 3W0-614-517-V1.lbl
Part No: 3W0 614 517 D
Component: ESP 5.7 4WD H01 0021
Coding: 0007878
Shop #: WSC 52967 000 00000
VCID: 363526C52454836AE5F-5160

2 Faults Found
01314 - Engine Control Module
013 - Check DTC Memory - Intermittent
01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30
000 - -

-------------------------------------------------------------------------------
Address 07: Control Head Labels: 3D0-035-00x-07.lbl
Part No: 3W0 035 007 G
Component: ZAB COCKPIT 0223
Coding: 0400335
Shop #: WSC 00083 000 00000
VCID: 303910DDC630AD5ABF3-5132

7 Faults Found
01303 - Telephone Transceiver (R36)
004 - No Signal/Communication
01334 - Door Control Module; Rear Right (J389)
004 - No Signal/Communication
00668 - Supply Voltage Terminal 30
002 - Lower Limit Exceeded - Intermittent
01305 - Databus for Infotainment
014 - Defective - Intermittent
00385 - Positive Output Audio Channel for Speech/Telephone
012 - Electrical Fault in Circuit - Intermittent
00386 - Negative Output Audio Channel for Speech/Telephone
012 - Electrical Fault in Circuit - Intermittent
00856 - Radio Antenna
007 - Short to Ground - Intermittent

-------------------------------------------------------------------------------
Address 08: Auto HVAC Labels: None
Part No: 3W0 907 040 B
Component: Climatronic BY614 0030
Coding: 0000001
Shop #: WSC 00000 000 00000
VCID: 303910DDC630AD5ABF3-5160

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. Labels: 3D0-937-049-V1.clb
Part No: 3D0 937 049 H
Component: STG.Bordnetz 5101
Coding: 0000107
Shop #: WSC 00083 000 00000
VCID: 2F3B13A1DB0EB2A2A69-5160

2 Faults Found
01334 - Door Control Module; Rear Right (J389)
004 - No Signal/Communication
00907 - Intervention load Management
000 - -

-------------------------------------------------------------------------------
Address 11: Engine II Labels: None
Part No: 07C 906 018 AE
Component: BY-6.0L-TT G ª6485
Revision: 62ÿTT Serial number: 000-00010.09.
Coding: 0000173
Shop #: WSC 00000 000 00000
VCID: 6889B8BD3E60259AA73-5160

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags Labels: 3D0-909-601.lbl
Part No: 3D0 909 601 E
Component: 0P Airbag 8.4E+ H10 0936
Coding: 0012368
Shop #: WSC 00083 000 00000
VCID: 2517F18989F2F8F25C5-5160

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel Labels: 3D0-953-549.lbl
Part No: 3D0 953 549 D
Component: Lenksäulenmodul 3401
Coding: 0000012
Shop #: WSC 00083 000 00000
VCID: 2E050EA5DC04BBAAADF-5160

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments Labels: 3Wx-920-xxx-17.lbl
Part No: 3W0 920 840 T
Component: KOMBIINSTRUMENT RB8 0514
Coding: 0023103
Shop #: WSC 07820 107 60924
VCID: 45D7510969B218F27C5-5160

1 Fault Found
01334 - Door Control Module; Rear Right (J389)
004 - No Signal/Communication

-------------------------------------------------------------------------------
Address 19: CAN Gateway Labels: Redir Fail!
Part No: 6N0 909 901
Component: Gateway K<>CAN 0101
Coding: 0000006
Shop #: WSC 07820 107 60924
VCID: 70B9D0DD06B0ED5AFF3-5132

7 Faults Found
00778 - Steering Angle Sensor (G85)
004 - No Signal/Communication - Intermittent
00908 - Control Module for Wiper Motor
004 - No Signal/Communication - Intermittent
01308 - Control Module for Roof Electronics (J528)
004 - No Signal/Communication - Intermittent
01334 - Door Control Module; Rear Right (J389)
004 - No Signal/Communication
00467 - TV Tuner (R78)
004 - No Signal/Communication - Intermittent
01303 - Telephone Transceiver (R36)
004 - No Signal/Communication
02174 - Analog/Digital clock
004 - No Signal/Communication - Intermittent

-------------------------------------------------------------------------------
Address 34: Level Control Labels: None
Part No: 3W0 907 553
Component: LUFTFDR.-CDC- 3C1V0 7014
Coding: 0015500
Shop #: WSC 00999 444 64523
VCID: 77ABEBC163DEBA623E9-5160

3 Faults Found
01437 - Control Position not Learned
005 - No or Incorrect Basic Setting / Adaptation
01575 - Control Switched Off
000 - -
00778 - Steering Angle Sensor (G85)
004 - No Signal/Communication

-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr Labels: None
Part No: 3W0 959 760 A
Component: CM Seat Driver 0008
Coding: 0000002
Shop #: WSC 07645 001 1048576
VCID: 3FDB43E10B6E4222369-5160

7 Faults Found
00668 - Supply Voltage Terminal 30
002 - Lower Limit Exceeded - Intermittent
02569 - Control Module for Massage (J740)
009 - Open or Short to Ground - Intermittent
00457 - Central Electronics Control Module / BCM (J519)
004 - No Signal/Communication - Intermittent
00477 - Control Module; Display & Input; Comfort CAN; Front (J523)
004 - No Signal/Communication - Intermittent
00997 - Motor for Driver's Seat Position; Fore/Aft (V48)
005 - No or Incorrect Basic Setting / Adaptation
01174 - Driver Seat Height Adjustment Motor (V138)
005 - No or Incorrect Basic Setting / Adaptation
00998 - Motor for Driver's Seat Recline (V45)
005 - No or Incorrect Basic Setting / Adaptation

-------------------------------------------------------------------------------
Address 37: Navigation Labels: None
Part No: 3W0 919 887 B
Component: NAVIGATION 0168
Coding: 0400000
Shop #: WSC 00083 000 00000
VCID: 46D5560554B413EA75F-5160

2 Faults Found
00668 - Supply Voltage Terminal 30
002 - Lower Limit Exceeded - Intermittent
01305 - Databus for Infotainment
014 - Defective - Intermittent

-------------------------------------------------------------------------------
Address 38: Roof Electronics Labels: None
Part No: 3W0 907 135 C
Component: Dachmodul 0703
Coding: 0000157
Shop #: WSC 00083 000 00000
VCID: 363526C52454836AE5F-5160

1 Fault Found
00926 - Terminal 30
002 - Lower Limit Exceeded - Intermittent

-------------------------------------------------------------------------------
Address 46: Central Conv. Labels: None
Part No: 3D0 959 933 F
Component: 1Y HSG 0101
Coding: 0000032
Shop #: WSC 00082 106 125727
VCID: 33331FD137269642C21-4B1E

Subsystem 1 - Part No: 3W1 959 701
Component: Tuersteuergeraet FS 0702

Subsystem 2 - Part No: 3W1 959 702
Component: Tuersteuergeraet BF 0702

Subsystem 3 - Part No: 3W8 959 703 A
Component: Tuersteuergeraet HL 1002

Subsystem 4 - Component: TSG HR No Answer

Subsystem 5 - Part No: 7L0 907 719
Component: Neigungssensor 0020

12 Faults Found
01334 - Door Control Module; Rear Right (J389)
004 - No Signal/Communication
00457 - Central Electronics Control Module / BCM (J519)
004 - No Signal/Communication - Intermittent
01341 - Control Module in Instrument Panel On Comfort CAN (J285)
004 - No Signal/Communication - Intermittent
00477 - Control Module; Display & Input; Comfort CAN; Front (J523)
004 - No Signal/Communication - Intermittent
01308 - Control Module for Roof Electronics (J528)
004 - No Signal/Communication - Intermittent
00576 - Terminal 15
008 - Implausible Signal - Intermittent
01503 - Bulb for 3rd Brake Light (M25)
009 - Open or Short to Ground
00316 - Bulbs for Rear Illumination
009 - Open or Short to Ground
00457 - Central Electronics Control Module / BCM (J519)
008 - Implausible Signal - Intermittent
00932 - Electric Window Motor; Drivers Side (V147)
012 - Electrical Fault in Circuit - Intermittent
00929 - Locking Module for Central Locking; Front Passenger Side (F221)
008 - Implausible Signal - Intermittent
00934 - Electric Window Motor; Rear Left (V26)
005 - No or Incorrect Basic Setting / Adaptation - Intermittent

-------------------------------------------------------------------------------
Address 47: Sound System Labels: 7Lx-035-4xx-47.lbl
Part No: 3W0 035 456 C
Component: 12K-AUDIOVERST 4121
Shop #: WSC 00000 000 00000
VCID: 34311CCD3228917ADBB-5160

No fault code found.

-------------------------------------------------------------------------------
Address 53: Parking Brake Labels: 3W0-907-801.clb
Part No SW: 3W0 907 801 A HW: 4E0 907 801
Component: EPB BC6HX21 HC6 X210
Coding: 0022413
Shop #: WSC 00083 000 00000
VCID: 34311CCD3228917ADBB-5160

No fault code found.

-------------------------------------------------------------------------------
Address 54: Rear Spoiler Labels: 1C0-959-733.lbl
Part No: 1C0 959 733 H
Component: Heckspoiler 0002
VCID: 303910DDC330AD5ABF3-51A6

No fault code found.

-------------------------------------------------------------------------------
Address 57: TV Tuner Labels: 3D0-919-146.lbl
Part No: 3D0 919 146
Component: TV Tuner H07 1205
Coding: 0000010
Shop #: WSC 00083 000 00000
VCID: 6597B189C97238F29C5-5160

1 Fault Found
01305 - Databus for Infotainment
014 - Defective - Intermittent

-------------------------------------------------------------------------------
Address 65: Tire Pressure Labels: None
Part No: 3D0 907 273 G
Component: Reifendruckueberw. 0026
Coding: 0210330
Shop #: WSC 00000 000 00000
VCID: 2A0D02B5E0ECD78A717-5160

No fault code found.

-------------------------------------------------------------------------------
Address 76: Park Assist Labels: 3W0-919-283-V1.clb
Part No: 3W0 919 283
Component: 02 Einparkhilfe 0203
Shop #: WSC 00000 000 00000
VCID: 7AADF2F550CCA70A417-5132

No fault code found.

End----(Elapsed Time: 08:32, VBatt start/end: 12.1V/11.8V. VIgn 0.1V)------

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 01: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 02: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 03: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 07: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 08: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 09: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 11: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 15: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 16: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 17: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 19: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 34: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 36: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 37: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 38: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 46: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 47: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 53: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 54: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 57: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 65: DTCs cleared
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 76: DTCs cleared



tell us if you were able to raise the car after errors clearance - you should - unless there are still issues/errors visible in vcds or are other issues not visible in vcds

pls put there 2nd scan after errors clearance

tell us what problems left after clearance

i see that at least some of the errors are because of battery depletion - you need to charge your battery



@Shaqovic ,
As Sazam stated, the second scan after faults cleared, BUT, not cleared by auto scan/auto clear, you have to actually go into each address and clear each one by one, so go into 34 and read faults, then clear them, do not use the clear all faults.

As number 34 showed in the scan, the system is off.

Johnny



Model year of your car? I didn't read through all the responses.

Suggest you add that info to your forum signature so it is always shown for troubleshooting advice.

See example below:



hi all,

I have managed to raise the car using vcds, took me a while but succeeded at the end.

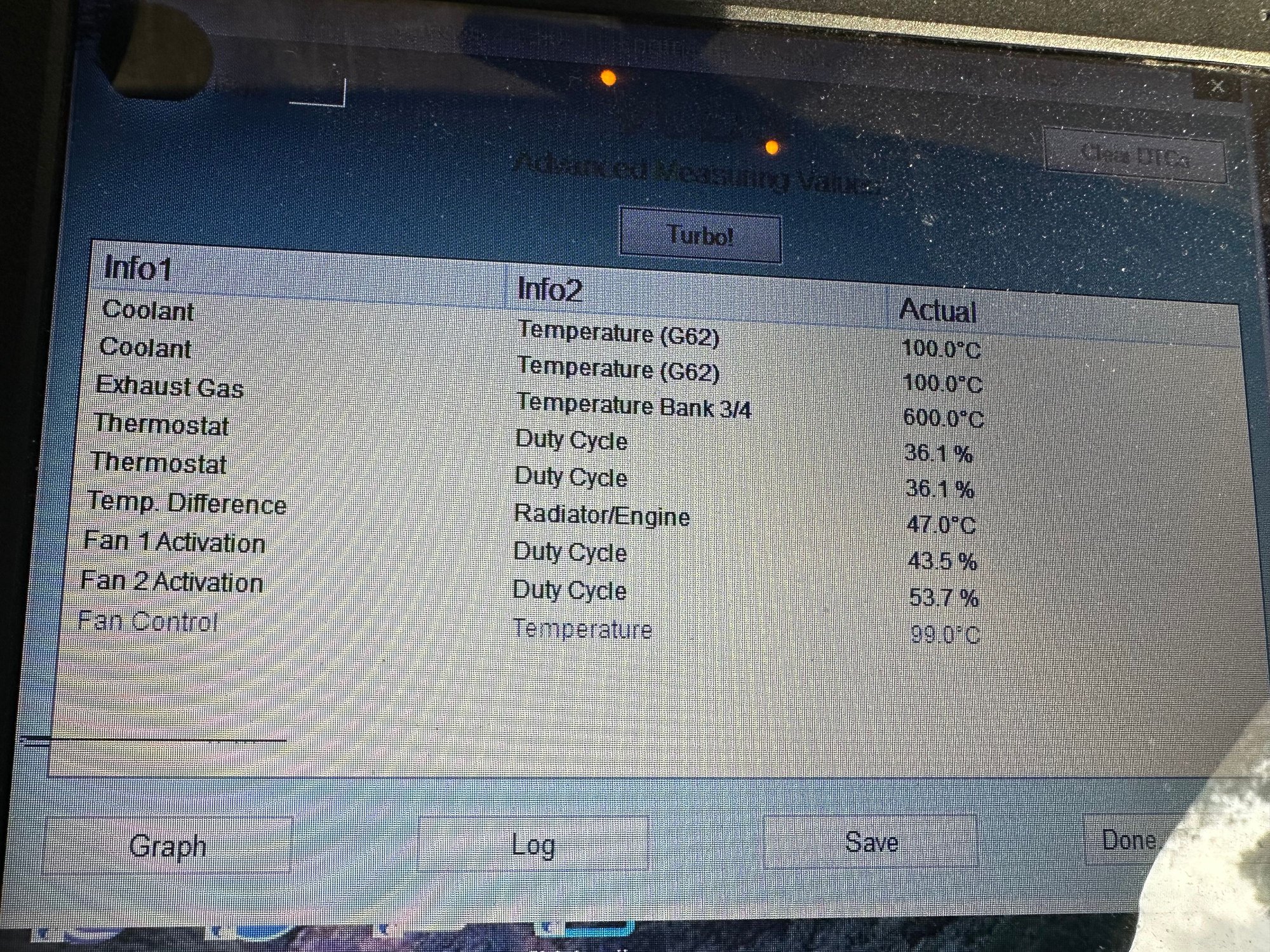

Regarding the smoke, a friend of mine works as a mechanic but not with big engines checked the smoke and confirmed it’s oil burning, and suggested to look for vvt solenoids or pcv as he said this could be the problem.

I remember when I started the car first there was no smoke at all, switched off then turned the car on again and I heard a blow sound inside the encounter like a balloon exploded and immediately smoke started to come out.

could his diagnosis be accurate, if so would you mind guys to instruct me how to check them/replace needed parts.

thanks a millions for all the help provided



oookkkk - so you raised the car using vcds.

pls tell what you did?

cleared errors as we suggested and only this was done and it helped?

no errors come back? no leaks no leveling sensors issue?

you did the output tests successfully?

you forced via vcds to raise different corners?

now the suspension is fully operational? (works with buttons? car is fully leveled? no errors on the dash?



@sazam @Johnny Hotspur GT @BWings


sorry for the delay, I was going through many things recently
I just checked the car again, first try to start the car it shows immobile activated, car starts and cuts in 2 seconds, tried second key and it worked successfully
I checked all spark connectors and no evidence of oil in the connectors( did not remove spark plugs)
double checked all wires, all good so far
the smoke is still coming from exhaust of driver side only, scanned via vcds- image attached-
exhaust temp sen 1 p0545
Could this be causing the grey smoke from driver side ??
if yes, is there any cross reference part to replace it cuz on flyingspares it’s quite expensive.
and would need help to resolve immobile activate thing 😅 I would assume I need to visit a dealer 😒😒

I haven’t drive the car to test the level height, car parked in my garage and no I can’t change level so far, vcds helped me to level the car and output test managed to test pump and 4 suspensions, no leaks detected via soupy water test after rebuilt.



Any suggestions guys 🤔



i understand nothing changed on your side since 7/14



@Shaqovic ,
any updates on your story?



sorry for the delay

after I forced the car to go up and down via vcds, and then drove it a while, now it changed the level 100%, upon scanning via vcds it shows level is not learned, so I guess I must do adaptation with vcds, which I need the security access for this ( any help appreciated)

one strange things is happening while the car is running which is overheating, coolant cap was replaced oem and attached pic showing parameters for coolant, yet the car is overheating even when thermostats os functioning as in the pic attach.
hopefully is not the head gasket needs to be replaced
any suggestions for this matter @Johnny Hotspur GT
