How to remove GT3 front spoiler lip?

Thread Tools

Rate Thread

Old Jun 27, 2008 | 10:04 PM
  #16
GT3 Chuck's Avatar
Administrator
20 Year Member
Joined: Mar 2005
Posts: 15,092
From: California
Rep Power: 1002
GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !
the easiest way I know of is to drive it up my driveway without using a very sharp angle...although, it takes some skill to get it off in one piece....some of robert's tequila will help with that...

Old Jun 27, 2008 | 10:26 PM
  #17
blakt out's Avatar
Registered User
Joined: May 2006
Posts: 1,781
From: Redding, CA
Rep Power: 125
blakt out has a reputation beyond reputeblakt out has a reputation beyond reputeblakt out has a reputation beyond reputeblakt out has a reputation beyond reputeblakt out has a reputation beyond reputeblakt out has a reputation beyond reputeblakt out has a reputation beyond reputeblakt out has a reputation beyond reputeblakt out has a reputation beyond reputeblakt out has a reputation beyond reputeblakt out has a reputation beyond repute
Every time I do that, it comes of in three pieces. Really.

Old Jan 17, 2010 | 02:15 PM
  #18
ed03feng's Avatar
Registered User
Joined: Sep 2007
Posts: 58
From: Bay Area, CA
Rep Power: 21
ed03feng is infamous around these parts
Hey guys, I need some help and advice. I had removed the 2 screws/fasteners under beneath the painted front lip; however, the lip still stayed intact firmly . I was not able to move it a bit. Any other approach or trick to remove the OEM painted lip so I can replace it with a cup lip?

Old Jan 17, 2010 | 02:24 PM
  #19
GT3 Chuck's Avatar
Administrator
20 Year Member
Joined: Mar 2005
Posts: 15,092
From: California
Rep Power: 1002
GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !
there is more to it...from another member...


its very easy, i already replaced mine once. there are just two screws one on each end, and then the top edge of the spoiler clips into the bumper. I used a thin plastic squeegee and placed it between the lip and the bumper and that causes it to separate. Then you just pull down and towards you gently. Installation is the reverse.

Old Jan 17, 2010 | 02:56 PM
  #20
Targa Tim's Avatar
Registered User
Joined: Nov 2005
Posts: 1,550
From: Vancouver, BC, Canada
Rep Power: 116
Targa Tim has a reputation beyond reputeTarga Tim has a reputation beyond reputeTarga Tim has a reputation beyond reputeTarga Tim has a reputation beyond reputeTarga Tim has a reputation beyond reputeTarga Tim has a reputation beyond reputeTarga Tim has a reputation beyond reputeTarga Tim has a reputation beyond reputeTarga Tim has a reputation beyond reputeTarga Tim has a reputation beyond reputeTarga Tim has a reputation beyond repute
^so you don't need to jack up the car to do it, right? Thanks.

Old Jan 17, 2010 | 03:19 PM
  #21
ed03feng's Avatar
Registered User
Joined: Sep 2007
Posts: 58
From: Bay Area, CA
Rep Power: 21
ed03feng is infamous around these parts
Thanks Chuck for the idea. I didn't find virtually any space in between the lip and the bumper. I couldn't insert anything, not even a thin plastic film using your method. Any thoughts?


Last edited by ed03feng; Jan 17, 2010 at 03:25 PM. Reason: typo
Old Jan 17, 2010 | 03:29 PM
  #22
GT3 Chuck's Avatar
Administrator
20 Year Member
Joined: Mar 2005
Posts: 15,092
From: California
Rep Power: 1002
GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !GT3 Chuck Is a GOD !
should work for a 997...you might give an out and down tug of the lip while trying to get a thin item in the gap...

Old Jan 17, 2010 | 04:31 PM
  #23
YoopsRacing's Avatar
Registered User
Joined: Nov 2006
Posts: 839
From: Crazy Town USA
Rep Power: 53
YoopsRacing is infamous around these parts
Originally Posted by ed03feng
Hey guys, I need some help and advice. I had removed the 2 screws/fasteners under beneath the painted front lip; however, the lip still stayed intact firmly . I was not able to move it a bit. Any other approach or trick to remove the OEM painted lip so I can replace it with a cup lip?

I will be doing my "cup lip" replacement this coming week also. Because it is painted there is little to no gap between the bumper and lip. Mine is also painted. We may need to jack the car up to get under the front lip and use a flathead screw driver to help force the clips out from the underside w/o prying the front.

here is a link that may be helpful ed03feng
https://www.6speedonline.com/forums/...itter-mod.html

Note: you will see the cup lip has a hole on each end on the side. (not on the bottom like the oem lip) You will have to drill a hole in each wheel well to mount the sides. I like to idea of using a reuseable plastic rivot - you can always use the plastic screw to cover the hole if you go back to oem.


Last edited by YoopsRacing; Jan 17, 2010 at 04:33 PM.
Old Jan 17, 2010 | 04:32 PM
  #24
Andrew D.'s Avatar
Registered User
Joined: Dec 2003
Posts: 106
From: Los Angeles. CA USA
Rep Power: 27
Andrew D. is infamous around these parts
I replaced several spoiler lips and didn't use anything to wedge between the bumper and the lip. Just pull it straight towards you. Remove the sides first. Face a wheel, grab and pull the lip towards you. Repeat on the opposite side. Then, facing the front of the car, grab the spoiler lip and pull straight towards you. It couldn't be simpler.

Old Jan 17, 2010 | 04:33 PM
  #25
Jgalt's Avatar
Registered User
Joined: Jul 2007
Posts: 154
From: New Orleans, La.
Rep Power: 26
Jgalt is infamous around these partsJgalt is infamous around these parts
Bluehinder

For some reason I thought the clips are two part fasteners. The outer part slides through the spoiler slot and into a corresponding slot on the body. You may have to hold it and the spoiler in place. The inner part looks like a large plastic tack that when you push it in to the hole in the outer part, It expands once inside to hold everything in place. If you have to remove it, just get a small screwdriver and pry it out and reverse the process.

Old Jan 18, 2010 | 10:17 AM
  #26
///MJFDDS's Avatar
Registered User
Joined: Oct 2007
Posts: 1,447
From: Southern California
Rep Power: 111
///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute///MJFDDS has a reputation beyond repute
Originally Posted by ed03feng
Hey guys, I need some help and advice. I had removed the 2 screws/fasteners under beneath the painted front lip; however, the lip still stayed intact firmly . I was not able to move it a bit. Any other approach or trick to remove the OEM painted lip so I can replace it with a cup lip?

I have replaced mine numerous times. After removing the plastic screws on either end, you need to pull firmly starting on either end as described above. There will be some resistance, but you will not break anything. If you start from the center you will notice that the lip slides out fairly easily from there (versus either side closest to the wheels).

Old Jan 20, 2010 | 12:47 AM
  #27
ed03feng's Avatar
Registered User
Joined: Sep 2007
Posts: 58
From: Bay Area, CA
Rep Power: 21
ed03feng is infamous around these parts

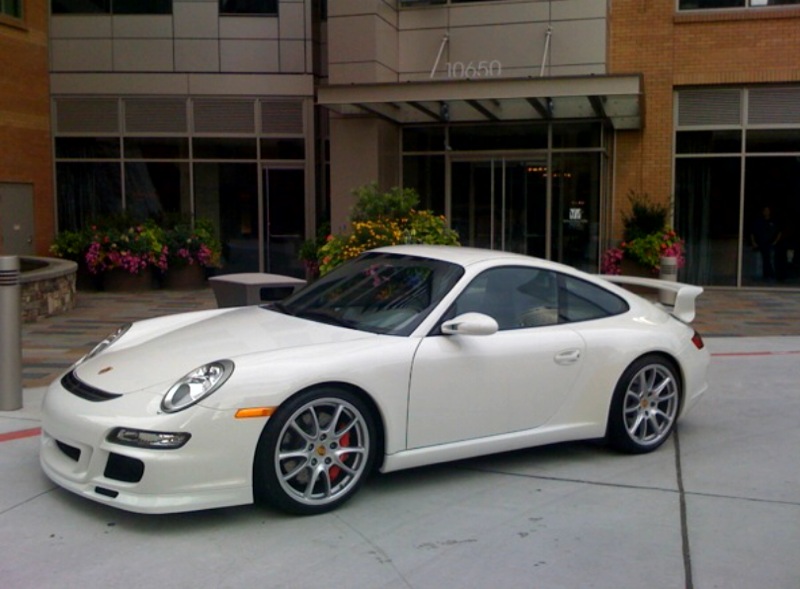

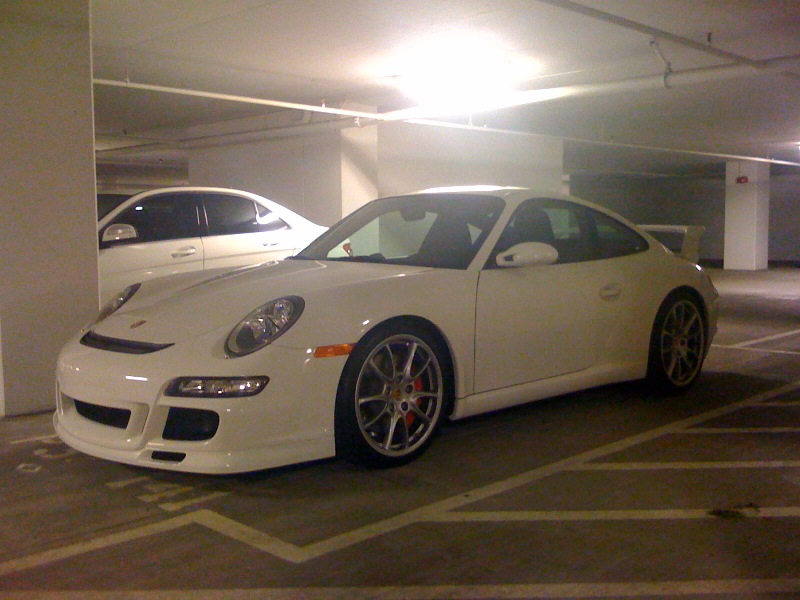

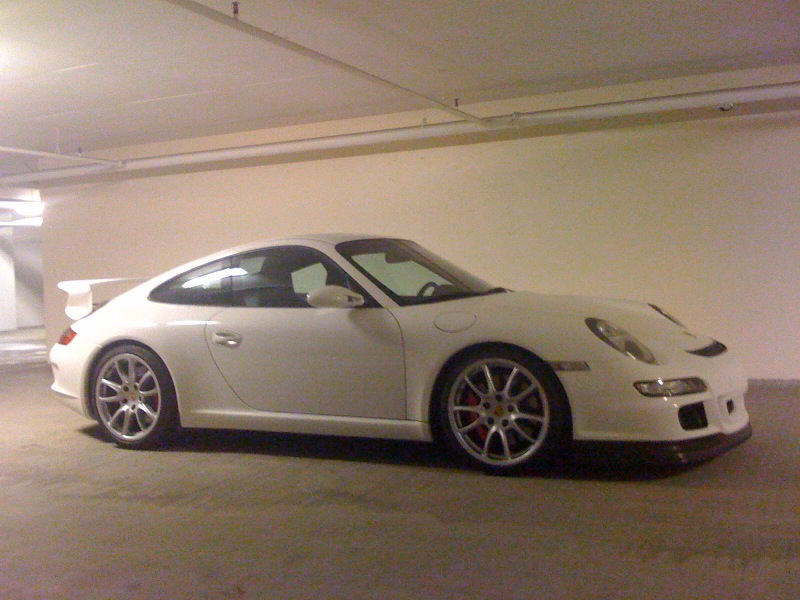

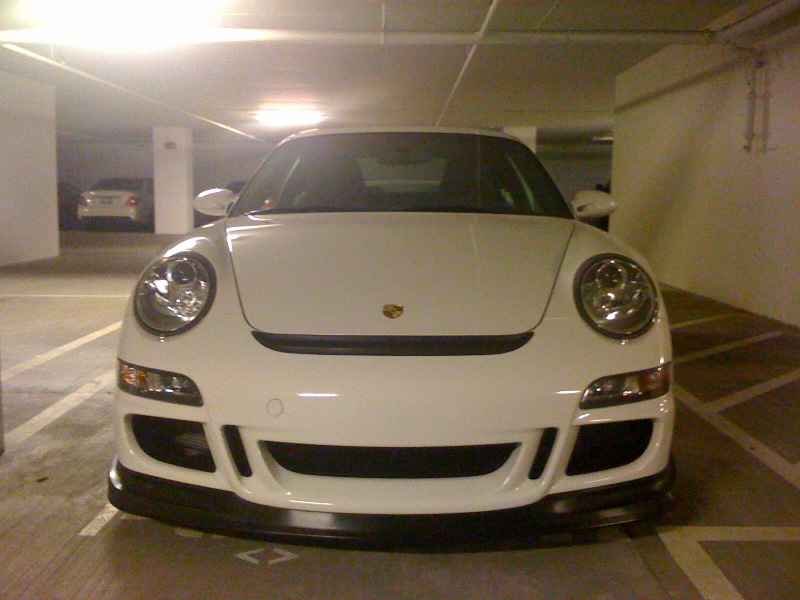

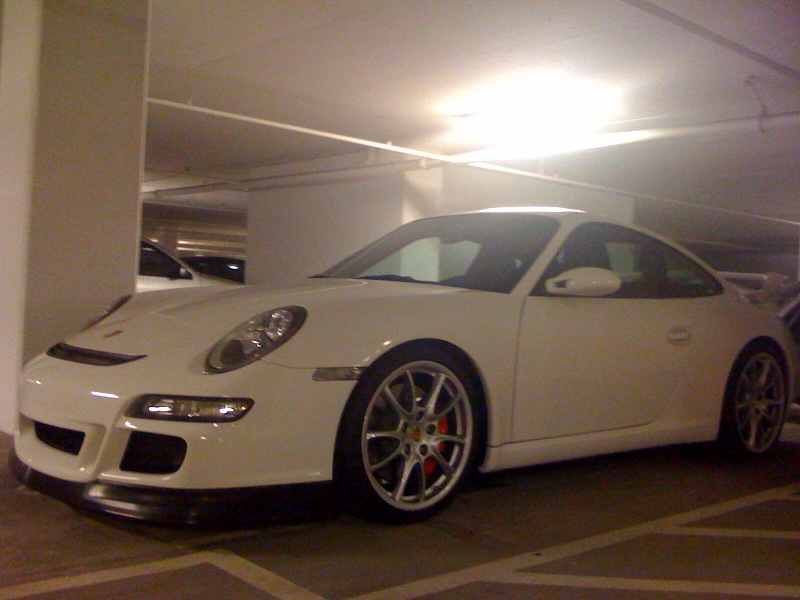

Thank you for all your helps. Shame on me. I was not able to get the spoiler off after many attempts so I turned to one of the local body shops since they were going to get my original spoiler repainted anyway. Here are the before and after photos for you all to enjoy. Sorry for the low iphone photo quality.

Attached Images

Last edited by ed03feng; Jan 20, 2010 at 12:49 AM. Reason: typo
