Hello friends!
Today well done turbo upgrade.
We keep the Borg Warner CHRA 6258 EFR and modified.
Inducer ~50mm, exducer ~65mm.
Don't remember A/R correctly, but it's 0,64 +/-

Stay tuned!



Full size)

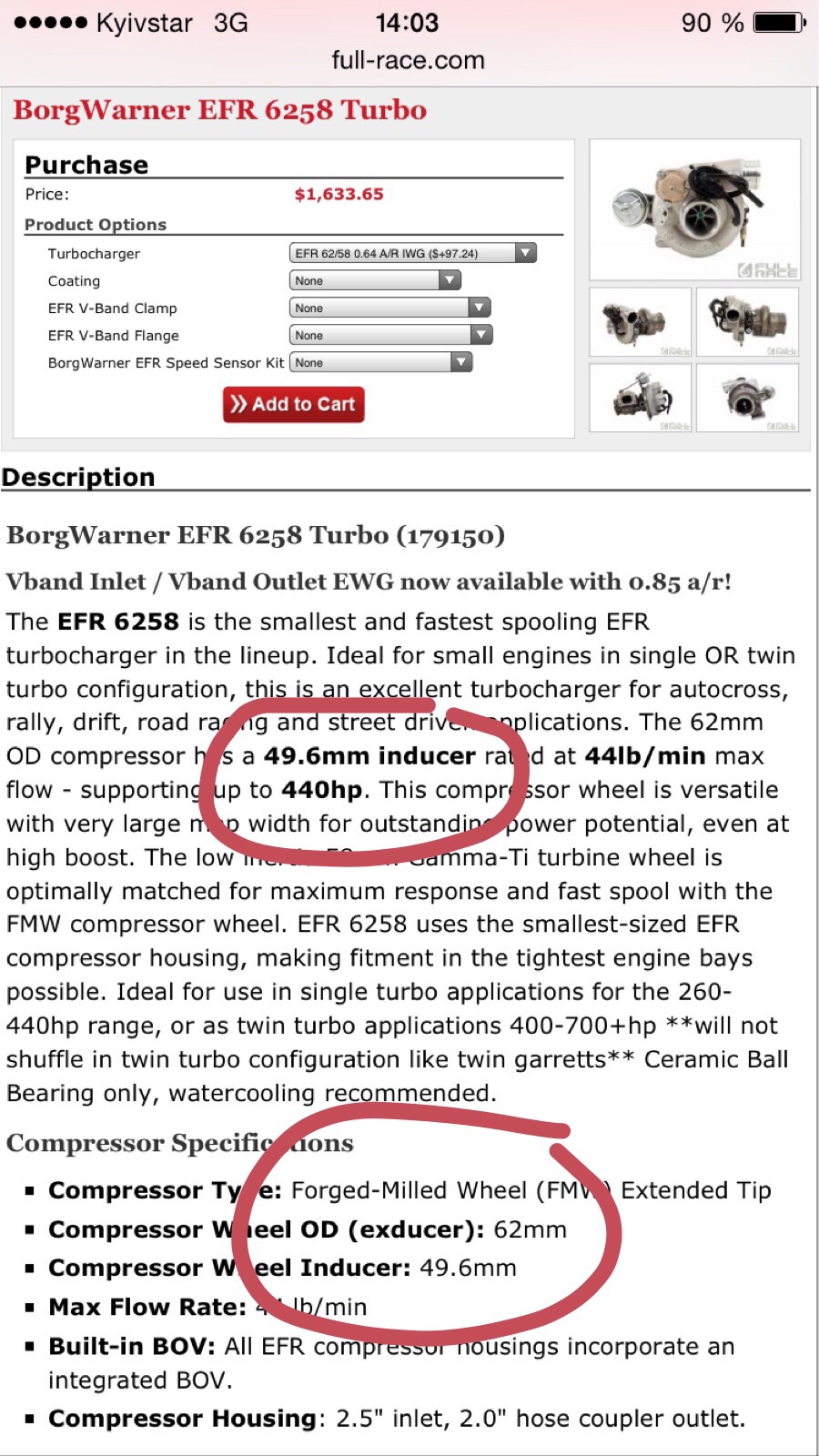

If I understand that turbo supporting up to 440hp!
Unbelievable panamera near 800hp

Soon update thread when we are update ECU soft.
Of course with RaceLogic results



Subscribed



We bought the cartridges from Borg Warner and integrate them into the stock turbine, previously wasted on CNC machine compressor housing.
Balanced to 220000 rpm.
Completely sorted out all the details and all the new, actuators are slightly different , otherwise the turbine masterpiece, is no worse than FVD



if you can make a photo album with engine removal instruction , that would be great



I'll try to take a photo if I present when removing the motor

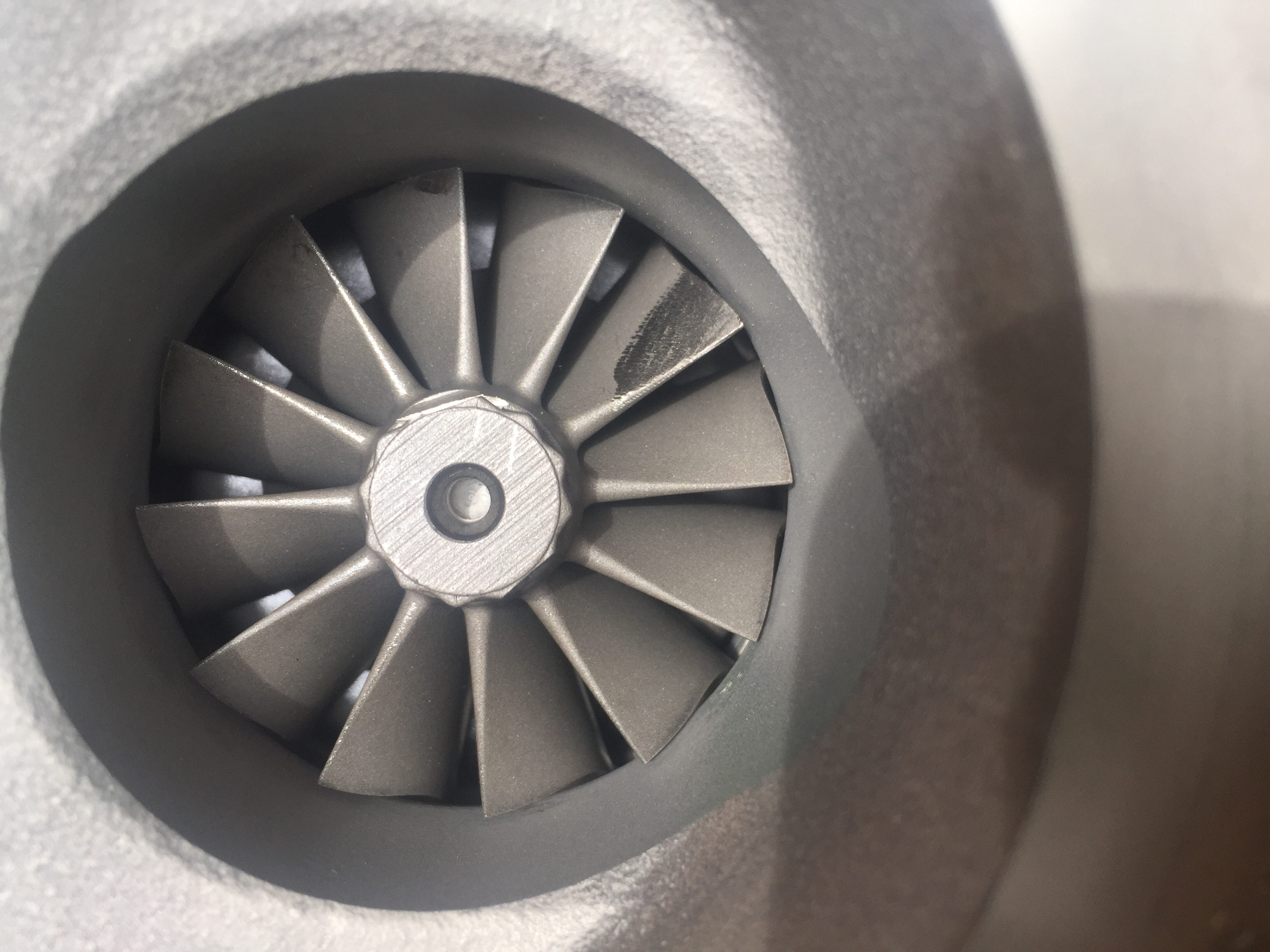

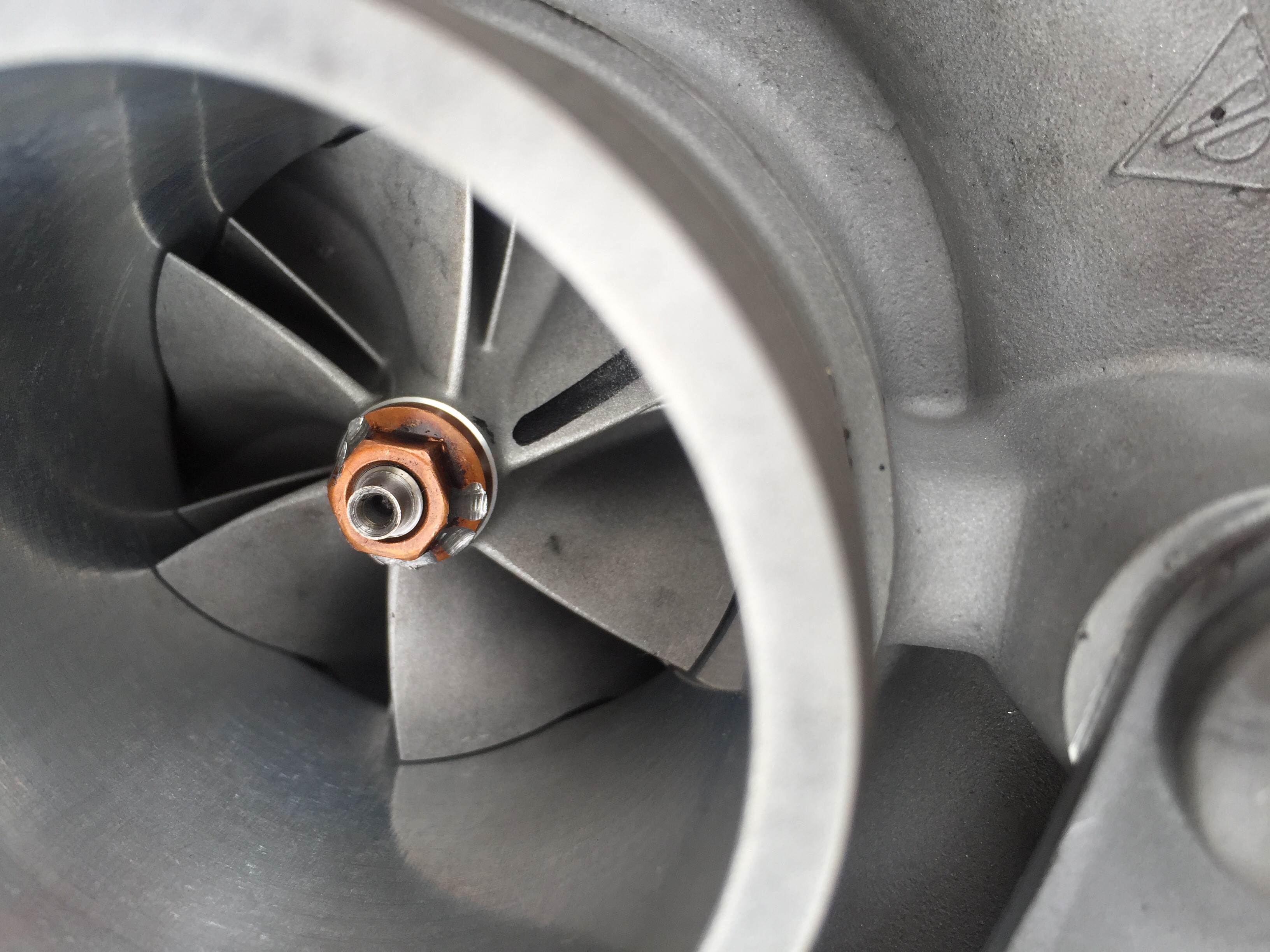

Turbine compressor✌️



Lets see how much hp this bad boys will produce on low boost



1,2bar( 17,5psi)- 730hp
1,3bar( 18,9psi)- 760hp
1,4bar( 20,4psi)- 800hp

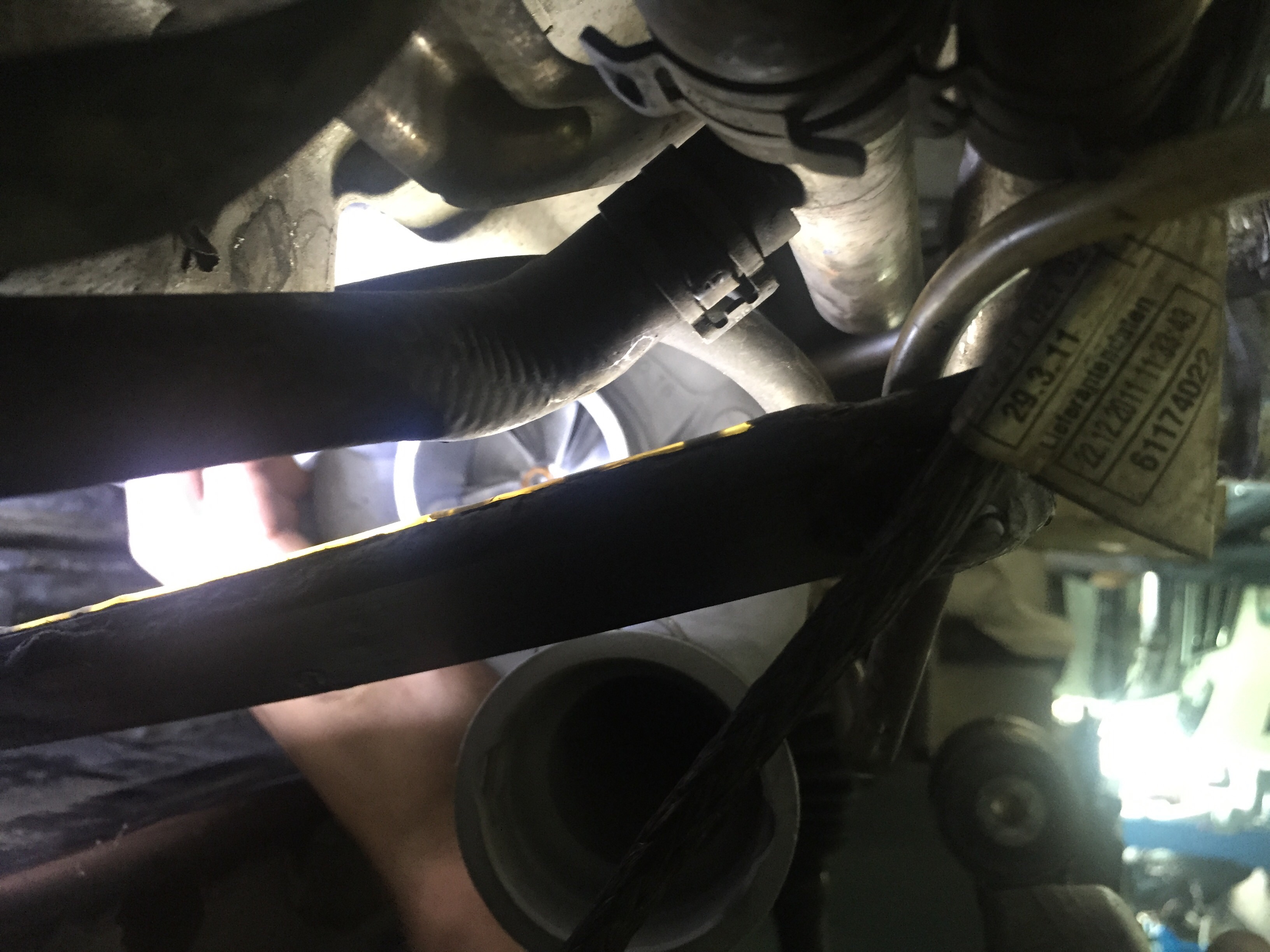

Turbos are in

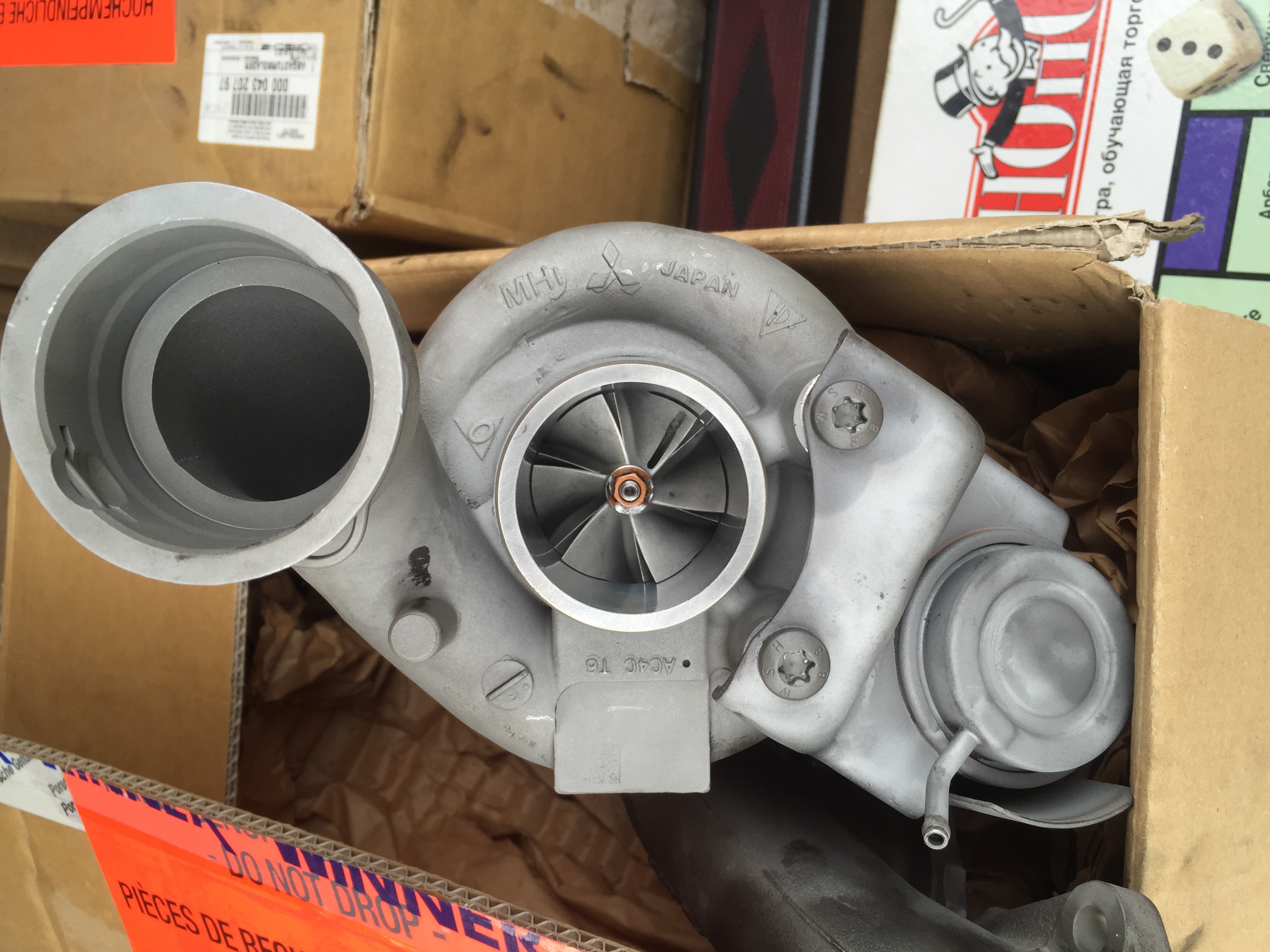

Looks like new

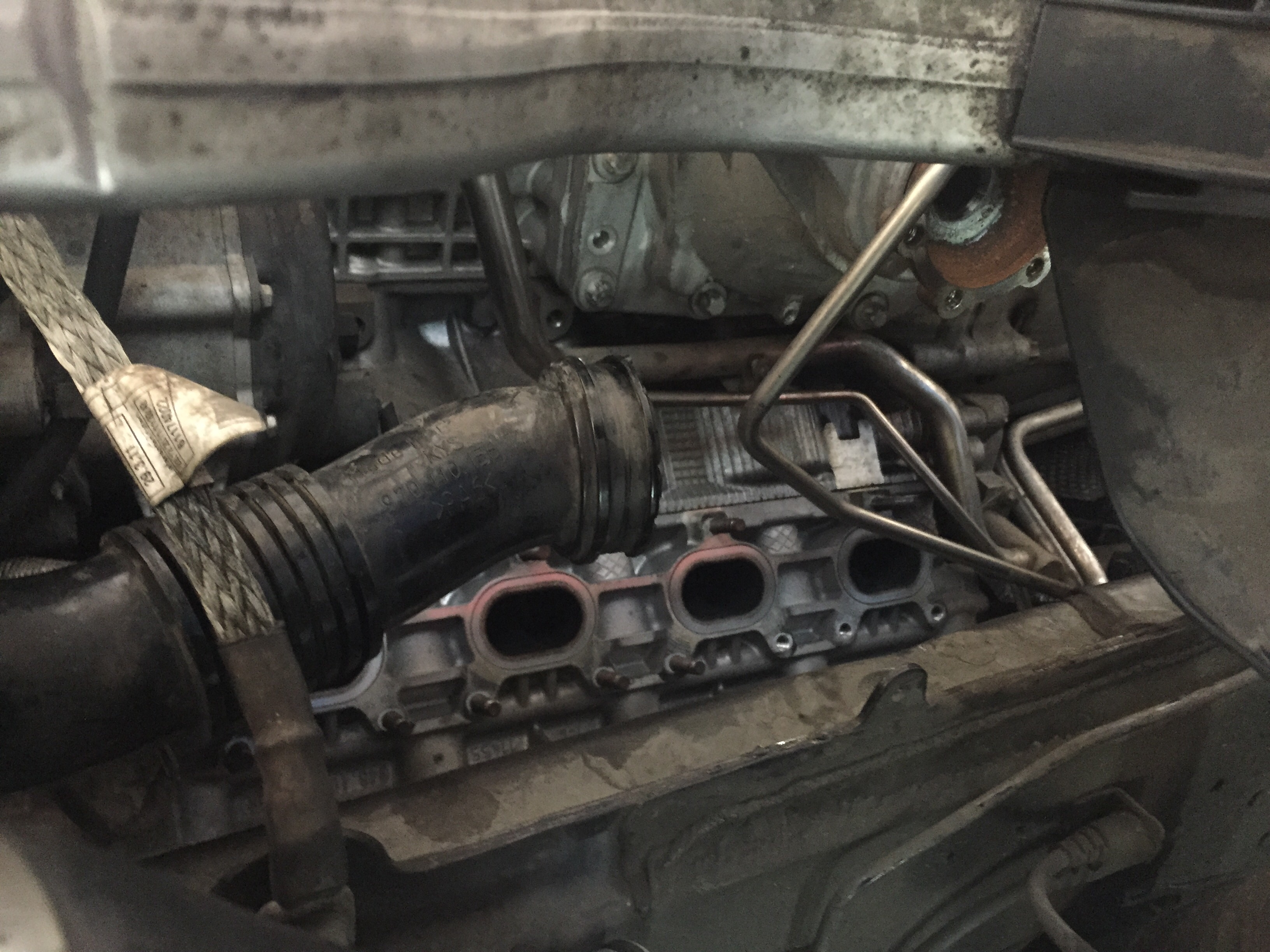

In progress...

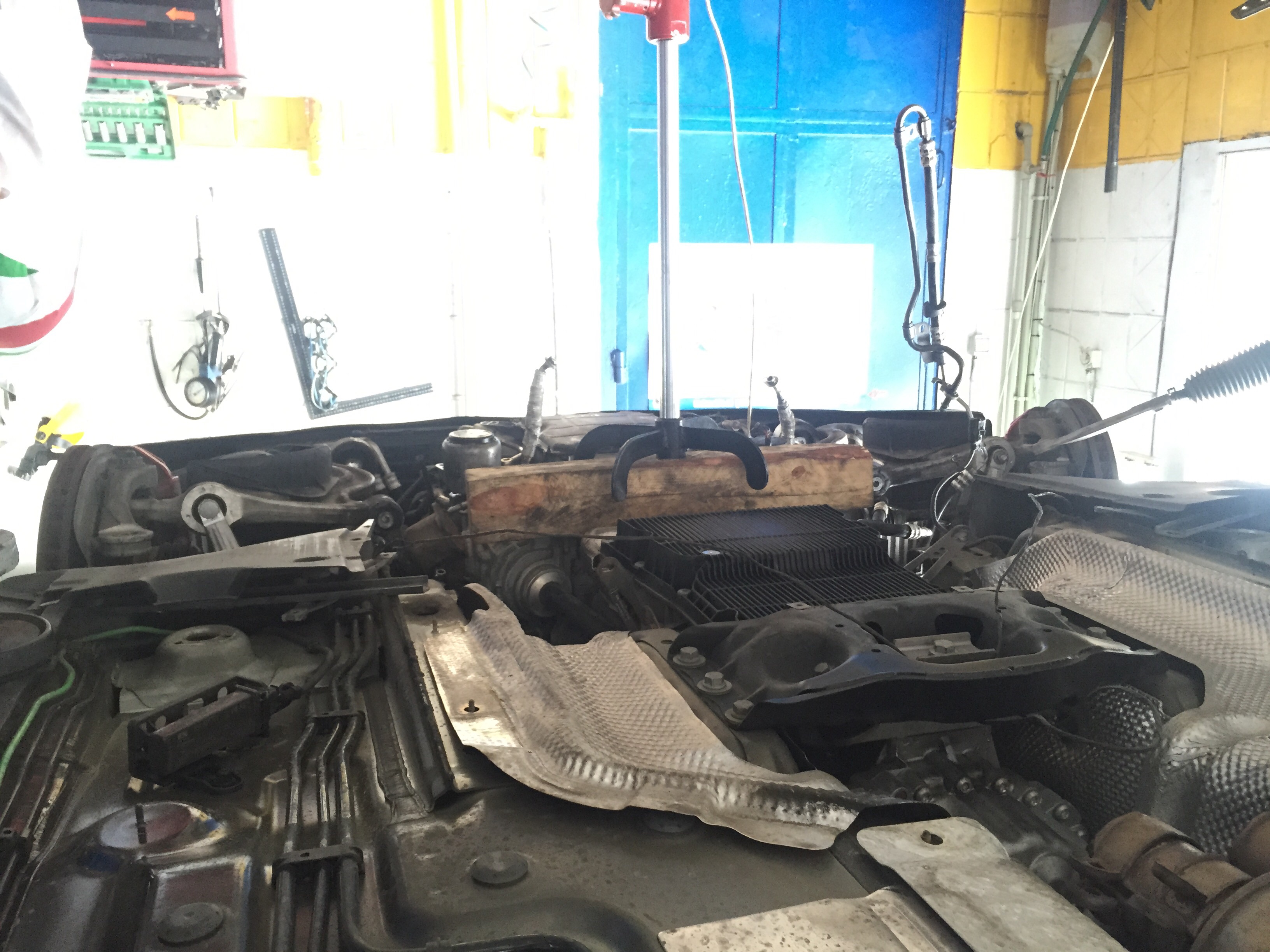

we decided not to remove the engine , it is easier

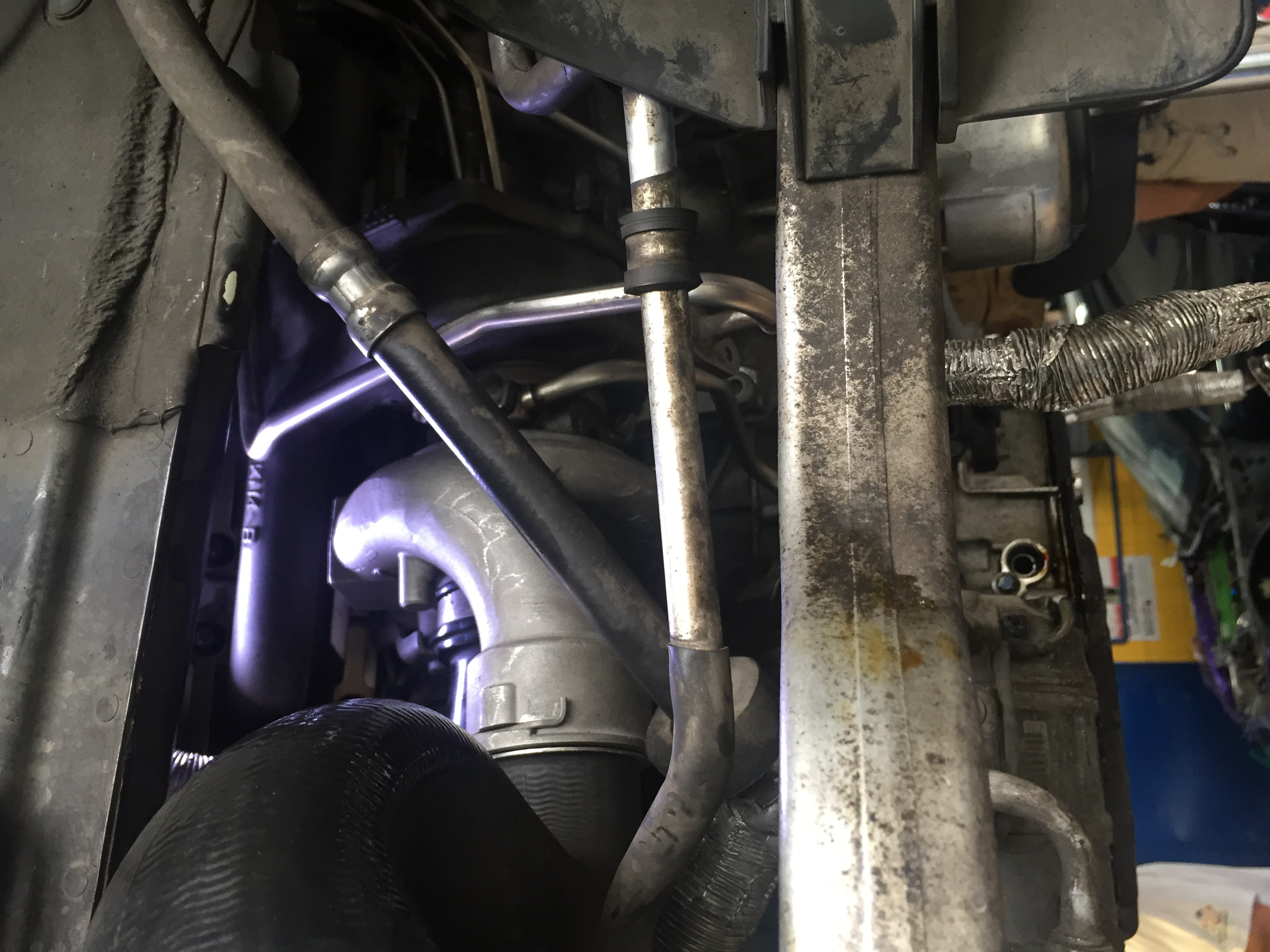

And I don't understand why the photo is upside down;(((
