Removing the Door Panel - Help!

Thread Tools

Rate Thread

Old Apr 30, 2010 | 09:37 AM
Share
  #1
Slider's Avatar
Thread Starter
|
Registered User
15 Year Member
Joined: Apr 2010
Posts: 2,164
From: Victoria, BC
Rep Power: 217
Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !
Removing the Door Panel - Help!
I'm trying to squash a rattle in the door panel and I have to remove the airbag cover to get at the last screw holding the panel on. The service manual says to remove the cover by prying with a screwdriver. I started doing that but it felt like things were tearing so I stopped after a couple of inches. Has anyone done this? I don't want to trash the thing, but I really need to stop the rattle. Thanks.

Reply
Old Apr 30, 2010 | 09:53 AM
Share
  #2
jpflip's Avatar
Registered User
15 Year Member
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
The best way is to remove the complete door panel not only the small door for the airbag!!!! Look at this link, it is a boxter but it help a lot....http://www.bombaydigital.com/boxster/projects/window/

Reply
Old Apr 30, 2010 | 09:55 AM
Share
  #3
jpflip's Avatar
Registered User
15 Year Member
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
The only screw in this area is under the airbag logo that you have to pry out gently with a plastic spatula....

Reply
Old Apr 30, 2010 | 10:21 AM
Share
  #4
Slider's Avatar
Thread Starter
|
Registered User
15 Year Member
Joined: Apr 2010
Posts: 2,164
From: Victoria, BC
Rep Power: 217
Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !
Wow - That's perfect. I don't have to remove the whole cover at all. Thanks!

Reply
Old Apr 30, 2010 | 10:26 AM
Share
  #5
jpflip's Avatar
Registered User
15 Year Member
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
Originally Posted by Slider
Wow - That's perfect. I don't have to remove the whole cover at all. Thanks!
Sorry you got me wrong...Yes you have to remove the whole cover!!!!! Excuse my french!!!

Reply
Old Apr 30, 2010 | 10:29 AM
Share
  #6
Slider's Avatar
Thread Starter
|
Registered User
15 Year Member
Joined: Apr 2010
Posts: 2,164
From: Victoria, BC
Rep Power: 217
Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !
Really... After reading the article in the link you sent, it looks like the logo comes off and reveals the screw underneath. Is that not the case?

Reply
Old Apr 30, 2010 | 10:29 AM
Share
  #7
jpflip's Avatar
Registered User
15 Year Member
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !

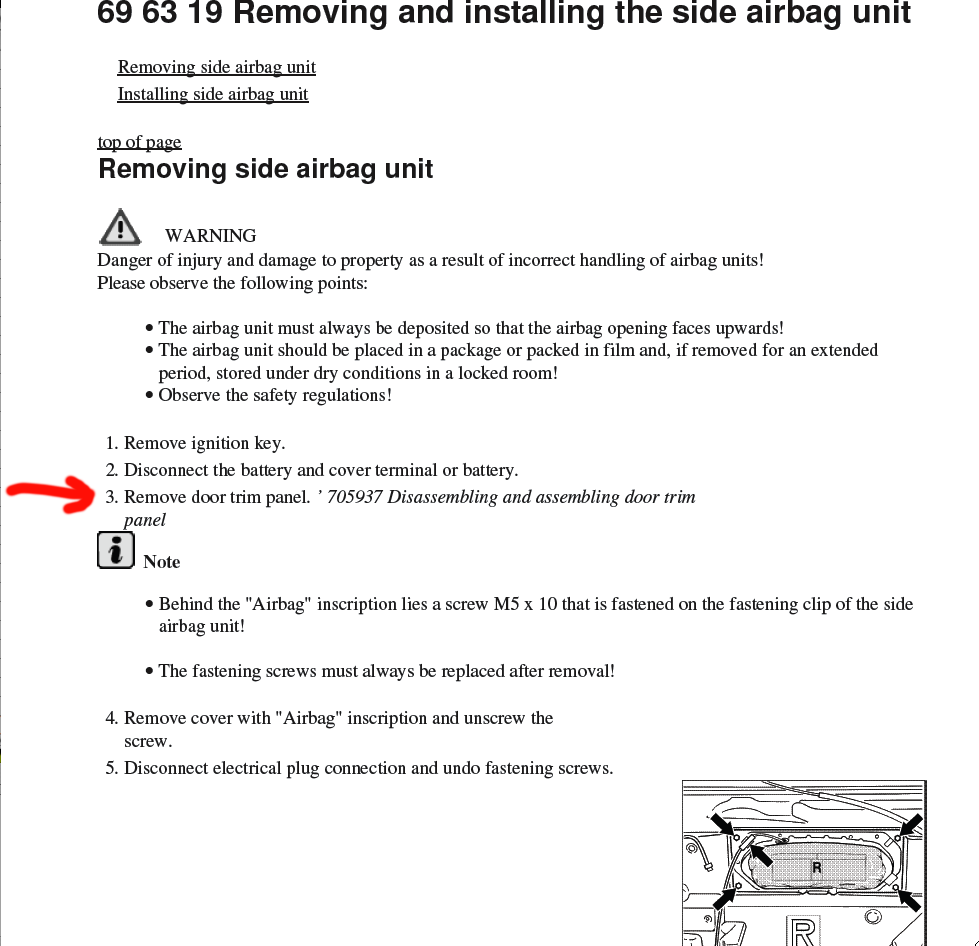

Also if you look at the removal installation or the side airbag they are mentioning to remove the complete door panel... Sorry....

Attached Images
Reply

Trending Topics

Old Apr 30, 2010 | 10:31 AM
Share
  #8
alex55's Avatar
Registered User
Joined: Nov 2006
Posts: 2,530
From: Romania, Bucharest
Rep Power: 167
alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !
jpfilp is the man !

Reply
Old Apr 30, 2010 | 10:32 AM
Share
  #9
jpflip's Avatar
Registered User
15 Year Member
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
Originally Posted by Slider
Really... After reading the article in the link you sent, it looks like the logo comes off and reveals the screw underneath. Is that not the case?
Yessss! I see where we are not connected together....You are mentioning the "whole cover" speaking of the airbag cover and when I talk about "the whole cover I mean the complete door cover....

Reply
Old Apr 30, 2010 | 10:34 AM
Share
  #10
jpflip's Avatar
Registered User
15 Year Member
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !



Alex, now that you are driving a bomb, I'm a bit jealous... Romania will never be the same!!!!

Reply
Old Apr 30, 2010 | 10:36 AM
Share
  #11
alex55's Avatar
Registered User
Joined: Nov 2006
Posts: 2,530
From: Romania, Bucharest
Rep Power: 167
alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !alex55 Is a GOD !
Originally Posted by jpflip



Alex, now that you are driving a bomb, I'm a bit jealous... Romania will never be the same!!!!
my 2002 seal gray brother don't worrie your time... will come !!!

Reply
Old Apr 30, 2010 | 10:37 AM
Share
  #12
Slider's Avatar
Thread Starter
|
Registered User
15 Year Member
Joined: Apr 2010
Posts: 2,164
From: Victoria, BC
Rep Power: 217
Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !
Yes, I'm not trying to get the airbag out; I just want the door panel off. So, to be clear, I should be able to just pry the logo off to get at the screw right?

Reply
Old Apr 30, 2010 | 10:40 AM
Share
  #13
PrecisionPorsch's Avatar
Basic Sponsor
Joined: Feb 2009
Posts: 2,286
From: USA
Rep Power: 0
PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !PrecisionPorsch Is a GOD !
Originally Posted by Slider
Yes, I'm not trying to get the airbag out; I just want the door panel off. So, to be clear, I should be able to just pry the logo off to get at the screw right?
yes, just pry off the "airbag" logo to get to the screw (not the air bag covering itself). Btw, you may want to disconnect your battery so the air bag won't accidentally go off

Edwin

Reply
Old Apr 30, 2010 | 10:41 AM
Share
  #14
jpflip's Avatar
Registered User
15 Year Member
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
Yes Slider... This small logo comes off but be careful to use a very thin tool , plastic is my preference....

Reply
Old Apr 30, 2010 | 10:41 AM
Share
  #15
Slider's Avatar
Thread Starter
|
Registered User
15 Year Member
Joined: Apr 2010
Posts: 2,164
From: Victoria, BC
Rep Power: 217
Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !
Roger - no power to the airbag if I don't want bruises.
