K24 Efficiency range ?

I know with K16’s people say don’t run them at more than 1.1 bar as after that they are out of there efficiency range, but what about K24’s what would be the maximum boost you could run using a 5bar reg before it becomes a fight against efficiency/heat/back pressure.

Old Sep 20, 2010 | 03:08 PM
  #2
winnigt2's Avatar
Registered User
Joined: Jun 2007
Posts: 610
From: germany
Rep Power: 64
winnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond repute
depends if you have aftermarket intercoolers, but 1,2 bar should be possible..at this level you dont need a 5bar FPR

Old Sep 20, 2010 | 03:27 PM
  #3
emadelta86's Avatar
Registered User
15 Year Member
Joined: Nov 2009
Posts: 1,021
From: Italy
Rep Power: 86
emadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond reputeemadelta86 has a reputation beyond repute

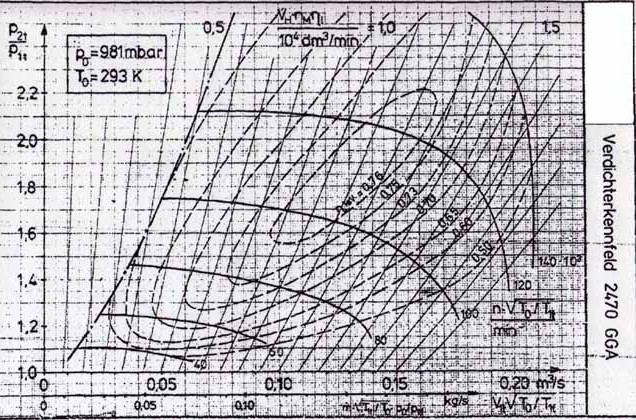

Here is the compressor map. Look at the efficiency curves.


Name:  k24_compressor_map.jpg
Views: 846
Size:  144.9 KB

Old Sep 20, 2010 | 04:14 PM
  #4
markski@markskituning's Avatar
Basic Sponsor
20 Year Member
Joined: Oct 2004
Posts: 9,730
From: CHICAGO
Rep Power: 604
markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !
With ICs and 5 bar 1.3 bar.. but you need WGs to run that high...

__________________

2001 996TT 3.6L and stock ECU
9.66
seconds @ 147.76 mph 1/4 mile
click to view
160 mph @ 9.77 seconds in 1/4 mile click to view
50% OFF ON PORSCHE ECU TUNING BLACK FRIDAY SPECIAL




Old Sep 21, 2010 | 04:48 AM
  #5
Neil A's Avatar
Thread Starter
|
Registered User
Joined: Mar 2009
Posts: 233
From: Scotland
Rep Power: 37
Neil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud of
Thanks guys im running a 1.1 bar flash justnow but have since fitted uprated coolers, car only gets run on UK 99 / US 93 gas.


Last edited by Neil A; Sep 21, 2010 at 04:55 AM.
Old Sep 21, 2010 | 06:20 AM
  #6
OS Inspector's Avatar
Registered User
Joined: Aug 2009
Posts: 2,496
From: Houston Tx
Rep Power: 187
OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !
you do have stock k24's right not a hybrid design because that would change everything on the compressor wheel maps.

Old Sep 21, 2010 | 06:40 AM
  #7
Neil A's Avatar
Thread Starter
|
Registered User
Joined: Mar 2009
Posts: 233
From: Scotland
Rep Power: 37
Neil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud ofNeil A has much to be proud of
Yip stock K24's .
