Jacking points

Hey Guys,

Where is the best place to jack up the car at the rear so I can get two jackstands under so that I can remove bumper and change exhaust....(I think bumper has to come off to install exhaust?

  #2
Old 04-30-2012, 01:03 PM
bushman66's Avatar
Registered User
Join Date: Mar 2012
Location: AZ
Posts: 37
Rep Power: 14
bushman66 is on a distinguished road
Here is what I do to lift the car. I use a small floor jack on the rear pass side jack point allowing me to get my large floor jack far enough underneath to jack on the chassis cross member about 3 feet in. Jack on that point, set a jackstand under each jack point. Piece of cake...

  #3
Old 04-30-2012, 01:10 PM
Kerrage's Avatar
Registered User
Thread Starter
Join Date: Feb 2012
Location: Calgary
Posts: 99
Rep Power: 21
Kerrage is a name known to allKerrage is a name known to allKerrage is a name known to allKerrage is a name known to allKerrage is a name known to allKerrage is a name known to all
ahh K I think it will make sense once I am under the car..I just dont want to bend anything....TOo bad someone didnt have a pic on here?

  #4
Old 04-30-2012, 01:13 PM
bushman66's Avatar
Registered User
Join Date: Mar 2012
Location: AZ
Posts: 37
Rep Power: 14
bushman66 is on a distinguished road
You'll see the cross member when you are underneath. Some guys advocate jacking on the boss cast into the engine case, but IMHO, the motor mounts weren't meant to carry that kind of load...I just throw a hockey puck onto the jack cradle and it works perfectly...

  #5
Old 04-30-2012, 01:29 PM
TurboTodd's Avatar
Registered User
Join Date: Nov 2008
Location: Cleveland Ohio
Posts: 677
Rep Power: 65
TurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond reputeTurboTodd has a reputation beyond repute
Some good info and pictures here

https://www.6speedonline.com/forums/...bolt-mods.html

Also do a search there is tons of info on the subject

  #6
Old 04-30-2012, 10:11 PM
Kerrage's Avatar
Registered User
Thread Starter
Join Date: Feb 2012
Location: Calgary
Posts: 99
Rep Power: 21
Kerrage is a name known to allKerrage is a name known to allKerrage is a name known to allKerrage is a name known to allKerrage is a name known to allKerrage is a name known to all

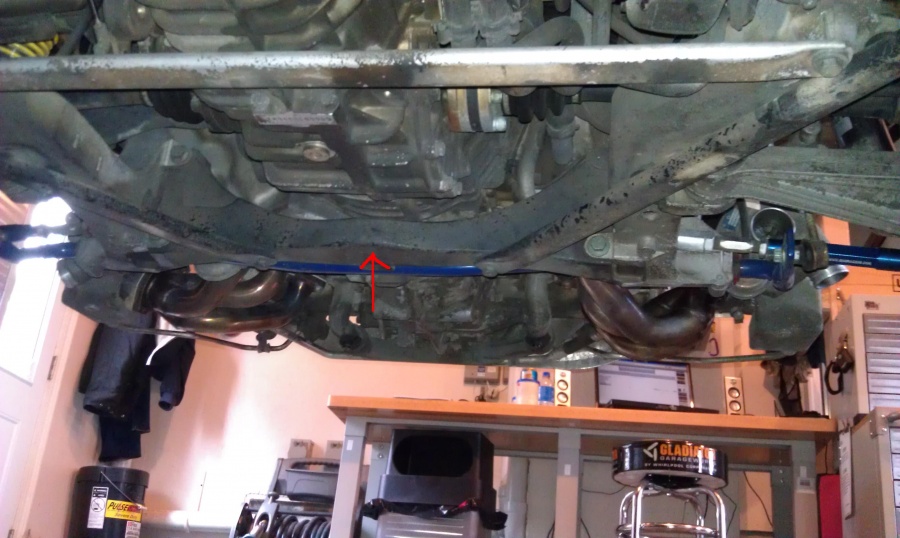

I think this pic says it best...Thanks guys for your quick response!


  #7
Old 04-30-2012, 11:36 PM
bushman66's Avatar
Registered User
Join Date: Mar 2012
Location: AZ
Posts: 37
Rep Power: 14
bushman66 is on a distinguished road
That's the crossmember...good luck!
