Jul 31, 2014 | 08:16 AM

#16

mbgt72

Registered User

Joined: Jul 2010

Posts: 213

From: Nashville, TN

Rep Power: 35

Quote:

Originally Posted by raineycd

I has this issue as well - put the wrong bolt in my drop links and it hit the intake worm clamp near the turbo and pushed the intake up and broke the aluminum plenum mount off and cracked the plastic intake distributor. So if you have aftermarket links, check clearance.

That's a terrible chain of events lol. I'm surprised the plastic part by the turbo didn't pop off from one end prior to cracking the intake manifold.

Jul 31, 2014 | 08:19 AM

#17

raineycd

Registered User

Joined: Jan 2009

Posts: 2,251

Rep Power: 166

Quote:

Originally Posted by mbgt72

That's a terrible chain of events lol. I'm surprised the plastic part by the turbo didn't pop off from one end prior to cracking the intake manifold.

Yeah it was a "perfect storm" of what happened unfortunately. Out side of the money, it was a couple month wait to get the parts - that's when the volcano was shutting down air space over Germany, etc. a few years ago!

I installed the coilovers and links/bar myself, so a good learning experience!

Aug 7, 2014 | 06:31 PM

#18

pat

Thread Starter

Registered User

Joined: Dec 2009

Posts: 875

From: indiana

Rep Power: 80

Extra hold down.

Attached Thumbnails

Click image for larger version

Name: 20140803_115545.jpg
Views: 175
Size: 1.52 MB
ID: 398718

Aug 8, 2014 | 07:49 AM

#19

OS Inspector

Registered User

Joined: Aug 2009

Posts: 2,496

From: Houston Tx

Rep Power: 187

ive got a couple sets of these plenums if someone wants to replace theirs low mile versions

Aug 12, 2014 | 09:33 PM

#20

pat

Thread Starter

Registered User

Joined: Dec 2009

Posts: 875

From: indiana

Rep Power: 80

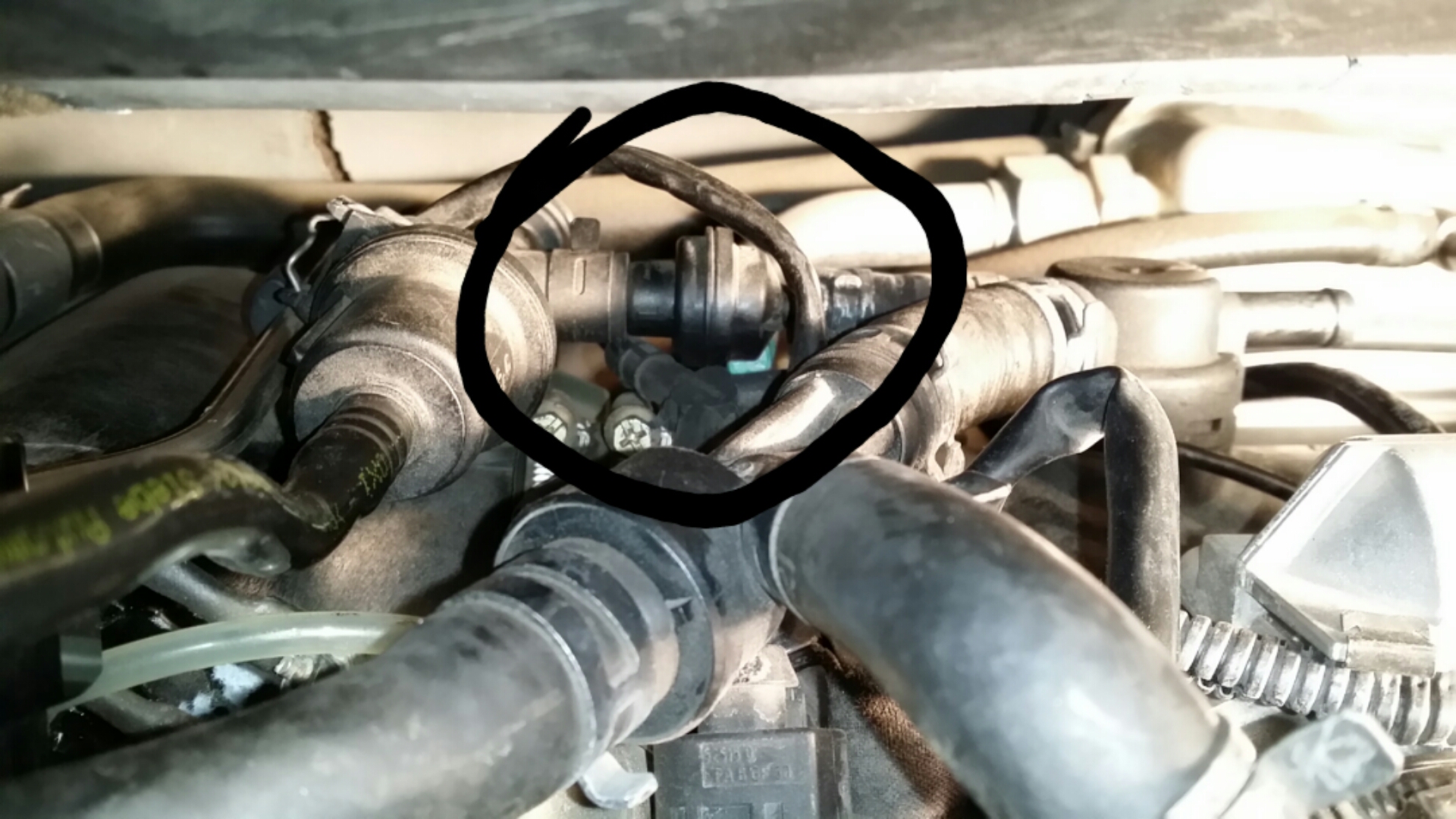

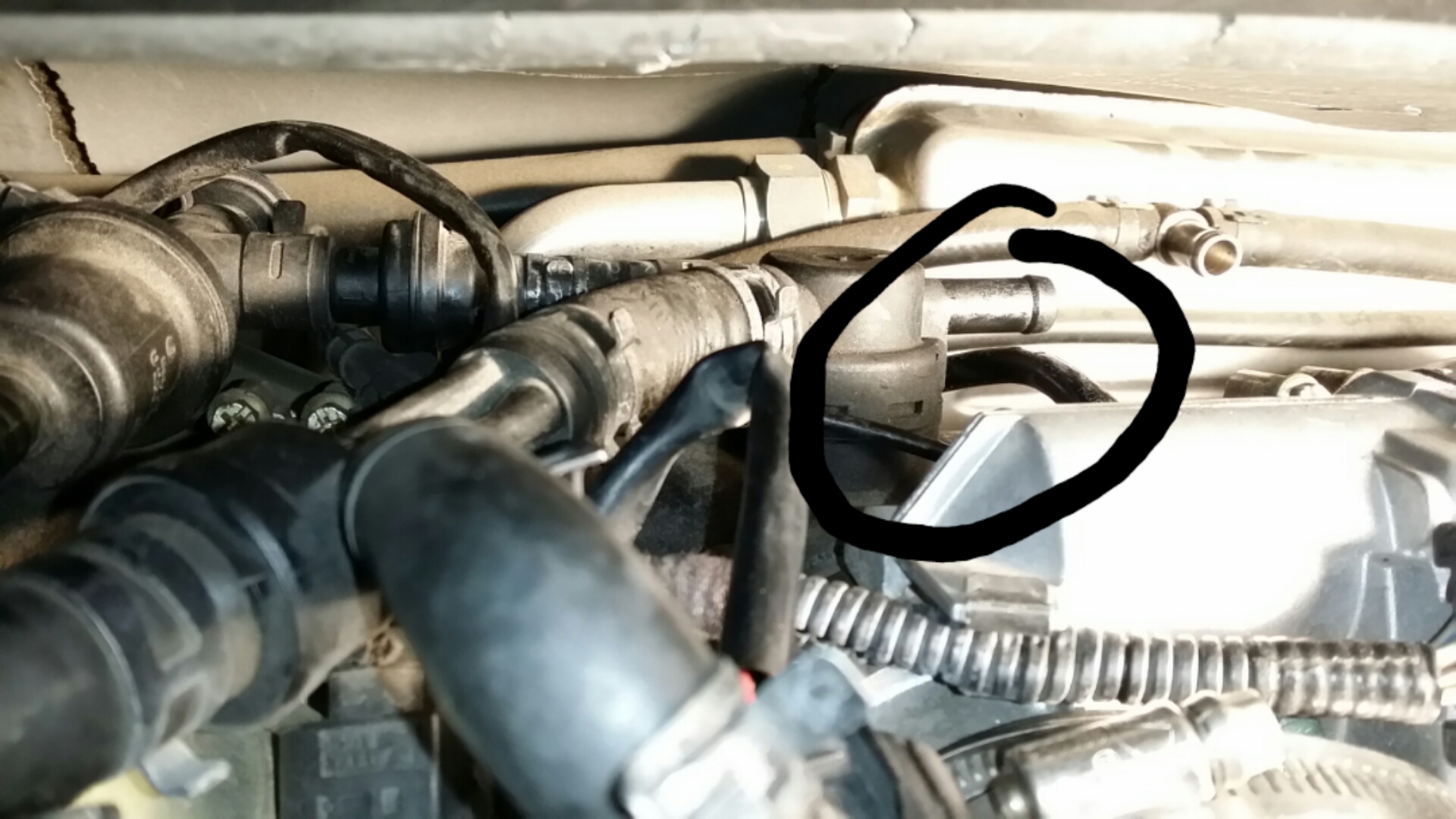

Still a boost leek ... the tube on the left has a built-in check valve and it was leaking a lot. I cleaned it out by spraying brake cleaner in it and then air and that fixed it. I am working on getting the small check valve on the left off. It is not holding pressure either.

Attached Thumbnails

Click image for larger version

Name: 2014-08-12 23.06.15.jpg
Views: 135
Size: 1,017.7 KB
ID: 399099

Click image for larger version

Name: 2014-08-12 23.01.57.jpg
Views: 127
Size: 995.6 KB
ID: 399101

Aug 14, 2014 | 01:38 AM

#21

pwdrhound

Registered User

Joined: Jul 2010

Posts: 4,848

Rep Power: 457

Quote:

Originally Posted by mbgt72

It's easy to crack it if people aren't careful when lowering the motor. That's the bolt that attaches to the intake hard side, which also attaches to the body of the car. I.E. if you drop the motor too much, the weight gets put onto this plastic piece if that bolt isn't removed. When I dropped my motor last month, it was obvious that it'd been out before as that back bolt wasn't even there, and I'm quite okay with that. Luckily, Todd @ Protomotive warned me about that very specific bolt before I did the engine drop.

(Just mentioning all this as a general PSA for other owners who may drop their motor in the future)

I'm confused. What intake manifold bolt attaches to the body of the car????? When I dropped the motor a few months back, there was no bolt on the aluminum intake manifold that attached to the body of the car.. The intake manifold was attached to the engine and everything came out as one piece as seen below... Looking at the top picture below, I think there is a pin that acts as a support on the top aluminum pipe where it says "RUF" right before it connects to the rubber intake hose. It doesn't seem like the bolt that attaches the aluminum intake manifold to the plastic plenum is really needed because the air box which is connected to the aluminum intake manifold on the front end also acts as a support anyway. Now that I think about it, I don't think I even had the bolt there prior to the engine removal and I added the bolt prior to reinstalling the engine (looking at the top picture after the engine was removed, I can see that the bolt was not there). I'm now tempted to remove the bolt that I added to prevent any chance of the plastic plenum from cracking. Thoughts?????

[url=https://flic.kr/p/og2f1z]
