New 8" Alpine X0800U installed in dash.






backup camera in action




The HD camera mounted

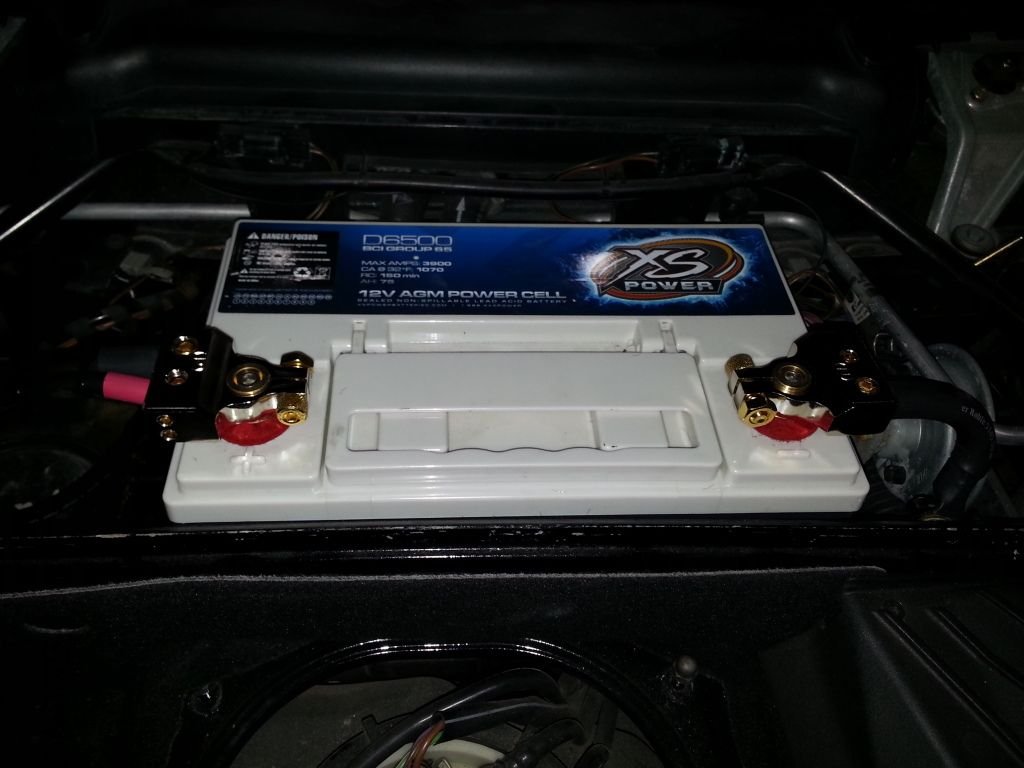

The oem battery cables and terminals were replaced with 0 gauge and 4 gauge copper Wire with new nickle plated battery terminals.

Oem cables and terminals.



We removed the OEM amplifier and made a bracket plate from aluminum to house the fuse holder, distribution blocks and relay. All accessories were attached to the aluminum plate by using screw rivets and screws.



Next, I began with the amp rack in the trunk area. This is the design I came up with.



Test fit in the trunk.



Did some shaping , cut the acrylic trim panel to sandwich with the wood and aluminum.



Now the amp rack base. Each of the amp rack levels are made of three layers sandwiched together. Red vinyl, acrylic and black vinyl. The acrylic will be lit with multi color LEDS on all three levels.

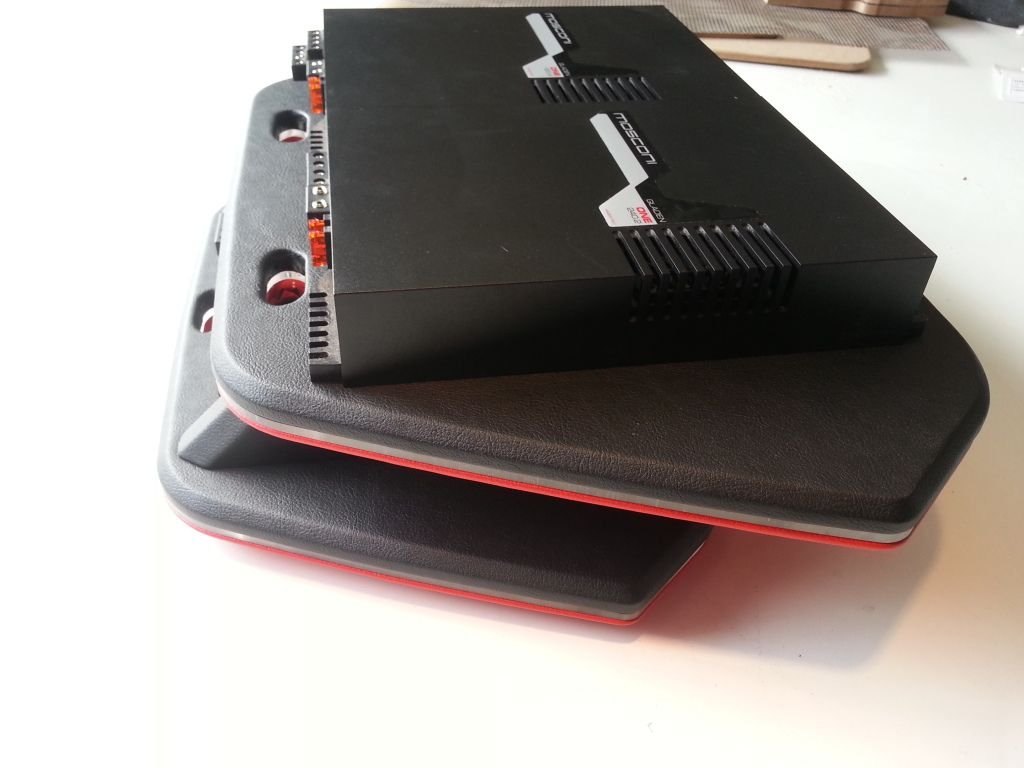

Amps mocked up on the rack.



All wired up, some minor adjustments for tight fit (massive amount of wires in tight space).



The false floor panel window was cut out and trimmed.

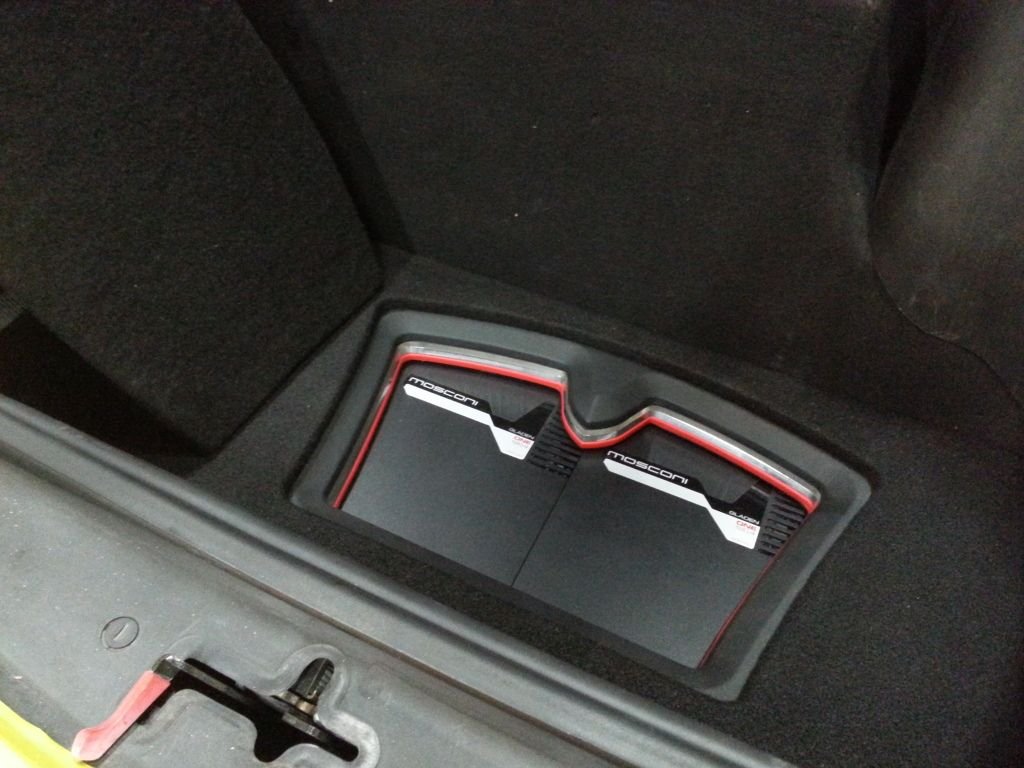

finished the false floor panel and grill.

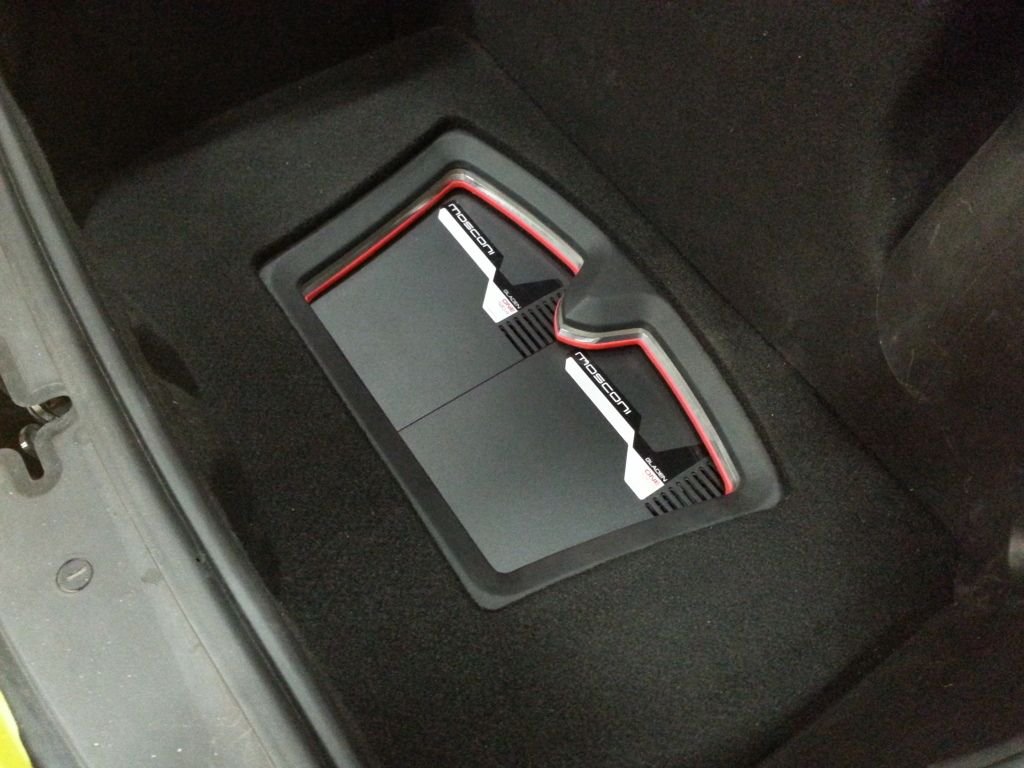

The false floor and grill wrapped in black carpet.
