Ohlins DFV + Tarett Drop Link = Binding & Bending?
#48
What´s the best solution?
I found this that will be mounted on the 12mm bolt that tighten the shock http://www.rennline.com/Extended-Fro...EXTFDLNK%2D10/
Easy to install with is good..
And this that need me to dismount everything again.. http://www.rennline.com/Extended-Fro...EXTFDLNK%2D10/
But think this look´s better..
Another option is Tarret if they got a solution that is working now on the Ohlins mount so I don´t need to dismount..
What to do?
I found this that will be mounted on the 12mm bolt that tighten the shock http://www.rennline.com/Extended-Fro...EXTFDLNK%2D10/
Easy to install with is good..
And this that need me to dismount everything again.. http://www.rennline.com/Extended-Fro...EXTFDLNK%2D10/
But think this look´s better..
Another option is Tarret if they got a solution that is working now on the Ohlins mount so I don´t need to dismount..
What to do?
#51
Don't think I have any right now, but can grab some soon...but is identical fitment to stock GT2/3 coilovers....
#54
So what I am hearing is the following:
1. It's not the coil over brand that is the issue
2. If you use coil over mount and Tarett extended links, you will need to do some grinding and add significant spacers
3. If you use Tarett mount and extended links, no spacers needed and minor grinding
Can these 3 statements be confirmed and/or commented on? Thank you. Planning my next upgrade.
1. It's not the coil over brand that is the issue
2. If you use coil over mount and Tarett extended links, you will need to do some grinding and add significant spacers
3. If you use Tarett mount and extended links, no spacers needed and minor grinding
Can these 3 statements be confirmed and/or commented on? Thank you. Planning my next upgrade.
#55
So what I am hearing is the following:
1. It's not the coil over brand that is the issue
2. If you use coil over mount and Tarett extended links, you will need to do some grinding and add significant spacers
3. If you use Tarett mount and extended links, no spacers needed and minor grinding
Can these 3 statements be confirmed and/or commented on? Thank you. Planning my next upgrade.
1. It's not the coil over brand that is the issue
2. If you use coil over mount and Tarett extended links, you will need to do some grinding and add significant spacers
3. If you use Tarett mount and extended links, no spacers needed and minor grinding
Can these 3 statements be confirmed and/or commented on? Thank you. Planning my next upgrade.
#56
Reverse lower mount

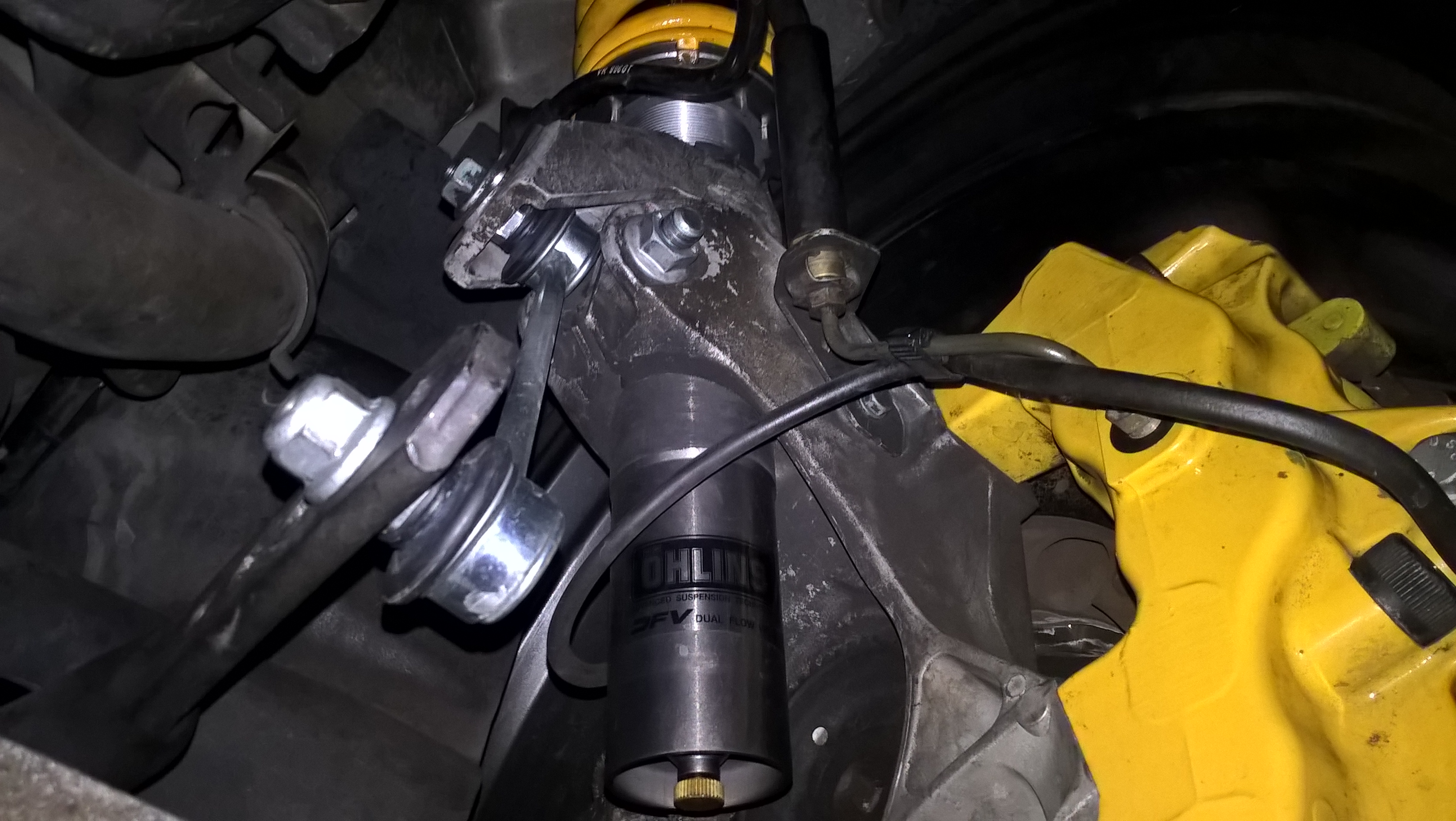

Daedalus just an update on the extended drop link binding issue. I reversed the lower mount to the inside of the sway bar with the spacer between the sway and mounting bolt. I also rotated the upper mount arm slightly and it has eliminated the binding. You will only be able to access the last hole due to the steering sensor mounted on the control arm. Not an issue for me as I prefer the last mounting location.
I'll try and post a pic if I get a chance this weekend. Im sure It is possible to remount sensor if you need to access the inner sway bar holes.
It appears the slightly more upright carriers due to the fwd changes the geometry enough to bind.
I'll try and post a pic if I get a chance this weekend. Im sure It is possible to remount sensor if you need to access the inner sway bar holes.
It appears the slightly more upright carriers due to the fwd changes the geometry enough to bind.
Last edited by oak; 05-25-2017 at 10:32 AM.
#57
I use the tarret links that attach to the shock clamp bolt in the spindle and I have check numerous times for binding and have zero. But I am running the RWD GT2/3 spindles versus the AWD spindles.
