Problem 3582 hits wastegate

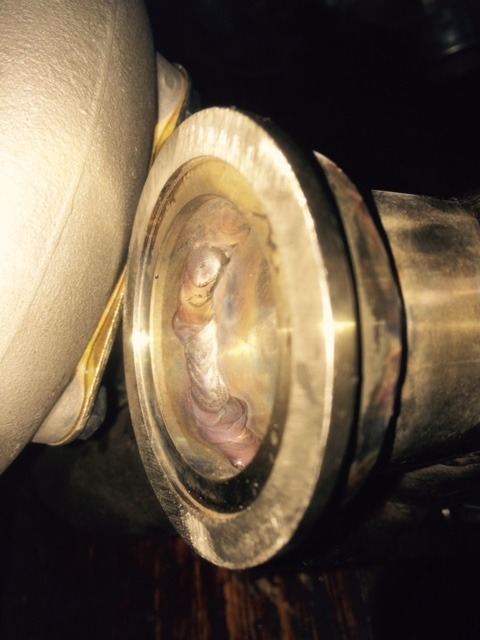

Just fitting the 3582's on the car and one side fits perfect, however when the comp housing is rotated to be in the correct aspect it fouls the wastegate mount, anyone else had this?

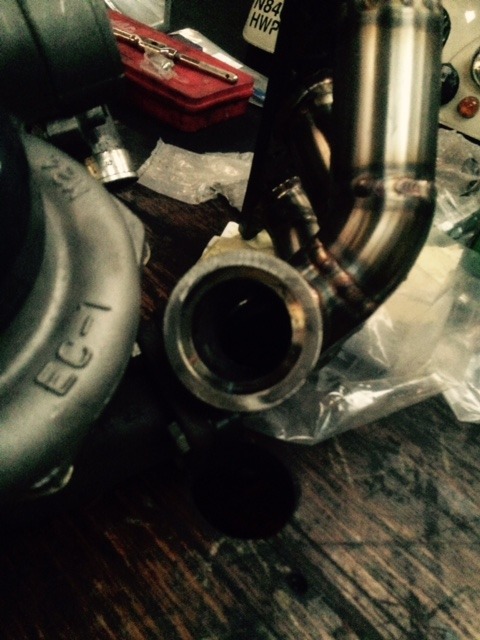

Comp housing incorrect aspect

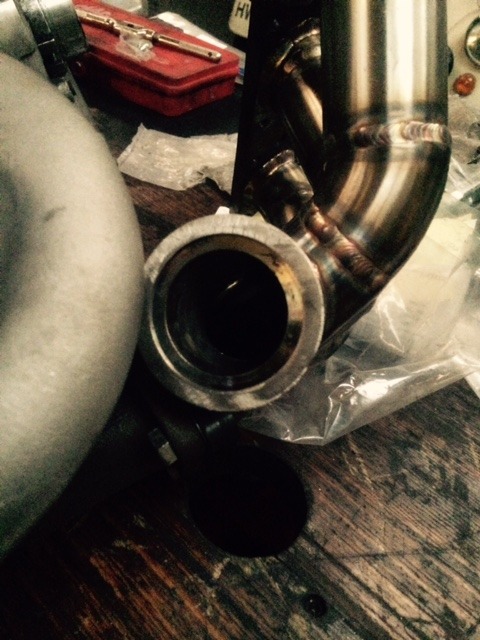

Correct aspect
Only thing I can think of is to cut a slot in the pipe for the wastegate and that will enable it to move slightly away from the comp housing by closeing the gap left by the cutting disc and then TIG weld it back up.
Comp housing incorrect aspect
Correct aspect
Only thing I can think of is to cut a slot in the pipe for the wastegate and that will enable it to move slightly away from the comp housing by closeing the gap left by the cutting disc and then TIG weld it back up.
#2
09-13-2015, 09:17 AM
Problem 3582 hits wastegate
Is it that the compressor housing is so much bigger than others? That sucks. Looks like some new fabrication is needed.
Last edited by Jeanmarcboilard; 09-13-2015 at 10:42 AM.
#3
09-13-2015, 10:04 AM
Is the wastegate in a T or a V in reference to the header? My compressor was so big I had to mod the oil tank lol.....
Last edited by Wealth Manager; 09-13-2015 at 10:19 AM.
#4
09-13-2015, 06:29 PM
Yea a pie cut with the correct angle should pull the gate out enough.
i would imagine the gates clear the swaybars right? Mine were pretty close....just fyi.
i would imagine the gates clear the swaybars right? Mine were pretty close....just fyi.
Last edited by 03EvoIII; 09-13-2015 at 06:33 PM.
#5
09-14-2015, 02:19 AM
Join Date: Nov 2013
Location: UK
Age: 59
Posts: 679
Rep Power: 51
Yeah the left side gate (your drivers side) clears the swaybar by about 3mm.
