996 Turbo / GT2 Turbo discussion on previous model 2000-2005 Porsche 911 Twin Turbo and 911 GT2.

Tire wear problem solved. Thanks to all here!

Thread Tools

Search this Thread

Rate Thread

  #16
Old 10-22-2016, 08:43 AM
VGLNTE1's Avatar
Registered User
Thread Starter
Join Date: Dec 2011
Location: Illinois
Posts: 1,512
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
Originally Posted by mikes996turbo
excuse my naive question but the rear toe and camber suggested are per wheel or total amounts: -1.6 camber and .25 toe

thanks
mike

That's per wheel. So .50 toe total.

  #17
Old 10-22-2016, 10:00 AM
VAGscum's Avatar
Registered User
Join Date: Oct 2008
Location: Portland Oregon
Posts: 1,696
Rep Power: 186
VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !
Originally Posted by VGLNTE1
That's per wheel. So .50 toe total.
Why that much toe? With a stiff enough suspension and monoball rear arms and solid pucks, toe and camber change in corners should be less than a stock setup, no? Seems like the rules we state about alignments often don't take into account suspension and control arms. So we fix some of the negative suspension attributes in the rear with monoball and removing rubber and still align like we need to combat those very things. Maybe I am missing something you guys can help me understand?

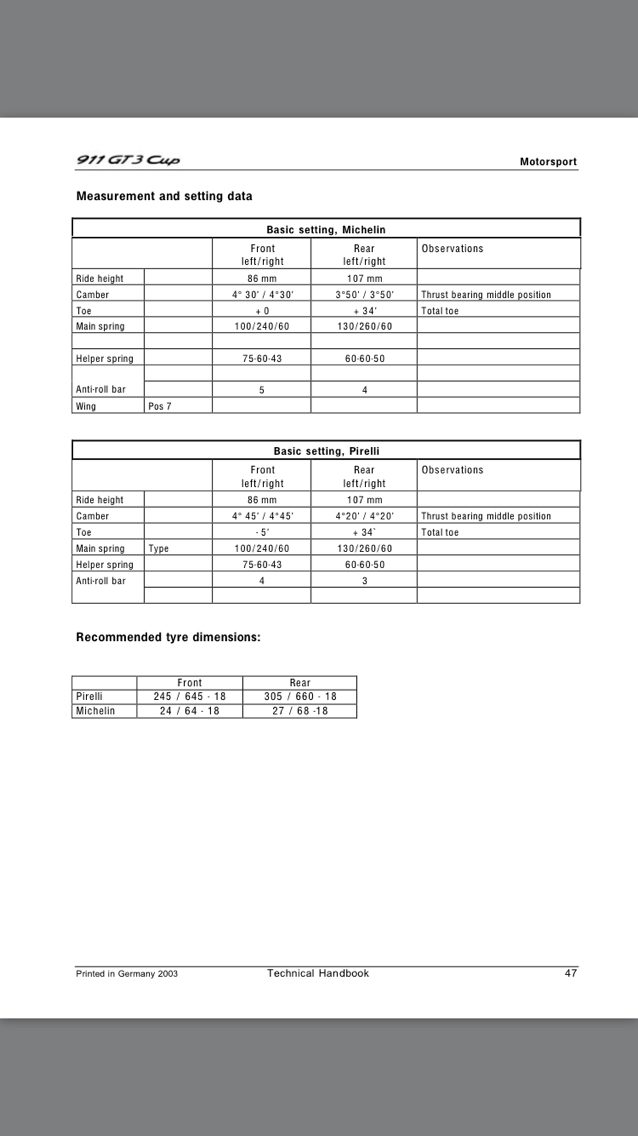

Here is what the 996 Cups call for as a reference. They have different weight distribution, but tire widths are pretty similar.

Attached Thumbnails Click image for larger version

Name:	photo304.jpg
Views:	72
Size:	136.3 KB
ID:	461706
  #18
Old 10-22-2016, 11:49 PM
VGLNTE1's Avatar
Registered User
Thread Starter
Join Date: Dec 2011
Location: Illinois
Posts: 1,512
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
Originally Posted by VAGscum
Why that much toe? With a stiff enough suspension and monoball rear arms and solid pucks, toe and camber change in corners should be less than a stock setup, no? Seems like the rules we state about alignments often don't take into account suspension and control arms. So we fix some of the negative suspension attributes in the rear with monoball and removing rubber and still align like we need to combat those very things. Maybe I am missing something you guys can help me understand?

Here is what the 996 Cups call for as a reference. They have different weight distribution, but tire widths are pretty similar.

Wondered that as well, but all the research said keep it to around .25 a corner. Seems to be working.

  #19
Old 10-23-2016, 02:07 AM
pwdrhound's Avatar
Registered User
Join Date: Jul 2010
Posts: 4,846
Rep Power: 455
pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !
Originally Posted by VGLNTE1
Wondered that as well, but all the research said keep it to around .25 a corner. Seems to be working.
.25 what?? I'm assuming you are listing degrees. Factory specification is not listed in degrees but rather in minutes, specifically 15-17 minutes (') per side or 30-34' total. 1 degree = 60 minutes. Thus, on the low end, factory specification is 0.50 degrees total rear toe (or 30') and 0.57 degrees (34') on the high end.

There is a general lack of understanding between the two and this tends to muddy the water a bit. When I do an alignment on my car which is full monoball, I always set up the rear to a total toe of 34' (0.57 degrees). Tire wear is dead on perfect.


Last edited by pwdrhound; 10-23-2016 at 02:22 AM.
  #20
Old 10-24-2016, 02:42 PM
VGLNTE1's Avatar
Registered User
Thread Starter
Join Date: Dec 2011
Location: Illinois
Posts: 1,512
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
I do degrees. So .25 degrees per side, .50 degrees total

  #21
Old 10-24-2016, 03:12 PM
TXTurbo996's Avatar
Registered User
Join Date: May 2008
Location: Dallas TX
Posts: 535
Rep Power: 48
TXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud ofTXTurbo996 has much to be proud of
I installed RSS Tarmac LCA's with their solid thrust arm bushings and monoball ends. I too would go through rear tires in 3-5k miles.

I haven't driven enough mileage to definitively say my tire wear is better, but it's actually a difference you can feel. The car feels much more solid and planted when putting the power down, I have no problem believing that my rear alignment was shifting under load.

Fingers crossed that it fixes my problem, but handling and straight line acceleration feels fantastic now. I've put about 1k miles on since I did the swap, tire wear looks even.

(Note: If you do not have a lowered Turbo from the factory, either with the M030 option or "sport" suspension, you cannot run these. If you have lowering springs, you must also have swapped out your stock shocks for the M030 Bilstein equivalent or similar.)

  #22
Old 10-24-2016, 04:36 PM
'02996ttx50's Avatar
Registered User
Join Date: May 2009
Location: la
Posts: 7,971
Rep Power: 601
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
Originally Posted by TXTurbo996
(Note: If you do not have a lowered Turbo from the factory, either with the M030 option or "sport" suspension, you cannot run these. If you have lowering springs, you must also have swapped out your stock shocks for the M030 Bilstein equivalent or similar.)
i now run .027 toe on the rear with as you mentioned, mo30's and springs. i was still having issues with excessive inner wear until i added TS drop links http://www.torquesolution.com/product-p/ts-por-003.htm which have gained me an add'l ( maybe? ) another whopping 1k miles from my usual 4k miles per set of rears. i started with basic factory x73 alignment specs and tweaked from there ( although that's for a 20mm drop ) and i'm at -40mm (+/-) but ya definitely need something if lowered to adjust camber/toe to adjust for the wot squat that KILLS tires prematurely. in addition to driving style, that is
