Does anyone know of a company/source for 996TT diveplanes. The car has the factory aerokit & I am working with a friend who is a racing engineer to develop some way of raising the factory wing approximately 8". He is looking into fabbing some brackets that would simply bolt between the two pieces and look fairly stock.



Joe toth composites makes them. Fit perfect and function great.



Todd, You can get them from the Rennkit site. There is a 6SpeedOnline discount coupon available.



is there a narrower dive plane or is it just 1 size?



There is one size, but in FRP or Carbon Fiber.



Kudos to Dave. Got he splitter & dive planes ordered today.



Nice I will be adding these - how do they install? Drill holes and I am guessing the push type fastener that holds the bumper on?



No push in fasteners do not have enough strength. Some guys just double side tape on but that can fall off to. Most rivit or bolt them on. I myself made an inner mount that is double sided tapped on so I can easily bolt and unbolt them if needed.



What are those fender liners that are sticking out? Sorry don't know the name of them.



Air guides for the tires... I got a pair of carbon ones from EBWerks



^ Thanks!



Double sided 3M VHB tape type EX4011.



Got my diveplanes front end air splitter ordered from Dave !

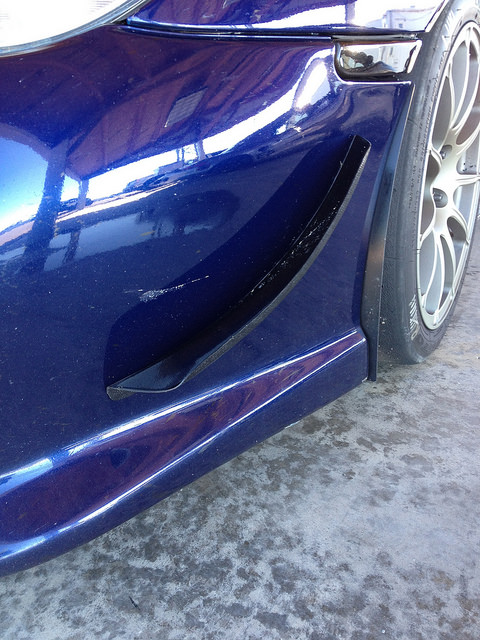

Those pictured above on the blue car are mine. I simply cut them out of an old rear fender liner and riveted them on to the bumper. $0 plus a couple of hours labor.



I prefer not to put any holes in the bumper. Would it make sense to run a bead of silicone on each side in addition to the double sided tape.
Was at VIR 2 weeks ago with several PCA BS'rbuddies. One has a GT4 with dive planes. He used D/S tape only & one of the CF dive planes came off at 150 on the back straight. Thankfully it flew out in the grass and was unhurt. He was able to find the end of the day.
