996 x51 carbonfiber air box mod

was wondering if anyone ever had their c4s air box upgraded to a 997-x51 carbon fiber one and if so any details or pics

Jun 7, 2010 | 12:37 PM

davebho

Registered User

Joined: Apr 2010

Posts: 89

From: california

Rep Power: 20

any pictures of the X51 carbon box?

i have a carbon fetish

Jun 9, 2010 | 10:38 PM

Airrik

Registered User

Joined: Feb 2010

Posts: 471

From: Exotic Country

Rep Power: 36

I want to know about this as well.... anyone?

Mar 16, 2022 | 04:51 PM

Captain Cove

Registered User

Joined: Apr 2021

Posts: 71

Rep Power: 0

Captain Cove is infamous around these parts

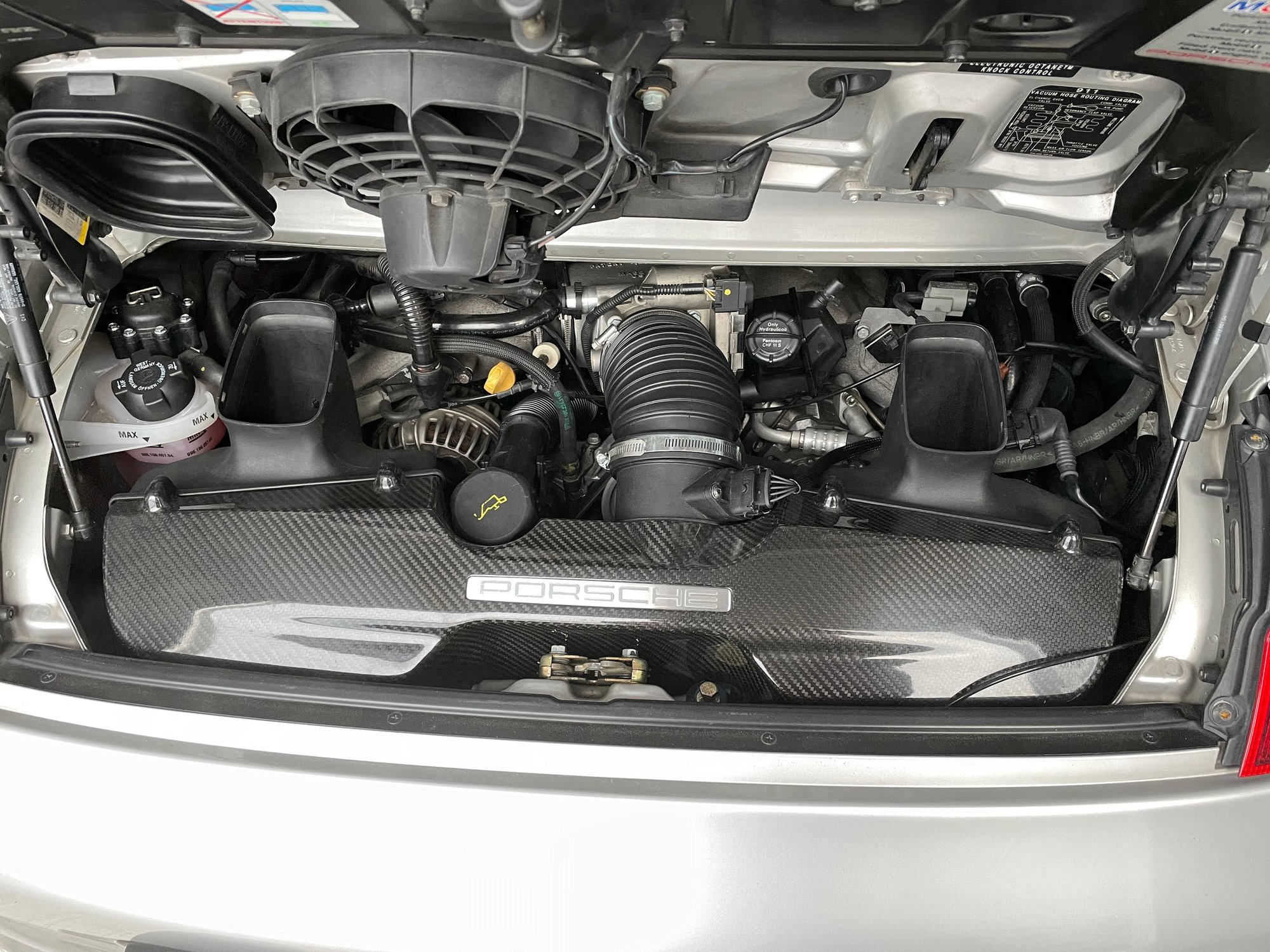

CF air box from 997 X51 into my 2002 996 C4S, engine is from a 2004 X51 40th.
still working at adding the 2nd air intake in the deck lid.

Apr 7, 2022 | 03:11 PM

B8_RDC

Registered User

Joined: May 2012

Posts: 740

From: Seattle, WA

Rep Power: 70

Need a few things like MAF extender etc.

Quote:

Throttle Body: #997.605.116.00

Distributor Pipe: 997.110.416.40

Rubber Sleeve: 997.110.685.40 X2

Hose Clamp: 997.512.694.00 X4

Electric Line (tank vent line extension): 997.607.130.00

Tank Vent Line Support: 997.110.429.40

Support for throttle body: 997.110.423.40

Support: 997.110.433.40

Tank ventline including Valve: 997.110.129.40

Tank Ventline: 997.110.127.40

Looks like above you are missing: X-51 side bellows is # sc997-110-252-00. The bellows left side (looking at the engine) is # sc997-110-250-00 circled in red.

Should fit into the yellow attached sleeves for the deck. Or did you pull your stock left one off and flip it over and stick it to the deck?

Last edited by B8_RDC; Apr 7, 2022 at 03:16 PM.

Apr 7, 2022 | 03:16 PM

Captain Cove

Registered User

Joined: Apr 2021

Posts: 71

Rep Power: 0

correct, still working at adding the 2nd air intake in the deck lid.

Apr 7, 2022 | 03:18 PM

B8_RDC

Registered User

Joined: May 2012

Posts: 740

From: Seattle, WA

Rep Power: 70

Ah ok. Maybe that is where 997 vs 996 gets a tad tricky.

Guilty of owning two. Want to sell yours?.....reaches out....

Last edited by B8_RDC; Apr 7, 2022 at 10:18 PM.

Trending Topics

2005 DB9 OEM Wheels

5

207
Cracked Coolant overflow tank - upgraded to Aluminum

2

208
Annual Aston Martin Owners Club USA "Lime Rock" Event in May

1

216
How to get a vantage into neutral

3

370
Custom Made 20" Forza Wheels Installed

15

913

Apr 7, 2022 | 03:21 PM

Captain Cove

Registered User

Joined: Apr 2021

Posts: 71

Rep Power: 0

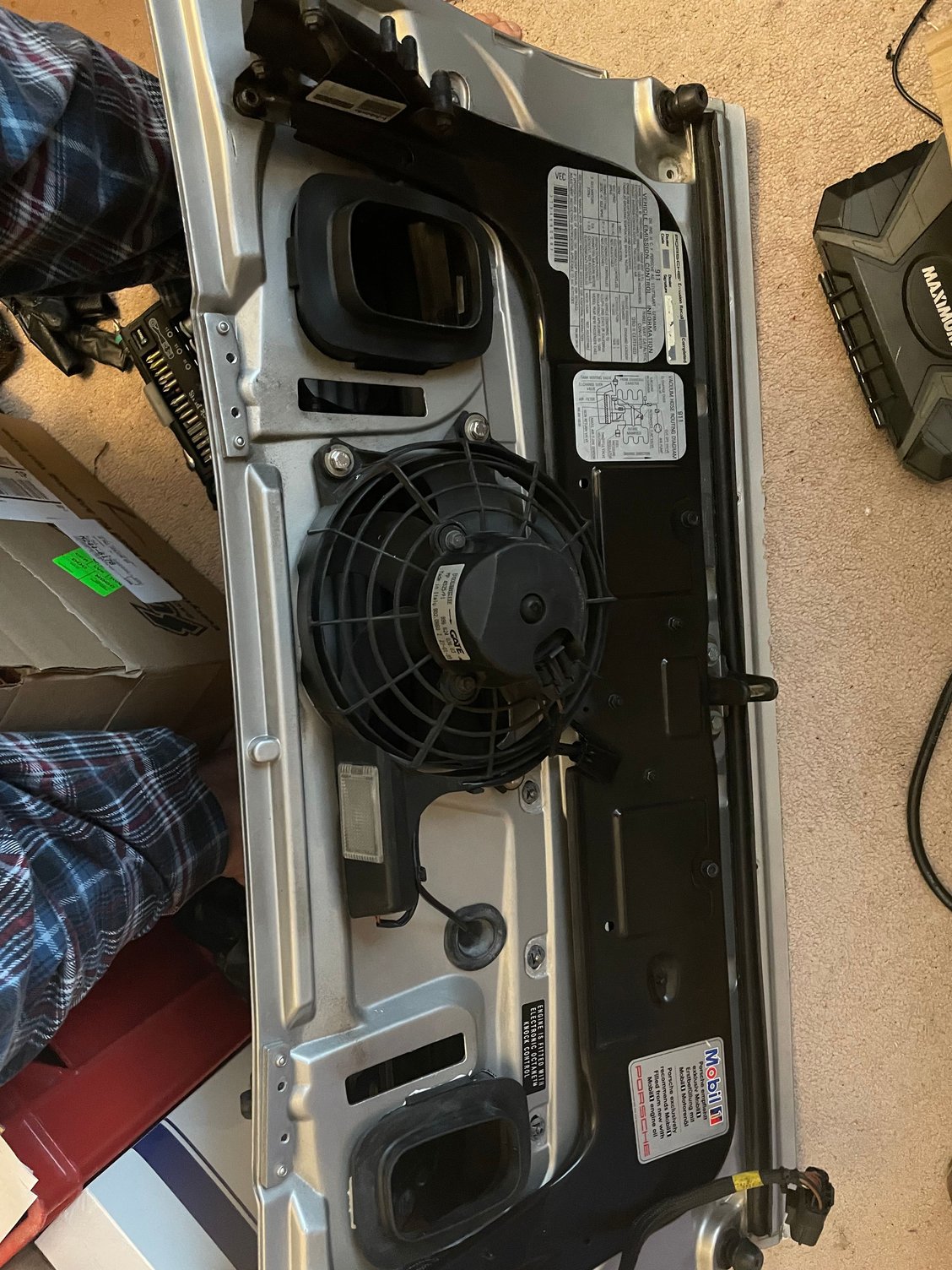

Tricky indeed. Here’s my 996 C4S lid with the extra hole, it’s not a perfect fit but I think it will work.

May 21, 2022 | 06:16 PM

Captain Cove

Registered User

Joined: Apr 2021

Posts: 71

Rep Power: 0

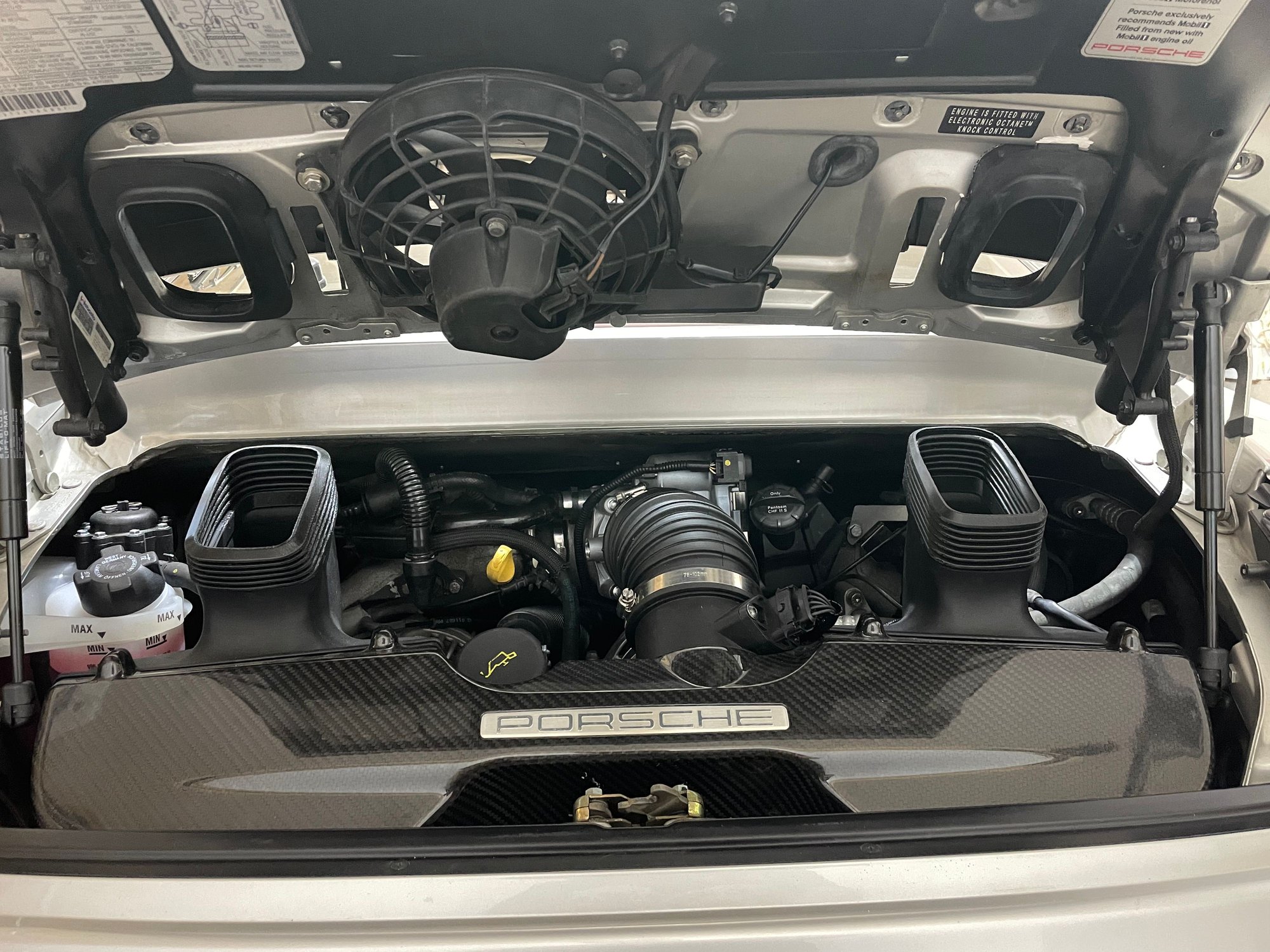

Finally got the dual intake deck lid on my 3.6 X51 2002 C4S. There are a few things needing adjustment but it’s all there and working great. It was not easy, let me know if you have questions and want to do something similar.

regards,
F.
