Mk2 996 nb wheel offsets

Thread Tools

Rate Thread

Old Oct 9, 2012 | 11:53 PM
  #1
eugizzle's Avatar
Thread Starter
|
Registered User
Joined: Mar 2011
Posts: 118
From: Norcal
Rep Power: 21
eugizzle is infamous around these partseugizzle is infamous around these parts
Mk2 996 nb wheel offsets

Always had trouble playing with the wheel offset range. Could anyone lend me a hand? I want to know what the most aggressive offset I could run with 18 x 8.5 f and 18 x 11 r? And possibly the beefiest tires I could run without any rubbing? I've heard of people having 295s or even 305s on their rears.


Last edited by eugizzle; Oct 10, 2012 at 02:29 PM.
Old Oct 10, 2012 | 11:46 AM
  #2
rrrruben's Avatar
Registered User
Joined: Aug 2010
Posts: 418
From: Novato, CA
Rep Power: 32
rrrruben is infamous around these parts
You did not indicate your wheel size; 18"? Nonetheless, +/- 5mm of the OEM offset is optimal. Using 18", the optimum tire size should be 235/40/18 F + 275/35/18 R. These tire sizes should have nearly zero effect on your speedometer readings. Good luck.

Old Oct 10, 2012 | 02:33 PM
  #3
eugizzle's Avatar
Thread Starter
|
Registered User
Joined: Mar 2011
Posts: 118
From: Norcal
Rep Power: 21
eugizzle is infamous around these partseugizzle is infamous around these parts
Must have been on the merge of knocking out last night. I really meant to say 18 x 8.5s and 18 x 11s. Do you know the range I could play with, say 40-60? or like 45-65?

Old Oct 10, 2012 | 11:52 PM
  #4
rrrruben's Avatar
Registered User
Joined: Aug 2010
Posts: 418
From: Novato, CA
Rep Power: 32
rrrruben is infamous around these parts
50 f 65 r

Old Oct 11, 2012 | 09:04 PM
  #5
eugizzle's Avatar
Thread Starter
|
Registered User
Joined: Mar 2011
Posts: 118
From: Norcal
Rep Power: 21
eugizzle is infamous around these partseugizzle is infamous around these parts
Does anyone know if I could run these wheels?

18x9 5x130 ET46
18x11 5x130 ET60

Old Oct 12, 2012 | 10:34 PM
  #6
rrrruben's Avatar
Registered User
Joined: Aug 2010
Posts: 418
From: Novato, CA
Rep Power: 32
rrrruben is infamous around these parts
They will fit. However, the stance would be fairly aggressive. I don't know about you, but I like an aggressive stance. Your optimum tire combo would be 235/40/18 F + 305/30/18 R. Good luck.

Old Oct 13, 2012 | 02:40 PM
  #7
eugizzle's Avatar
Thread Starter
|
Registered User
Joined: Mar 2011
Posts: 118
From: Norcal
Rep Power: 21
eugizzle is infamous around these partseugizzle is infamous around these parts
Thanks a bunch ruben! The more aggressive the better, but I do want to stay away from the extreme camber and flush look. 305s fit? I thought that was 996 tt spec.

Old Oct 14, 2012 | 12:28 AM
  #8
rrrruben's Avatar
Registered User
Joined: Aug 2010
Posts: 418
From: Novato, CA
Rep Power: 32
rrrruben is infamous around these parts
996tt specs are 315 on an 18x11 5x130 ET40. The ET40 allows for the WB specs. This is where the ET60 allows for the NB specs.

Old Oct 17, 2012 | 02:27 PM
  #9
Long Islander's Avatar
Registered User
20 Year Member
Joined: Jul 2003
Posts: 373
From: Long Island (New York)
Rep Power: 38
Long Islander has a spectacular aura aboutLong Islander has a spectacular aura about
Porsche Sport Techno wheels for 996 narrow body are 8x18 50mm offset front and 11x18 63mm offset, so they will definitely fit with the recommended tire sizes for these wheels (225/40ZR18 and 295/30ZR18). Of course so will any other wheel with the same specs.

Old Oct 21, 2012 | 11:32 AM
  #10
ytyper's Avatar
Registered User
Joined: Oct 2008
Posts: 27
From: Toronto
Rep Power: 23
ytyper is just really niceytyper is just really niceytyper is just really niceytyper is just really niceytyper is just really nice
I have 18x8.5,+50 with 18mm spacers on the front and 18x10.5 +40 on 285/30/18 PS2 tires at the rear. I have PSS10 lower around 2.5' but I m running -2.5 camber at the rear. No rubbing issue at all with no cut or roll on rear quarter panels too.

Old Oct 22, 2012 | 09:03 AM
  #11
alpine003's Avatar
Registered User
Joined: Mar 2010
Posts: 2,004
From: Chicago
Rep Power: 122
alpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond repute
Originally Posted by ytyper
I have 18x8.5,+50 with 18mm spacers on the front and 18x10.5 +40 on 285/30/18 PS2 tires at the rear. I have PSS10 lower around 2.5' but I m running -2.5 camber at the rear. No rubbing issue at all with no cut or roll on rear quarter panels too.
I call BS on this unless I can see pics. 50-18=32mm offset for front? with what size tire?

Do you have C4s or Turbo? Otherwise, I'd have to call BS on the rears too.

Old Oct 22, 2012 | 10:49 AM
  #12
white out's Avatar
Registered User
Joined: Sep 2009
Posts: 282
From: Michigan
Rep Power: 34
white out is a splendid one to beholdwhite out is a splendid one to beholdwhite out is a splendid one to beholdwhite out is a splendid one to beholdwhite out is a splendid one to beholdwhite out is a splendid one to behold

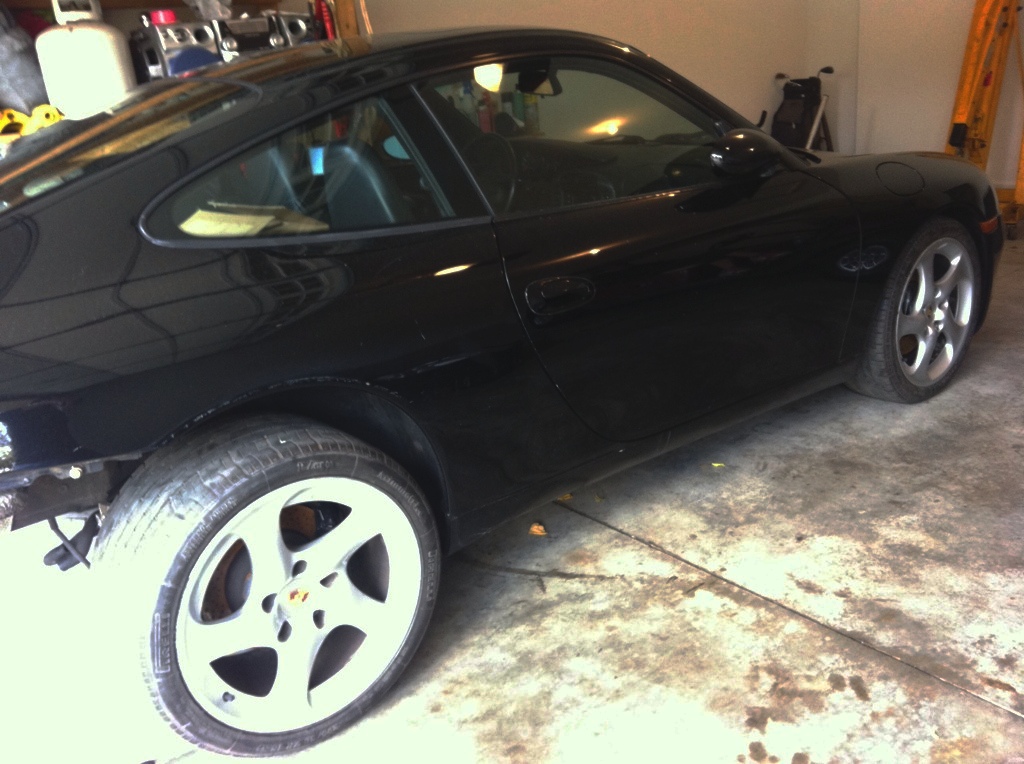

turbo wheels on my '99 NB (engine and trans are out, so the camber is off and wheel gap is massive).
Name:  void0-3.jpg
Views: 2401
Size:  247.2 KB

Name:  void0-2.jpg
Views: 2224
Size:  174.7 KB

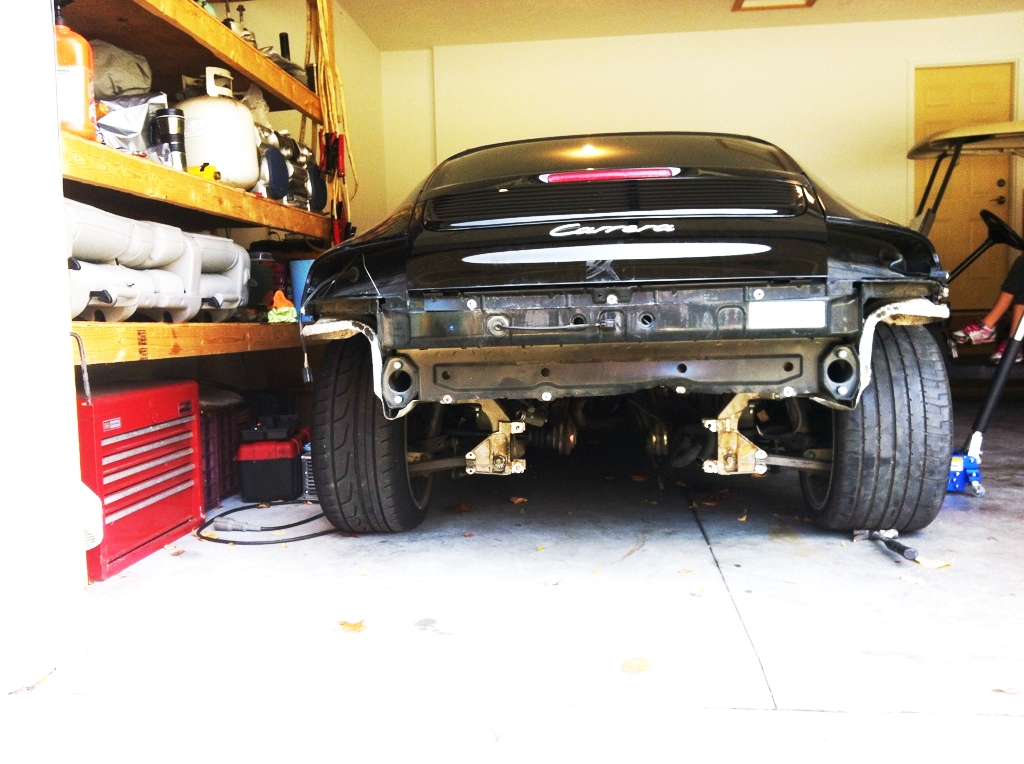

WB wheel on right, it has a taller tire too (notice rake in car's stance):
Name:  void0-1.jpg
Views: 2294
Size:  427.2 KB

Old Oct 22, 2012 | 01:49 PM
  #13
ytyper's Avatar
Registered User
Joined: Oct 2008
Posts: 27
From: Toronto
Rep Power: 23
ytyper is just really niceytyper is just really niceytyper is just really niceytyper is just really niceytyper is just really nice
Originally Posted by alpine003
I call BS on this unless I can see pics. 50-18=32mm offset for front? with what size tire?

Do you have C4s or Turbo? Otherwise, I'd have to call BS on the rears too.

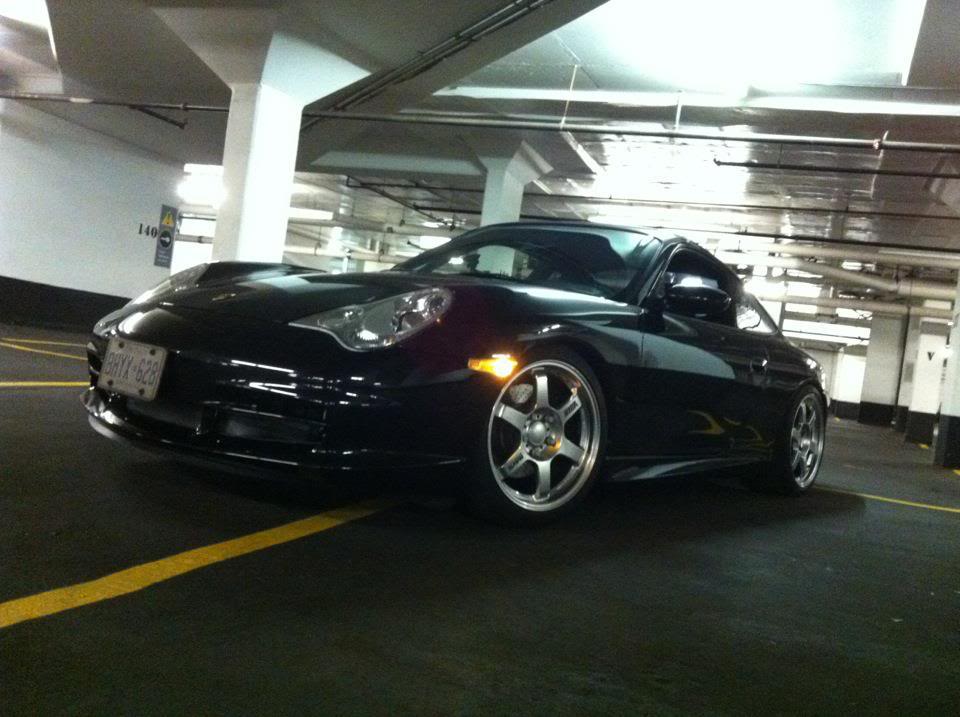

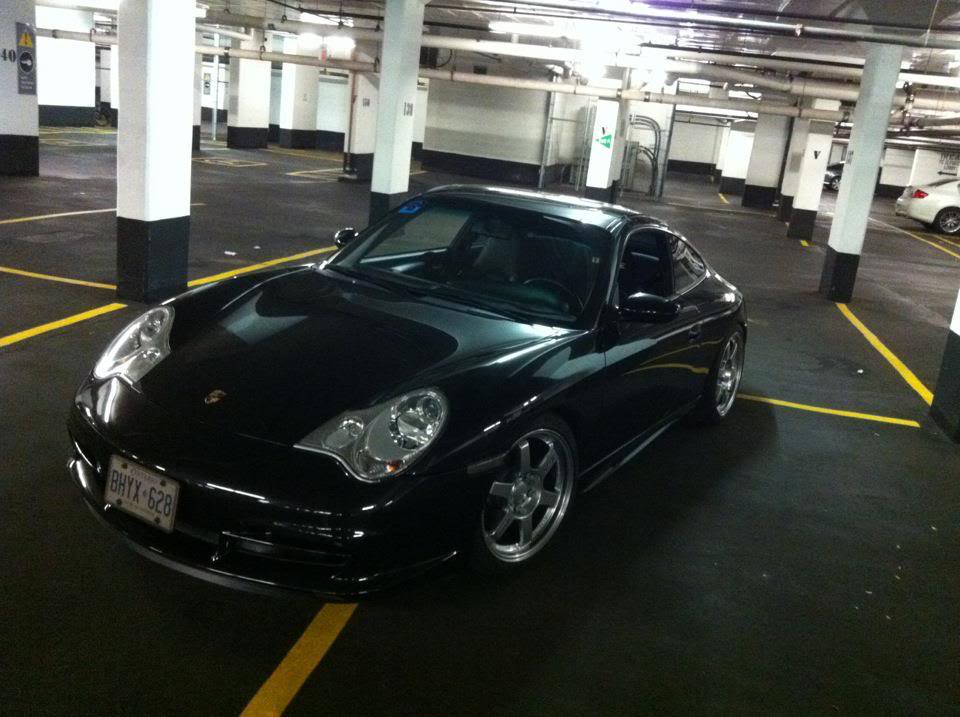

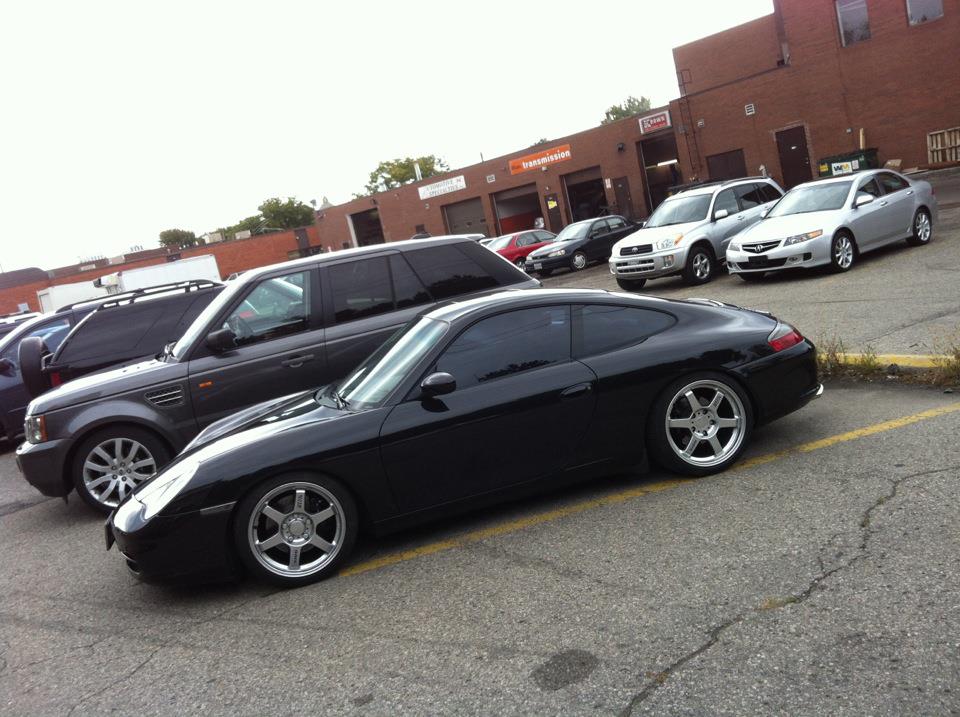

Mine is just a Carrera 2, Front tire size is 225/40/18 and Rear 285/30/18..... I thought is no way to be fit too, but it was just perfect come out to me.
Name:  579720_10151032061141533_1316284278_n.jpg
Views: 2273
Size:  85.7 KB
Name:  401392_10151026512586533_440937528_n.jpg
Views: 2474
Size:  103.0 KB



Name:  561597_10151032061481533_24994136_n.jpg
Views: 2352
Size:  81.4 KB


Last edited by ytyper; Oct 22, 2012 at 01:52 PM. Reason: more pics
Old Oct 22, 2012 | 02:02 PM
  #14
alpine003's Avatar
Registered User
Joined: Mar 2010
Posts: 2,004
From: Chicago
Rep Power: 122
alpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond repute
Originally Posted by ytyper
Mine is just a Carrera 2, Front tire size is 225/40/18 and Rear 285/30/18..... I thought is no way to be fit too, but it was just perfect come out to me.
Based on those pics, there is no way you're running 32mm offset front and 40mm offset rear.

Have you seen the poster above yours that had the shot of the Turbo Wheels? The stock Turbo wheels are 45mm for the rear so yours at supposed 40mm would stick out more. I just don't see that from the pics.

Old Oct 22, 2012 | 02:37 PM
  #15
ytyper's Avatar
Registered User
Joined: Oct 2008
Posts: 27
From: Toronto
Rep Power: 23
ytyper is just really niceytyper is just really niceytyper is just really niceytyper is just really niceytyper is just really nice
Originally Posted by alpine003
Based on those pics, there is no way you're running 32mm offset front and 40mm offset rear.

Have you seen the poster above yours that had the shot of the Turbo Wheels? The stock Turbo wheels are 45mm for the rear so yours at supposed 40mm would stick out more. I just don't see that from the pics.
Well when car lower more and more negative camber. When my car raise up on hoist wheel stick out exactly like that turbo wheel..... But my set of TE37 are for turbo too but that's work on mine and I have no issue of rub in Mosport GP track canada.
