2003 C4S Window Regulator now Air Bar warning light & Window
#1
2003 C4S Window Regulator now Air Bar warning light & Window

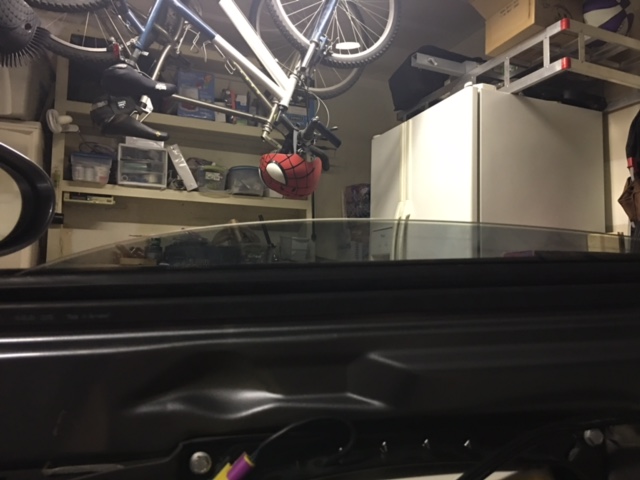

Help: I replaced my window regulator this past weekend and now I have two issues: First is the air bag warning light goes on. Second the window won't completely go all the way down. I reconnected the air bag so I know the connection is secure. My goof may have been when I reconnected the battery to raise the window to reprogram the program I didn't reconnect the air bag at the time. (Ugh) Second when I inserted the window back in to the new regulator it did go completely down, but now it is like 1/4 still showing See pictures. Thanks for any help anyone can offer.
#2
My goof may have been when I reconnected the battery to raise the window to reprogram the program I didn't reconnect the air bag at the time. (Ugh) Second when I inserted the window back in to the new regulator it did go completely down, but now it is like 1/4 still showing See pictures. Thanks for any help anyone can offer.
#3
Thanks
winner winner chicken dinner. if you turn the car on with an airbag unplugged itll throw the light. you have to have a piwis/durametric/etc to clear it, or you can take somewhere that specializes in euro cars and they can clear it. I dont have any insight into your regulator not going down all the way, did you remove the spacers from the bottom of the regulator. They have to be removed in used in a 996 and left if in a boxster.
#5
Since I'm going to repeat the entire process again with the regulator, if I correctly follow the sequence with unplugging the air bag and replugging before reconnecting the battery, would this fix the problem with the error message. Thanks again...
#6
Negative. It is a permanent fault code and has to be cleared by one of the devices listed above. You will HAVE to take it to an indy shop that has the equipment, take it to a dealership, or by the durametric or piwis.
Trending Topics
#8
winner winner chicken dinner. if you turn the car on with an airbag unplugged itll throw the light. you have to have a piwis/durametric/etc to clear it, or you can take somewhere that specializes in euro cars and they can clear it. I dont have any insight into your regulator not going down all the way, did you remove the spacers from the bottom of the regulator. They have to be removed in used in a 996 and left if in a boxster.
Last edited by 911C4S; 10-05-2016 at 08:56 AM.
#9
FYI: To adjust the window height is done by removing the outer plugs under the door using an E6 Torx socket to turn the stopper counterclockwise to higher window, and I assume Clockwise to lower window. Wish me luck. Found a write up on Pelicanparts.com
#10
RngTrtl is right you have to take it someplace to have the fault code cleared. I took mine when I got an oil change other wise they try to charge you for it which is total bull cause all they do is plug in a computer and navigate to the setting that turns is off. As far as lowering your window be careful not to lower it to much. As a matter of fact I think that is the actual height of it when its lowered. If you lower it to be totally down when you roll it back up it might not make a strong seal. I would do a seal check at the top before you start lowering it. On mine sock height is a little out of the door.
#11
RngTrtl is right you have to take it someplace to have the fault code cleared. I took mine when I got an oil change other wise they try to charge you for it which is total bull cause all they do is plug in a computer and navigate to the setting that turns is off. As far as lowering your window be careful not to lower it to much. As a matter of fact I think that is the actual height of it when its lowered. If you lower it to be totally down when you roll it back up it might not make a strong seal. I would do a seal check at the top before you start lowering it. On mine sock height is a little out of the door.
#12
i remember there being some good write ups over on RL. Have you searched there?
#13
I'll go and check it out. Thanks for the heads up!! I've noticed my window itself needs to be shifted forward a little. (I can tell from my tint job) Hopefully this will rectify the issue with the window not going completely down. Once I fix this issue, then it's dealing with the air bag issue and getting a shop to hook it up and run the diagnostics on it.
