Did a dumb thing... Ball joint help!

Thread Tools

Rate Thread

Old Jul 21, 2011 | 07:34 PM
  #1
valex's Avatar
Thread Starter
|
Registered User
Joined: Mar 2010
Posts: 159
From: Michigan
Rep Power: 23
valex is infamous around these parts
Did a dumb thing... Ball joint help!

Installing lowering springs in my 997tt. Accidentally pulled the boot off the lower ball joint. No tears, just pulled it out of the groove. How in the hell do I get it back on??

Old Jul 21, 2011 | 07:51 PM
  #2
PwAg's Avatar
Registered User
Joined: Sep 2009
Posts: 16
From: Denver
Rep Power: 0
PwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud of
All-purpose grease and some muscle?

Old Jul 21, 2011 | 08:32 PM
  #3
valex's Avatar
Thread Starter
|
Registered User
Joined: Mar 2010
Posts: 159
From: Michigan
Rep Power: 23
valex is infamous around these parts
its not about muscle. its about getting in the little groove. I have a feeling that I have to replace the entire lower arm??? Does it come non-serviceable?

Old Jul 22, 2011 | 06:22 AM
  #4
eclou's Avatar
Registered User
15 Year Member
Joined: Sep 2006
Posts: 3,028
From: Houston
Rep Power: 201
eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !
if you can post a pic of it we might be able to see how to help

Old Jul 22, 2011 | 10:52 AM
  #5
valex's Avatar
Thread Starter
|
Registered User
Joined: Mar 2010
Posts: 159
From: Michigan
Rep Power: 23
valex is infamous around these parts

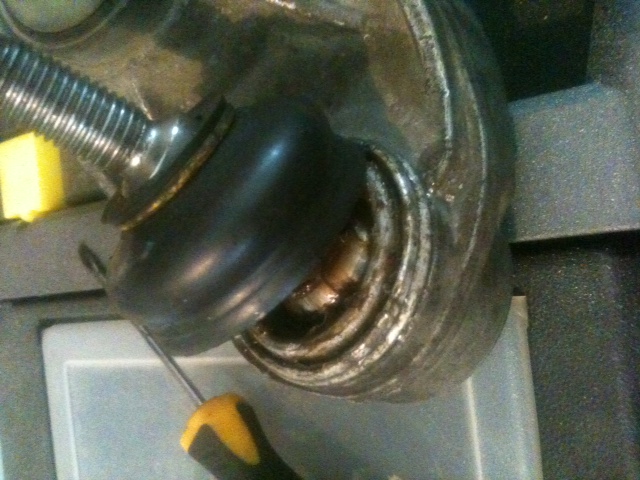

you wish is my command.

Attached Images
Old Jul 22, 2011 | 06:34 PM
  #6
eclou's Avatar
Registered User
15 Year Member
Joined: Sep 2006
Posts: 3,028
From: Houston
Rep Power: 201
eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !eclou Is a GOD !
try to see if that silver outer ring on the base is removable. You may be able to re-seat the boot and then press/tap that outer ring back into place

Old Jul 25, 2011 | 04:32 PM
  #7
Highlander's Avatar
Registered User
Joined: Feb 2011
Posts: 235
From: SF Bay Area
Rep Power: 59
Highlander has a reputation beyond reputeHighlander has a reputation beyond reputeHighlander has a reputation beyond reputeHighlander has a reputation beyond reputeHighlander has a reputation beyond reputeHighlander has a reputation beyond reputeHighlander has a reputation beyond reputeHighlander has a reputation beyond reputeHighlander has a reputation beyond reputeHighlander has a reputation beyond reputeHighlander has a reputation beyond repute
Been there, done that. I was never successful getting the boot back in the groove. You are correct, it's a non-serviceable part and as far as I can tell you have 2 options.
1. Replace the LCA now.
2. You can do as I did and run with the boot dangling until the balljoint wears out, THEN replace the LCA.
I used to track my car pretty heavily and was under it every week, so checking the balljoint just became one of my pre-event checks.

Good Luck!


Last edited by Highlander; Jul 25, 2011 at 04:34 PM.
Old Jul 26, 2011 | 08:47 AM
  #8
valex's Avatar
Thread Starter
|
Registered User
Joined: Mar 2010
Posts: 159
From: Michigan
Rep Power: 23
valex is infamous around these parts
Thats exactly what I did. overnighted a new LCA and put it in, figured that was the only way.

Did notice on the other side, however, a very small (1/16 of an inch) tear in the boot that I did NOT do. I think it is fine however, nothing is coming out of it, so I'm going to run with that normally.

Old Jul 26, 2011 | 09:29 AM
  #9
PwAg's Avatar
Registered User
Joined: Sep 2009
Posts: 16
From: Denver
Rep Power: 0
PwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud ofPwAg has much to be proud of
Valex, sry did not realize the boot expanded so much.

I ran into a similar issue when making a repair on my RS4. Looks like you are good to go. I was going to recommend using an adjustable hose clamp around the boot, allow 1/4" of the boot's edge exposed (side that mates with joint recess) to attempt wrestling it in for a clean mate. Once you have that 1/4" or so within the recess/groove, keep applying much pressure while slowly unscrewing clamp.


Last edited by PwAg; Jul 26, 2011 at 09:35 AM.
Old Jul 26, 2011 | 11:04 AM
  #10
valex's Avatar
Thread Starter
|
Registered User
Joined: Mar 2010
Posts: 159
From: Michigan
Rep Power: 23
valex is infamous around these parts
Yea, now that I have a new arm, it's not #1 priority

However, I was going to try something similar to what you have suggested, we'll see how it goes, I don't have high hopes for it.
