New data log
Thread Starter
|
Registered User
Joined: Apr 2006
Posts: 1,677
From: London (UK)
Rep Power: 156
New data log
I managed to sort a few issues I had with my car and it seems to be running better so I quickly popped out for a drive and it was quite busy but I managed to have a little blast and took this log.
I will do some more later but wondered if you could take a look please
I will do some more later but wondered if you could take a look please
Thread Starter
|
Registered User
Joined: Apr 2006
Posts: 1,677
From: London (UK)
Rep Power: 156
Fuel type; 99 ron
Mods;
FVD Software,
FVD cat less exhaust,
FVD LWFW and clutch,
Aerospace Intercoolers,
IPD Plenum,
IPD Y-pipe,
GT3 TB,
Stock turbos and headers.
Thread Starter
|
Registered User
Joined: Apr 2006
Posts: 1,677
From: London (UK)
Rep Power: 156
Trending Topics
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
Nick, for your second pull, your IATs reach about 46C, which is reasonable. However, without doing a sustained load with several VMax pulls, it is hard to say how easily it gets soaked. For the purposes of that specific run, your ICs seem to be doing their job well. However, it's hard to say what the thermal efficiency is without measuring the temperature before and after the IC...Durametric won't log that info, you'd have to put a probe into the pipes before and after the IC to get that data.
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
In log 2, initially, it looks like the ECU is pulling a timing at peak torque around 5K RPM. It maintains reasonable Lambdas and a boost of about 1.2 at this point. As you reach 230 km/h, at peak torque, you start to run rich.
I'm not sure why, as your IATs seem okay, unless you are just letting off the gas at that point.
I'm not sure why, as your IATs seem okay, unless you are just letting off the gas at that point.
Registered User
Joined: Aug 2009
Posts: 823
From: Mojave, CA
Rep Power: 133
Disregard. Looks like those are in km/hr.
Yeah seems to go pretty rich up top. IATs are "ok" for 1.2-1.3 bar up to those speeds -seems like they were a touch better on some of your older logs though. Have you run a leak check lately?
Yeah seems to go pretty rich up top. IATs are "ok" for 1.2-1.3 bar up to those speeds -seems like they were a touch better on some of your older logs though. Have you run a leak check lately?
Last edited by earl3; Jul 4, 2013 at 11:49 PM.
Registered User
Joined: Dec 2006
Posts: 3,116
From: Palos Verdes
Rep Power: 256

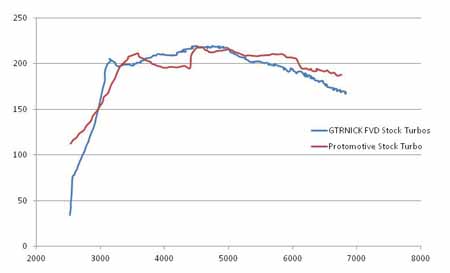

Dave, is the blue curve a graph of engine load from the Nick's data above? Don't know if I am missing something (new to this of course) but it seems Nick's data shows max engine load is at around 4400 rpm , here it is at 3000, making the torque plateau a lot wider than it should be?
Thread Starter
|
Registered User
Joined: Apr 2006
Posts: 1,677
From: London (UK)
Rep Power: 156
In log 2, initially, it looks like the ECU is pulling a timing at peak torque around 5K RPM. It maintains reasonable Lambdas and a boost of about 1.2 at this point. As you reach 230 km/h, at peak torque, you start to run rich.
I'm not sure why, as your IATs seem okay, unless you are just letting off the gas at that point.
I'm not sure why, as your IATs seem okay, unless you are just letting off the gas at that point.
