Need help with leaking A/C pressure switch

Old Apr 10, 2014 | 12:39 PM
  #1
BigBen97's Avatar
Thread Starter
|
Registered User
Joined: Apr 2012
Posts: 69
From: Minneapolis, MN
Rep Power: 19
BigBen97 is a jewel in the roughBigBen97 is a jewel in the roughBigBen97 is a jewel in the rough

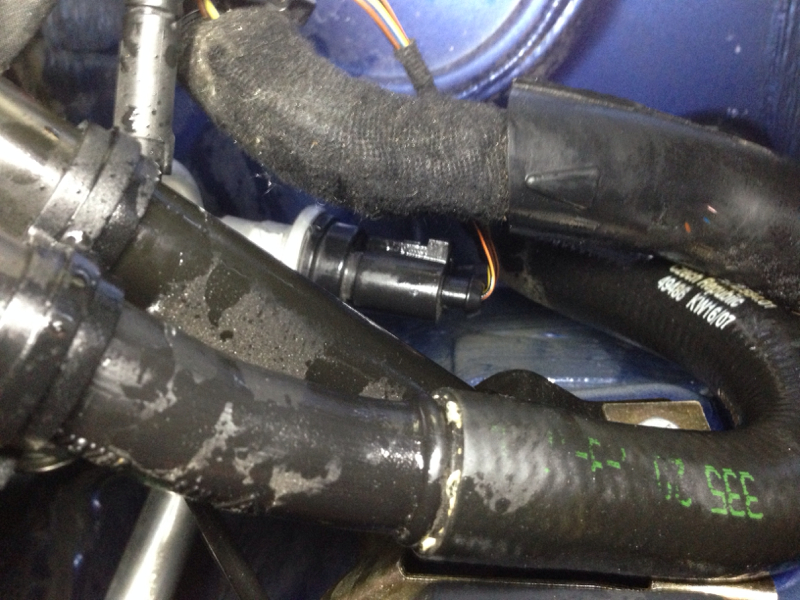

My car dumped all the refrigerant last night. After getting back home I found the leak to be coming from this connector above the front left shock tower area:
Click image for larger version

Name:	image-756078753.jpg
Views:	147
Size:	478.3 KB
ID:	358180

Click image for larger version

Name:	image-2102953351.jpg
Views:	139
Size:	377.0 KB
ID:	358181

I have an appointment with the dealership on the 18th but I'm a DIY person (former B5 S4 owner). I'm wondering if replacing that switch is a DIY option and then go to an Indy for a recharge.

Thoughts or experiences?


Last edited by BigBen97; Apr 10, 2014 at 03:19 PM.
Old Apr 23, 2014 | 07:55 PM
  #2
BigBen97's Avatar
Thread Starter
|
Registered User
Joined: Apr 2012
Posts: 69
From: Minneapolis, MN
Rep Power: 19
BigBen97 is a jewel in the roughBigBen97 is a jewel in the roughBigBen97 is a jewel in the rough
To follow up on my own thread here is the part number you will need if replacing this: 955 613 137 03 or 1K0 959 126 E (my car had rev B). Took all of 2 minutes to R&R using a 17 mm wrench.

True test will be when I get it recharged to see if this truly resolved my issue.
