Switchable 997.1 exhaust

Hi, I'm looking to replace my stock exhaust with a switchable one. A bit of a history, I made exhaust bypass hole in the OEM exhaust which made Porsche should like a sport car - very aggressive, very loud. Men turn to look at the car when I drive, but grandmothers do not run away when they hear me coming - great combo Unfortunately, the car is loud all the time and it drones (a lot and very loudly). I also noticed a very significant increase in responsiveness - they car just flies now.

the problem is that I leave up a large hill and have to push the car to get up - no problem at all, but... it screams when it's going up and drones. I wouldn't mind, but I have to leave quite early - around 6:30 am so to be a decent neighbor, I try to stay away from making very loud noises this early in the morning.

So I don't want to lose the power I gained, but I need the car quieter at times.

The only solution for that, if I understand correctly, is switchable (valvetronic) exhaust. That way I can have muffler bypass when I need and silent operation during other times. I can't stand drone either - I measured, it gets to 104 dB inside the car when it drones!!!

Any recommendations on how to solve my dilemma? There are quite a few switchable exhausts out there, but paying $6,000-7,000 is just crazy.

I found this exhaust, but not sure if it's any good:
http://www.ebay.com/itm/201344836675

Thanks,
Nick

Old Oct 23, 2015 | 06:41 PM
  #2
Mit_Boost's Avatar
Registered User
Joined: Nov 2013
Posts: 226
From: NYC
Rep Power: 39
Mit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant future
Undercover Performance fabricates a really cool switchable exhaust. Goes from mild to wild when you stomp on it -- Could email them for more info: Sales@undercoverperformancenj.com

Old Oct 23, 2015 | 07:35 PM
  #3
dvpouldar26's Avatar
Registered User
Joined: Apr 2011
Posts: 86
From: Los Angeles, CA
Rep Power: 26
dvpouldar26 is a splendid one to beholddvpouldar26 is a splendid one to beholddvpouldar26 is a splendid one to beholddvpouldar26 is a splendid one to beholddvpouldar26 is a splendid one to beholddvpouldar26 is a splendid one to beholddvpouldar26 is a splendid one to behold
I'm sure this can be easily modified to fit your 997.1 exhaust; it is the cheapest and simplest option out there. Other options are Ipe and Armytrix however they are highly priced and don't seem like what you want to spend. The link above is for the Top Gear exhaust made out of the UK; looks decent to me but I have yet to hear a single review of any of the Top Gear exhausts. The Undercover Performance/Fabworx exhaust would be ideal but I can't imagine it being that cheap either. This way you can retain your oem muffler to keep quiet when needed, have the power gains from being catless, and have the volume when you're WOT or when you want to be loud. Hope this is helpful.

http://www.ebay.com/itm/AGENCY-POWER...xVQaEz&vxp=mtr

Old Oct 24, 2015 | 08:13 AM
  #4
nick-seattle's Avatar
Thread Starter
|
Registered User
Joined: May 2015
Posts: 45
From: Seattle, WA
Rep Power: 19
nick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to behold
The big issue I see with TopGear, after looking it over more carefully, is that two mufflers are not connected - I believe that connection is necessary to create a resonance chamber of OEM exhaust and eliminate resonance at around 2,000-2,700 Hz frequency.

AP route is easy one to take, but the car is going to stink as it does with exhaust bypass and cold cats.

I'm OK with spending around $3,500 on that kind of exhaust, but it looks like there are very limited options there.

Old Oct 24, 2015 | 11:08 AM
  #5
997 Turbo's Avatar
Registered User
Joined: Sep 2015
Posts: 43
From: Vantaa
Rep Power: 12
997 Turbo is infamous around these parts
Old Oct 24, 2015 | 09:04 PM
  #6
Mit_Boost's Avatar
Registered User
Joined: Nov 2013
Posts: 226
From: NYC
Rep Power: 39
Mit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant futureMit_Boost has a brilliant future
Here's a video of the Undercover exhaust


Old Oct 27, 2015 | 09:41 AM
  #7
function12's Avatar
Registered User
Joined: Jul 2008
Posts: 1,708
From: Houston, TX
Rep Power: 190
function12 Is a GOD !function12 Is a GOD !function12 Is a GOD !function12 Is a GOD !function12 Is a GOD !function12 Is a GOD !function12 Is a GOD !function12 Is a GOD !function12 Is a GOD !function12 Is a GOD !function12 Is a GOD !
Someone posted they had an exhaust that was switchable and the servos/valves kept melting. After the second set IIRC the MFG said they are to close to the cats and no more warranty. The MFG was the ones who designed the exhaust system. So, they are the ones that put them to close. I think he went back to an X pipe. I believe this was on rennlist.

Old Oct 27, 2015 | 11:40 AM
  #8
Mark @ AIM Performance's Avatar
Basic Sponsor
15 Year Member
Joined: Dec 2009
Posts: 6,584
From: S.Plainfield, NJ
Rep Power: 856
Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !
Originally Posted by nick-seattle
The big issue I see with TopGear, after looking it over more carefully, is that two mufflers are not connected - I believe that connection is necessary to create a resonance chamber of OEM exhaust and eliminate resonance at around 2,000-2,700 Hz frequency.

AP route is easy one to take, but the car is going to stink as it does with exhaust bypass and cold cats.

I'm OK with spending around $3,500 on that kind of exhaust, but it looks like there are very limited options there.

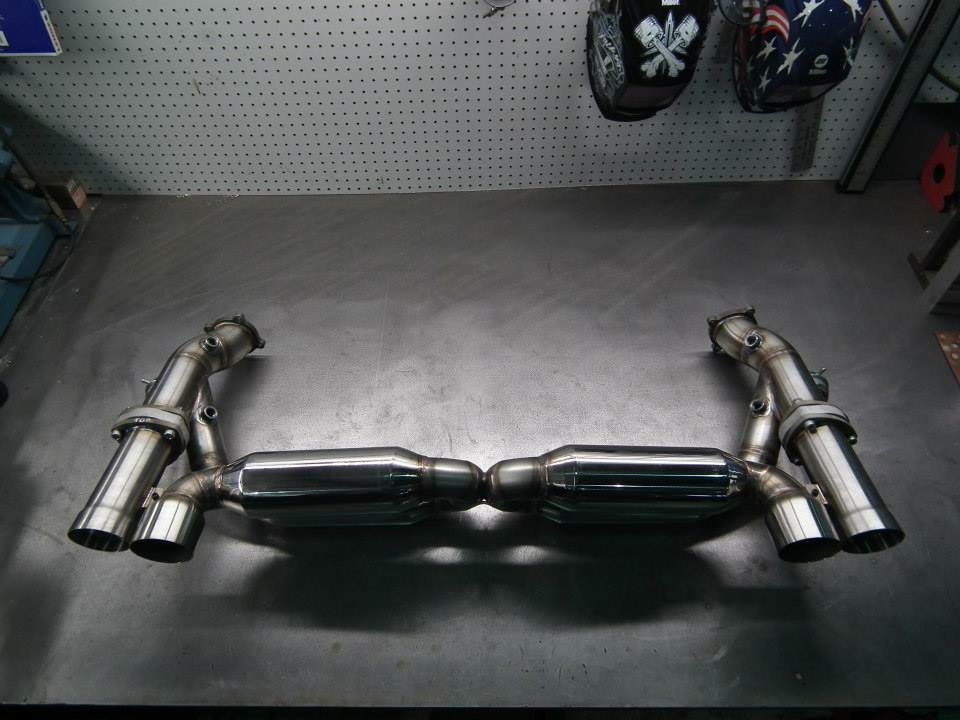

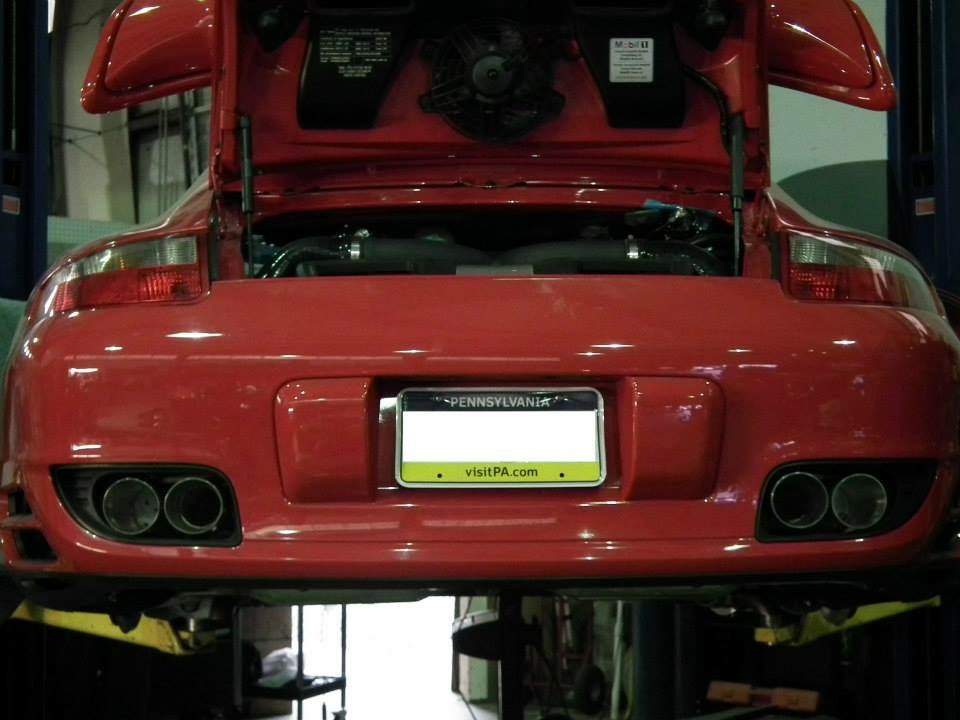

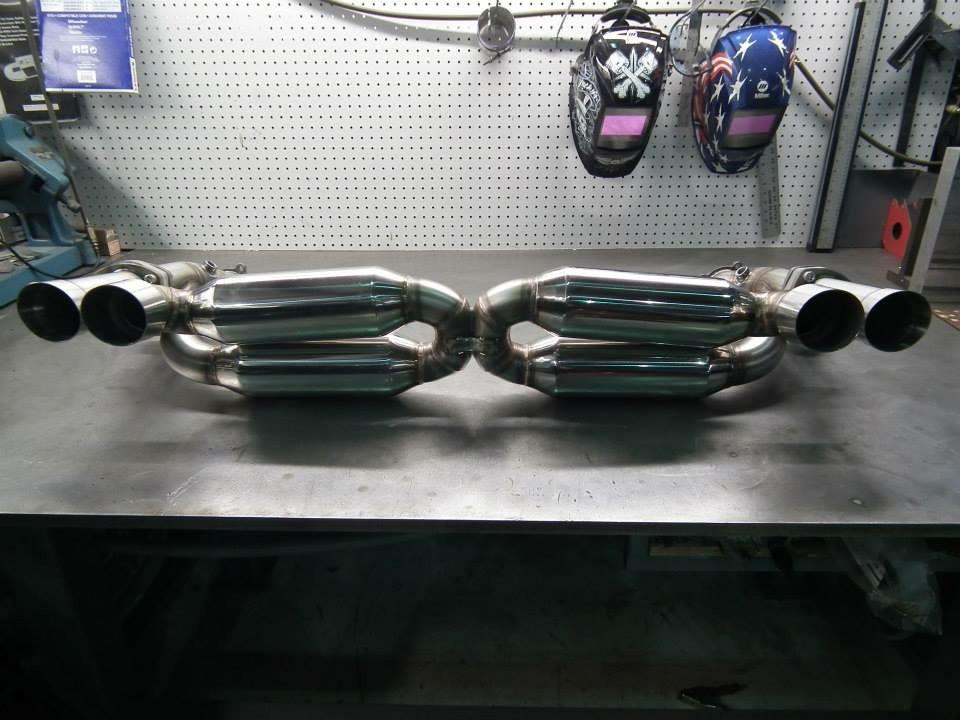

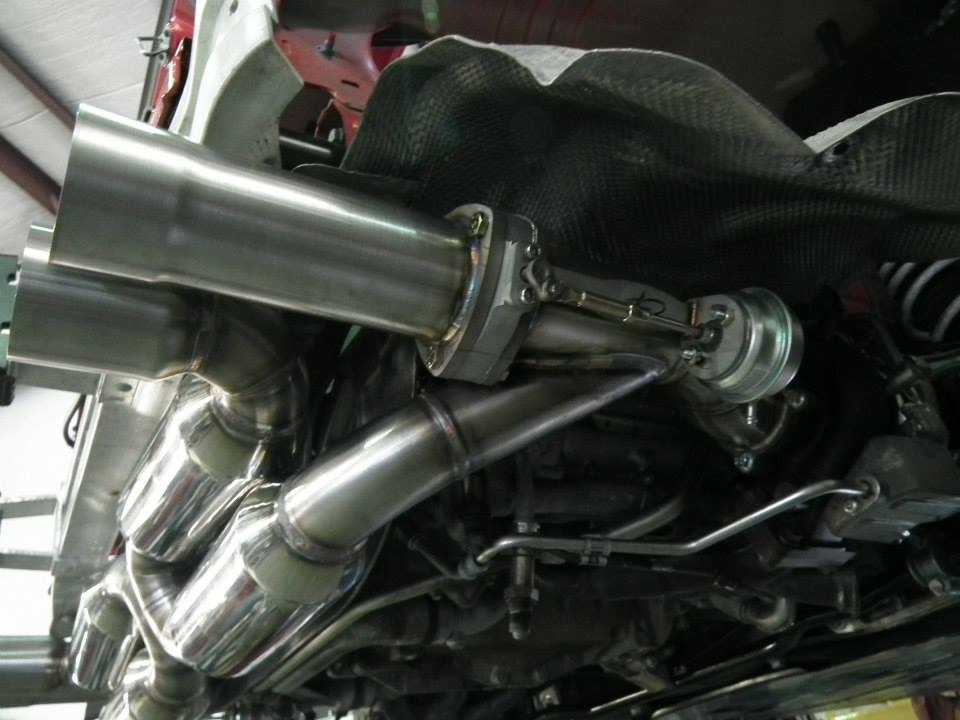

i have a switchable path exhaust that opens into straight pipes at 10psi of boost. however it was over your desired budget of $3.5k by quiet a bit. i really do not think you can get a quality system with actively changing path for that money. heck the sound performance cutouts and valves used in my system were almost $1k just for them.

Name:  0B2F7EE8-C4FF-4D58-A9E9-5A7DDAA39A46_zpsecb1xodi.jpg
Views: 431
Size:  126.3 KB

Name:  805E1028-4D2D-489C-86F2-1EC58BEB7679_zps0rno2o41.jpg
Views: 401
Size:  106.8 KB

Name:  C6A4DBA6-A23B-4049-8760-11CEEBAFFB75_zpsbnypf9cv.jpg
Views: 420
Size:  151.1 KB

Name:  DA12AE5F-C3F7-4E8A-B174-42F89827D1BB_zpsn1kfgs8j.jpg
Views: 436
Size:  113.0 KB

__________________
#TeamAIM
997TT SilverSpool - 210.8 mph 1/2 Mile WR Apr 2019, 9.2 @ 168 mph 1/4 Mile Manual World Record , 3.15 60-130 mph , 2.72 100-150 mph , 1400whp E85
996TT SpoolBus - 204.6 mph 1/2 Mile 996TT WR Aug 2018, 9.5 @ 154 mph, 3.23 60-130 mph, 2.5 100-150 mph Manual Porsche World Record, 1400whp E85
997TT SlowBerry - 205.0 mph 1/2 Mile WR Nov 2018, 9.7 @ 170 mph 1/4 Mile , 3.2 60-130 mph , 2.4 100-150 mph , 1420whp E85
ESMOTOR | DO88 | TPC DSC | SYVECS | COBB | IPD | KLINE | XONA | AMS | ID | ERP | SACHS | TURBOSMART | CSF | DODSON |

Last edited by Mark @ AIM Performance; Oct 27, 2015 at 11:58 AM.
Old Oct 27, 2015 | 08:01 PM
  #9
X Speed Racer X's Avatar
Registered User
Joined: Dec 2007
Posts: 43
From: USA
Rep Power: 20
X Speed Racer X is infamous around these parts
When switching from one mode (open & loud) to the other mode (closed & quiet), I'm assuming 2 different ECU tunes are necessary? Or can the 997tt run in either mode with the 1 same tune?

Apologies, if this is a silly question. Logic tells me 2 different tunes will be needed.

Old Oct 28, 2015 | 08:49 AM
  #10
jordonmusser's Avatar
Registered User
10 Year Member
Joined: May 2012
Posts: 677
From: Coppell, TX USA
Rep Power: 113
jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !
And folks.. that right there is how you do it. Thanks for the pics Prod. 3" to 3.25" tips?


Last edited by jordonmusser; Oct 28, 2015 at 08:56 AM.
Old Oct 28, 2015 | 08:56 AM
  #11
Mark @ AIM Performance's Avatar
Basic Sponsor
15 Year Member
Joined: Dec 2009
Posts: 6,584
From: S.Plainfield, NJ
Rep Power: 856
Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !Mark @ AIM Performance Is a GOD !
Originally Posted by X Speed Racer X
When switching from one mode (open & loud) to the other mode (closed & quiet), I'm assuming 2 different ECU tunes are necessary? Or can the 997tt run in either mode with the 1 same tune?

Apologies, if this is a silly question. Logic tells me 2 different tunes will be needed.
well that depends on how much power you are making and if the open path is actually freeing up any power. up until a certain point all it is, is noise.

__________________
#TeamAIM
997TT SilverSpool - 210.8 mph 1/2 Mile WR Apr 2019, 9.2 @ 168 mph 1/4 Mile Manual World Record , 3.15 60-130 mph , 2.72 100-150 mph , 1400whp E85
996TT SpoolBus - 204.6 mph 1/2 Mile 996TT WR Aug 2018, 9.5 @ 154 mph, 3.23 60-130 mph, 2.5 100-150 mph Manual Porsche World Record, 1400whp E85
997TT SlowBerry - 205.0 mph 1/2 Mile WR Nov 2018, 9.7 @ 170 mph 1/4 Mile , 3.2 60-130 mph , 2.4 100-150 mph , 1420whp E85
ESMOTOR | DO88 | TPC DSC | SYVECS | COBB | IPD | KLINE | XONA | AMS | ID | ERP | SACHS | TURBOSMART | CSF | DODSON |
Old Oct 28, 2015 | 08:57 AM
  #12
jordonmusser's Avatar
Registered User
10 Year Member
Joined: May 2012
Posts: 677
From: Coppell, TX USA
Rep Power: 113
jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !
.. or go with proEFI and use an exahust back pressure sensor to tune for BP vs VE

Old Oct 28, 2015 | 08:59 AM
  #13
jordonmusser's Avatar
Registered User
10 Year Member
Joined: May 2012
Posts: 677
From: Coppell, TX USA
Rep Power: 113
jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !
Curious.. did you dyno or 60-130 the difference between closed and open?

Old Oct 28, 2015 | 01:14 PM
  #14
nick-seattle's Avatar
Thread Starter
|
Registered User
Joined: May 2015
Posts: 45
From: Seattle, WA
Rep Power: 19
nick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to beholdnick-seattle is a splendid one to behold
Not sure how much power I'm making - I have COBB Stage 2 map on it. I did notice a significant difference with bypass - the car accelerates from 60 to 100 in a blink of an eye now, where before it was taking a bit of time to get there. No dyno results to prove it though - but I'm happy.

the sound of the car with the bypass is glorious - it's just the drone that's not good.

It's easy to weld the plug back since it came out cleanly, but I don't have any desire to do that

I think I found a solution to my problem though - instead of trying to buy a mega expensive exhaust, I will just buy a second car for the short trips that I take in the mornings It's cheaper and will reduce amortization on my TT.


Last edited by nick-seattle; Oct 28, 2015 at 02:06 PM.
Old Oct 28, 2015 | 08:05 PM
  #15
jordonmusser's Avatar
Registered User
10 Year Member
Joined: May 2012
Posts: 677
From: Coppell, TX USA
Rep Power: 113
jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !jordonmusser Is a GOD !
I meant prod
