Missing one zircon insert on my brakes

Thread Tools

Search this Thread

Rate Thread

  #1
Old 02-18-2018, 05:27 AM
Ronny-'s Avatar
Registered User
Thread Starter
Join Date: Mar 2015
Location: Norway
Age: 42
Posts: 215
Rep Power: 30
Ronny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud of
Missing one zircon insert on my brakes

Hi, does anyone have a spare ceramic puck for the front brakes?
Im missing the middle one for the 32mm piston.

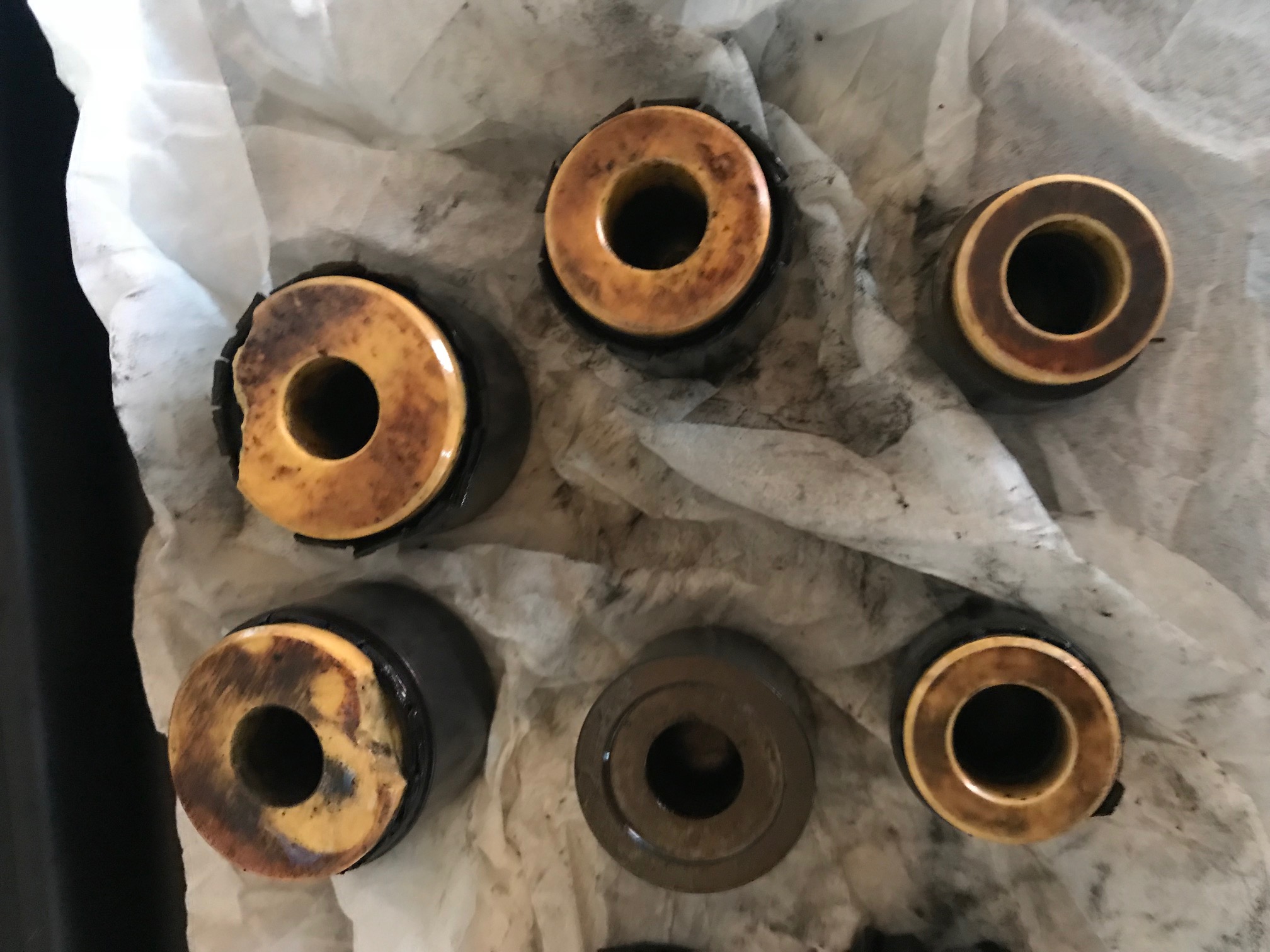

As you can see on the picture a couple of the other pucks are also worn, is a replacement needed for these?

Edit: i measured the piston diameter, the midle is 32mm, are these from a GT3?

Attached Thumbnails Click image for larger version

Name:	IMG_2166.jpg
Views:	56
Size:	483.6 KB
ID:	521031

Last edited by Ronny-; 02-18-2018 at 07:06 AM.
  #2
Old 02-18-2018, 10:35 AM
pwdrhound's Avatar
Registered User
Join Date: Jul 2010
Posts: 4,846
Rep Power: 455
pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !pwdrhound Is a GOD !
GT3 ones are 28/30/32. If I recall TT ones are 30/32/38. There are no 38 replacements available from Porsche or Brembo. Motorport sells a rebuild kit (included pistons and zircons) for the GT3 but not TT. You will need replacement calipers. The latest version of the TT calipers uses brown piston insulators which degrade rapidly.

  #3
Old 02-18-2018, 02:28 PM
Ronny-'s Avatar
Registered User
Thread Starter
Join Date: Mar 2015
Location: Norway
Age: 42
Posts: 215
Rep Power: 30
Ronny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud ofRonny- has much to be proud of
Yes you are right, the calipers are from a 997 turbo.
Wasnt quite clear at first, but after measuring it was obvious.

Hopefully someone have some spares lying around, i've also considered having titan caps machined, but it might be expensive.

I guess yellow insolators are better than the brown ones?
