997 2005-2012 911 C2, C2S, C4, C4S, GTS, Targa and Cabriolet Model Discussion.

Question: Process for steering wheel removal

Thread Tools

Search this Thread

Rate Thread

  #1
Old 08-12-2008, 11:50 PM
p0rsch3's Avatar
Registered User
Thread Starter
Join Date: Apr 2007
Location: Chained to my Laptop....
Posts: 3,124
Rep Power: 170
p0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond repute
Question: Process for steering wheel removal

I'm swapping steering wheels, what is the correct procedure for disconnecting the airbag?

1. key in ignition, turn to position 1
2. remove negative battery cable, wait for more than 10 mins
3. disconnect airbag and change wheel
4. reconnect airbag
5. reconnect battery

Does this sound about right? I read a thread where it was recommended to NOT put the key in the ignition before disconnecting the battery / removing airbag, but IIRC that would set off the alarm on 996 cars- not sure if same applies to 997.

  #2
Old 08-13-2008, 01:04 AM
Daytonaviolet's Avatar
Registered User
Join Date: Jan 2007
Location: Bay Area, CA
Posts: 1,468
Rep Power: 76
Daytonaviolet is infamous around these parts
i removed my wheel when replacing it with the RS steering wheel. this is what i did.

1. align the steering wheel absolutely straight and take the key out of ignition.
2. disconnect the negative terminal of the battery. (i didnt wait 10min)
3. disconnect airbag and change wheel (avoid closing the doors, as windows dont move)
4. reconnect airbag
5. reconnect battery

  #3
Old 08-13-2008, 06:08 AM
p0rsch3's Avatar
Registered User
Thread Starter
Join Date: Apr 2007
Location: Chained to my Laptop....
Posts: 3,124
Rep Power: 170
p0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond repute
Cool- Thanks! So it's confirmed, remove the key before disconnecting battery.
Do you happen to remember what size the main Torx bolt is?

  #4
Old 08-13-2008, 12:22 PM
Daytonaviolet's Avatar
Registered User
Join Date: Jan 2007
Location: Bay Area, CA
Posts: 1,468
Rep Power: 76
Daytonaviolet is infamous around these parts
Originally Posted by p0rsch3
Cool- Thanks! So it's confirmed, remove the key before disconnecting battery.
Do you happen to remember what size the main Torx bolt is?

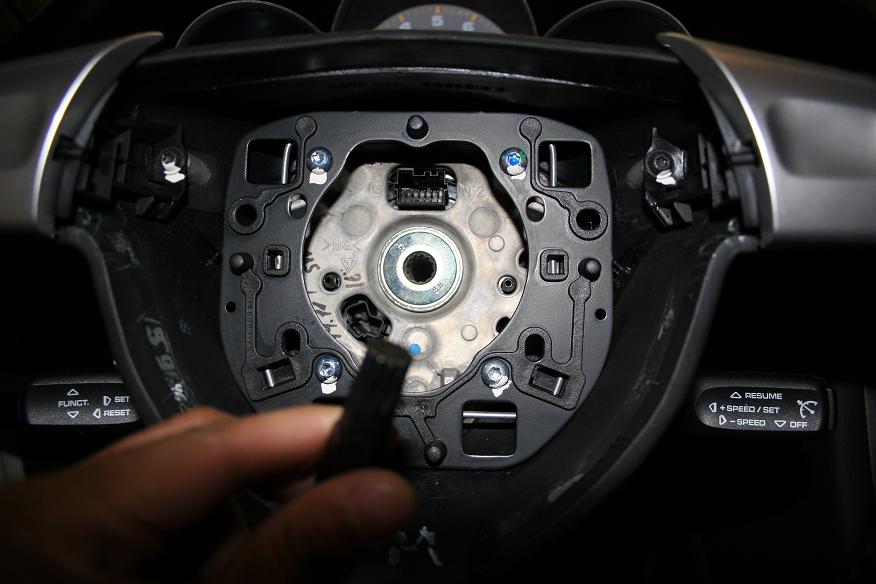

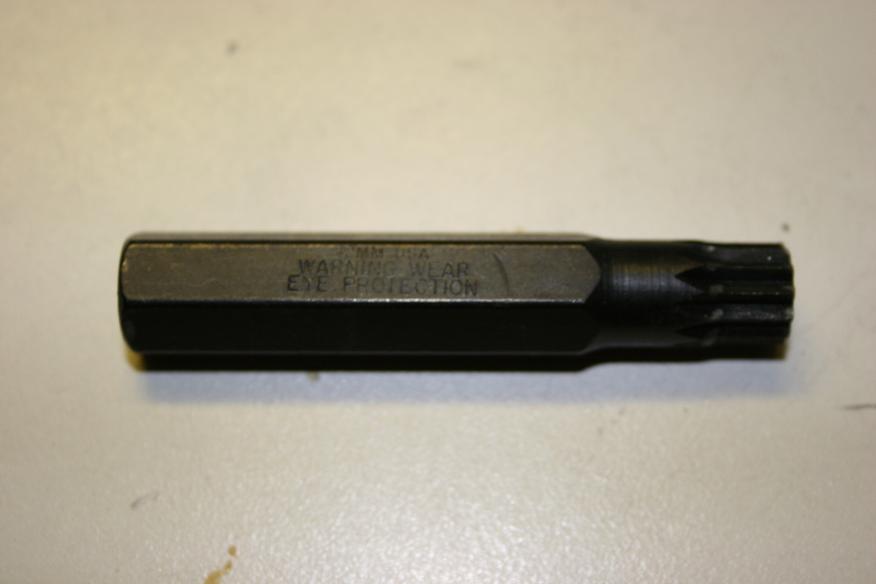

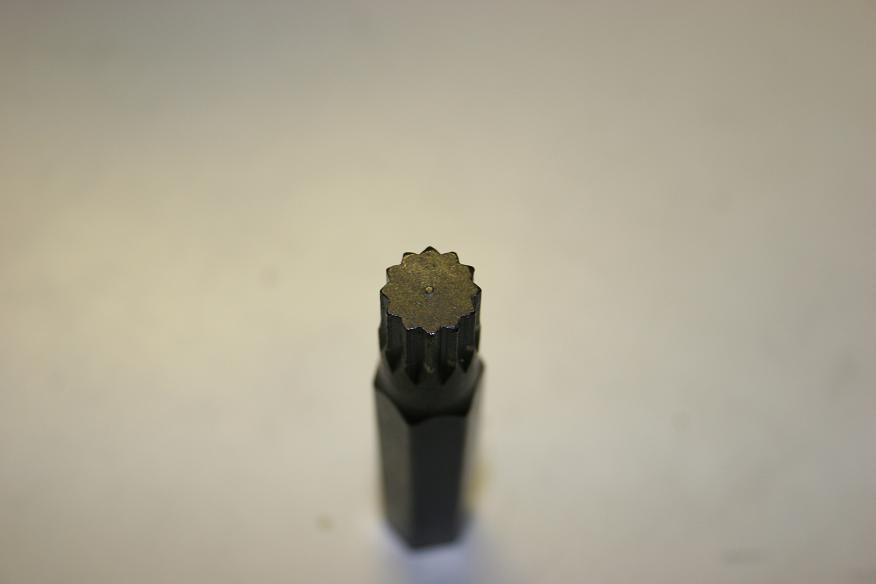

actually the bolt holding the steering wheel is not a torx, its a 12point serrated socket - 12mm. also, once connecting the batery you will get a traction control light on your dash. it will go away as you drive about 1/2 block.

Attached Images

Last edited by Daytonaviolet; 08-13-2008 at 02:50 PM.
  #5
Old 08-13-2008, 04:39 PM
mass's Avatar
Registered User
Join Date: Apr 2007
Location: OC, CA
Posts: 480
Rep Power: 0
mass is infamous around these parts
porsche3, did you ever find out how to remove the guages?

  #6
Old 08-13-2008, 05:25 PM
p0rsch3's Avatar
Registered User
Thread Starter
Join Date: Apr 2007
Location: Chained to my Laptop....
Posts: 3,124
Rep Power: 170
p0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond reputep0rsch3 has a reputation beyond repute
nope - no dice on how to remove the gauge face needles!! grrr..

Guys, thanks for all of your help- I moved the collected knowledge to a new thread:
https://www.6speedonline.com/forums/...l-removal.html

Daytona- can you please repost the tool pics there?

TIA!
