Will Wide body wheel fit on a narrow body?
#1
Will Wide body wheel fit on a narrow body?
I've been looking for a used set of wheels for my 997S and keep coming across deals for Turbo and Carrera 4 wheels. I assume that these won't fit my car with or without spacers. Is that correct? Thanks
#3
Short answer is: it depends
If it's a factory wheel, then most likely yes. Factory C4S/Turbo/GT3 offsets are ET51 on the rear, versus ET67 for a narrow body S (front offsets are the same or negligible if different).
What this means to you is that the rear wheels will stick out 16MM further than your stock S wheel. This SHOULD BE no problem as a lot of people (including myself) run 15MM spacers on the rears to "fill the wheel well" and the car looks good. Another MM shouldn't make the tire/wheel stick out of the fender.
Now, if it's not a factory wheel and something of the aftermarket variety, the rear wheels will probably not fit as the rear offsets will be even more aggressive than 51MM (I've seen ET25) and those wheels will FOR SURE stick out and not fit.
So, if you're upgrading to a factory wide-body wheel, you should not have any problems.
I think user Bara just added GT3 wheels to his S and the wheels looked great (if I'm not mistaken)... he might post in this thread and, hopefully, include a picture or two.
Good luck!
If it's a factory wheel, then most likely yes. Factory C4S/Turbo/GT3 offsets are ET51 on the rear, versus ET67 for a narrow body S (front offsets are the same or negligible if different).
What this means to you is that the rear wheels will stick out 16MM further than your stock S wheel. This SHOULD BE no problem as a lot of people (including myself) run 15MM spacers on the rears to "fill the wheel well" and the car looks good. Another MM shouldn't make the tire/wheel stick out of the fender.
Now, if it's not a factory wheel and something of the aftermarket variety, the rear wheels will probably not fit as the rear offsets will be even more aggressive than 51MM (I've seen ET25) and those wheels will FOR SURE stick out and not fit.
So, if you're upgrading to a factory wide-body wheel, you should not have any problems.
I think user Bara just added GT3 wheels to his S and the wheels looked great (if I'm not mistaken)... he might post in this thread and, hopefully, include a picture or two.
Good luck!
#5
to answer your question, yes, the stock WB wheels fit the NB BUT, the car has to be lowered or it will look like its sticking way out.
the stock GT3 wheel sticks out 12mm past the stock NB wheel. GT3's also run a 5mm spacer in the rear for a total of 17mm past the NB wheel. lowered to GT3 spec, it looks perfect and aggressive.
your specs above wont work. most after market WB wheels are set aggressive for the WB
below is gt3 wheels, lowered to gt3 spec, w/ 5mm spacers in rear
the stock GT3 wheel sticks out 12mm past the stock NB wheel. GT3's also run a 5mm spacer in the rear for a total of 17mm past the NB wheel. lowered to GT3 spec, it looks perfect and aggressive.
your specs above wont work. most after market WB wheels are set aggressive for the WB
below is gt3 wheels, lowered to gt3 spec, w/ 5mm spacers in rear
Last edited by Bara; 06-16-2009 at 07:56 PM.
#6
GT3 wheels on a NB
Bara,
Thanks for your informative post. BTW, your car looks terrific!
I can see that you did your homework regarding the wheel offsets. I didn't realize the GT3 utilized 5 mm rear spacers, but I see now that spec is buried in the GT3 brochure.
I'm curious what you did to lower your car: lowering springs, or coilovers? Would you mind sharing what setup you did?
Did you utilize front wheel spacers, as well?
Also, did you need to roll your rear fenders to make the GT3 wheels fit?
Thanks, Kurt
Thanks for your informative post. BTW, your car looks terrific!
I can see that you did your homework regarding the wheel offsets. I didn't realize the GT3 utilized 5 mm rear spacers, but I see now that spec is buried in the GT3 brochure.
I'm curious what you did to lower your car: lowering springs, or coilovers? Would you mind sharing what setup you did?
Did you utilize front wheel spacers, as well?
Also, did you need to roll your rear fenders to make the GT3 wheels fit?
Thanks, Kurt
#7
Hi ,
yes it will fit : i have oem C4S wheels on my C2S , no problem
As told , it's like having stock C2S wheels with 16mm spacers --> looks clean

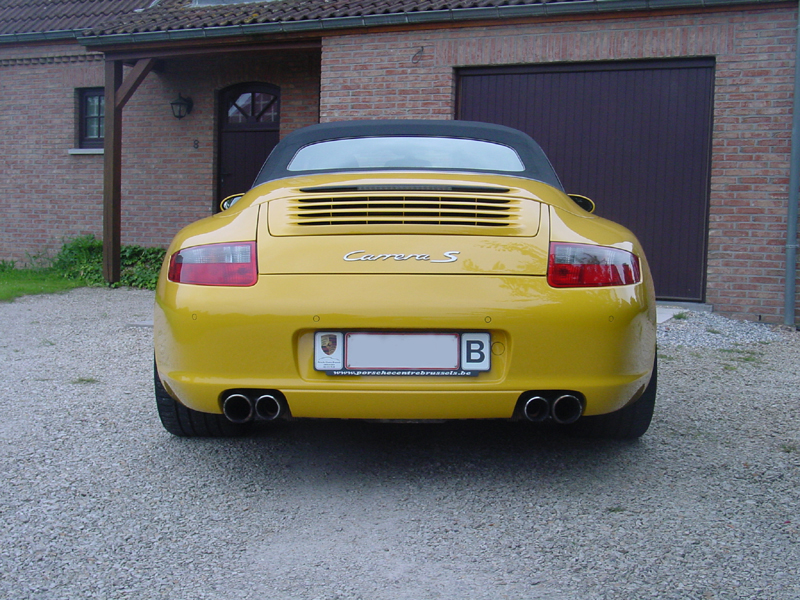

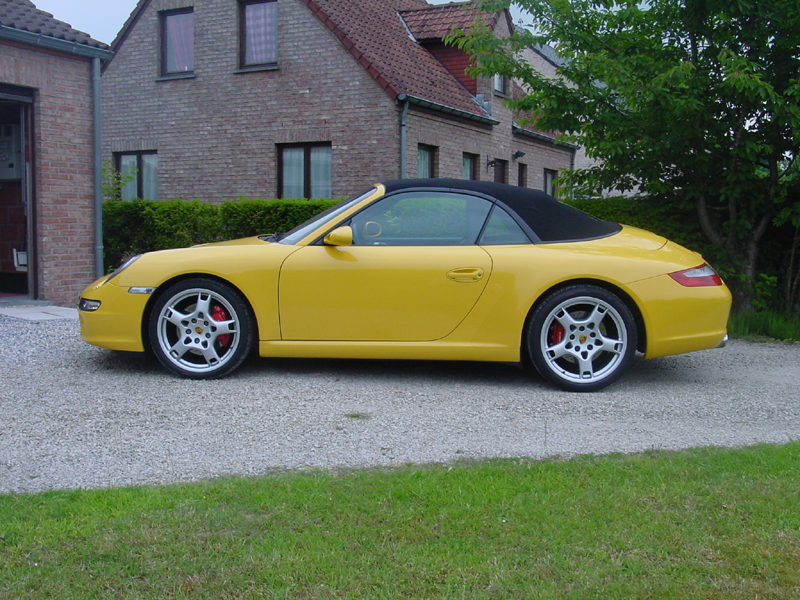

Here is a pic from the back and side :
See ya all and have fun
@+
Nico
yes it will fit : i have oem C4S wheels on my C2S , no problem
As told , it's like having stock C2S wheels with 16mm spacers --> looks clean
Here is a pic from the back and side :
See ya all and have fun
@+
Nico
Last edited by pogoteurfou; 06-17-2009 at 09:10 AM.
Trending Topics
#9
I wouldn't run more than ET50 on the rear of a narrow body (like having a 17mm spacer on the C2/S. I have an ET55 offset wheel with 5mm spacer and any further would look quite odd even lowered and possibly have issues with rubbing.
#10
Bara,
Thanks for your informative post. BTW, your car looks terrific!
I can see that you did your homework regarding the wheel offsets. I didn't realize the GT3 utilized 5 mm rear spacers, but I see now that spec is buried in the GT3 brochure.
I'm curious what you did to lower your car: lowering springs, or coilovers? Would you mind sharing what setup you did?
Did you utilize front wheel spacers, as well?
Also, did you need to roll your rear fenders to make the GT3 wheels fit?
Thanks, Kurt
Thanks for your informative post. BTW, your car looks terrific!
I can see that you did your homework regarding the wheel offsets. I didn't realize the GT3 utilized 5 mm rear spacers, but I see now that spec is buried in the GT3 brochure.
I'm curious what you did to lower your car: lowering springs, or coilovers? Would you mind sharing what setup you did?
Did you utilize front wheel spacers, as well?
Also, did you need to roll your rear fenders to make the GT3 wheels fit?
Thanks, Kurt
2. no spacers in the front and none is needed in front w/gt3 wheels. the GT3 wheel is 1/2" wider and uses a more aggressive offset than the C2 (53mm vs 57mm) for a total 10 mm past the C2 wheel. most c2/c4 guys that run spacers on the front use a 7mm so you can see the GT3 wheel by itself is 3mm farther out than the C2 wheel+7mm spacer.
3. GT3 wheels fit the NB at stock height. they also fit my C2S at GT3 height without any problems. im also running the gt3 issue pilot cup 305 thats quite a bit wider than the street pilot sport 305.
i have been told that the Gt3 comes with rolled rear lips. My C2S also has rolled lips in the rear at the top of the arc. no i did not roll them and it came this way. so im curious to see a gt3 up close to see what other rolling they have done. basically, my c2s is rolled at the rear at the right place. its rolled back out at the front and the rear of the wheel arc.
i think that all C2's come rolled and the gt3 might have the entire lip rolled front to back.
in any event, im not the first to try the gt3 wheels on a C2 and have never heard of any contact even on lowered cars and no problems with mine
#12
the gt3 is a 12" wide in the rear and wont fit a cayman no matter how you offset it
#13
I have wide body wheels on a narrow body. 51 offset carrera classic 5 spokes. I lowered mine with HR springs and it looks sick! Right Bara?
Last edited by Jetpilot; 06-17-2009 at 07:19 PM.
#15
yes it does. and i have seen this car in person. sweet ride, but dont try it without lowering and jetpilot has his lowered just right.
