How to access back of radio for AUX-In install?
#1
How to access back of radio for AUX-In install?
Hi Everyone,
I'm here trying to help a buddy of mine out install an an Aux-in adapter into his Aston Martin Vantage. I have done radio installs before in lower-end cars (Audi) but not on a hand built vehicle before. I heard it is easier to work on the Aston because it is hand built so they have the assembly process thought out.
This is the aux in adapter I am getting for him:
http://www.navtv.com/product/53/most-aux-aston.html?forceShowProduct=1
I know I need to find out from him if his car has an in-dash cd changer (to my knowledge he does not) or if it has bluetooth (i don't think he has this either). I will check with him today and report back. But does anyone know how to get access to the back of the radio unit to plug this sucker in? Is it a difficult process? I remember seeing some pictures on this forum that made it look quite easy to take off the face of the radio.
I've included the instructions from NAV-TV who only show how to plug it into the back of the radio. Basically the module puts itself inline with the optical ring and has a switch to turn on AUX. it is a direct connection just before the amplifier so it will have very high quality audio depending on the source that is plugged in.
Thanks in advance for your help!
I'm here trying to help a buddy of mine out install an an Aux-in adapter into his Aston Martin Vantage. I have done radio installs before in lower-end cars (Audi) but not on a hand built vehicle before. I heard it is easier to work on the Aston because it is hand built so they have the assembly process thought out.
This is the aux in adapter I am getting for him:
http://www.navtv.com/product/53/most-aux-aston.html?forceShowProduct=1
I know I need to find out from him if his car has an in-dash cd changer (to my knowledge he does not) or if it has bluetooth (i don't think he has this either). I will check with him today and report back. But does anyone know how to get access to the back of the radio unit to plug this sucker in? Is it a difficult process? I remember seeing some pictures on this forum that made it look quite easy to take off the face of the radio.
I've included the instructions from NAV-TV who only show how to plug it into the back of the radio. Basically the module puts itself inline with the optical ring and has a switch to turn on AUX. it is a direct connection just before the amplifier so it will have very high quality audio depending on the source that is plugged in.
Thanks in advance for your help!
Last edited by GT3 Chuck; 04-19-2012 at 02:29 PM. Reason: Active link to a commercial non sponsor
#2
FYI - not much help but ... I just had BLVD Customs (St Pete FL) install a JL Audio fiber adapter kit that gave me Sat radio and iPod connection for my 2007 V8V. Yes, I have in dash multi CD system that as factory option stock so it can be done. With all wires, antenna and things hidden in a professional manner this was not an easy job - for a pro it still took about a day. I have installed a few systems in lessor cars but the AM interior kept me from trying this one - just did not want to screw something up that would cost $$$ if I did.
#3
FYI - not much help but ... I just had BLVD Customs (St Pete FL) install a JL Audio fiber adapter kit that gave me Sat radio and iPod connection for my 2007 V8V. Yes, I have in dash multi CD system that as factory option stock so it can be done. With all wires, antenna and things hidden in a professional manner this was not an easy job - for a pro it still took about a day. I have installed a few systems in lessor cars but the AM interior kept me from trying this one - just did not want to screw something up that would cost $$$ if I did.
#4
Controls
What type of control do you have to iPod with that type of connection? It'd be cool to control from the actual stereo but I guess controlling it with the iPod and having it charge is the bare minimum to using one.
#5
With the above module it is only a mini plug that connects to the iPod. No steering wheel controls will be active.
There are other modules that have that functionality. I believe the cheapest I found was $750 from the UK (parrot/patriot? I forgot it is in the archives on this forum if you search for iPod).
And there is also an FM modulator with very good quality audio. It has TEXT display from your iPod which makes it almost like a factory integration, very cool if you ask me.
There are other modules that have that functionality. I believe the cheapest I found was $750 from the UK (parrot/patriot? I forgot it is in the archives on this forum if you search for iPod).
And there is also an FM modulator with very good quality audio. It has TEXT display from your iPod which makes it almost like a factory integration, very cool if you ask me.
#6
Here is a link to the Kensington FM modulator with TEXT:
http://forums.ilounge.com/attachment...od-install.pdf
http://forums.ilounge.com/attachment...od-install.pdf
#7
The JL Audio kit has a small switch (under dash) - on for Sat Radio or iPod control, off for Std radio and CD. Control of iPod and sat radio are from each of their own head units not the AM dash unit. That was fine for me.
AM does make their own kit for retro fit of earlier V8V and I believe it does allow control from the dash/head unit - it does iPod not sure about Sat Radio capability.
AM does make their own kit for retro fit of earlier V8V and I believe it does allow control from the dash/head unit - it does iPod not sure about Sat Radio capability.
Trending Topics
#9
The total JL Audio kit/install was about $1200 depending on where you want the module. I went for "in the glove box" w/ both Sat Radio and iPod plug in. Yes this is a real plug in - not FM modulator.
The Sat Radio head unit could go where the ash tray is - you would loose the little door and what is underneath but the unit I bought would fit nicely, flush mount. I went w/ glove box - not sure why now that I did it!
BTW I have 2 more of these "small" Sat Radio kits if anyone would like to buy them. They both are unopened, in the sealed box (rec's all Sirius & XM channels as they have merged over the air). This kit includes everything you need (head unit, power cords, antenna) for system to work. The "newer" head units coming on the market are larger and will not fit the AM ash tray and would take up more (2X) room in glove box. PM me if interested - will sell at my cost.
The Sat Radio head unit could go where the ash tray is - you would loose the little door and what is underneath but the unit I bought would fit nicely, flush mount. I went w/ glove box - not sure why now that I did it!
BTW I have 2 more of these "small" Sat Radio kits if anyone would like to buy them. They both are unopened, in the sealed box (rec's all Sirius & XM channels as they have merged over the air). This kit includes everything you need (head unit, power cords, antenna) for system to work. The "newer" head units coming on the market are larger and will not fit the AM ash tray and would take up more (2X) room in glove box. PM me if interested - will sell at my cost.
#10
What was the JL Audio kit - model number or other reference would be greatly appreciated.
I'm trying to get bluetooth / ipod / sat radio for my V8 installed using a Parrot system interfaced into my premium audio system via a module from NAV TV, but my installers can't get the NAV TV module to work properly.
So I'm wondering if this JL Audio kit you mention might be a solution. Any advice is appreciated.
I'm trying to get bluetooth / ipod / sat radio for my V8 installed using a Parrot system interfaced into my premium audio system via a module from NAV TV, but my installers can't get the NAV TV module to work properly.
So I'm wondering if this JL Audio kit you mention might be a solution. Any advice is appreciated.
#11
What was the JL Audio kit - model number or other reference would be greatly appreciated.
I'm trying to get bluetooth / ipod / sat radio for my V8 installed using a Parrot system interfaced into my premium audio system via a module from NAV TV, but my installers can't get the NAV TV module to work properly.
So I'm wondering if this JL Audio kit you mention might be a solution. Any advice is appreciated.
I'm trying to get bluetooth / ipod / sat radio for my V8 installed using a Parrot system interfaced into my premium audio system via a module from NAV TV, but my installers can't get the NAV TV module to work properly.
So I'm wondering if this JL Audio kit you mention might be a solution. Any advice is appreciated.
#12
MOST AUX -- 2007 Vantage Install
I just installed the NAVTV MOST-AUX in my 2007 Vantage. It has the Premium Audio from factory and no Navigation.

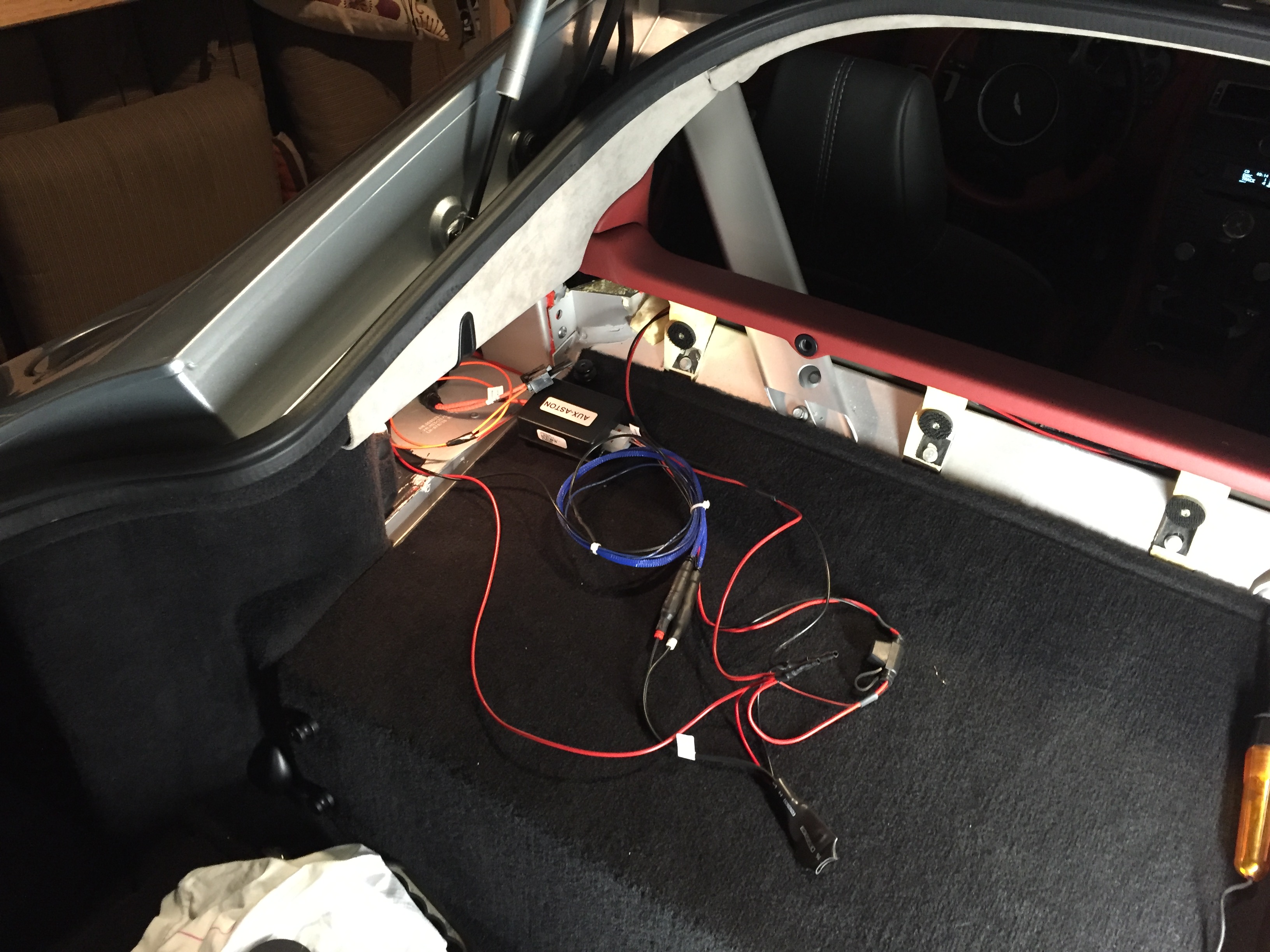

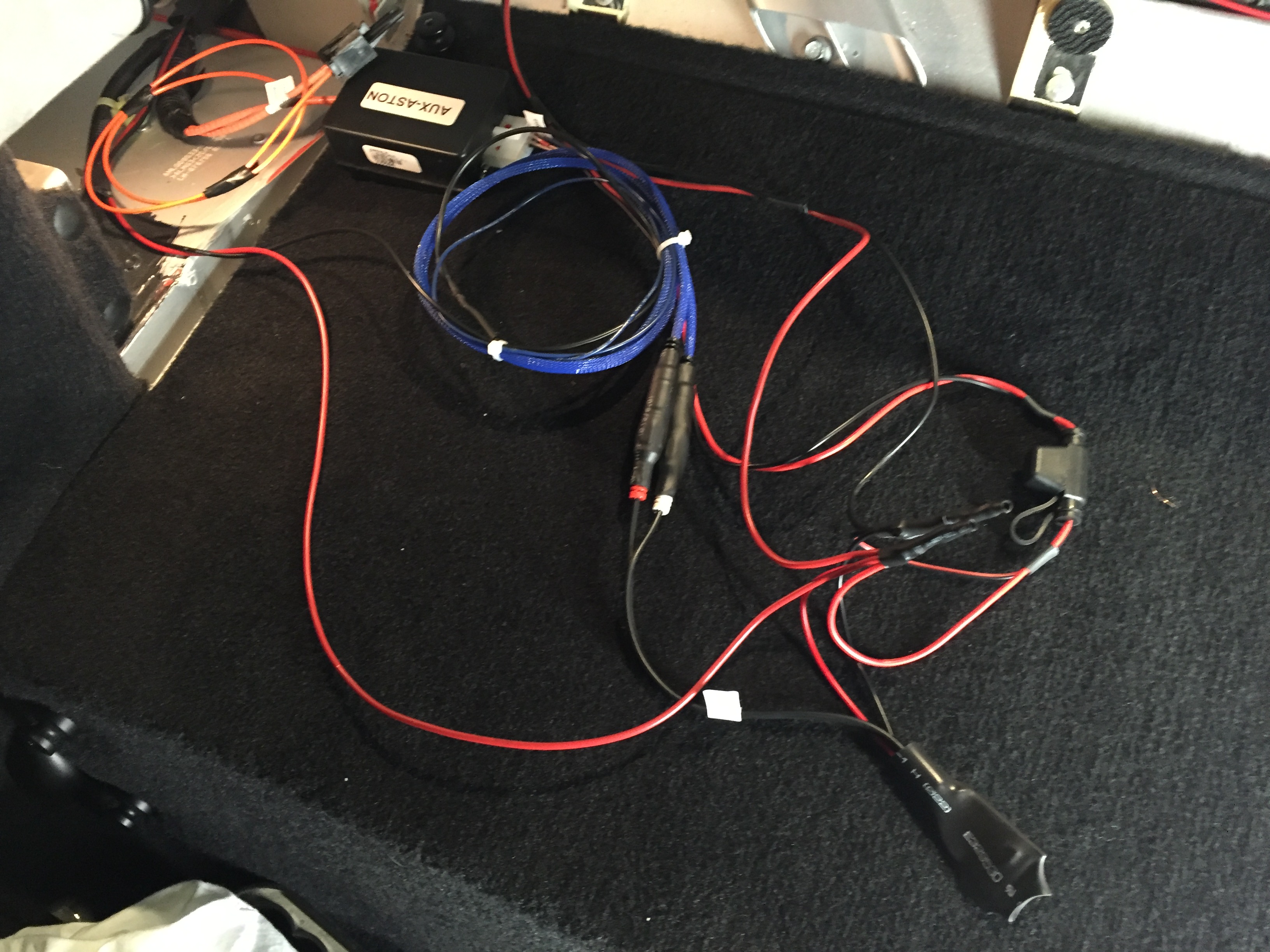

On the Driver (LHD) side of the trunk, there is spot where some other module would normally mount (maybe related to the Navigation system). But I was able to use that open connector to join into the fiber optic ring of the architecture (the orange optic pipes). Ran power lines back to the fuse box on the Passenger Side. Ran a Switch to the small recessed compartment that contains the power plug that is behind the shifter.
On the Driver (LHD) side of the trunk, there is spot where some other module would normally mount (maybe related to the Navigation system). But I was able to use that open connector to join into the fiber optic ring of the architecture (the orange optic pipes). Ran power lines back to the fuse box on the Passenger Side. Ran a Switch to the small recessed compartment that contains the power plug that is behind the shifter.
#15

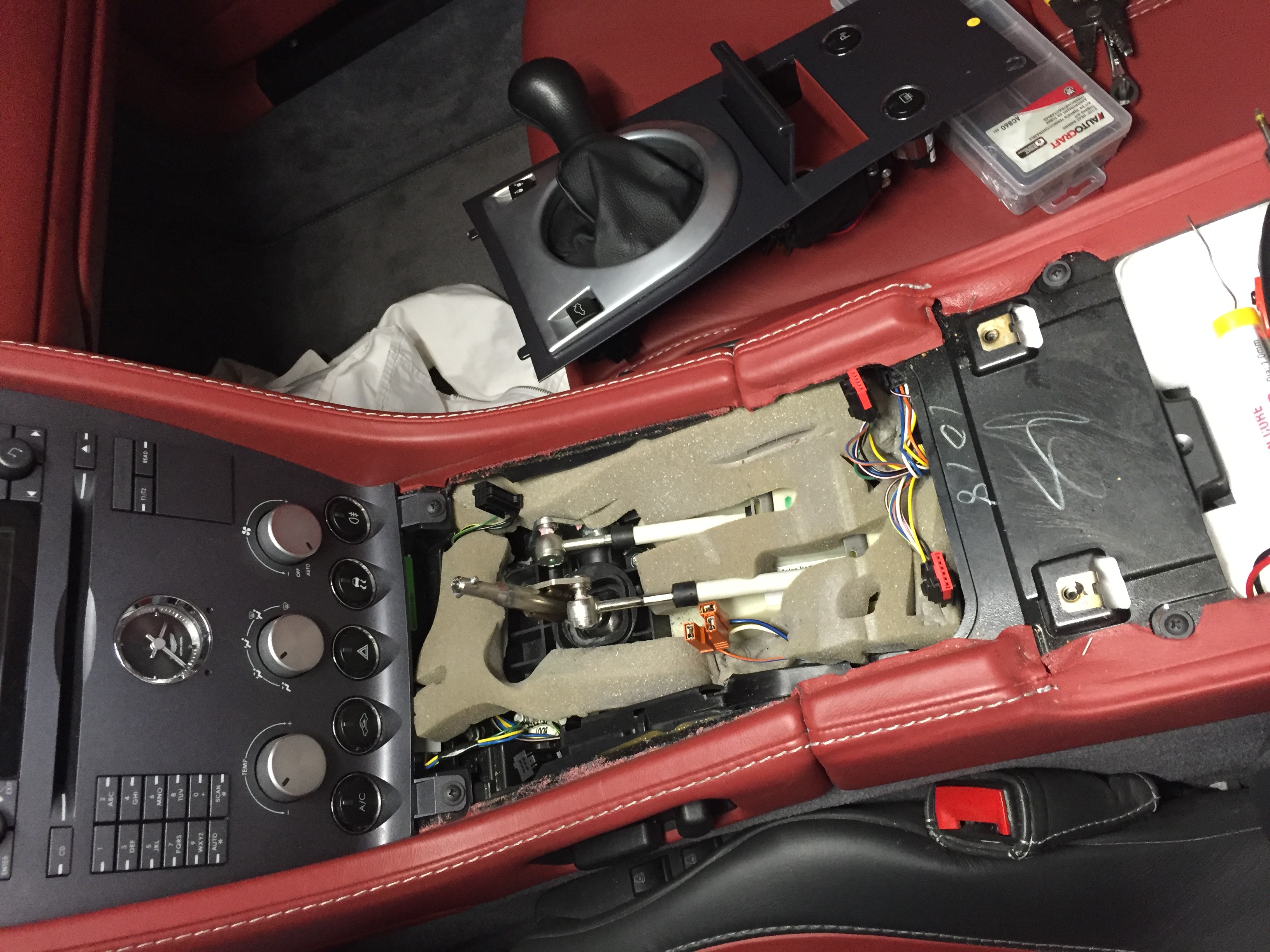

Welcome Bob, great post. You are correct that spot in the upper left trunk is where the NAV DVD player would sit. If you managed to pick up the fiber optic loop there... why did you need to take the center console apart? I'd love to skip that step if I do this.
Thanks!
Thanks!
